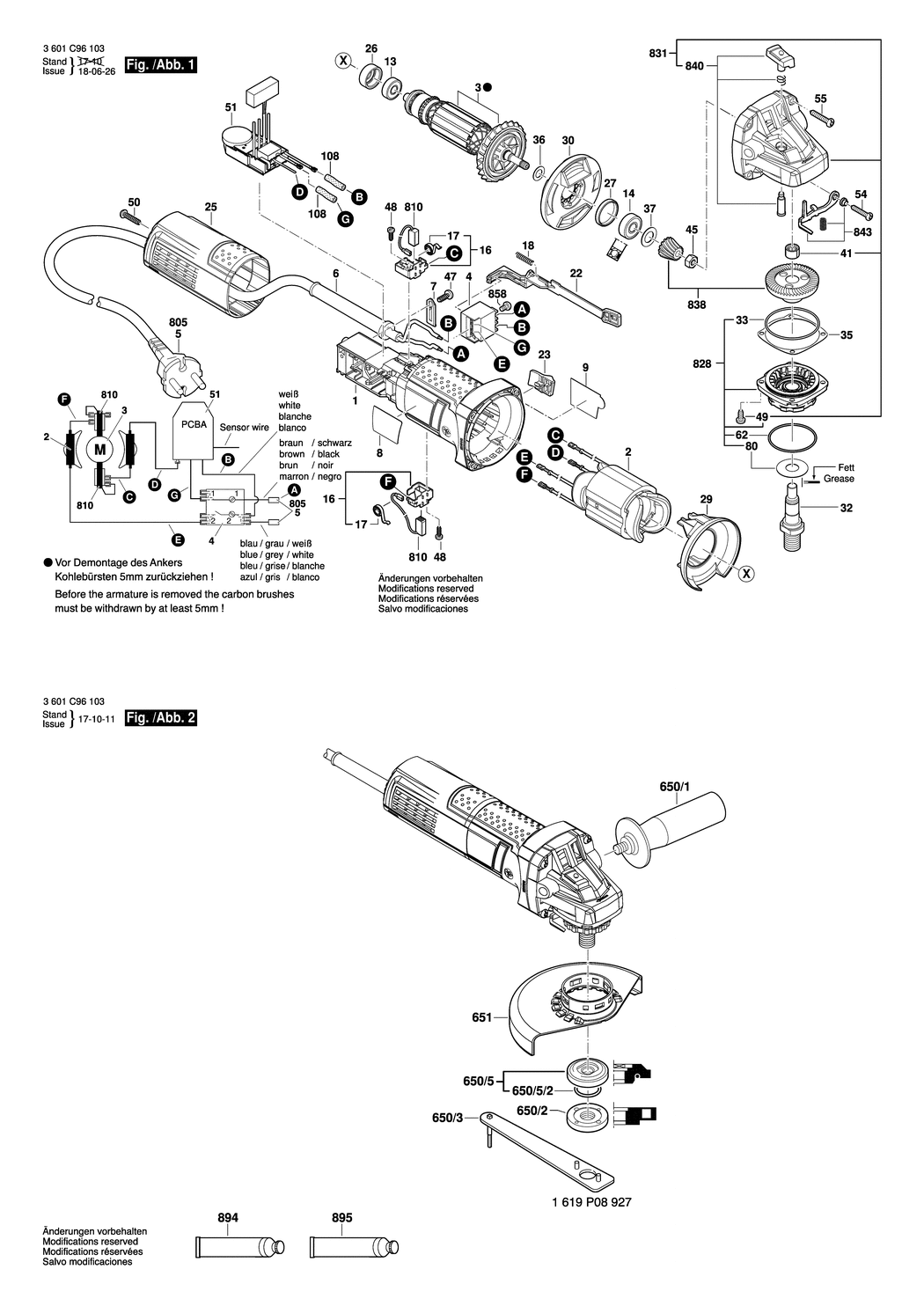

1 - MOTOR HOUSING
BSD-1619P10959.A4
1619P10959
|
£5.30
|
£6.36
|
|
|
2 - FIELD 220-240V
BSD-1619P10953.A7
1619P10953
|
£22.60
|
£27.12
|
|
|
3 - ARMATURE 220-240V
BSD-1619P10952.A4
1619P10952
|
£21.68
|
£26.01
|
|
|
4 - SWITCH
BSD-160720031S.A4
160720031S
|
£6.52
|
£7.83
|
|
|
5 - POWER SUPPLY CORD CN 2.65m 2 x 0.75mm H05 W-F
BSD-1604460312.A9
1604460312
|
£10.61
|
£12.73
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A890
2600703012
|
£2.94
|
£3.53
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A561
1601302017
|
£1.84
|
£2.21
|
|
|
8 - NAMEPLATE
BSD-1619P32488.A0
1619P32488
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE GWS 9-115 S
BSD-1619P11143.A0
1619P11143
|
£2.61
|
£3.13
|
|
|
13 - GROOVE BALL BEARING
BSD-1619P08829.A31
1619P08829
|
£6.85
|
£8.22
|
|
|
14 - GROOVE BALL BEARING
BSD-1619P13103.A31
1619P13103
|
£2.94
|
£3.53
|
|
|
16 - BRUSH HOLDER
BSD-1619P01811.A107
1619P01811
|
£2.80
|
£3.36
|
|
|
17 - SPIRAL SPRING
BSD-1604652013.A632
1604652013
|
£1.84
|
£2.21
|
|
|
18 - COMPRESSION SPRING
BSD-1619P11487.A20
1619P11487
|
£1.84
|
£2.21
|
|
|
22 - ADJUSTING SLIDE
BSD-1619P10968.A12
1619P10968
|
£1.75
|
£2.10
|
|
|
23 - SWITCH BUTTON
BSD-1619P10969.A1
1619P10969
|
£1.97
|
£2.36
|
|
|
25 - HOUSING COVER
BSD-1619P13557.A2
1619P13557
|
£5.30
|
£6.36
|
|
|
26 - INTERMEDIATE RING
BSD-1600502023.A168
1600502023
|
£2.27
|
£2.72
|
|
|
27 - RUBBER RING
BSD-1600206025.A751
1600206025
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1619P10970.A38
1619P10970
|
£1.75
|
£2.10
|
|
|
30 - AIR DISTRIBUTOR
BSD-1619P14139.A1
1619P14139
|
£1.84
|
£2.21
|
|
|
32 - GRINDING SPINDLE M 14. SW 17
BSD-1619P06419.A29
1619P06419
|
£11.30
|
£13.56
|
|
|
33 - O-RING 44.0x1.0 MM
BSD-1619P02820.A14
1619P02820
|
£1.75
|
£2.10
|
|
|
35 - SHIM 0.1 MM
BSD-1619P02821.A53
1619P02821
|
£1.75
|
£2.10
|
|
|
35 - SHIM 0.2 MM
BSD-1619P02822.A20
1619P02822
|
£1.75
|
£2.10
|
|
|
36 - WASHER
BSD-1619P00987.A20
1619P00987
|
£1.75
|
£2.10
|
|
|
37 - COVER DISC
BSD-1600100033.A97
1600100033
|
£2.74
|
£3.29
|
|
|
41 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A814
1600910018
|
£5.57
|
£6.68
|
|
|
45 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A1510
2915011007
|
-
|
|
|
|
47 - SPECIAL SCREW
BSD-2609110052.A174
2609110052
|
£1.84
|
£2.21
|
|
|
48 - TORX OVAL-HEAD SCREW 3x10
BSD-1619P00220.A84
1619P00220
|
£1.75
|
£2.10
|
|
|
49 - THREAD-FORMING TAP. SCREW
BSD-1619P11118.A5
1619P11118
|
£1.75
|
£2.10
|
|
|
50 - TORX OVAL-HEAD SCREW 4x20
BSD-1619P00105.A149
1619P00105
|
£1.75
|
£2.10
|
|
|
51 - SPEED GOVERNOR
BSD-160723358M.A2
160723358M
|
£28.59
|
£34.31
|
|
|
54 - TORX OVAL-HEAD SCREW 4x30
BSD-2603490025.A185
2603490025
|
£1.84
|
£2.21
|
|
|
55 - TORX OVAL-HEAD SCREW 4x25
BSD-1619P01066.A17
1619P01066
|
£1.84
|
£2.21
|
|
|
62 - O-RING 38.0x1.5 MM
BSD-1600210038.A37
1600210038
|
£2.61
|
£3.13
|
|
|
80 - COVER DISC
BSD-1619P09390.A46
1619P09390
|
£2.27
|
£2.72
|
|
|
108 - SHRINKABLE TUBE
BSD-1619P02866.A9
1619P02866
|
£1.84
|
£2.21
|
|
|
650/1 - AUXILIARY HANDLE
BSD-1619P10681.A7
1619P10681
|
£3.91
|
£4.69
|
|
|
650/2 - ROUND NUT M14
BSD-1603345043.A537
1603345043
|
£9.11
|
£10.93
|
|
|
650/3 - PIN-TYPE FACE-WRENCH
BSD-1619P08927.A3
1619P08927
|
£4.26
|
£5.11
|
|
|
650/5 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A769
2605703014
|
£7.72
|
£9.27
|
|
|
650/5/2 - O-RING 20.35x1.78 MM
BSD-1600210039.A3
1600210039
|
£2.27
|
£2.72
|
|
|
651 - PROTECTIVE COVER dia115 MM
BSD-1619P14538.A2
1619P14538
|
£10.10
|
£12.12
|
|
|
810 - CARBON-BRUSH SET
BSD-1619P11715.A20
1619P11715
|
£6.99
|
£8.39
|
|
|
828 - BEARING FLANGE
BSD-1619P11094.A3
1619P11094
|
£15.65
|
£18.78
|
|
|
831 - GEAR HOUSING
BSD-1619P11096.A0
1619P11096
|
£13.78
|
£16.54
|
|
|
838 - SET OF GEARS
BSD-1619P16293.A13
1619P16293
|
£17.22
|
£20.67
|
|
|
840 - PUSH BUTTON
BSD-1619P12188.A17
1619P12188
|
£1.84
|
£2.21
|
|
|
843 - CATCH LEVER
BSD-1619P11076.A0
1619P11076
|
£19.91
|
£23.89
|
|
|
858 - OVAL-HEAD SCREW DIN7985-M3.5x5-4.8-H
BSD-2910641081.A15
2910641081
|
-
|
|
|
|
894 - GREASE TUBE 225 ML
BSD-1615430020.A179
1615430020
|
£21.52
|
£25.83
|
|
|
895 - GREASE TUBE 225 ML
BSD-1605430003.A146
1605430003
|
£35.42
|
£42.51
|
|
