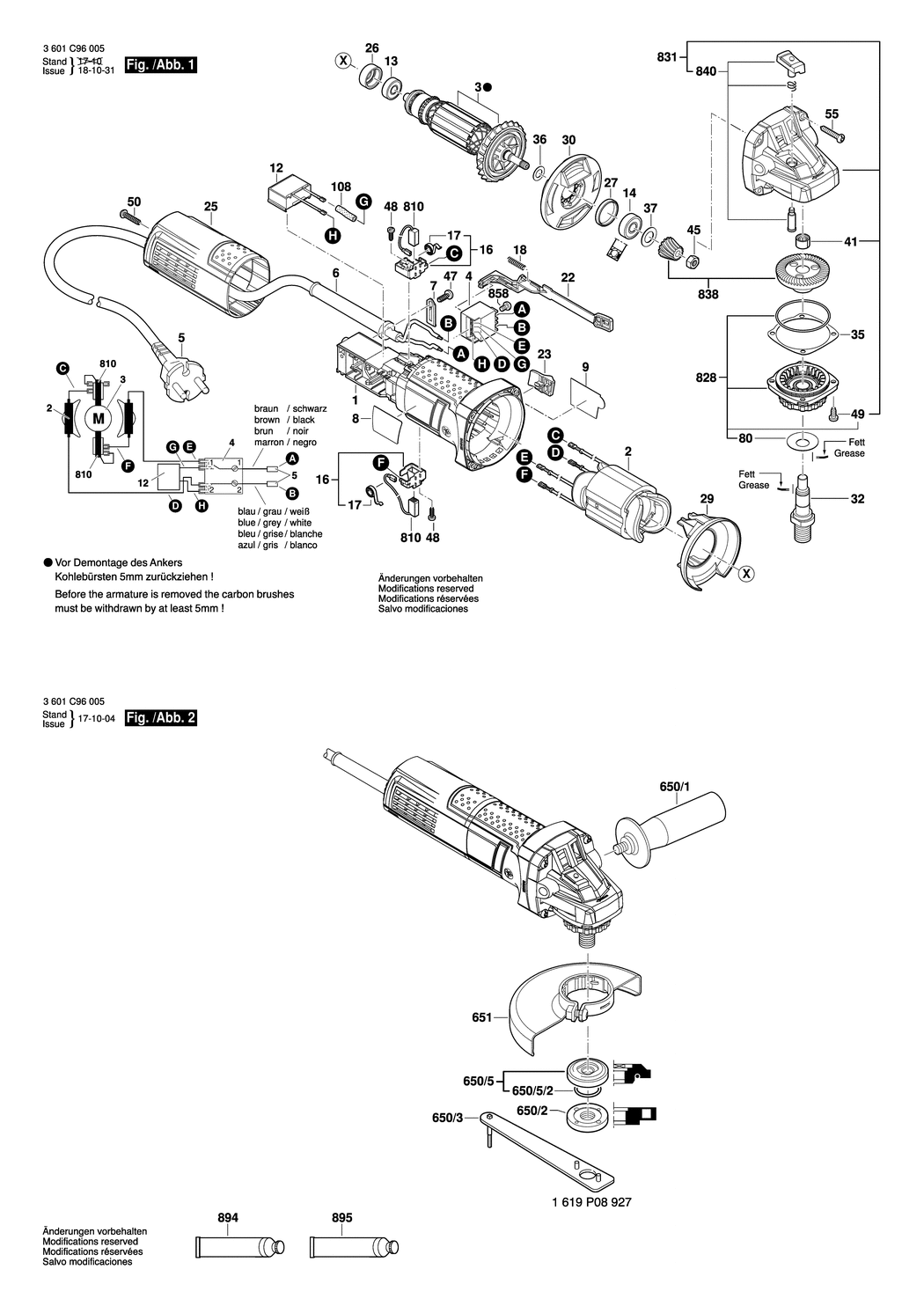

An exploded drawing and listing for the Bosch GWS 880 / 3601C96005 / EU 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1619P10959.A2 1619P10959 £5.30 £6.36
2 - FIELD 220-240V BSD-1619P10953.A9 1619P10953 £21.52 £25.83
3 - ARMATURE 220-240V BSD-1619P10952.A2 1619P10952 £21.68 £26.01
4 - SWITCH BSD-1607200326.A12 1607200326 £14.91 £17.89
5 - POWER SUPPLY CORD CN 2.65m 2 x 0.75mm H05 W-F BSD-1604460312.A16 1604460312 £10.10 £12.12
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A874 2600703012 £2.80 £3.36
7 - FASTENING CLAMP BSD-1601302017.A571 1601302017 £1.75 £2.10
8 - NAMEPLATE BSD-1619P32505.A0 1619P32505 -
9 - MANUFACTURER'S NAMEPLATE GWS 880 BSD-1619P11343.A3 1619P11343 -
12 - SUPPRESSION FILTER BSD-1619P13041.A17 1619P13041 £3.54 £4.25
13 - GROOVE BALL BEARING BSD-1619P08829.A23 1619P08829 £6.52 £7.83
14 - GROOVE BALL BEARING BSD-1619P13103.A15 1619P13103 £2.80 £3.36
16 - BRUSH HOLDER BSD-1619P01811.A95 1619P01811 £2.80 £3.36
17 - SPIRAL SPRING BSD-1604652013.A637 1604652013 £1.75 £2.10
18 - COMPRESSION SPRING BSD-1619P11487.A1 1619P11487 £1.75 £2.10
22 - ADJUSTING SLIDE BSD-1619P10968.A2 1619P10968 £1.75 £2.10
23 - SWITCH BUTTON BSD-1619P10969.A11 1619P10969 £1.88 £2.25
25 - HOUSING COVER BSD-1619P13558.A2 1619P13558 £4.26 £5.11
26 - INTERMEDIATE RING BSD-1600502023.A159 1600502023 £2.16 £2.59
27 - RUBBER RING BSD-1600206025.A744 1600206025 £2.16 £2.59
29 - AIR-DEFLECTOR RING BSD-1619P10970.A28 1619P10970 £1.75 £2.10
30 - AIR DISTRIBUTOR BSD-1619P14139.A11 1619P14139 £1.75 £2.10
32 - GRINDING SPINDLE M 14. SW 17 BSD-1619P06419.A15 1619P06419 £11.30 £13.56
35 - SHIM 0.1 MM BSD-1619P02821.A59 1619P02821 £1.75 £2.10
35 - SHIM 0.2 MM BSD-1619P02822.A14 1619P02822 £1.75 £2.10
36 - WASHER BSD-1619P00987.A8 1619P00987 £1.75 £2.10
37 - COVER DISC BSD-1600100033.A89 1600100033 £2.61 £3.13
41 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A824 1600910018 £5.30 £6.36
45 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1497 2915011007 -
47 - SPECIAL SCREW BSD-2609110052.A164 2609110052 £1.75 £2.10
48 - TORX OVAL-HEAD SCREW 3x10 BSD-1619P00220.A96 1619P00220 £1.75 £2.10
49 - THREAD-FORMING TAP. SCREW BSD-1619P11118.A7 1619P11118 £1.75 £2.10
50 - TORX OVAL-HEAD SCREW 4x20 BSD-1619P00105.A136 1619P00105 £1.75 £2.10
55 - TORX OVAL-HEAD SCREW 4x25 BSD-1619P01066.A30 1619P01066 £1.75 £2.10
80 - COVER DISC BSD-1619P09390.A36 1619P09390 £2.16 £2.59
108 - SHRINKABLE TUBE BSD-1619P02866.A13 1619P02866 £1.75 £2.10
650/1 - AUXILIARY HANDLE BSD-1619P10681.A9 1619P10681 £3.72 £4.47
650/2 - ROUND NUT M14 BSD-1603345043.A548 1603345043 £8.67 £10.41
650/3 - PIN-TYPE FACE-WRENCH BSD-1619P08927.A13 1619P08927 £4.26 £5.11
650/5 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A779 2605703014 £7.36 £8.83
650/5/2 - O-RING 20.35x1.78 MM BSD-1600210039.A13 1600210039 £2.16 £2.59
651 - PROTECTIVE COVER dia115 MM BSD-1600A00XU6.A38 1600A00XU6 £11.30 £13.56
810 - CARBON-BRUSH SET BSD-1619P11715.A38 1619P11715 £6.66 £7.99
828 - BEARING FLANGE BSD-1619P07452.A5 1619P07452 £10.10 £12.12
831 - GEAR HOUSING BSD-1619P12186.A6 1619P12186 £14.91 £17.89
838 - SET OF GEARS BSD-1619P16293.A2 1619P16293 £16.41 £19.69
840 - PUSH BUTTON BSD-1619P12188.A27 1619P12188 £1.75 £2.10
858 - OVAL-HEAD SCREW DIN7985-M3.5x5-4.8-H BSD-2910641081.A29 2910641081 -
894 - GREASE TUBE 225 ML BSD-1615430020.A198 1615430020 £21.52 £25.83
895 - GREASE TUBE 225 ML BSD-1605430003.A141 1605430003 £33.74 £40.49
