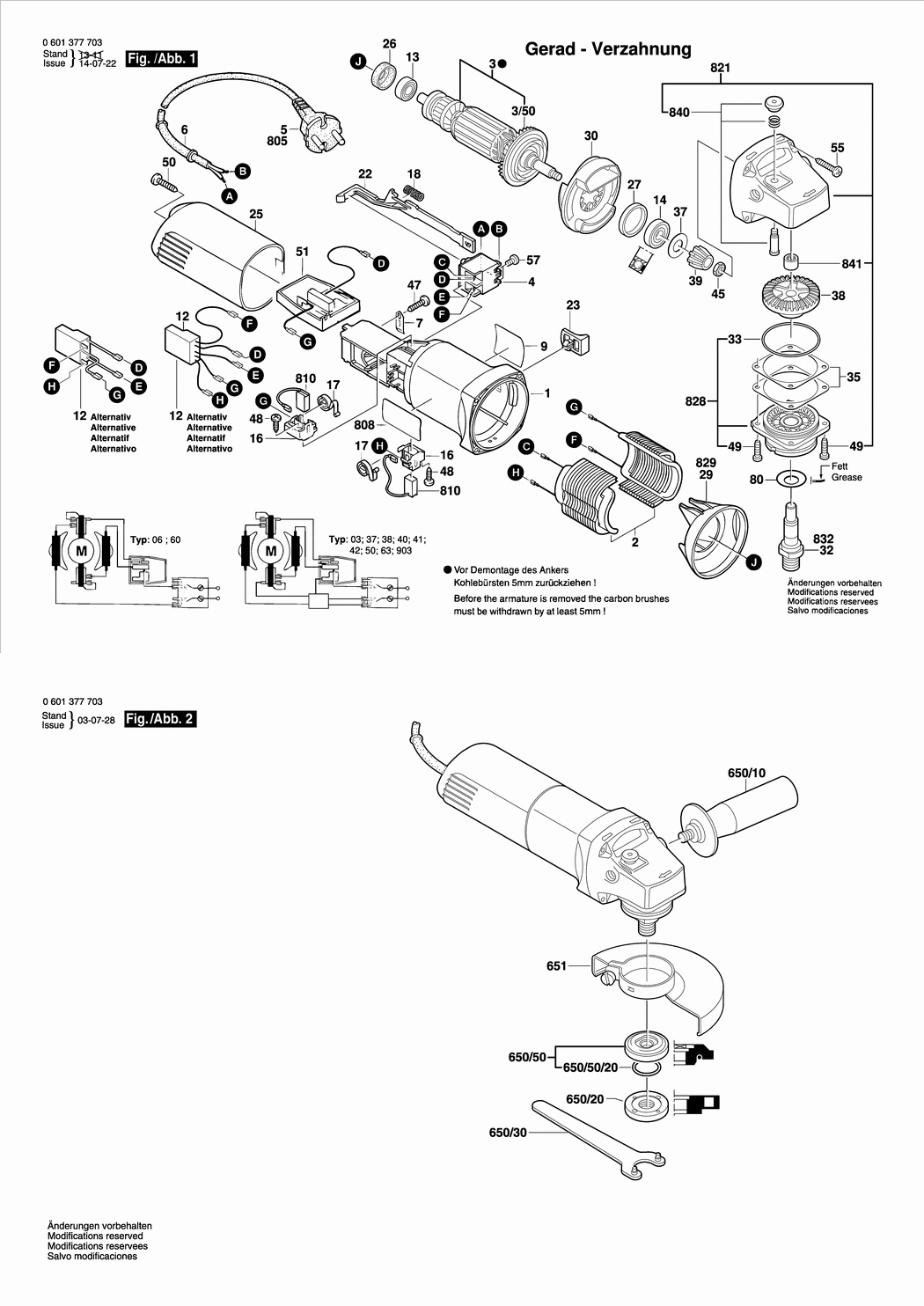

An exploded drawing and listing for the Bosch GWS 850 C / 0601377750 / I 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1619P09772.A83 1619P09772 £13.12 £15.75
2 - FIELD 220-240V BSD-1604220340.A13 1604220340 -
3 - ARMATURE WITH FAN 220-240V BSD-1604010667.A13 1604010667 £33.45 £40.14
3/50 - FAN BSD-1606610141.A52 1606610141 £4.26 £5.11
4 - ON-OFF SWITCH BSD-1607200179.A9 1607200179 £10.59 £12.71
5 - POWER SUPPLY CORD I / BR 2.65m 2 x 1.0mm H05 VV-F BSD-2604460282.A2 2604460282 £16.41 £19.69
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A1195 2600703012 £2.80 £3.36
7 - FASTENING CLAMP BSD-1601302017.A491 1601302017 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE GWS 850 C BSD-1611110F56.A2 1611110F56 £3.72 £4.47
12 - SUPPRESSION FILTER BSD-2609120008.A18 2609120008 £14.91 £17.89
13 - BALL BEARING 7x19x6 BSD-2600905032.A283 2600905032 £5.30 £6.36
14 - GROOVE BALL BEARING BSD-1619P11240.A42 1619P11240 £3.94 £4.73
16 - BRUSH HOLDER BSD-1619P01811.A51 1619P01811 £2.80 £3.36
17 - SPIRAL SPRING BSD-1604652013.A493 1604652013 £1.75 £2.10
18 - COMPRESSION SPRING BSD-1604611031.A45 1604611031 £2.80 £3.36
22 - ADJUSTING SLIDE BSD-1602319009.A31 1602319009 £2.80 £3.36
23 - SWITCH HANDLE BSD-1602026068.A58 1602026068 £2.61 £3.13
25 - HOUSING COVER BSD-1605500194.A36 1605500194 £5.30 £6.36
26 - INTERMEDIATE RING BSD-1600502024.A26 1600502024 £2.16 £2.59
27 - RUBBER RING BSD-1600206025.A438 1600206025 £2.16 £2.59
29 - AIR-DEFLECTOR RING BSD-1600591023.A74 1600591023 £2.61 £3.13
30 - AIR-DEFLECTOR RING BSD-1600591024.A26 1600591024 £3.72 £4.47
33 - O-RING 42.0x1.1 MM BSD-1600210041.A24 1600210041 £2.61 £3.13
35 - SHIM 0.1 MM BSD-1600136016.A50 1600136016 £2.61 £3.13
35 - SHIM 0.2 MM BSD-1600136017.A62 1600136017 £2.61 £3.13
37 - COVER DISC BSD-1600100033.A33 1600100033 £2.61 £3.13
38 - CONVERSION GEAR BSD-2609110150.A61 2609110150 £6.52 £7.83
39 - PINION BSD-2609110149.A59 2609110149 £4.26 £5.11
45 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1043 2915011007 -
47 - SPECIAL SCREW BSD-2609110052.A117 2609110052 £1.75 £2.10
48 - TORX OVAL-HEAD SCREW 3x10 BSD-1619P00220.A198 1619P00220 £1.75 £2.10
49 - THREAD-FORMING TAP. SCREW DIN 7500. M4x10. SR10.2 BSD-1603435068.A131 1603435068 £1.75 £2.10
50 - TAPPING SCREW DIN 7981-ST3.9x19-C-H BSD-2910611020.A255 2910611020 £1.75 £2.10
51 - REGULATOR 220-240V BSD-1607233139.A16 1607233139 £40.80 £48.96
55 - TAPPING SCREW DIN 7981-ST3.9x25-C-H BSD-2910611022.A82 2910611022 -
80 - SEALING DISK BSD-3600150021.A1 3600150021 £3.80 £4.56
650/10 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A694 160202509T £3.72 £4.47
650/20 - ROUND NUT M14 BSD-1603345043.A370 1603345043 £8.67 £10.41
650/30 - PIN-TYPE FACE-WRENCH BSD-1619P08927.A106 1619P08927 £4.26 £5.11
650/50 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A590 2605703014 £7.36 £8.83
650/50/20 - O-RING 20.35x1.78 MM BSD-1600210039.A717 1600210039 £2.16 £2.59
651 - PROTECTIVE COVER dia 125 MM BSD-1605510250.A3 1605510250 £21.42 £25.71
808 - NAMEPLATE BSD-1619P00705.A0 1619P00705 -
810 - CARBON-BRUSH SET BSD-1619P11715.A49 1619P11715 £6.66 £7.99
821 - GEAR HOUSING BSD-1605806466.A66 1605806466 £16.41 £19.69
828 - BEARING FLANGE BSD-1605805090.A10 1605805090 £16.41 £19.69
832 - GRINDING SPINDLE BSD-1607000D6A.A275 1607000D6A £7.36 £8.83
840 - PUSH-BUTTON BSD-1607000298.A60 1607000298 £4.26 £5.11
841 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A723 1600910018 £5.30 £6.36
