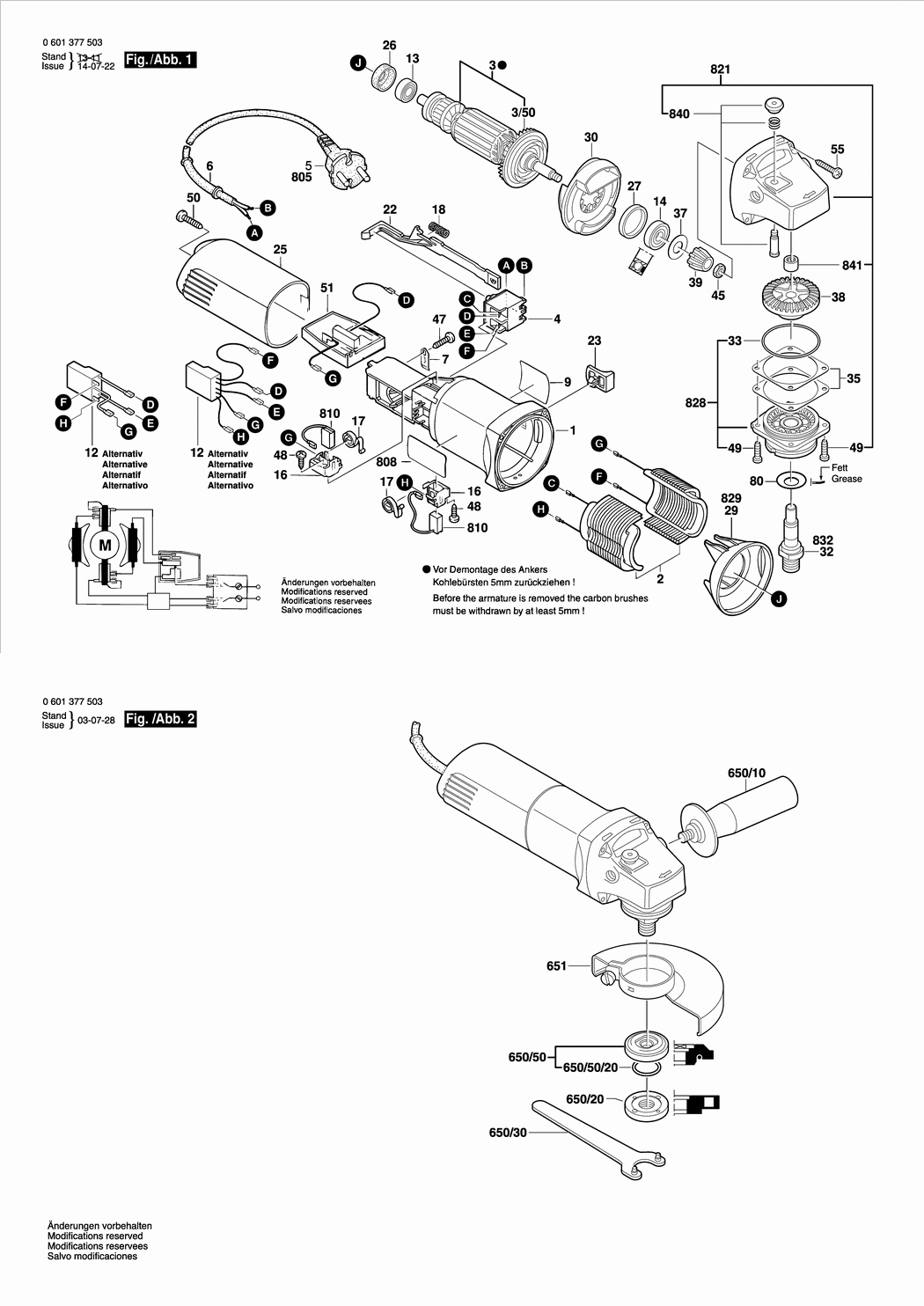

An exploded drawing and listing for the Bosch GWS 850 C / 0601377541 / GB 110 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1619P09772.A31 1619P09772 £13.12 £15.75
2 - FIELD 100-110V BSD-1604220342.A5 1604220342 £23.86 £28.63
3 - ARMATURE WITH FAN 100-110V BSD-1604010669.A4 1604010669 £48.38 £58.06
3/50 - FAN BSD-1606610141.A11 1606610141 £4.26 £5.11
4 - ON-OFF SWITCH BSD-1607200179.A37 1607200179 £10.59 £12.71
5 - CABLE SET BSD-2604420033.A14 2604420033 -
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A1261 2600703012 £2.80 £3.36
7 - FASTENING CLAMP BSD-1601302017.A535 1601302017 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE GWS 850 C BSD-1611110F56.A14 1611110F56 £3.72 £4.47
12 - SUPPRESSION FILTER BSD-2609120008.A21 2609120008 £14.91 £17.89
13 - BALL BEARING 7x19x6 BSD-2600905032.A297 2600905032 £5.30 £6.36
14 - GROOVE BALL BEARING BSD-1619P11240.A25 1619P11240 £3.94 £4.73
16 - BRUSH HOLDER BSD-1619P01811.A42 1619P01811 £2.80 £3.36
17 - SPIRAL SPRING BSD-1604652013.A532 1604652013 £1.75 £2.10
18 - COMPRESSION SPRING BSD-1604611031.A7 1604611031 £2.80 £3.36
22 - ADJUSTING SLIDE BSD-1602319009.A48 1602319009 £2.80 £3.36
23 - SWITCH HANDLE BSD-1602026068.A52 1602026068 £2.61 £3.13
25 - HOUSING COVER BSD-1605500194.A29 1605500194 £5.30 £6.36
26 - INTERMEDIATE RING BSD-1600502024.A8 1600502024 £2.16 £2.59
27 - RUBBER RING BSD-1600206025.A457 1600206025 £2.16 £2.59
29 - AIR-DEFLECTOR RING BSD-1600591023.A51 1600591023 £2.61 £3.13
30 - AIR-DEFLECTOR RING BSD-1600591024.A50 1600591024 £3.72 £4.47
33 - O-RING 42.0x1.1 MM BSD-1600210041.A43 1600210041 £2.61 £3.13
35 - SHIM 0.1 MM BSD-1600136016.A6 1600136016 £2.61 £3.13
35 - SHIM 0.2 MM BSD-1600136017.A106 1600136017 £2.61 £3.13
37 - COVER DISC BSD-1600100033.A78 1600100033 £2.61 £3.13
38 - CONVERSION GEAR BSD-2609110150.A48 2609110150 £6.52 £7.83
39 - PINION BSD-2609110149.A72 2609110149 £4.26 £5.11
45 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1085 2915011007 -
47 - SPECIAL SCREW BSD-2609110052.A104 2609110052 £1.75 £2.10
48 - TORX OVAL-HEAD SCREW 3x10 BSD-1619P00220.A187 1619P00220 £1.75 £2.10
49 - THREAD-FORMING TAP. SCREW DIN 7500. M4x10. SR10.2 BSD-1603435068.A113 1603435068 £1.75 £2.10
50 - TAPPING SCREW DIN 7981-ST3.9x19-C-H BSD-2910611020.A294 2910611020 £1.75 £2.10
51 - SPEED GOVERNOR 100-115V BSD-1607233140.A3 1607233140 £45.67 £54.80
55 - TAPPING SCREW DIN 7981-ST3.9x25-C-H BSD-2910611022.A52 2910611022 -
80 - SEALING DISK BSD-3600150021.A39 3600150021 £3.80 £4.56
650/10 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A711 160202509T £3.72 £4.47
650/20 - ROUND NUT M14 BSD-1603345043.A386 1603345043 £8.67 £10.41
650/30 - PIN-TYPE FACE-WRENCH BSD-1619P08927.A115 1619P08927 £4.26 £5.11
650/50 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A598 2605703014 £7.36 £8.83
650/50/20 - O-RING 20.35x1.78 MM BSD-1600210039.A700 1600210039 £2.16 £2.59
651 - PROTECTIVE COVER dia 115 MM BSD-1605510249.A11 1605510249 -
808 - NAMEPLATE BSD-1619P00720.A0 1619P00720 £3.34 £4.01
810 - CARBON-BRUSH SET BSD-1607014144.A13 1607014144 £10.10 £12.12
821 - GEAR HOUSING BSD-1605806466.A50 1605806466 £16.41 £19.69
828 - BEARING FLANGE BSD-1605805090.A15 1605805090 £16.41 £19.69
832 - GRINDING SPINDLE BSD-1607000D6A.A267 1607000D6A £7.36 £8.83
840 - PUSH-BUTTON BSD-1607000298.A74 1607000298 £4.26 £5.11
841 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A712 1600910018 £5.30 £6.36
