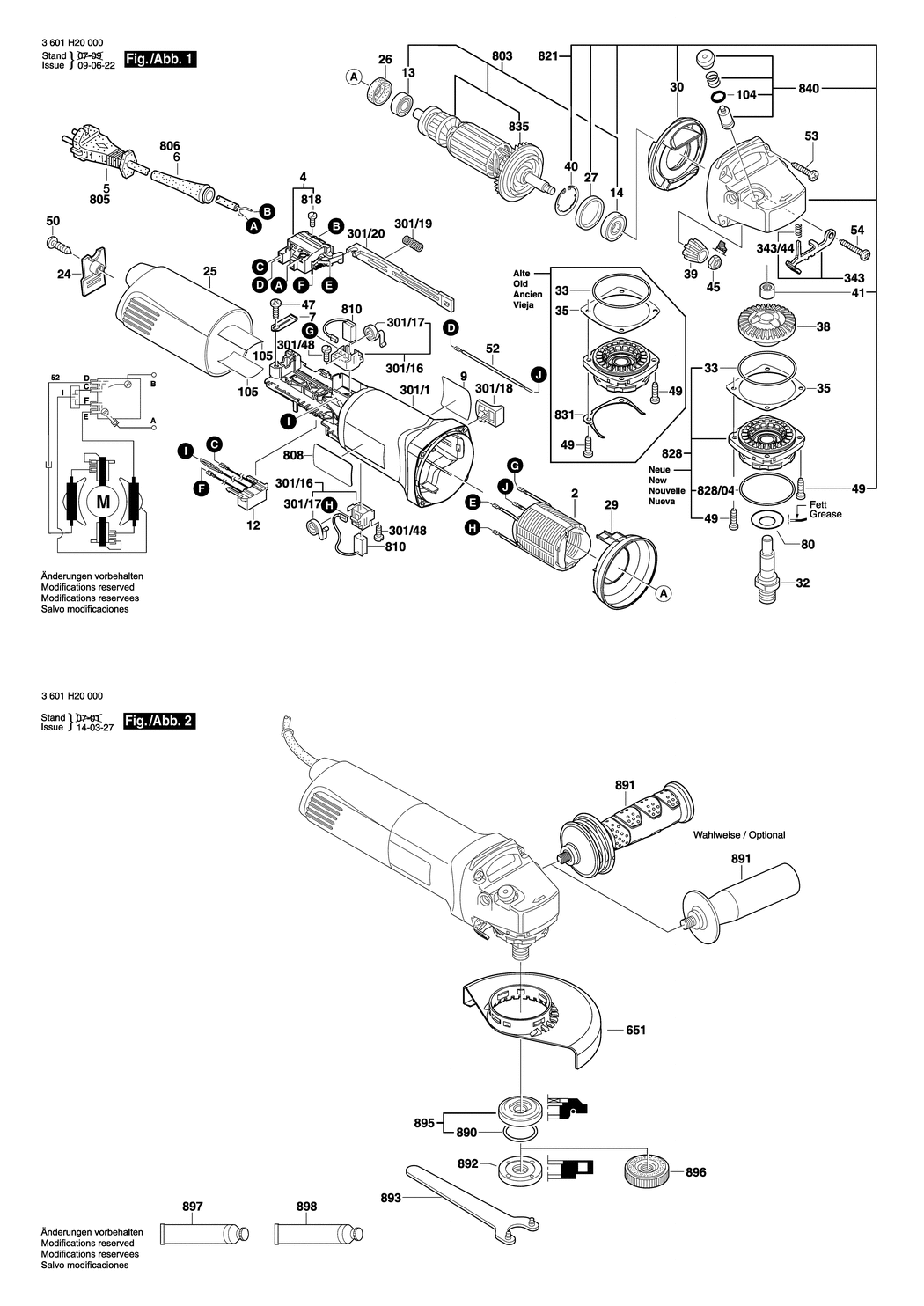

2 - FIELD 110-120V
BSD-1604220306.A1
1604220306
|
£27.31
|
£32.77
|
|
|
4 - ON-OFF SWITCH
BSD-1607200086.A440
1607200086
|
£11.87
|
£14.24
|
|
|
5 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H07 RN-F
BSD-1604460205.A4
1604460205
|
£28.59
|
£34.31
|
|
|
6 - GROMMET
BSD-1600703040.A31
1600703040
|
£2.27
|
£2.72
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A640
1601302017
|
£1.84
|
£2.21
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118G92.A0
1601118G92
|
£3.91
|
£4.69
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328061.A0
1607328061
|
£6.52
|
£7.83
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A601
2600905032
|
£5.57
|
£6.68
|
|
|
14 - GROOVE BALL BEARING 8x22x7
BSD-1600905032.A318
1600905032
|
£5.58
|
£6.70
|
|
|
24 - COVER
BSD-1605500228.A21
1605500228
|
£2.94
|
£3.53
|
|
|
25 - HOUSING COVER
BSD-1605500251.A1
1605500251
|
£7.72
|
£9.27
|
|
|
26 - RUBBER RING
BSD-1600206036.A36
1600206036
|
£1.84
|
£2.21
|
|
|
27 - RUBBER RING
BSD-1600206025.A612
1600206025
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1600591025.A112
1600591025
|
£2.61
|
£3.13
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600591014.A369
1600591014
|
£2.74
|
£3.29
|
|
|
32 - GRINDING SPINDLE
BSD-1607000D6A.A26
1607000D6A
|
£7.36
|
£8.83
|
|
|
33 - O-RING 46.0x1.1 MM
BSD-1600210035.A164
1600210035
|
£1.84
|
£2.21
|
|
|
35 - SHIM 0.1 MM
BSD-1600136013.A352
1600136013
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.15 MM
BSD-1600136020.A166
1600136020
|
£3.72
|
£4.47
|
|
|
35 - SHIM 0.2 MM
BSD-1600136014.A168
1600136014
|
£2.74
|
£3.29
|
|
|
35 - SHIM 0.3 MM
BSD-1600136015.A352
1600136015
|
£2.74
|
£3.29
|
|
|
38 - CROWN GEAR Z=38
BSD-1606333616.A107
1606333616
|
£9.49
|
£11.39
|
|
|
39 - BEVEL GEAR Z=11
BSD-1606333617.A13
1606333617
|
-
|
|
|
|
40 - RETAINING CLIP
BSD-1600119011.A363
1600119011
|
£2.27
|
£2.72
|
|
|
41 - PLAIN BEARING
BSD-1600200029.A265
1600200029
|
£4.48
|
£5.37
|
|
|
45 - HEX NUT M7. SW10
BSD-1603300016.A162
1603300016
|
£1.84
|
£2.21
|
|
|
47 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A577
2603490021
|
£1.84
|
£2.21
|
|
|
49 - THREAD-FORMING TAP. SCREW M4x16
BSD-2914491410.A73
2914491410
|
£1.84
|
£2.21
|
|
|
50 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A1315
2603490023
|
£1.84
|
£2.21
|
|
|
52 - CONNECTING CABLE L=90 MM
BSD-1604448013.A29
1604448013
|
£2.16
|
£2.59
|
|
|
53 - TORX OVAL-HEAD SCREW
BSD-1603435078.A129
1603435078
|
£1.84
|
£2.21
|
|
|
54 - TORX OVAL-HEAD SCREW 4x30
BSD-1603414026.A121
1603414026
|
£1.84
|
£2.21
|
|
|
80 - SEALING DISK
BSD-3600150021.A130
3600150021
|
£3.99
|
£4.79
|
|
|
104 - O-RING 4.5x1.0 MM
BSD-1600210044.A131
1600210044
|
£1.84
|
£2.21
|
|
|
105 - INSULATING PLATE
BSD-1601008005.A81
1601008005
|
£4.26
|
£5.11
|
|
|
301/1 - MOTOR HOUSING
BSD-1605108248.A3
1605108248
|
£10.10
|
£12.12
|
|
|
301/16 - BRUSH HOLDER
BSD-1601323025.A143
1601323025
|
£3.72
|
£4.47
|
|
|
301/17 - SPIRAL SPRING
BSD-1604652013.A706
1604652013
|
£1.84
|
£2.21
|
|
|
301/18 - SWITCH HANDLE
BSD-1602026088.A67
1602026088
|
£1.75
|
£2.10
|
|
|
301/19 - COMPRESSION SPRING
BSD-1604611026.A311
1604611026
|
£1.84
|
£2.21
|
|
|
301/20 - ADJUSTING SLIDE
BSD-1602319010.A88
1602319010
|
£1.84
|
£2.21
|
|
|
301/48 - LENS HEAD SCREW 3x10 ST
BSD-1613435034.A168
1613435034
|
£1.84
|
£2.21
|
|
|
343 - CATCH LEVER
BSD-1607000742.A62
1607000742
|
£7.72
|
£9.27
|
|
|
343/44 - COMPRESSION SPRING
BSD-1604611042.A108
1604611042
|
£1.84
|
£2.21
|
|
|
651 - PROTECTIVE COVER
BSD-1600A00XK8.A17
1600A00XK8
|
£14.91
|
£17.89
|
|
|
803 - ARMATURE WITH FAN 110-120V
BSD-1604010A43.A1
1604010A43
|
£43.71
|
£52.45
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A96
160111A3H3
|
£2.74
|
£3.29
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014176.A234
1607014176
|
£13.12
|
£15.75
|
|
|
810 - CARBON-BRUSH SET 10 x 1 607 014 176
BSD-1607000482.A43
1607000482
|
£93.88
|
£112.65
|
|
|
818 - PAN HEAD SCREW DIN 85-AM3x6-CUZN
BSD-2910110048.A422
2910110048
|
£1.84
|
£2.21
|
|
|
821 - GEAR HOUSING
BSD-16058065SC.A18
16058065SC
|
£27.31
|
£32.77
|
|
|
828 - BEARING FLANGE
BSD-1607000D6C.A96
1607000D6C
|
£12.04
|
£14.45
|
|
|
828/04 - O-RING 47.0x1.5 MM
BSD-3600210109.A166
3600210109
|
£2.16
|
£2.59
|
|
|
831 - SPRING ELEMENT
BSD-1601290013.A2
1601290013
|
£1.84
|
£2.21
|
|
|
835 - FAN
BSD-1606610129.A126
1606610129
|
£2.16
|
£2.59
|
|
|
840 - PUSH-BUTTON
BSD-1607000A71.A51
1607000A71
|
£3.91
|
£4.69
|
|
|
890 - O-RING 20.35x1.78 MM
BSD-1600210039.A118
1600210039
|
£2.27
|
£2.72
|
|
|
891 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A922
160202509T
|
£3.91
|
£4.69
|
|
|
891 - AUXILIARY HANDLE M10 ANTI-VIBRATION
BSD-16020250A0.A32
16020250A0
|
£21.42
|
£25.71
|
|
|
892 - ROUND NUT M14
BSD-1603345043.A911
1603345043
|
£9.11
|
£10.93
|
|
|
893 - PIN-TYPE FACE-WRENCH
BSD-1607950052.A143
1607950052
|
£3.91
|
£4.69
|
|
|
895 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A860
2605703014
|
£7.72
|
£9.27
|
|
|
896 - FAST LOCKING FLANGE M14. SDS-CLIC
BSD-1603340027.A751
1603340027
|
£46.82
|
£56.18
|
|
|
897 - GREASE TUBE 225 ML
BSD-1605430003.A61
1605430003
|
£33.74
|
£40.49
|
|
|
898 - GREASE TUBE 225 ML
BSD-1615430020.A100
1615430020
|
£21.52
|
£25.83
|
|
