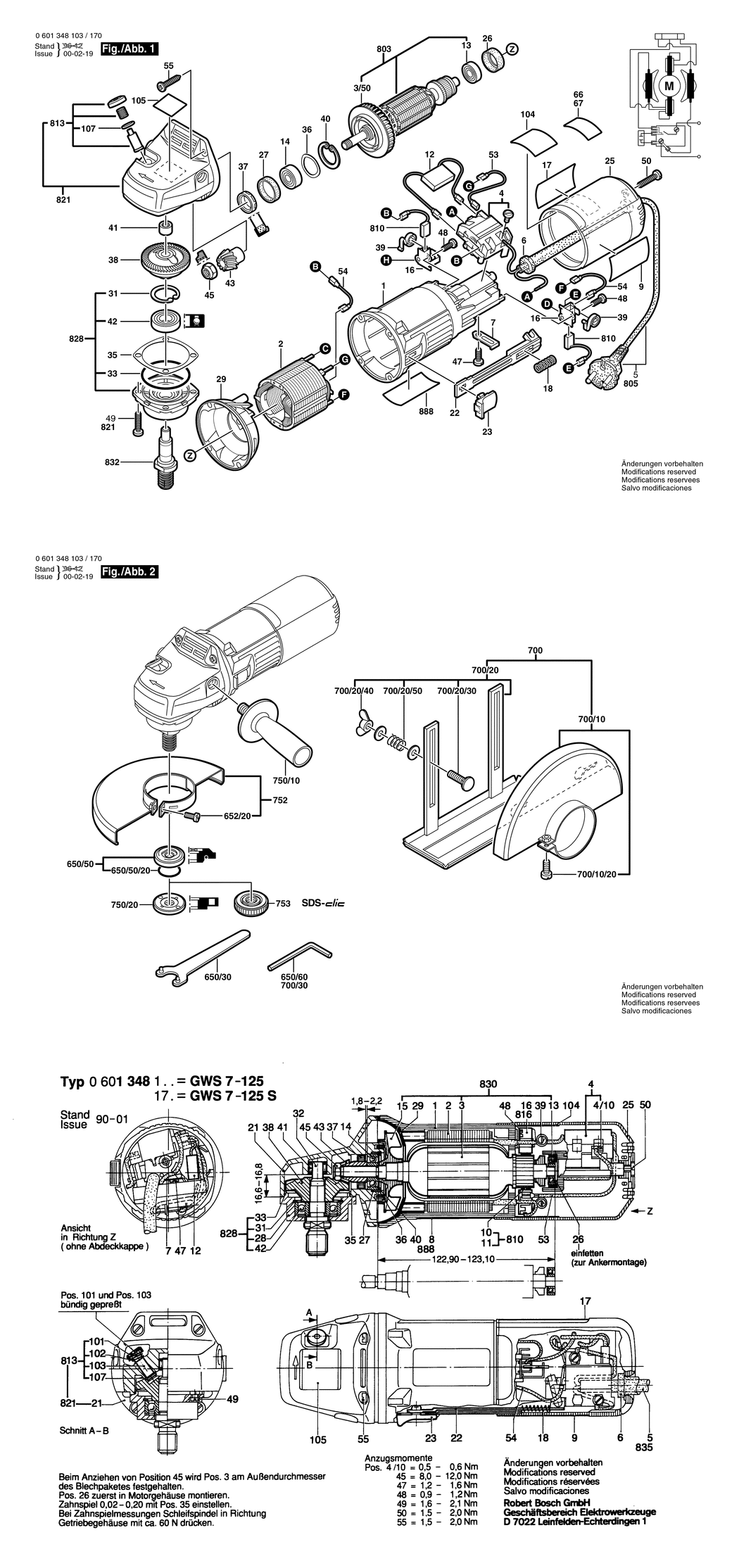

An exploded drawing and listing for the Bosch GWS 7-125 / 0601348150 / I 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-16051082CC.A90 16051082CC £13.12 £15.75
2 - FIELD 220-230V BSD-1604220272.A44 1604220272 -
3/50 - FAN BSD-1606610121.A59 1606610121 £1.75 £2.10
4 - ON-OFF SWITCH BSD-1607200086.A26 1607200086 £11.30 £13.56
4/10 - PAN HEAD SCREW DIN 85-AM3x6-CUZN BSD-2910110048.A194 2910110048 £1.75 £2.10
5 - POWER SUPPLY CORD I 2.65m 2 x 1.0mm H05VV-F BSD-1604460152.A5 1604460152 -
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A209 2600703012 £2.80 £3.36
7 - FASTENING CLAMP BSD-1601302017.A322 1601302017 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601110784.A7 1601110784 -
12 - SUPPRESSION FILTER BSD-1607328029.A177 1607328029 -
13 - BALL BEARING 7x19x6 BSD-2600905032.A1999 2600905032 £5.30 £6.36
14 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A701 1600905011 £5.58 £6.70
16 - BRUSH HOLDER BSD-1600A003G4.A29 1600A003G4 £3.72 £4.47
17 - MANUFACTURER'S NAMEPLATE BSD-1601110781.A10 1601110781 -
18 - COMPRESSION SPRING BSD-1604611026.A245 1604611026 £1.75 £2.10
22 - ADJUSTING SLIDE BSD-1602319002.A272 1602319002 £2.61 £3.13
23 - SWITCH HANDLE BSD-1602026057.A84 1602026057 £1.97 £2.36
25 - HOUSING COVER BSD-1600508010.A5 1600508010 £7.36 £8.83
26 - RUBBER BUSHING BSD-1600502020.A338 1600502020 £2.61 £3.13
27 - RUBBER RING BSD-1600206025.A65 1600206025 £2.16 £2.59
29 - AIR-DEFLECTOR RING BSD-1601328005.A41 1601328005 £2.61 £3.13
31 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A479 2916660013 £2.16 £2.59
33 - O-RING 46.0x1.1 MM BSD-3600210124.A157 3600210124 £2.80 £3.36
35 - SHIM 0.2 MM BSD-1600136010.A293 1600136010 £2.61 £3.13
35 - SHIM 0.3 MM BSD-1600136011.A36 1600136011 £2.16 £2.59
35 - SHIM 0.1 MM BSD-1600136012.A287 1600136012 £1.75 £2.10
36 - SPRING WASHER BSD-1600150011.A51 1600150011 £1.75 £2.10
37 - ROTARY SHAFT LIP SEAL BSD-1600290016.A650 1600290016 £2.61 £3.13
38 - CROWN GEAR Z=36 BSD-1606333601.A21 1606333601 £8.49 £10.19
39 - SPIRAL SPRING BSD-1604652013.A19 1604652013 £1.75 £2.10
40 - SPRING RETAINING RING DIN 472-25x1.2MM BSD-2916660009.A211 2916660009 £2.16 £2.59
41 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A291 1600910018 £5.30 £6.36
42 - GROOVE BALL BEARING 12x32x10 BSD-1600905006.A207 1600905006 £12.04 £14.45
43 - BEVEL GEAR Z=11 BSD-1606333242.A34 1606333242 £48.38 £58.06
45 - HEX NUT M7. SW10 BSD-1603300016.A784 1603300016 £1.75 £2.10
47 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A415 2910211018 £1.75 £2.10
48 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A236 2910211005 £1.75 £2.10
49 - THREAD-FORMING TAP. SCREW BSD-1603435026.A353 1603435026 £2.16 £2.59
50 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A470 2910211021 £1.75 £2.10
53 - CONNECTING CABLE BSD-1604448016.A17 1604448016 £1.75 £2.10
54 - CONNECTING CABLE BSD-1604448016.A18 1604448016 £1.75 £2.10
55 - TAPPING SCREW DIN7981-ST3.9x22-C-Z BSD-2912401021.A136 2912401021 £1.75 £2.10
105 - REFERENCE PLATE BSD-1601110470.A196 1601110470 £1.75 £2.10
107 - O-RING 4.5x1.0 MM BSD-1600210044.A571 1600210044 £1.75 £2.10
650/30 - PIN-TYPE FACE-WRENCH BSD-1607950052.A494 1607950052 £3.72 £4.47
650/50 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A246 2605703014 £7.36 £8.83
650/50/20 - O-RING 20.35x1.78 MM BSD-1600210039.A1534 1600210039 £2.16 £2.59
650/60 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A1092 1907950006 £4.26 £5.11
652/20 - SOCKET HEAD CAP SCREW DIN 84-M 6x16-8.8 BSD-2910022197.A26 2910022197 -
652/20 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A538 2910141197 £1.75 £2.10
700 - GUIDE BLOCK BSD-1608135004.A79 1608135004 -
700/10 - PROTECTIVE COVER dia 125 MM BSD-1605510113.A21 1605510113 -
700/10/20 - SOCKET HEAD CAP SCREW DIN 84-M 6x16-8.8 BSD-2910022197.A20 2910022197 -
700/10/20 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A529 2910141197 £1.75 £2.10
700/20 - GUIDE BLOCK BSD-1608135004.A80 1608135004 -
700/20/30 - ROUND-HEAD BOLT DIN 603-M 5x16 BSD-2910281158.A77 2910281158 -
700/20/40 - WING NUT M 5 DIN 315-G-5 BSD-2915191105.A105 2915191105 -
700/20/50 - COMPRESSION SPRING BSD-1604643004.A67 1604643004 -
750/10 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A321 160202509T £3.72 £4.47
750/20 - CLAMPING NUT M14 BSD-1603340040.A397 1603340040 £6.20 £7.44
753 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340027.A11 1603340027 £46.82 £56.18
803 - ARMATURE WITH FAN 220-230V BSD-1604010429.A33 1604010429 -
810 - CARBON-BRUSH SET BSD-1607014116.A50 1607014116 £11.30 £13.56
813 - PUSH-BUTTON BSD-1607000253.A474 1607000253 £2.49 £2.99
821 - GEAR HOUSING BSD-1605806480.A30 1605806480 £48.38 £58.06
828 - BEARING FLANGE BSD-1607000936.A114 1607000936 £27.23 £32.68
832 - ASSEMBLY OF SERVICE PARTS BSD-1607000944.A22 1607000944 £16.74 £20.09
888 - NAMEPLATE BSD-160111A3H3.A5209 160111A3H3 £2.61 £3.13
