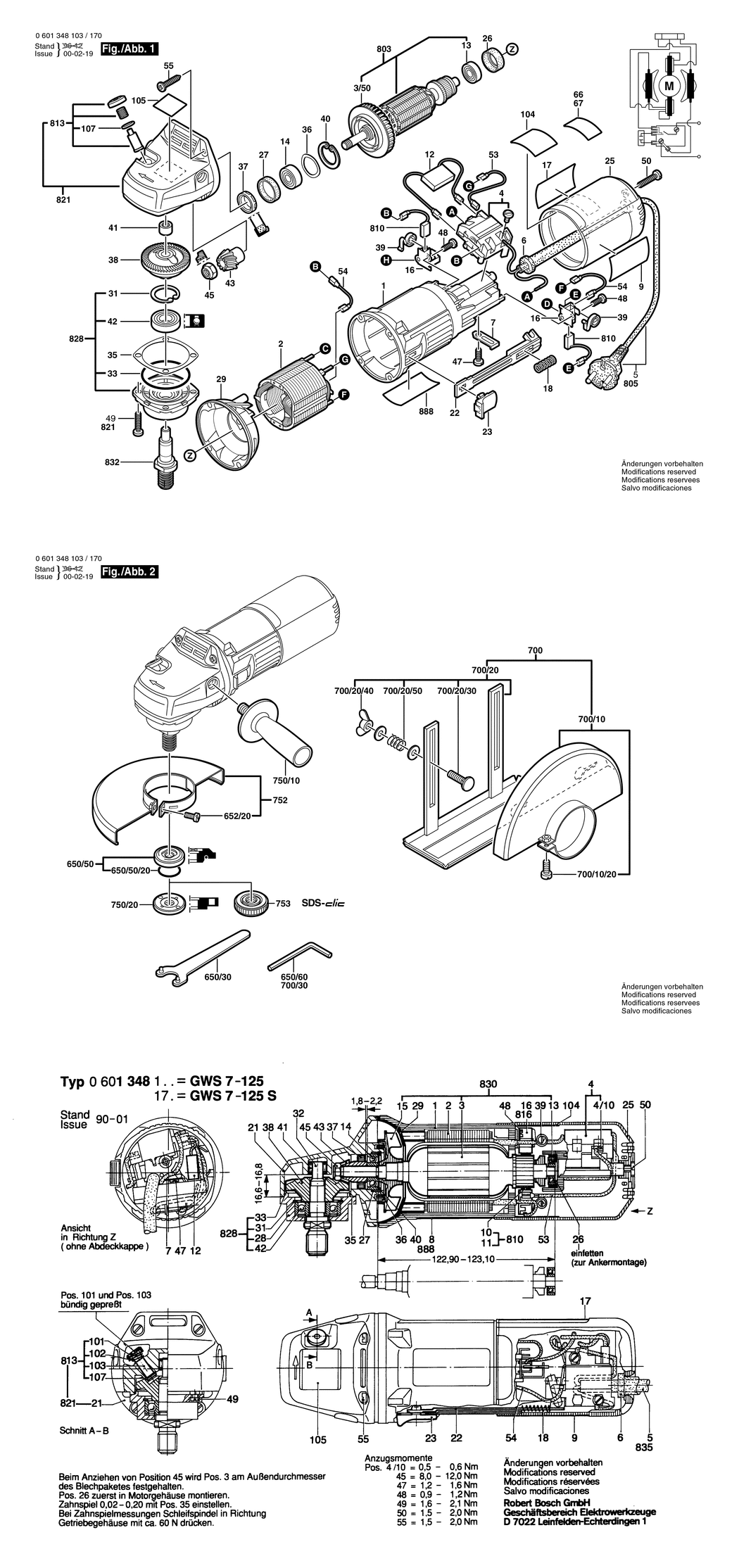

1 - MOTOR HOUSING
BSD-16051082CC.A91
16051082CC
|
£13.12
|
£15.75
|
|
|
2 - FIELD 230-240V
BSD-1604220224.A2
1604220224
|
-
|
|
|
|
3/50 - FAN
BSD-1606610121.A60
1606610121
|
£1.75
|
£2.10
|
|
|
4 - ON-OFF SWITCH
BSD-1607200086.A25
1607200086
|
£11.87
|
£14.24
|
|
|
4/10 - PAN HEAD SCREW DIN 85-AM3x6-CUZN
BSD-2910110048.A193
2910110048
|
£1.84
|
£2.21
|
|
|
5 - POWER SUPPLY CORD GB 240V 2.65m 2 x 1.0mm H05RN-F
BSD-1604460190.A27
1604460190
|
-
|
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A210
2600703012
|
£2.94
|
£3.53
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A321
1601302017
|
£1.84
|
£2.21
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110784.A6
1601110784
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328029.A178
1607328029
|
-
|
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A1998
2600905032
|
£5.57
|
£6.68
|
|
|
14 - GROOVE BALL BEARING 8x22x7
BSD-1600905011.A702
1600905011
|
£5.58
|
£6.70
|
|
|
16 - BRUSH HOLDER
BSD-1600A003G4.A30
1600A003G4
|
£3.72
|
£4.47
|
|
|
17 - MANUFACTURER'S NAMEPLATE
BSD-1601110781.A11
1601110781
|
-
|
|
|
|
18 - COMPRESSION SPRING
BSD-1604611026.A244
1604611026
|
£1.84
|
£2.21
|
|
|
22 - ADJUSTING SLIDE
BSD-1602319002.A273
1602319002
|
£2.74
|
£3.29
|
|
|
23 - SWITCH HANDLE
BSD-1602026057.A83
1602026057
|
£2.07
|
£2.48
|
|
|
25 - HOUSING COVER
BSD-1600508010.A6
1600508010
|
£7.36
|
£8.83
|
|
|
26 - RUBBER BUSHING
BSD-1600502020.A337
1600502020
|
£2.74
|
£3.29
|
|
|
27 - RUBBER RING
BSD-1600206025.A64
1600206025
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1601328005.A42
1601328005
|
£2.74
|
£3.29
|
|
|
31 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A480
2916660013
|
£2.16
|
£2.59
|
|
|
33 - O-RING 46.0x1.1 MM
BSD-3600210124.A156
3600210124
|
£2.80
|
£3.36
|
|
|
35 - SHIM 0.2 MM
BSD-1600136010.A292
1600136010
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.3 MM
BSD-1600136011.A37
1600136011
|
£2.16
|
£2.59
|
|
|
35 - SHIM 0.1 MM
BSD-1600136012.A286
1600136012
|
£1.75
|
£2.10
|
|
|
36 - SPRING WASHER
BSD-1600150011.A52
1600150011
|
£1.75
|
£2.10
|
|
|
37 - ROTARY SHAFT LIP SEAL
BSD-1600290016.A651
1600290016
|
£2.74
|
£3.29
|
|
|
38 - CROWN GEAR Z=36
BSD-1606333601.A20
1606333601
|
£8.49
|
£10.19
|
|
|
39 - SPIRAL SPRING
BSD-1604652013.A18
1604652013
|
£1.84
|
£2.21
|
|
|
40 - SPRING RETAINING RING DIN 472-25x1.2MM
BSD-2916660009.A210
2916660009
|
£2.16
|
£2.59
|
|
|
41 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A289
1600910018
|
£5.30
|
£6.36
|
|
|
42 - GROOVE BALL BEARING 12x32x10
BSD-1600905006.A206
1600905006
|
£12.64
|
£15.17
|
|
|
43 - BEVEL GEAR Z=11
BSD-1606333242.A35
1606333242
|
£48.38
|
£58.06
|
|
|
45 - HEX NUT M7. SW10
BSD-1603300016.A783
1603300016
|
£1.84
|
£2.21
|
|
|
47 - TAPPING SCREW DIN 7971-ST3.9x13-F
BSD-2910211018.A416
2910211018
|
£1.75
|
£2.10
|
|
|
48 - TAPPING SCREW DIN 7971-ST2.9x9.5-F
BSD-2910211005.A235
2910211005
|
£1.75
|
£2.10
|
|
|
49 - THREAD-FORMING TAP. SCREW
BSD-1603435026.A355
1603435026
|
£2.27
|
£2.72
|
|
|
50 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A468
2910211021
|
£1.75
|
£2.10
|
|
|
53 - CONNECTING CABLE
BSD-1604448016.A20
1604448016
|
£1.84
|
£2.21
|
|
|
55 - TAPPING SCREW DIN7981-ST3.9x22-C-Z
BSD-2912401021.A135
2912401021
|
£1.84
|
£2.21
|
|
|
105 - REFERENCE PLATE
BSD-1601110470.A183
1601110470
|
£1.75
|
£2.10
|
|
|
107 - O-RING 4.5x1.0 MM
BSD-1600210044.A570
1600210044
|
£1.84
|
£2.21
|
|
|
650/30 - PIN-TYPE FACE-WRENCH
BSD-1607950052.A495
1607950052
|
£3.91
|
£4.69
|
|
|
650/50 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A245
2605703014
|
£7.72
|
£9.27
|
|
|
650/50/20 - O-RING 20.35x1.78 MM
BSD-1600210039.A1535
1600210039
|
£2.27
|
£2.72
|
|
|
652/20 - SOCKET HEAD CAP SCREW DIN 84-M 6x16-8.8
BSD-2910022197.A27
2910022197
|
-
|
|
|
|
652/20 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8
BSD-2910141197.A537
2910141197
|
£1.84
|
£2.21
|
|
|
700 - PARTS SET dia 125 MM
BSD-1607000172.A13
1607000172
|
-
|
|
|
|
700/10 - PROTECTIVE COVER dia 125 MM
BSD-1605510113.A33
1605510113
|
-
|
|
|
|
700/10/20 - SOCKET HEAD CAP SCREW DIN 84-M 6x16-8.8
BSD-2910022197.A28
2910022197
|
-
|
|
|
|
700/10/20 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8
BSD-2910141197.A536
2910141197
|
£1.84
|
£2.21
|
|
|
700/20 - GUIDE BLOCK
BSD-1608135004.A89
1608135004
|
-
|
|
|
|
700/20/30 - ROUND-HEAD BOLT DIN 603-M 5x16
BSD-2910281158.A80
2910281158
|
-
|
|
|
|
700/20/40 - WING NUT M 5 DIN 315-G-5
BSD-2915191105.A108
2915191105
|
-
|
|
|
|
700/20/50 - COMPRESSION SPRING
BSD-1604643004.A78
1604643004
|
-
|
|
|
|
700/30 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A1091
1907950006
|
£4.48
|
£5.37
|
|
|
750/10 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A335
160202509T
|
£3.91
|
£4.69
|
|
|
750/20 - CLAMPING NUT M14
BSD-1603340040.A406
1603340040
|
£6.20
|
£7.44
|
|
|
752 - PROTECTIVE COVER dia 125 MM (5)
BSD-1605510117.A6
1605510117
|
-
|
|
|
|
753 - FAST LOCKING FLANGE M14. SDS-CLIC
BSD-1603340027.A19
1603340027
|
£49.16
|
£58.99
|
|
|
803 - ARMATURE WITH FAN 230-240V
BSD-1604010259.A5
1604010259
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014116.A36
1607014116
|
£11.30
|
£13.56
|
|
|
813 - PUSH-BUTTON
BSD-1607000253.A460
1607000253
|
£2.49
|
£2.99
|
|
|
821 - GEAR HOUSING
BSD-1605806480.A14
1605806480
|
£48.38
|
£58.06
|
|
|
828 - BEARING FLANGE
BSD-1607000936.A134
1607000936
|
£27.23
|
£32.68
|
|
|
832 - ASSEMBLY OF SERVICE PARTS
BSD-1607000944.A7
1607000944
|
£17.58
|
£21.09
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A5229
160111A3H3
|
£2.74
|
£3.29
|
|
