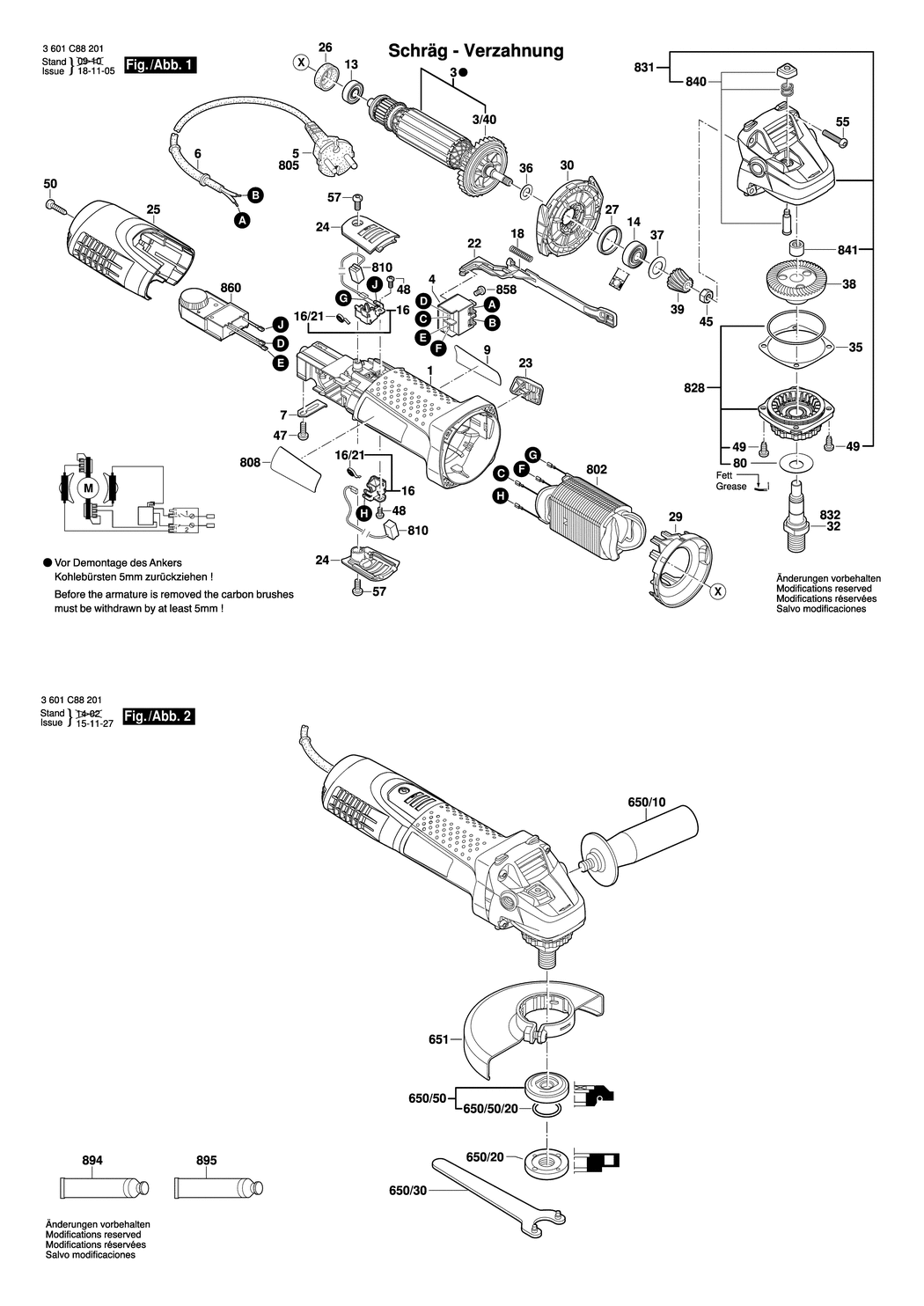

An exploded drawing and listing for the Bosch GWS 7-115 E / 3601C88201 / EU 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1619P09415.A5 1619P09415 £8.67 £10.41
3 - ARMATURE 220-230V BSD-1619P05210.A6 1619P05210 £30.28 £36.33
3/40 - FAN BSD-1619P02801.A7 1619P02801 £1.75 £2.10
4 - SWITCH BSD-1607200146.A11 1607200146 £10.10 £12.12
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A535 2600703012 £2.80 £3.36
7 - FASTENING CLAMP BSD-1601302017.A204 1601302017 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE GWS 7-115 E BSD-1619P02880.A2 1619P02880 £2.61 £3.13
13 - BALL BEARING 7x19x6 MM BSD-1619P00456.A10 1619P00456 £2.80 £3.36
14 - BALL BEARING BSD-1619P00455.A64 1619P00455 £3.72 £4.47
16 - BRUSH HOLDER BSD-1619P02845.A22 1619P02845 £2.80 £3.36
16/21 - SPIRAL SPRING BSD-1619P02809.A25 1619P02809 £1.75 £2.10
18 - COMPRESSION SPRING BSD-1604611031.A192 1604611031 £2.80 £3.36
22 - ADJUSTING SLIDE BSD-1619P02811.A7 1619P02811 £1.75 £2.10
23 - SWITCH BUTTON BSD-1619P09290.A2 1619P09290 -
24 - BRUSH-COVER BSD-1619P02828.A9 1619P02828 £1.75 £2.10
25 - HOUSING COVER BSD-1619P10072.A2 1619P10072 £3.72 £4.47
26 - INTERMEDIATE RING BSD-1600502023.A64 1600502023 £2.16 £2.59
27 - RUBBER RING BSD-1600206025.A188 1600206025 £2.16 £2.59
29 - AIR-DEFLECTOR RING BSD-1619P02818.A25 1619P02818 £1.75 £2.10
30 - AIR DISTRIBUTOR BSD-1619P02819.A4 1619P02819 £1.75 £2.10
35 - SHIM 0.1 MM BSD-1619P02821.A7 1619P02821 £1.75 £2.10
35 - SHIM 0.2 MM BSD-1619P02822.A66 1619P02822 £1.75 £2.10
36 - WASHER BSD-1619P00987.A62 1619P00987 £1.75 £2.10
37 - COVER DISC BSD-1600100033.A175 1600100033 £2.61 £3.13
38 - CROWN GEAR BSD-1619P02823.A6 1619P02823 £8.67 £10.41
39 - BEVEL GEAR BSD-1619P02825.A54 1619P02825 £5.30 £6.36
45 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A387 2915011007 -
47 - SPECIAL SCREW BSD-2609110052.A12 2609110052 £1.75 £2.10
48 - TORX OVAL-HEAD SCREW 3x8 BSD-1619P02849.A24 1619P02849 £1.75 £2.10
49 - THREAD-FORMING TAP. SCREW DIN 7500. M4x10. SR10.2 BSD-1603435068.A177 1603435068 £1.75 £2.10
50 - TORX OVAL-HEAD SCREW 4x20 BSD-1619P00105.A16 1619P00105 £1.75 £2.10
55 - TORX OVAL-HEAD SCREW 4x25 BSD-1619P01066.A48 1619P01066 £1.75 £2.10
57 - TORX OVAL-HEAD SCREW 4x12 BSD-1619P02848.A19 1619P02848 £1.75 £2.10
80 - SEALING DISK BSD-3600150021.A541 3600150021 £3.80 £4.56
650/10 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A224 160202509T £3.72 £4.47
650/20 - ROUND NUT M14 BSD-1603345043.A90 1603345043 £8.67 £10.41
650/30 - PIN-TYPE FACE-WRENCH BSD-1619P08927.A208 1619P08927 £4.26 £5.11
650/50 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A94 2605703014 £7.36 £8.83
650/50/20 - O-RING 20.35x1.78 MM BSD-1600210039.A1301 1600210039 £2.16 £2.59
651 - PROTECTIVE COVER dia115 MM BSD-1600A00XU6.A3 1600A00XU6 £11.30 £13.56
802 - FIELD 220-230V BSD-1619P07239.A20 1619P07239 £21.52 £25.83
805 - POWER SUPPLY CORD EU 2.6m 2 x 1.0 mm BSD-1607000385.A10 1607000385 £14.91 £17.89
808 - NAMEPLATE BSD-1619P02955.A0 1619P02955 £2.33 £2.80
810 - CARBON-BRUSH SET BSD-1619P02870.A18 1619P02870 £8.67 £10.41
810 - CARBON-BRUSH SET 10 x 1 619 P02 870 BSD-1607000489.A10 1607000489 £54.42 £65.30
823 - SWITCH BUTTON BSD-1619P10838.A4 1619P10838 £1.75 £2.10
828 - BEARING FLANGE BSD-1619P07452.A24 1619P07452 £10.10 £12.12
831 - GEAR HOUSING BSD-1619P02872.A7 1619P02872 £16.41 £19.69
832 - GRINDING SPINDLE BSD-1607000D6A.A789 1607000D6A £7.36 £8.83
840 - PUSH-BUTTON BSD-1619P02873.A18 1619P02873 £2.16 £2.59
841 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A206 1600910018 £5.30 £6.36
858 - OVAL-HEAD SCREW DIN7985-M3.5x5-4.8-H BSD-2910641081.A135 2910641081 -
860 - SPEED GOVERNOR BSD-1619P07277.A2 1619P07277 £27.23 £32.68
894 - GREASE TUBE 225 ML BSD-1615430020.A45 1615430020 £21.52 £25.83
895 - GREASE TUBE 225 ML BSD-1605430003.A275 1605430003 £33.74 £40.49
