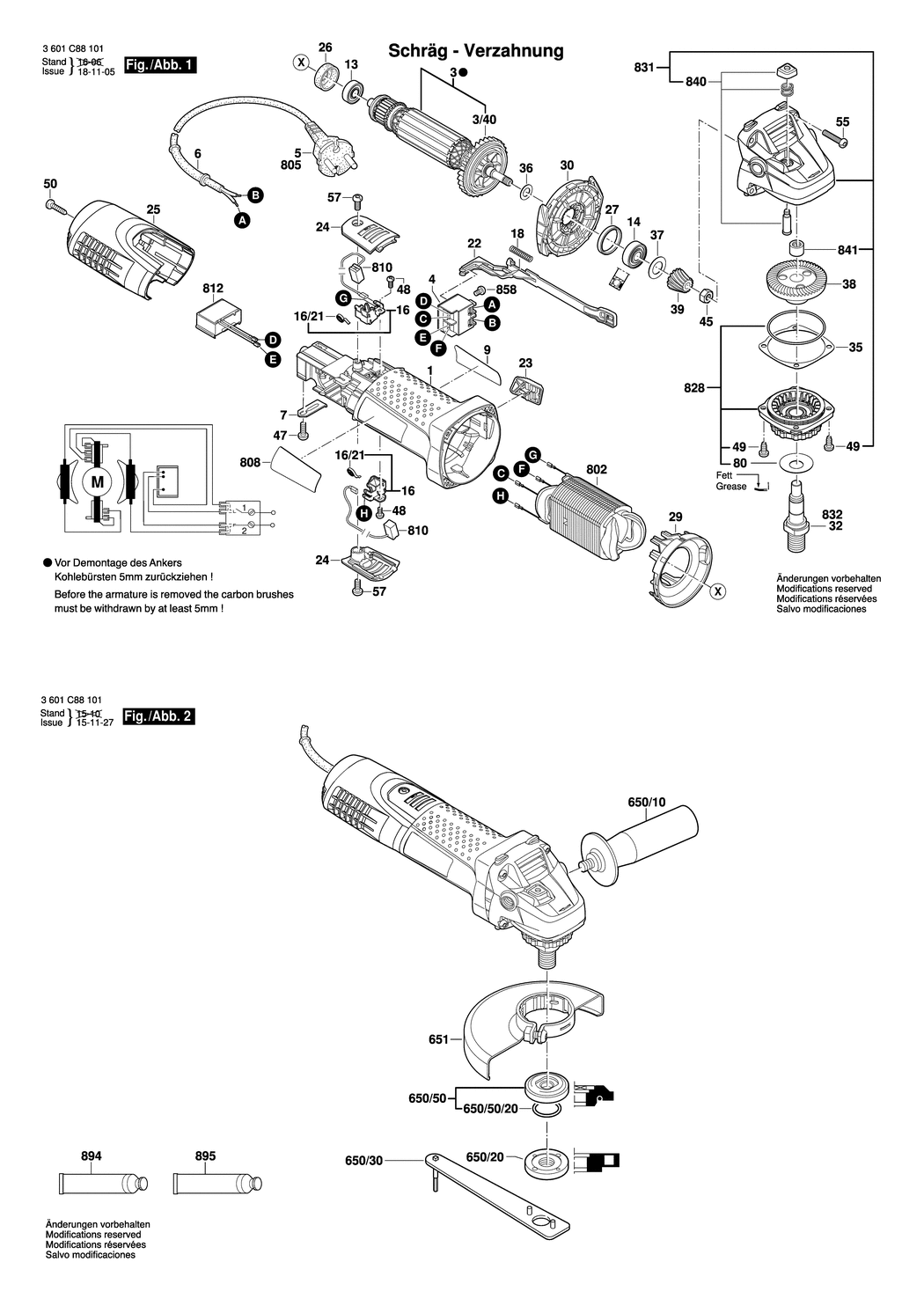

1 - MOTOR HOUSING
BSD-1619P09415.A3
1619P09415
|
£8.67
|
£10.41
|
|
|
3 - ARMATURE 220-230V
BSD-1619P05210.A8
1619P05210
|
£30.28
|
£36.33
|
|
|
3/40 - FAN
BSD-1619P02801.A6
1619P02801
|
£1.75
|
£2.10
|
|
|
4 - SWITCH
BSD-1607200326.A14
1607200326
|
£14.91
|
£17.89
|
|
|
5 - POWER SUPPLY CORD I / BR 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460282.A11
2604460282
|
£16.41
|
£19.69
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A532
2600703012
|
£2.80
|
£3.36
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A206
1601302017
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE GWS 7-115
BSD-1619P02874.A1
1619P02874
|
£2.61
|
£3.13
|
|
|
13 - BALL BEARING 7x19x6 MM
BSD-1619P00456.A11
1619P00456
|
£2.80
|
£3.36
|
|
|
14 - BALL BEARING
BSD-1619P00455.A63
1619P00455
|
£3.72
|
£4.47
|
|
|
16 - BRUSH HOLDER
BSD-1619P02845.A21
1619P02845
|
£2.80
|
£3.36
|
|
|
16/21 - SPIRAL SPRING
BSD-1619P02809.A26
1619P02809
|
£1.75
|
£2.10
|
|
|
18 - COMPRESSION SPRING
BSD-1604611031.A194
1604611031
|
£2.80
|
£3.36
|
|
|
22 - ADJUSTING SLIDE
BSD-1619P02811.A6
1619P02811
|
£1.75
|
£2.10
|
|
|
23 - SWITCH BUTTON
BSD-1619P09290.A5
1619P09290
|
-
|
|
|
|
24 - BRUSH-COVER
BSD-1619P02828.A10
1619P02828
|
£1.75
|
£2.10
|
|
|
25 - HOUSING COVER
BSD-1619P09922.A0
1619P09922
|
£3.80
|
£4.56
|
|
|
26 - INTERMEDIATE RING
BSD-1600502023.A59
1600502023
|
£2.16
|
£2.59
|
|
|
27 - RUBBER RING
BSD-1600206025.A184
1600206025
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1619P02818.A26
1619P02818
|
£1.75
|
£2.10
|
|
|
30 - AIR DISTRIBUTOR
BSD-1619P02819.A3
1619P02819
|
£1.75
|
£2.10
|
|
|
35 - SHIM 0.1 MM
BSD-1619P02821.A8
1619P02821
|
£1.75
|
£2.10
|
|
|
35 - SHIM 0.2 MM
BSD-1619P02822.A65
1619P02822
|
£1.75
|
£2.10
|
|
|
36 - WASHER
BSD-1619P00987.A61
1619P00987
|
£1.75
|
£2.10
|
|
|
37 - COVER DISC
BSD-1600100033.A174
1600100033
|
£2.61
|
£3.13
|
|
|
38 - CROWN GEAR
BSD-1619P02823.A7
1619P02823
|
£8.67
|
£10.41
|
|
|
39 - BEVEL GEAR
BSD-1619P02825.A53
1619P02825
|
£5.30
|
£6.36
|
|
|
45 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A384
2915011007
|
-
|
|
|
|
47 - SPECIAL SCREW
BSD-2609110052.A10
2609110052
|
£1.75
|
£2.10
|
|
|
48 - TORX OVAL-HEAD SCREW 3x8
BSD-1619P02849.A22
1619P02849
|
£1.75
|
£2.10
|
|
|
49 - THREAD-FORMING TAP. SCREW DIN 7500. M4x10. SR10.2
BSD-1603435068.A179
1603435068
|
£1.75
|
£2.10
|
|
|
50 - TORX OVAL-HEAD SCREW 4x20
BSD-1619P00105.A17
1619P00105
|
£1.75
|
£2.10
|
|
|
55 - TORX OVAL-HEAD SCREW 4x25
BSD-1619P01066.A49
1619P01066
|
£1.75
|
£2.10
|
|
|
57 - TORX OVAL-HEAD SCREW 4x12
BSD-1619P02848.A20
1619P02848
|
£1.75
|
£2.10
|
|
|
80 - COVER DISC
BSD-1619P09390.A3
1619P09390
|
£2.16
|
£2.59
|
|
|
650/10 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A227
160202509T
|
£3.72
|
£4.47
|
|
|
650/20 - ROUND NUT M14
BSD-1603345043.A88
1603345043
|
£8.67
|
£10.41
|
|
|
650/30 - PIN-TYPE FACE-WRENCH
BSD-1619P08927.A206
1619P08927
|
£4.26
|
£5.11
|
|
|
650/50 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A92
2605703014
|
£7.36
|
£8.83
|
|
|
650/50/20 - O-RING 20.35x1.78 MM
BSD-1600210039.A1303
1600210039
|
£2.16
|
£2.59
|
|
|
651 - PROTECTIVE COVER dia115 MM
BSD-1600A00XU6.A0
1600A00XU6
|
£11.30
|
£13.56
|
|
|
802 - FIELD 220-230V
BSD-1619P07239.A18
1619P07239
|
£21.52
|
£25.83
|
|
|
808 - NAMEPLATE
BSD-1619P31708.A0
1619P31708
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1619P02870.A20
1619P02870
|
£8.67
|
£10.41
|
|
|
810 - CARBON-BRUSH SET 10 x 1 619 P02 870
BSD-1607000489.A13
1607000489
|
£54.42
|
£65.30
|
|
|
812 - SUPPRESSION CAPACITOR
BSD-1619P13041.A8
1619P13041
|
£3.54
|
£4.25
|
|
|
823 - SWITCH BUTTON
BSD-1619P10838.A6
1619P10838
|
£1.75
|
£2.10
|
|
|
828 - BEARING FLANGE
BSD-1619P07452.A26
1619P07452
|
£10.10
|
£12.12
|
|
|
831 - GEAR HOUSING
BSD-1619P02872.A8
1619P02872
|
£16.41
|
£19.69
|
|
|
832 - GRINDING SPINDLE
BSD-1607000D6A.A786
1607000D6A
|
£7.36
|
£8.83
|
|
|
840 - PUSH-BUTTON
BSD-1619P02873.A20
1619P02873
|
£2.16
|
£2.59
|
|
|
841 - PLAIN BEARING
BSD-1600200029.A49
1600200029
|
£4.26
|
£5.11
|
|
|
858 - OVAL-HEAD SCREW DIN7985-M3.5x5-4.8-H
BSD-2910641081.A137
2910641081
|
-
|
|
|
|
894 - GREASE TUBE 225 ML
BSD-1615430020.A46
1615430020
|
£21.52
|
£25.83
|
|
|
895 - GREASE TUBE 225 ML
BSD-1605430003.A274
1605430003
|
£33.74
|
£40.49
|
|
