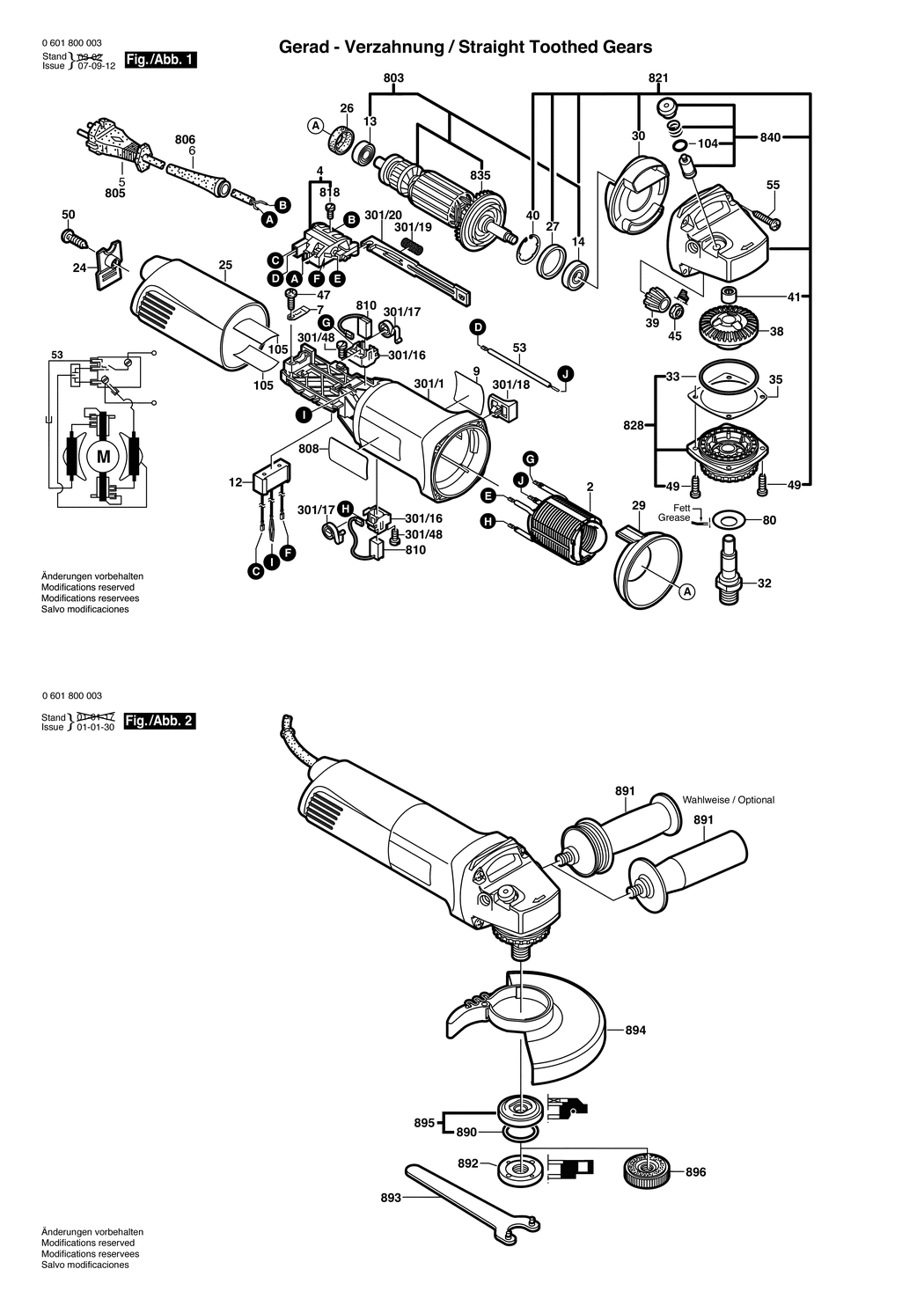

2 - FIELD 220-230V
BSD-1604220282.A31
1604220282
|
£27.23
|
£32.68
|
|
|
4 - ON-OFF SWITCH
BSD-1607200086.A229
1607200086
|
£11.30
|
£13.56
|
|
|
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1604460401.A59
1604460401
|
£19.45
|
£23.34
|
|
|
6 - GROMMET dia6.4-dia7.2x67 MM
BSD-1600703030.A134
1600703030
|
£2.61
|
£3.13
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A1004
1601302017
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118A70.A10
1601118A70
|
£2.16
|
£2.59
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328039.A45
1607328039
|
£11.30
|
£13.56
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A1057
2600905032
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING 8x22x7
BSD-1600905032.A498
1600905032
|
£5.58
|
£6.70
|
|
|
24 - COVER
BSD-1605500228.A67
1605500228
|
£2.80
|
£3.36
|
|
|
25 - HOUSING COVER
BSD-1605500226.A5
1605500226
|
£8.13
|
£9.76
|
|
|
26 - RUBBER RING
BSD-1600206036.A142
1600206036
|
£1.75
|
£2.10
|
|
|
27 - RUBBER RING
BSD-1600206025.A895
1600206025
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1600591025.A39
1600591025
|
£2.61
|
£3.13
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600591014.A267
1600591014
|
£2.61
|
£3.13
|
|
|
32 - GRINDING SPINDLE
BSD-1607000D6A.A330
1607000D6A
|
£7.36
|
£8.83
|
|
|
33 - O-RING 46.0x1.1 MM
BSD-1600210035.A19
1600210035
|
£1.75
|
£2.10
|
|
|
35 - SHIM 0.1 MM
BSD-1600136013.A243
1600136013
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.15 MM
BSD-1600136020.A264
1600136020
|
£3.72
|
£4.47
|
|
|
35 - SHIM 0.2 MM
BSD-1600136014.A277
1600136014
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.3 MM
BSD-1600136015.A243
1600136015
|
£2.61
|
£3.13
|
|
|
38 - CROWN GEAR Z=38
BSD-1606333616.A60
1606333616
|
£9.49
|
£11.39
|
|
|
39 - BEVEL GEAR Z=11
BSD-1606333617.A60
1606333617
|
-
|
|
|
|
40 - RETAINING CLIP
BSD-1600119011.A516
1600119011
|
£2.16
|
£2.59
|
|
|
41 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A529
1600910018
|
£5.30
|
£6.36
|
|
|
45 - HEX NUT M7. SW10
BSD-1603300016.A421
1603300016
|
£1.75
|
£2.10
|
|
|
47 - TAPPING SCREW DIN7981-ST3.9x13-C-Z
BSD-2912401018.A375
2912401018
|
£1.75
|
£2.10
|
|
|
49 - THREAD-FORMING TAP. SCREW
BSD-1603435026.A104
1603435026
|
£2.16
|
£2.59
|
|
|
50 - TAPPING SCREW DIN7981-ST3.9x19-F-Z
BSD-2912401420.A117
2912401420
|
£1.75
|
£2.10
|
|
|
53 - CONNECTING CABLE L=90 MM
BSD-1604448013.A59
1604448013
|
£2.16
|
£2.59
|
|
|
55 - OVAL-HEAD SCREW
BSD-1603415005.A199
1603415005
|
£1.75
|
£2.10
|
|
|
80 - SEALING DISK
BSD-3600150021.A259
3600150021
|
£3.80
|
£4.56
|
|
|
104 - O-RING 4.5x1.0 MM
BSD-1600210044.A389
1600210044
|
£1.75
|
£2.10
|
|
|
105 - INSULATING PLATE
BSD-1601008005.A48
1601008005
|
£4.26
|
£5.11
|
|
|
301/1 - MOTOR HOUSING
BSD-1605108213.A3
1605108213
|
£8.67
|
£10.41
|
|
|
301/16 - BRUSH HOLDER
BSD-1601323025.A236
1601323025
|
£3.72
|
£4.47
|
|
|
301/17 - SPIRAL SPRING
BSD-1604652013.A1013
1604652013
|
£1.75
|
£2.10
|
|
|
301/18 - SWITCH HANDLE
BSD-1602026057.A318
1602026057
|
£1.97
|
£2.36
|
|
|
301/19 - COMPRESSION SPRING
BSD-1604611026.A588
1604611026
|
£1.75
|
£2.10
|
|
|
301/20 - ADJUSTING SLIDE
BSD-1602319010.A147
1602319010
|
£1.75
|
£2.10
|
|
|
301/48 - TAPPING SCREW DIN7981-ST2.9x9.5C-Z
BSD-2912401005.A72
2912401005
|
£1.75
|
£2.10
|
|
|
803 - ARMATURE WITH FAN 220-230V
BSD-1604010633.A1
1604010633
|
£63.50
|
£76.20
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A2763
160111A3H3
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014176.A334
1607014176
|
£13.12
|
£15.75
|
|
|
818 - PAN HEAD SCREW DIN 85-AM3x6-CUZN
BSD-2910110048.A536
2910110048
|
£1.75
|
£2.10
|
|
|
821 - GEAR HOUSING
BSD-1605806465.A26
1605806465
|
£40.80
|
£48.96
|
|
|
828 - BEARING FLANGE dia 110-125 MM
BSD-1607000347.A51
1607000347
|
£16.41
|
£19.69
|
|
|
835 - FAN
BSD-1606610129.A217
1606610129
|
£2.16
|
£2.59
|
|
|
840 - PUSH-BUTTON
BSD-1607000253.A257
1607000253
|
£2.49
|
£2.99
|
|
|
890 - O-RING 20.35x1.78 MM
BSD-1600210039.A900
1600210039
|
£2.16
|
£2.59
|
|
|
891 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A437
160202509T
|
£3.72
|
£4.47
|
|
|
891 - AUXILIARY HANDLE M10. dia37x115 MM
BSD-1602025031.A131
1602025031
|
£18.96
|
£22.75
|
|
|
892 - ROUND NUT M14
BSD-1603345043.A1311
1603345043
|
£8.67
|
£10.41
|
|
|
893 - PIN-TYPE FACE-WRENCH
BSD-1607950052.A356
1607950052
|
£3.72
|
£4.47
|
|
|
894 - PROTECTIVE COVER dia 115 MM
BSD-1605510312.A4
1605510312
|
£21.52
|
£25.83
|
|
|
895 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A449
2605703014
|
£7.36
|
£8.83
|
|
|
896 - FAST LOCKING FLANGE M14. SDS-CLIC
BSD-1603340027.A909
1603340027
|
£46.82
|
£56.18
|
|
