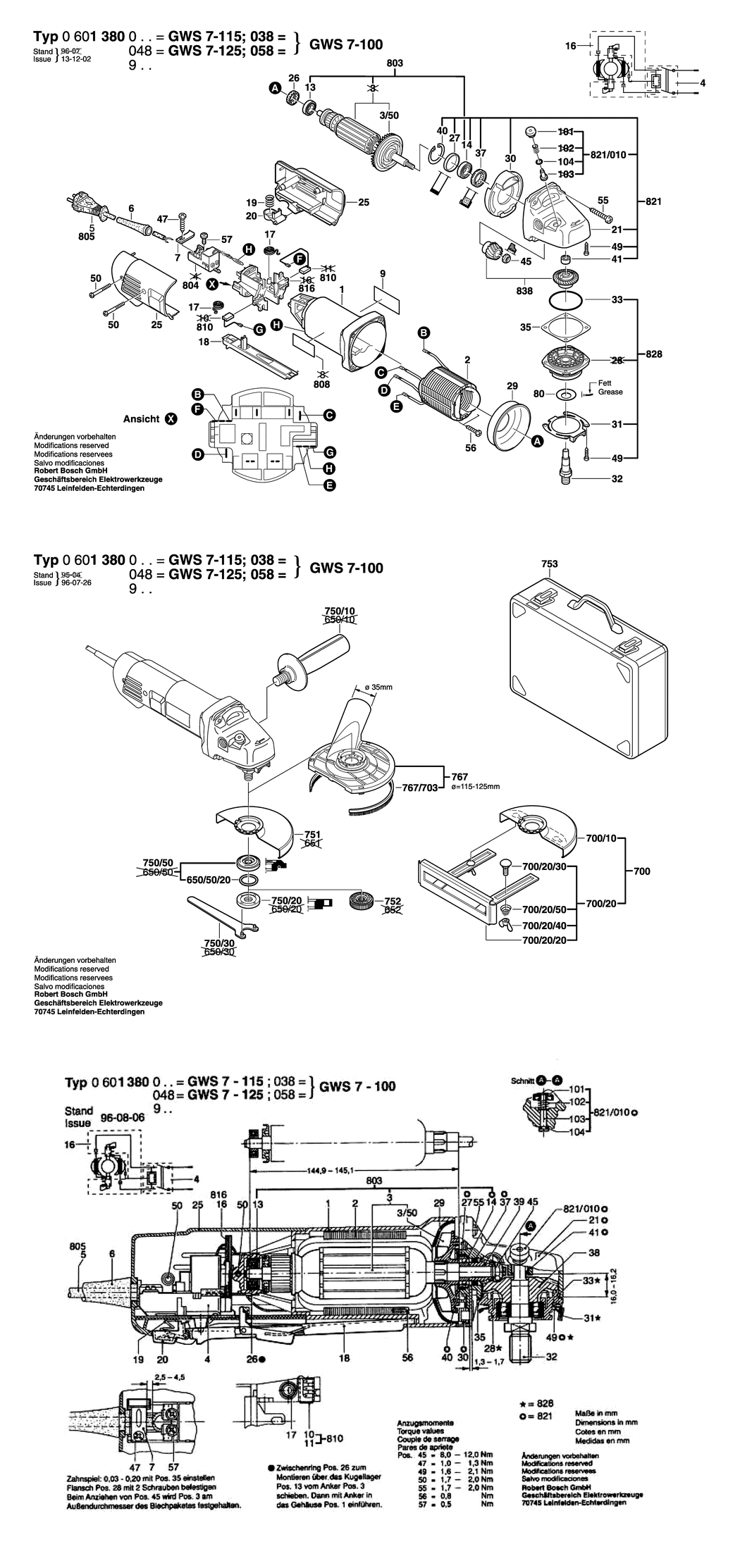

1 - MOTOR HOUSING
BSD-1605108161.A20
1605108161
|
-
|
|
|
|
3/50 - FAN
BSD-1606610129.A154
1606610129
|
£2.16
|
£2.59
|
|
|
4 - SWITCH
BSD-1607200120.A28
1607200120
|
-
|
|
|
|
6 - GROMMET dia6.4-dia7.2x67 MM
BSD-1600703030.A150
1600703030
|
£2.61
|
£3.13
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A938
1601302017
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110917.A5
1601110917
|
-
|
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A901
2600905032
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING 8x22x7
BSD-1600905032.A427
1600905032
|
£5.58
|
£6.70
|
|
|
16 - BRUSH HOLDER
BSD-1604336030.A27
1604336030
|
£16.74
|
£20.09
|
|
|
17 - SPIRAL SPRING
BSD-1604652013.A910
1604652013
|
£1.75
|
£2.10
|
|
|
18 - SWITCH-PAWL
BSD-1602319013.A96
1602319013
|
£8.49
|
£10.19
|
|
|
19 - COMPRESSION SPRING
BSD-1604611024.A102
1604611024
|
£1.75
|
£2.10
|
|
|
20 - SHIFT-LEVER KNOB
BSD-1602319007.A83
1602319007
|
£1.75
|
£2.10
|
|
|
21 - GEAR HOUSING
BSD-1605806451.A18
1605806451
|
£37.27
|
£44.72
|
|
|
25 - HOUSING COVER
BSD-1605500169.A21
1605500169
|
-
|
|
|
|
26 - RUBBER RING
BSD-1600206036.A165
1600206036
|
£1.75
|
£2.10
|
|
|
27 - RUBBER RING
BSD-1600206025.A1005
1600206025
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1600591013.A9
1600591013
|
-
|
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600591014.A225
1600591014
|
£2.61
|
£3.13
|
|
|
31 - CLAMPING SPRING
BSD-1601290007.A11
1601290007
|
£5.30
|
£6.36
|
|
|
32 - GRINDING SPINDLE
BSD-1607000D6A.A426
1607000D6A
|
£7.36
|
£8.83
|
|
|
33 - O-RING 46.0x1.1 MM
BSD-1600210035.A4
1600210035
|
£1.75
|
£2.10
|
|
|
35 - SHIM 0.1 MM
BSD-1600136013.A279
1600136013
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.15 MM
BSD-1600136020.A237
1600136020
|
£3.72
|
£4.47
|
|
|
35 - SHIM 0.2 MM
BSD-1600136014.A241
1600136014
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.3 MM
BSD-1600136015.A279
1600136015
|
£2.61
|
£3.13
|
|
|
37 - ROTARY SHAFT LIP SEAL
BSD-1600290016.A121
1600290016
|
£2.61
|
£3.13
|
|
|
40 - RETAINING CLIP
BSD-1600119011.A470
1600119011
|
£2.16
|
£2.59
|
|
|
41 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A452
1600910018
|
£5.30
|
£6.36
|
|
|
45 - HEX NUT M7. SW10
BSD-1603300016.A526
1603300016
|
£1.75
|
£2.10
|
|
|
47 - TAPPING SCREW DIN7981-ST3.9x13-C-Z
BSD-2912401018.A425
2912401018
|
£1.75
|
£2.10
|
|
|
49 - THREAD-FORMING TAP. SCREW
BSD-1603435026.A153
1603435026
|
£2.16
|
£2.59
|
|
|
50 - PLASTIC-CUTTING SCREW
BSD-1603435037.A29
1603435037
|
£1.75
|
£2.10
|
|
|
55 - OVAL-HEAD SCREW
BSD-1603415005.A143
1603415005
|
£1.75
|
£2.10
|
|
|
56 - PLASTIC-CUTTING SCREW
BSD-1603435044.A90
1603435044
|
-
|
|
|
|
57 - SOCKET HEAD CAP SCREW M3.5x7 MM
BSD-1603429002.A40
1603429002
|
£1.75
|
£2.10
|
|
|
80 - SEALING DISK
BSD-3600150021.A330
3600150021
|
£3.80
|
£4.56
|
|
|
104 - O-RING 4.5x1.0 MM
BSD-1600210044.A261
1600210044
|
£1.75
|
£2.10
|
|
|
650/50/20 - O-RING 20.35x1.78 MM
BSD-1600210039.A732
1600210039
|
£2.16
|
£2.59
|
|
|
700 - GUIDE BLOCK
BSD-2607001189.A3
2607001189
|
-
|
|
|
|
700 - PARTS SET dia 125 MM
BSD-2607001188.A93
2607001188
|
-
|
|
|
|
700/10 - PROTECTIVE COVER dia 115MM
BSD-2605510102.A9
2605510102
|
-
|
|
|
|
700/10 - PROTECTIVE COVER dia 125MM
BSD-2605510101.A121
2605510101
|
£22.22
|
£26.67
|
|
|
700/20 - GUIDE BLOCK
BSD-1608135004.A19
1608135004
|
-
|
|
|
|
700/20/30 - ROUND-HEAD BOLT DIN 603-M 5x16
BSD-2910281158.A11
2910281158
|
-
|
|
|
|
700/20/40 - WING NUT M 5 DIN 315-G-5
BSD-2915191105.A34
2915191105
|
-
|
|
|
|
700/20/50 - COMPRESSION SPRING
BSD-1604643004.A24
1604643004
|
-
|
|
|
|
750/10 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A556
160202509T
|
£3.72
|
£4.47
|
|
|
750/20 - CLAMPING NUT M14
BSD-1603340040.A44
1603340040
|
£6.20
|
£7.44
|
|
|
750/30 - PIN-TYPE FACE-WRENCH
BSD-1607950043.A170
1607950043
|
£4.02
|
£4.83
|
|
|
750/50 - CLAMPING-FLANGE dia22.2x42 MM
BSD-1605703099.A262
1605703099
|
£7.45
|
£8.94
|
|
|
752 - FAST LOCKING FLANGE M14. SDS-CLIC
BSD-1603340027.A997
1603340027
|
£46.82
|
£56.18
|
|
|
753 - CARRYING CASE
BSD-1605438089.A87
1605438089
|
-
|
|
|
|
767 - SUCTION HOOD dia115-125MM
BSD-2605510107.A6
2605510107
|
-
|
|
|
|
767/703 - BRUSH
BSD-2605730036.A81
2605730036
|
£21.53
|
£25.84
|
|
|
804 - SWITCH
BSD-1607200120.A26
1607200120
|
-
|
|
|
|
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A287
1607000227
|
£23.86
|
£28.63
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A2017
160111A3H3
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014176.A358
1607014176
|
£13.12
|
£15.75
|
|
|
816 - BRUSH HOLDER
BSD-1604336030.A29
1604336030
|
£16.74
|
£20.09
|
|
|
821 - GEAR HOUSING
BSD-1605806451.A16
1605806451
|
£37.27
|
£44.72
|
|
|
821/010 - PUSH-BUTTON
BSD-1607000253.A133
1607000253
|
£2.49
|
£2.99
|
|
|
828 - BEARING FLANGE
BSD-1605805079.A146
1605805079
|
£18.96
|
£22.75
|
|
|
838 - GEAR UNIT
BSD-1607000D4Y.A42
1607000D4Y
|
£21.42
|
£25.71
|
|
