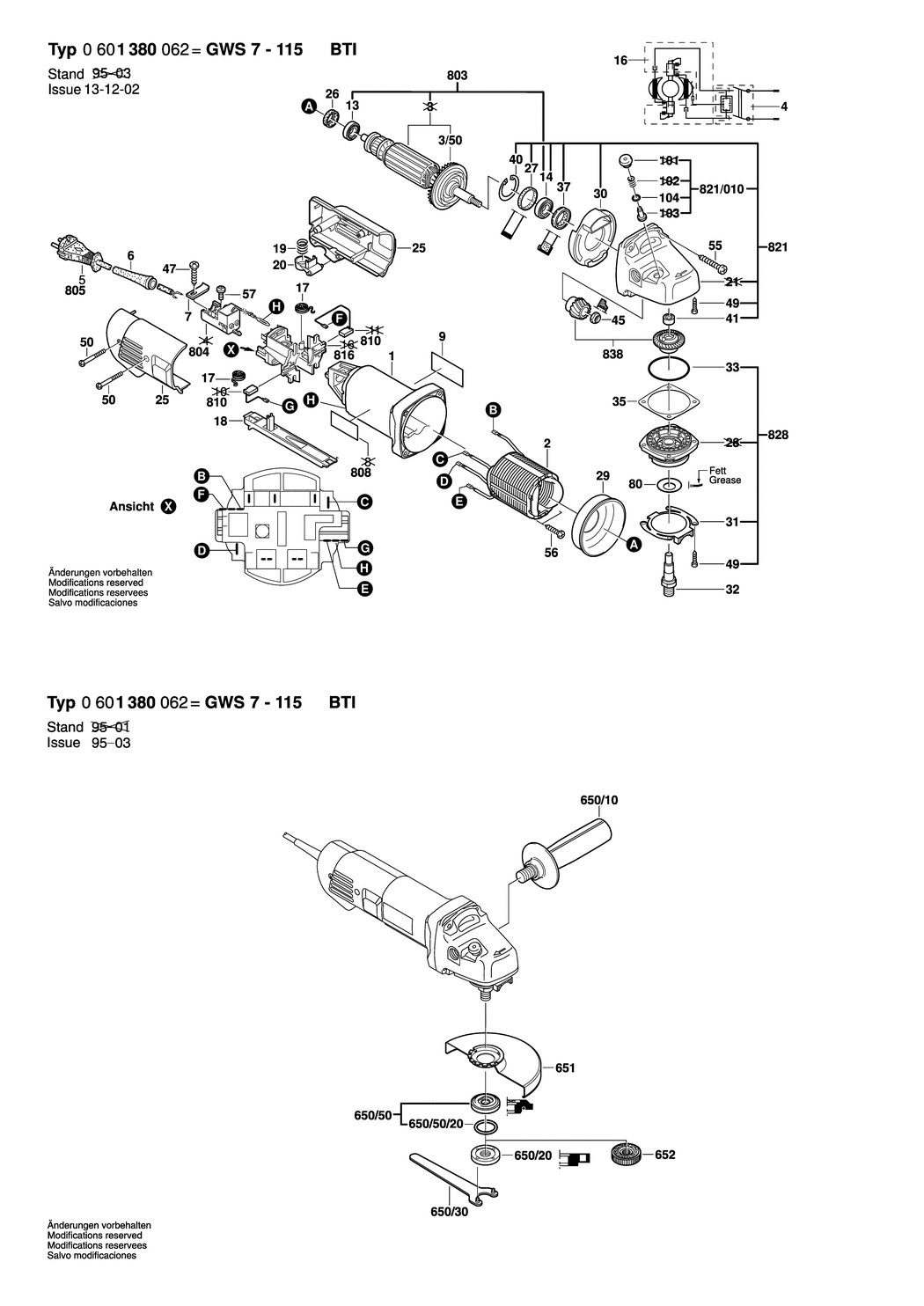

1 - MOTOR HOUSING
BSD-1605108177.A0
1605108177
|
-
|
|
|
|
2 - FIELD 220-230V
BSD-1604220282.A43
1604220282
|
£27.23
|
£32.68
|
|
|
3/50 - FAN
BSD-1606610129.A151
1606610129
|
£2.16
|
£2.59
|
|
|
4 - SWITCH
BSD-1607200120.A25
1607200120
|
-
|
|
|
|
5 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A290
1607000227
|
£23.86
|
£28.63
|
|
|
6 - GROMMET dia6.4-dia7.2x67 MM
BSD-1600703030.A153
1600703030
|
£2.61
|
£3.13
|
|
|
6 - GROMMET dia7.3-dia8.6x67 MM
BSD-1600703031.A2
1600703031
|
£2.80
|
£3.36
|
|
|
6 - GROMMET dia8.7-dia9.5x67 MM
BSD-1600703032.A51
1600703032
|
£2.61
|
£3.13
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A941
1601302017
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118469.A0
1601118469
|
-
|
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A906
2600905032
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING 8x22x7
BSD-1600905032.A429
1600905032
|
£5.58
|
£6.70
|
|
|
16 - BRUSH HOLDER
BSD-1604336030.A20
1604336030
|
£16.74
|
£20.09
|
|
|
17 - SPIRAL SPRING
BSD-1604652013.A908
1604652013
|
£1.75
|
£2.10
|
|
|
18 - SWITCH-PAWL
BSD-1602319013.A99
1602319013
|
£8.49
|
£10.19
|
|
|
19 - COMPRESSION SPRING
BSD-1604611024.A99
1604611024
|
£1.75
|
£2.10
|
|
|
20 - SHIFT-LEVER KNOB
BSD-1602319007.A80
1602319007
|
£1.75
|
£2.10
|
|
|
25 - HOUSING COVER
BSD-1605500197.A1
1605500197
|
-
|
|
|
|
26 - RUBBER RING
BSD-1600206036.A158
1600206036
|
£1.75
|
£2.10
|
|
|
27 - RUBBER RING
BSD-1600206025.A1011
1600206025
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1600591013.A12
1600591013
|
-
|
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600591014.A222
1600591014
|
£2.61
|
£3.13
|
|
|
31 - CLAMPING SPRING
BSD-1601290007.A8
1601290007
|
£5.30
|
£6.36
|
|
|
32 - GRINDING SPINDLE
BSD-1607000D6A.A424
1607000D6A
|
£7.36
|
£8.83
|
|
|
33 - O-RING 46.0x1.1 MM
BSD-3600210124.A375
3600210124
|
£2.80
|
£3.36
|
|
|
35 - SHIM 0.1 MM
BSD-1600136013.A287
1600136013
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.2 MM
BSD-1600136014.A233
1600136014
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.3 MM
BSD-1600136015.A287
1600136015
|
£2.61
|
£3.13
|
|
|
37 - ROTARY SHAFT LIP SEAL
BSD-1600290016.A120
1600290016
|
£2.61
|
£3.13
|
|
|
40 - RETAINING CLIP
BSD-1600119011.A463
1600119011
|
£2.16
|
£2.59
|
|
|
41 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A450
1600910018
|
£5.30
|
£6.36
|
|
|
45 - HEX NUT M7. SW10
BSD-1603300016.A521
1603300016
|
£1.75
|
£2.10
|
|
|
47 - PLASTIC-CUTTING SCREW St3.9x12
BSD-1603435042.A365
1603435042
|
£1.75
|
£2.10
|
|
|
49 - THREAD-FORMING TAP. SCREW
BSD-1603435026.A146
1603435026
|
£2.16
|
£2.59
|
|
|
50 - PLASTIC-CUTTING SCREW
BSD-1603435037.A36
1603435037
|
£1.75
|
£2.10
|
|
|
55 - OVAL-HEAD SCREW
BSD-1603415005.A136
1603415005
|
£1.75
|
£2.10
|
|
|
56 - PLASTIC-CUTTING SCREW
BSD-1603435044.A96
1603435044
|
-
|
|
|
|
57 - SOCKET HEAD CAP SCREW M3.5x7 MM
BSD-1603429002.A47
1603429002
|
£1.75
|
£2.10
|
|
|
80 - SEALING DISK
BSD-3600150021.A325
3600150021
|
£3.80
|
£4.56
|
|
|
104 - O-RING 4.5x1.0 MM
BSD-1600210044.A265
1600210044
|
£1.75
|
£2.10
|
|
|
650/10 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A551
160202509T
|
£3.72
|
£4.47
|
|
|
650/20 - ROUND NUT M14
BSD-1603345043.A1104
1603345043
|
£8.67
|
£10.41
|
|
|
650/30 - PIN-TYPE FACE-WRENCH
BSD-1607950052.A324
1607950052
|
£3.72
|
£4.47
|
|
|
650/50 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A314
2605703014
|
£7.36
|
£8.83
|
|
|
650/50/20 - O-RING 20.35x1.78 MM
BSD-1600210039.A727
1600210039
|
£2.16
|
£2.59
|
|
|
651 - PROTECTIVE COVER dia 115 MM
BSD-1605510230.A1
1605510230
|
-
|
|
|
|
652 - FAST LOCKING FLANGE M14
BSD-1603340034.A3
1603340034
|
£36.63
|
£43.96
|
|
|
803 - ARMATURE 230-240V
BSD-1604010623.A6
1604010623
|
£63.50
|
£76.20
|
|
|
804 - SWITCH
BSD-1607200120.A21
1607200120
|
-
|
|
|
|
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A291
1607000227
|
£23.86
|
£28.63
|
|
|
808 - NAMEPLATE
BSD-160111A3HC.A57
160111A3HC
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014176.A360
1607014176
|
£13.12
|
£15.75
|
|
|
816 - BRUSH HOLDER
BSD-1604336030.A17
1604336030
|
£16.74
|
£20.09
|
|
|
821 - GEAR HOUSING
BSD-1605806451.A13
1605806451
|
£37.27
|
£44.72
|
|
|
821/010 - PUSH-BUTTON
BSD-1607000253.A130
1607000253
|
£2.49
|
£2.99
|
|
|
828 - BEARING FLANGE
BSD-1605805079.A150
1605805079
|
£18.96
|
£22.75
|
|
|
838 - GEAR UNIT
BSD-1607000D4Y.A44
1607000D4Y
|
£21.42
|
£25.71
|
|
