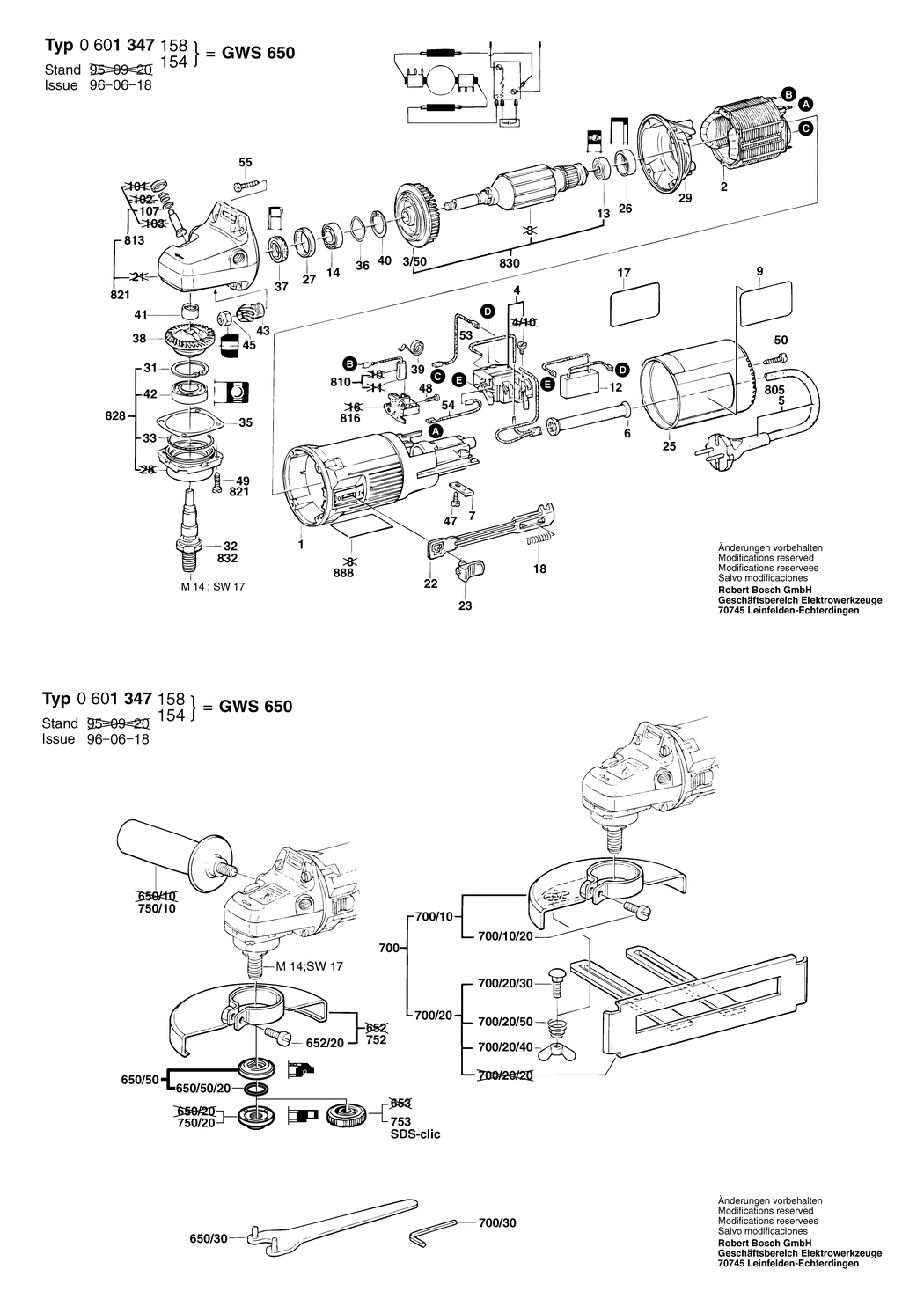

An exploded drawing and listing for the Bosch GWS 650 / 0601347154 / CH 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-16051082CC.A117 16051082CC £13.12 £15.75
2 - FIELD 220-230V BSD-1604220272.A35 1604220272 -
3/50 - FAN BSD-1606610121.A82 1606610121 £1.75 £2.10
4 - ON-OFF SWITCH BSD-1607200086.A61 1607200086 £11.30 £13.56
5 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05 VV-F BSD-1604460148.A1 1604460148 -
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A245 2600703012 £2.80 £3.36
6 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A871 2600703011 £2.80 £3.36
7 - FASTENING CLAMP BSD-1601302017.A243 1601302017 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601118443.A1 1601118443 -
12 - SUPPRESSION FILTER BSD-1607328029.A190 1607328029 -
13 - BALL BEARING 7x19x6 BSD-2600905032.A1982 2600905032 £5.30 £6.36
14 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A796 1600905011 £5.58 £6.70
17 - MANUFACTURER'S NAMEPLATE BSD-1601110783.A2 1601110783 -
18 - COMPRESSION SPRING BSD-1604611026.A282 1604611026 £1.75 £2.10
22 - ADJUSTING SLIDE BSD-1602319002.A257 1602319002 £2.61 £3.13
23 - SWITCH HANDLE BSD-1602026057.A52 1602026057 £1.97 £2.36
25 - HOUSING COVER BSD-1600508010.A30 1600508010 £7.36 £8.83
26 - RUBBER BUSHING BSD-1600502020.A318 1600502020 £2.61 £3.13
27 - RUBBER RING BSD-1600206025.A45 1600206025 £2.16 £2.59
29 - AIR-DEFLECTOR RING BSD-1601328005.A72 1601328005 £2.61 £3.13
31 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A504 2916660013 £2.16 £2.59
32 - GRINDING SPINDLE BSD-1607000D6A.A547 1607000D6A £7.36 £8.83
33 - O-RING 46.0x1.1 MM BSD-3600210124.A181 3600210124 £2.80 £3.36
35 - SHIM 0.2 MM BSD-1600136010.A272 1600136010 £2.61 £3.13
35 - SHIM 0.3 MM BSD-1600136011.A57 1600136011 £2.16 £2.59
35 - SHIM 0.1 MM BSD-1600136012.A266 1600136012 £1.75 £2.10
36 - SPRING WASHER BSD-1600150011.A25 1600150011 £1.75 £2.10
37 - ROTARY SHAFT LIP SEAL BSD-1600290016.A719 1600290016 £2.61 £3.13
38 - CROWN GEAR Z=36 BSD-1606333601.A44 1606333601 £8.49 £10.19
39 - SPIRAL SPRING BSD-1604652013.A97 1604652013 £1.75 £2.10
40 - SPRING RETAINING RING DIN 472-25x1.2MM BSD-2916660009.A234 2916660009 £2.16 £2.59
41 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A228 1600910018 £5.30 £6.36
42 - GROOVE BALL BEARING 12x32x10 BSD-1600905006.A180 1600905006 £12.04 £14.45
43 - BEVEL GEAR Z=11 BSD-1606333242.A10 1606333242 £48.38 £58.06
45 - HEX NUT M7. SW10 BSD-1603300016.A749 1603300016 £1.75 £2.10
47 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A390 2910211018 £1.75 £2.10
48 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A211 2910211005 £1.75 £2.10
49 - THREAD-FORMING TAP. SCREW BSD-1603435026.A415 1603435026 £2.16 £2.59
50 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A441 2910211021 £1.75 £2.10
53 - CONNECTING CABLE L=95 MM BSD-1604448005.A4 1604448005 £2.80 £3.36
54 - CONNECTING CABLE L=40 MM BSD-1604448006.A127 1604448006 £2.61 £3.13
55 - TAPPING SCREW DIN7981-ST3.9x22-C-Z BSD-2912401021.A157 2912401021 £1.75 £2.10
107 - O-RING 4.5x1.0 MM BSD-1600210044.A551 1600210044 £1.75 £2.10
650/30 - PIN-TYPE FACE-WRENCH BSD-1607950052.A528 1607950052 £3.72 £4.47
650/50 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A227 2605703014 £7.36 £8.83
650/50/20 - O-RING 20.35x1.78 MM BSD-1600210039.A1554 1600210039 £2.16 £2.59
652/20 - SOCKET HEAD CAP SCREW DIN 84-M 6x16-8.8 BSD-2910022197.A57 2910022197 -
652/20 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A515 2910141197 £1.75 £2.10
700 - SUCTION HOOD dia 125 MM BSD-2605510066.A17 2605510066 -
700/10 - PROTECTIVE COVER dia 115 MM BSD-1605510201.A33 1605510201 -
700/10/20 - SOCKET HEAD CAP SCREW DIN 84-M 6x16-8.8 BSD-2910022197.A58 2910022197 -
700/10/20 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A514 2910141197 £1.75 £2.10
700/20 - GUIDE BLOCK BSD-1608135004.A144 1608135004 -
700/20/30 - ROUND-HEAD BOLT DIN 603-M 5x16 BSD-2910281158.A135 2910281158 -
700/20/40 - WING NUT M 5 DIN 315-G-5 BSD-2915191105.A163 2915191105 -
700/20/50 - COMPRESSION SPRING BSD-1604643004.A126 1604643004 -
700/30 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A1122 1907950006 £4.26 £5.11
750/10 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A264 160202509T £3.72 £4.47
750/20 - CLAMPING NUT M14 BSD-1603340040.A422 1603340040 £6.20 £7.44
752 - PROTECTIVE COVER dia 115 MM(4 1/2) BSD-2605510125.A16 2605510125 £27.23 £32.68
753 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340027.A3 1603340027 £46.82 £56.18
810 - CARBON-BRUSH SET BSD-1607014116.A61 1607014116 £11.30 £13.56
813 - PUSH-BUTTON BSD-1607000253.A535 1607000253 £2.49 £2.99
816 - BRUSH HOLDER BSD-1600A003G4.A56 1600A003G4 £3.72 £4.47
821 - GEAR HOUSING BSD-1605806480.A40 1605806480 £48.38 £58.06
828 - BEARING FLANGE BSD-1607000936.A153 1607000936 £27.23 £32.68
830 - ARMATURE WITH FAN 220-230V BSD-1604010429.A37 1604010429 -
832 - ASSEMBLY OF SERVICE PARTS BSD-1607000944.A0 1607000944 £16.74 £20.09
888 - NAMEPLATE BSD-160111A3H3.A5234 160111A3H3 £2.61 £3.13
