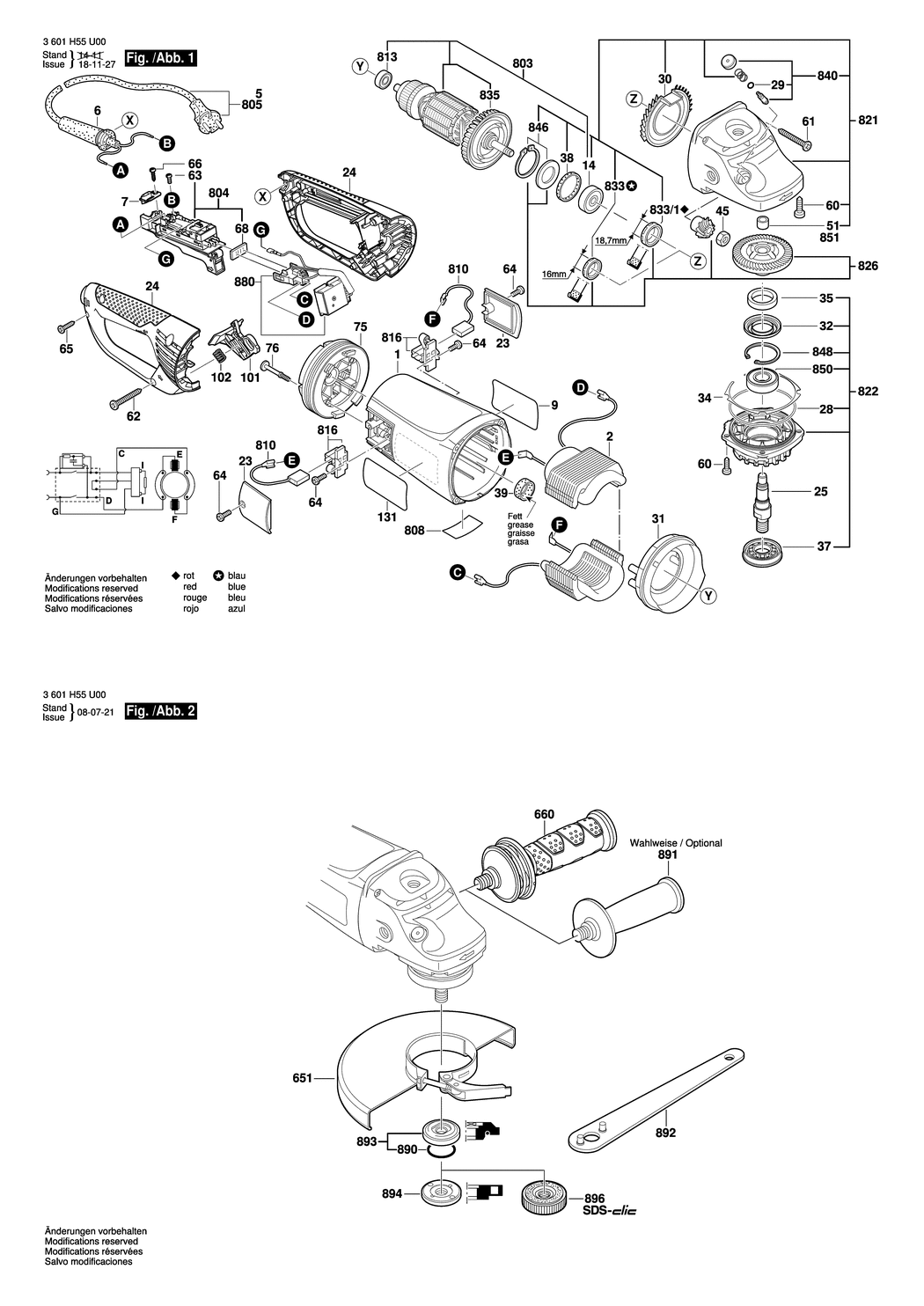

An exploded drawing and listing for the Bosch GWS 26-230 JBV / 3601H56U00 / EU 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605108239.A14 1605108239 £16.74 £20.09
2 - FIELD 220-230V BSD-160422051P.A22 160422051P £45.67 £54.80
6 - GROMMET dia10.5-dia11.0x100 MM BSD-1600703036.A69 1600703036 £2.16 £2.59
7 - FASTENING CLAMP BSD-1601302018.A255 1601302018 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE GWS 26-230 BV BSD-1601118R43.A1 1601118R43 £2.80 £3.36
14 - GROOVE BALL BEARING BSD-1600905028.A212 1600905028 £12.04 £14.45
23 - SEALING CAP BSD-1618B00802.A164 1618B00802 £4.27 £5.12
24 - HANDLE BSD-1605132151.A8 1605132151 £14.91 £17.89
25 - GRINDING SPINDLE BSD-160312305U.A20 160312305U £13.12 £15.75
28 - O-RING 79.0x1.78 MM BSD-1600210033.A376 1600210033 £1.75 £2.10
29 - O-RING 8.0x1.0 MM BSD-1600210045.A325 1600210045 £1.75 £2.10
30 - AIR DISTRIBUTOR BSD-1600591029.A208 1600591029 £2.61 £3.13
31 - AIR-DEFLECTOR RING BSD-1600591028.A140 1600591028 £2.33 £2.80
32 - RETAINING SNAP RING BSD-1600290019.A277 1600290019 £1.75 £2.10
34 - SHIM 0.15 MM BSD-1600190020.A486 1600190020 £1.75 £2.10
34 - SHIM 0.3 MM BSD-1600190021.A341 1600190021 £2.61 £3.13
34 - SHIM 0.1 MM BSD-1600190022.A486 1600190022 £1.75 £2.10
34 - SHIM 0.2 MM BSD-1600190037.A249 1600190037 £1.75 £2.10
34 - SHIM 0.25 MM BSD-1600190038.A138 1600190038 £1.75 £2.10
34 - SHIM 0.35 MM BSD-1600190039.A249 1600190039 £1.75 £2.10
34 - SHIM 0.4 MM BSD-1600190040.A138 1600190040 £1.75 £2.10
35 - FELT WASHER BSD-1600205034.A488 1600205034 £1.75 £2.10
37 - SEAL RING BSD-1600290036.A343 1600290036 £2.16 £2.59
38 - RUBBER RING 7 MM BSD-1600206020.A293 1600206020 £1.75 £2.10
39 - RUBBER RING BSD-1600206030.A512 1600206030 £1.75 £2.10
45 - HEX NUT M10. SW14 BSD-1603300019.A406 1603300019 £1.75 £2.10
51 - PLAIN BEARING dia14 MM BSD-1600200031.A81 1600200031 £2.80 £3.36
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM BSD-1603435023.A454 1603435023 £2.16 £2.59
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST BSD-2912401038.A508 2912401038 £1.75 £2.10
62 - OVAL-HEAD SCREW BSD-1603415006.A35 1603415006 £2.16 £2.59
63 - PAN HEAD SCREW M4x10 MM BSD-1603410014.A528 1603410014 £1.75 £2.10
64 - PLASTIC-CUTTING SCREW St3.9x12 BSD-1603435042.A200 1603435042 £1.75 £2.10
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST BSD-2912401020.A1110 2912401020 £2.16 £2.59
66 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A1319 2910211019 £1.75 £2.10
68 - SEALING PLATE BSD-1601006011.A141 1601006011 £2.61 £3.13
75 - DAMPER BSD-1600290057.A14 1600290057 £21.52 £25.83
76 - COLLAR SCREW TORX-PLUS-20-IP BSD-1603414016.A35 1603414016 £1.75 £2.10
101 - CATCH SLIDE BSD-1601990014.A18 1601990014 £2.80 £3.36
102 - COMPRESSION SPRING BSD-1604616022.A161 1604616022 £1.75 £2.10
131 - MANUFACTURER'S NAMEPLATE GWS 26 JBV BSD-1601118R45.A2 1601118R45 -
651 - PROTECTIVE COVER BSD-1600A01R96.A14 1600A01R96 £37.26 £44.71
660 - AUXILIARY HANDLE M14 BSD-1602025051.A29 1602025051 £27.23 £32.68
803 - ARMATURE 220-240V BSD-1604011932.A66 1604011932 £80.61 £96.73
804 - ON-OFF SWITCH BSD-1607000C14.A58 1607000C14 £30.28 £36.33
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F BSD-1607000228.A498 1607000228 £23.86 £28.63
808 - NAMEPLATE BSD-160111A3H3.A99 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1607014171.A453 1607014171 £14.91 £17.89
810 - CARBON-BRUSH SET 10 x 1 607 014 171 BSD-1607000480.A172 1607000480 £102.57 £123.08
813 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A442 1600905011 £5.58 £6.70
816 - BRUSH HOLDER BSD-1604336048.A215 1604336048 £7.36 £8.83
821 - GEAR HOUSING BSD-1607000C03.A45 1607000C03 £48.38 £58.06
822 - BEARING FLANGE dia230 MM BSD-1607000C24.A27 1607000C24 £27.31 £32.77
826 - PARTS SET BSD-1600A003FE.A36 1600A003FE £37.27 £44.72
833 - ROTARY SHAFT LIP SEAL 16 MM BSD-1600290064.A155 1600290064 £2.16 £2.59
833/1 - ROTARY SHAFT LIP SEAL 18.7 MM BSD-1600290013.A398 1600290013 £2.61 £3.13
835 - FAN BSD-1600A00J93.A173 1600A00J93 £2.80 £3.36
840 - PUSH-BUTTON BSD-1607000354.A262 1607000354 £6.52 £7.83
846 - RETAINING WASHER BSD-1607000C3E.A17 1607000C3E £12.04 £14.45
848 - RETAINING CLIP BSD-1600119010.A161 1600119010 £1.75 £2.10
850 - GROOVE BALL BEARING 17x40x12 BSD-1600905026.A86 1600905026 £8.67 £10.41
851 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A1088 2600910001 £4.26 £5.11
880 - ELECTRONICS MODULE BSD-1607233319.A12 1607233319 £40.80 £48.96
890 - O-RING 20.35x1.78 MM BSD-1600210039.A254 1600210039 £2.16 £2.59
891 - AUXILIARY HANDLE M14 BSD-1602025022.A412 1602025022 £13.41 £16.09
892 - PIN-TYPE FACE-WRENCH BSD-1607950061.A255 1607950061 £5.42 £6.50
893 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A993 2605703014 £7.36 £8.83
894 - ROUND NUT M14 BSD-1603345043.A592 1603345043 £8.67 £10.41
896 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340027.A440 1603340027 £46.82 £56.18
