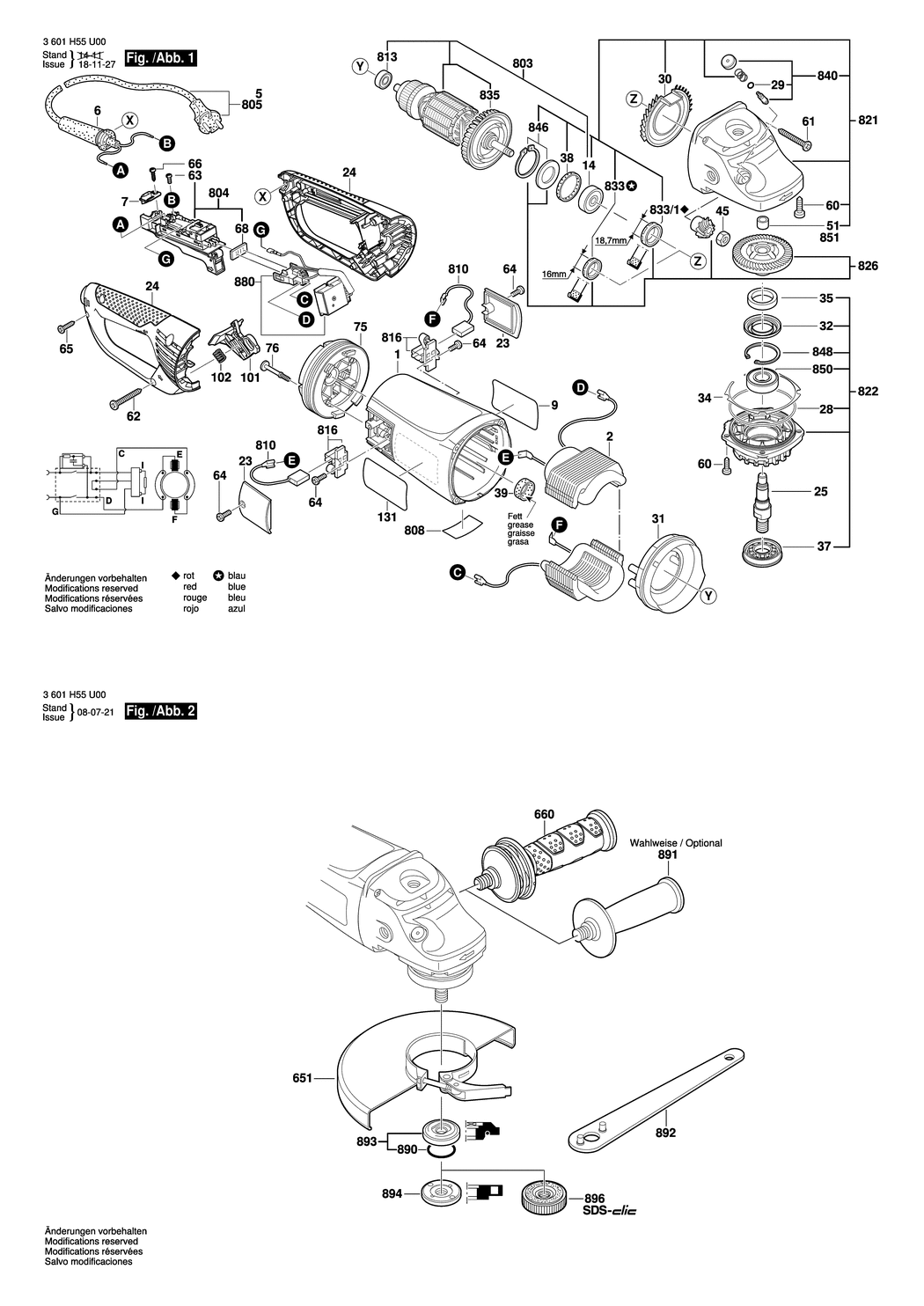

1 - MOTOR HOUSING
BSD-1605108239.A16
1605108239
|
£16.74
|
£20.09
|
|
|
2 - FIELD 220-230V
BSD-160422051P.A10
160422051P
|
£45.67
|
£54.80
|
|
|
6 - GROMMET dia10.5-dia11.0x100 MM
BSD-1600703036.A52
1600703036
|
£2.27
|
£2.72
|
|
|
7 - FASTENING CLAMP
BSD-1601302018.A201
1601302018
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE GWS 26-180 JBV
BSD-1601118R42.A0
1601118R42
|
£2.45
|
£2.94
|
|
|
14 - GROOVE BALL BEARING
BSD-1600905028.A268
1600905028
|
£12.64
|
£15.17
|
|
|
23 - SEALING CAP
BSD-1618B00802.A192
1618B00802
|
£4.27
|
£5.12
|
|
|
24 - HANDLE
BSD-1605132151.A0
1605132151
|
£14.91
|
£17.89
|
|
|
25 - GRINDING SPINDLE
BSD-160312305U.A57
160312305U
|
£13.12
|
£15.75
|
|
|
28 - O-RING 79.0x1.78 MM
BSD-1600210033.A443
1600210033
|
£1.84
|
£2.21
|
|
|
29 - O-RING 8.0x1.0 MM
BSD-1600210045.A306
1600210045
|
£1.84
|
£2.21
|
|
|
30 - AIR DISTRIBUTOR
BSD-1600591029.A233
1600591029
|
£2.74
|
£3.29
|
|
|
31 - AIR-DEFLECTOR RING
BSD-1600591028.A111
1600591028
|
£2.45
|
£2.94
|
|
|
32 - RETAINING SNAP RING
BSD-1600290019.A261
1600290019
|
£1.84
|
£2.21
|
|
|
34 - SHIM 0.15 MM
BSD-1600190020.A444
1600190020
|
£1.84
|
£2.21
|
|
|
34 - SHIM 0.3 MM
BSD-1600190021.A383
1600190021
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.1 MM
BSD-1600190022.A444
1600190022
|
£1.84
|
£2.21
|
|
|
34 - SHIM 0.2 MM
BSD-1600190037.A291
1600190037
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.25 MM
BSD-1600190038.A96
1600190038
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.35 MM
BSD-1600190039.A291
1600190039
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.4 MM
BSD-1600190040.A96
1600190040
|
£1.75
|
£2.10
|
|
|
35 - FELT WASHER
BSD-1600205034.A525
1600205034
|
£1.75
|
£2.10
|
|
|
37 - SEAL RING
BSD-1600290036.A356
1600290036
|
£2.27
|
£2.72
|
|
|
38 - RUBBER RING 7 MM
BSD-1600206020.A256
1600206020
|
£1.84
|
£2.21
|
|
|
39 - RUBBER RING
BSD-1600206030.A470
1600206030
|
£1.84
|
£2.21
|
|
|
45 - HEX NUT M10. SW14
BSD-1603300019.A340
1603300019
|
£1.84
|
£2.21
|
|
|
51 - PLAIN BEARING dia14 MM
BSD-1600200031.A43
1600200031
|
£2.80
|
£3.36
|
|
|
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM
BSD-1603435023.A492
1603435023
|
£2.16
|
£2.59
|
|
|
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST
BSD-2912401038.A457
2912401038
|
£1.84
|
£2.21
|
|
|
62 - OVAL-HEAD SCREW
BSD-1603415006.A0
1603415006
|
£2.27
|
£2.72
|
|
|
63 - PAN HEAD SCREW M4x10 MM
BSD-1603410014.A498
1603410014
|
£1.84
|
£2.21
|
|
|
64 - PLASTIC-CUTTING SCREW St3.9x12
BSD-1603435042.A163
1603435042
|
£1.84
|
£2.21
|
|
|
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A1174
2912401020
|
£2.16
|
£2.59
|
|
|
66 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1269
2910211019
|
£1.84
|
£2.21
|
|
|
68 - SEALING PLATE
BSD-1601006011.A176
1601006011
|
£2.74
|
£3.29
|
|
|
75 - DAMPER
BSD-1600290057.A12
1600290057
|
£21.52
|
£25.83
|
|
|
76 - COLLAR SCREW TORX-PLUS-20-IP
BSD-1603414016.A38
1603414016
|
£1.75
|
£2.10
|
|
|
101 - CATCH SLIDE
BSD-1601990014.A38
1601990014
|
£2.94
|
£3.53
|
|
|
102 - COMPRESSION SPRING
BSD-1604616022.A133
1604616022
|
£1.84
|
£2.21
|
|
|
131 - MANUFACTURER'S NAMEPLATE GWS 26 JBV
BSD-1601118R45.A4
1601118R45
|
-
|
|
|
|
651 - PROTECTIVE COVER
BSD-1600A011EM.A0
1600A011EM
|
£33.45
|
£40.14
|
|
|
660 - AUXILIARY HANDLE M14
BSD-1602025051.A14
1602025051
|
£27.23
|
£32.68
|
|
|
803 - ARMATURE 220-240V
BSD-1604011932.A57
1604011932
|
£84.64
|
£101.57
|
|
|
804 - ON-OFF SWITCH
BSD-1607000C14.A46
1607000C14
|
£31.79
|
£38.15
|
|
|
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A472
1607000228
|
£23.86
|
£28.63
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A151
160111A3H3
|
£2.74
|
£3.29
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014171.A415
1607014171
|
£14.91
|
£17.89
|
|
|
810 - CARBON-BRUSH SET 10 x 1 607 014 171
BSD-1607000480.A139
1607000480
|
£102.57
|
£123.08
|
|
|
813 - GROOVE BALL BEARING 8x22x7
BSD-1600905011.A499
1600905011
|
£5.87
|
£7.04
|
|
|
816 - BRUSH HOLDER
BSD-1604336048.A160
1604336048
|
£7.72
|
£9.27
|
|
|
821 - GEAR HOUSING
BSD-1607000C03.A62
1607000C03
|
£50.80
|
£60.96
|
|
|
822 - BEARING FLANGE
BSD-1607000C26.A0
1607000C26
|
£33.22
|
£39.87
|
|
|
826 - PARTS SET
BSD-1600A003FR.A0
1600A003FR
|
£45.67
|
£54.80
|
|
|
833 - ROTARY SHAFT LIP SEAL 16 MM
BSD-1600290064.A168
1600290064
|
£2.27
|
£2.72
|
|
|
833/1 - ROTARY SHAFT LIP SEAL 18.7 MM
BSD-1600290013.A403
1600290013
|
£2.74
|
£3.29
|
|
|
835 - FAN
BSD-1600A00J93.A132
1600A00J93
|
£2.80
|
£3.36
|
|
|
840 - PUSH-BUTTON
BSD-1607000354.A294
1607000354
|
£6.85
|
£8.22
|
|
|
846 - RETAINING WASHER
BSD-1607000C3E.A42
1607000C3E
|
£12.64
|
£15.17
|
|
|
848 - RETAINING CLIP
BSD-1600119010.A223
1600119010
|
£1.84
|
£2.21
|
|
|
850 - GROOVE BALL BEARING 17x40x12
BSD-1600905026.A31
1600905026
|
£9.11
|
£10.93
|
|
|
851 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A1071
2600910001
|
£4.48
|
£5.37
|
|
|
880 - ELECTRONICS MODULE
BSD-1607233319.A29
1607233319
|
£42.84
|
£51.41
|
|
|
890 - O-RING 20.35x1.78 MM
BSD-1600210039.A215
1600210039
|
£2.27
|
£2.72
|
|
|
891 - AUXILIARY HANDLE M14
BSD-1602025022.A429
1602025022
|
£13.41
|
£16.09
|
|
|
892 - PIN-TYPE FACE-WRENCH
BSD-1607950061.A206
1607950061
|
£5.69
|
£6.83
|
|
|
893 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A1065
2605703014
|
£7.72
|
£9.27
|
|
|
894 - ROUND NUT M14
BSD-1603345043.A622
1603345043
|
£9.11
|
£10.93
|
|
|
896 - FAST LOCKING FLANGE M14. SDS-CLIC
BSD-1603340027.A479
1603340027
|
£49.16
|
£58.99
|
|
