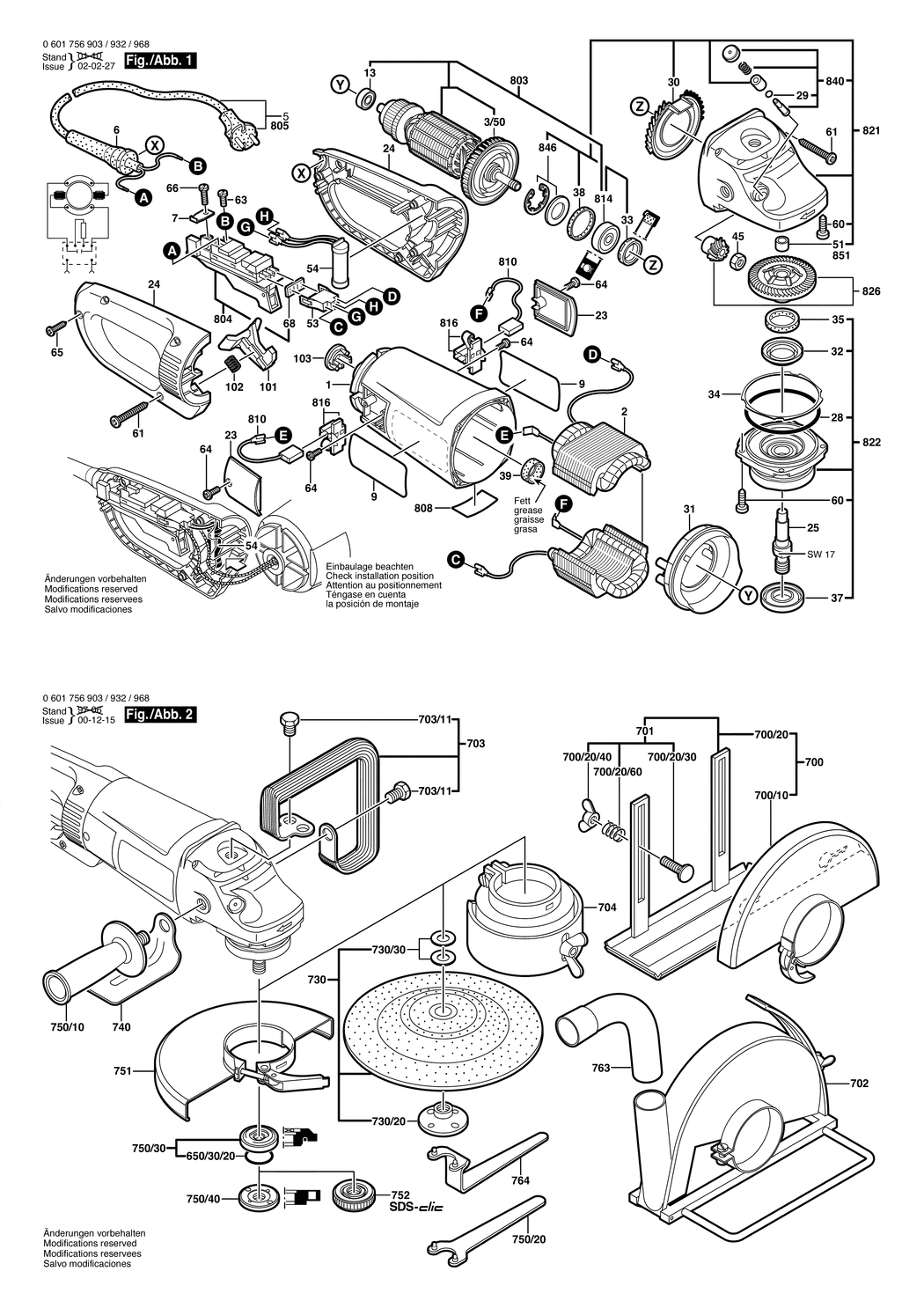

1 - MOTOR HOUSING
BSD-1605108190.A99
1605108190
|
£18.96
|
£22.75
|
|
|
2 - FIELD 220-230V
BSD-160422051P.A1
160422051P
|
£45.67
|
£54.80
|
|
|
3/50 - FAN
BSD-1600A00J93.A92
1600A00J93
|
£2.80
|
£3.36
|
|
|
6 - GROMMET dia 10.5-dia11.0x100 MM
BSD-1600703023.A387
1600703023
|
£2.74
|
£3.29
|
|
|
7 - FASTENING CLAMP
BSD-1601302018.A38
1601302018
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118780.A3
1601118780
|
£3.72
|
£4.47
|
|
|
13 - GROOVE BALL BEARING 8x22x7
BSD-1600905011.A107
1600905011
|
£5.58
|
£6.70
|
|
|
23 - SEALING CAP
BSD-1618B00802.A68
1618B00802
|
£4.27
|
£5.12
|
|
|
24 - HANDLE
BSD-1605132130.A73
1605132130
|
£12.37
|
£14.84
|
|
|
25 - GRINDING SPINDLE
BSD-160312305U.A255
160312305U
|
£13.12
|
£15.75
|
|
|
28 - O-RING 79.0x1.78 MM
BSD-1600210033.A131
1600210033
|
£1.84
|
£2.21
|
|
|
29 - O-RING 4.0x1.0 MM
BSD-1600210034.A164
1600210034
|
£1.84
|
£2.21
|
|
|
30 - AIR DISTRIBUTOR
BSD-1600591029.A1
1600591029
|
£2.74
|
£3.29
|
|
|
31 - AIR-DEFLECTOR RING
BSD-1600591028.A370
1600591028
|
£2.45
|
£2.94
|
|
|
32 - RETAINING SNAP RING
BSD-1600290019.A42
1600290019
|
£1.84
|
£2.21
|
|
|
33 - ROTARY SHAFT LIP SEAL 18.7 MM
BSD-1600290013.A507
1600290013
|
£2.74
|
£3.29
|
|
|
33 - ROTARY SHAFT LIP SEAL 16 MM
BSD-1600290064.A297
1600290064
|
£2.27
|
£2.72
|
|
|
34 - SHIM 0.15 MM
BSD-1600190020.A782
1600190020
|
£1.84
|
£2.21
|
|
|
34 - SHIM 0.3 MM
BSD-1600190021.A45
1600190021
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.1 MM
BSD-1600190022.A782
1600190022
|
£1.84
|
£2.21
|
|
|
35 - FELT WASHER
BSD-1600205034.A601
1600205034
|
£1.75
|
£2.10
|
|
|
37 - SEAL RING
BSD-1600290036.A76
1600290036
|
£2.27
|
£2.72
|
|
|
38 - RUBBER RING 7 MM
BSD-1600206020.A490
1600206020
|
£1.84
|
£2.21
|
|
|
39 - RUBBER RING
BSD-1600206030.A228
1600206030
|
£1.75
|
£2.10
|
|
|
45 - HEX NUT M10. SW14
BSD-1603300019.A615
1603300019
|
£1.84
|
£2.21
|
|
|
51 - PLAIN BEARING dia14 MM
BSD-1600200031.A403
1600200031
|
£2.80
|
£3.36
|
|
|
53 - SOCKET HOUSING
BSD-1605190068.A21
1605190068
|
£1.75
|
£2.10
|
|
|
54 - WIREWOUND RESISTOR
BSD-1604503015.A96
1604503015
|
£12.04
|
£14.45
|
|
|
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM
BSD-1603435023.A254
1603435023
|
£2.16
|
£2.59
|
|
|
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST
BSD-2912401038.A595
2912401038
|
£1.84
|
£2.21
|
|
|
63 - PAN HEAD SCREW M4x10 MM
BSD-1603410014.A615
1603410014
|
£1.84
|
£2.21
|
|
|
64 - PLASTIC-CUTTING SCREW St3.9x12
BSD-1603435042.A418
1603435042
|
£1.84
|
£2.21
|
|
|
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A625
2912401020
|
£2.16
|
£2.59
|
|
|
66 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A2055
2910211019
|
£1.84
|
£2.21
|
|
|
68 - SEALING PLATE
BSD-1601006011.A377
1601006011
|
£2.74
|
£3.29
|
|
|
101 - CATCH SLIDE
BSD-1601990004.A79
1601990004
|
£2.61
|
£3.13
|
|
|
102 - COMPRESSION SPRING
BSD-1604616022.A34
1604616022
|
£1.84
|
£2.21
|
|
|
103 - CABLE ROUTING
BSD-1602388035.A126
1602388035
|
£1.75
|
£2.10
|
|
|
650/30/20 - O-RING 20.35x1.78 MM
BSD-1600210039.A936
1600210039
|
£2.27
|
£2.72
|
|
|
700 - PARTS SET dia230 MM
BSD-1607000251.A67
1607000251
|
-
|
|
|
|
700/10 - PROTECTIVE COVER dia230 MM
BSD-1605510223.A147
1605510223
|
-
|
|
|
|
700/20 - GUIDE BLOCK
BSD-1608135003.A223
1608135003
|
-
|
|
|
|
700/20/30 - ROUND-HEAD BOLT DIN 603-M 8x25
BSD-2910281244.A225
2910281244
|
-
|
|
|
|
700/20/40 - WING NUT DIN 315-M8-GT-C
BSD-2915191007.A155
2915191007
|
£3.72
|
£4.47
|
|
|
700/20/60 - COMPRESSION SPRING
BSD-1604643003.A109
1604643003
|
£6.52
|
£7.83
|
|
|
701 - GUIDE BLOCK
BSD-1608135003.A222
1608135003
|
-
|
|
|
|
702 - PROTECTIVE COVER dia230 MM
BSD-1605510180.A13
1605510180
|
£71.74
|
£86.09
|
|
|
703 - STRAP-SHAPED HANDLE
BSD-1607000247.A115
1607000247
|
£50.82
|
£60.99
|
|
|
703/11 - HEX SCREW M14x16x1.5 MM
BSD-2603450007.A23
2603450007
|
£5.87
|
£7.04
|
|
|
704 - PROTECTIVE COVER dia110 MM
BSD-1605510181.A177
1605510181
|
-
|
|
|
|
730 - BACKING PAD dia230 MM
BSD-1608601007.A37
1608601007
|
-
|
|
|
|
730/20 - ROUND NUT M14
BSD-1603345004.A116
1603345004
|
£8.26
|
£9.91
|
|
|
730/30 - PLAIN WASHER DIN 125-A15-ST
BSD-2916011022.A126
2916011022
|
£1.84
|
£2.21
|
|
|
740 - PROTECTING COVER
BSD-1601329013.A205
1601329013
|
£11.37
|
£13.64
|
|
|
750/10 - AUXILIARY HANDLE M14x1.5 MM
BSD-2602025075.A44
2602025075
|
£10.82
|
£12.98
|
|
|
750/20 - PIN-TYPE FACE-WRENCH
BSD-1607950048.A135
1607950048
|
£5.12
|
£6.15
|
|
|
750/30 - CLAMPING-FLANGE dia22.2x42 MM
BSD-1605703099.A284
1605703099
|
£7.82
|
£9.39
|
|
|
750/40 - CLAMPING NUT M14
BSD-1603340040.A39
1603340040
|
£6.20
|
£7.44
|
|
|
751 - PROTECTIVE COVER dia230 MM
BSD-1605510223.A146
1605510223
|
-
|
|
|
|
752 - FAST LOCKING FLANGE M14. SDS-CLIC
BSD-1603340027.A926
1603340027
|
£49.16
|
£58.99
|
|
|
763 - SUCTION BEND dia 35 MM
BSD-1600793007.A87
1600793007
|
£20.20
|
£24.24
|
|
|
764 - PIN-TYPE FACE-WRENCH
BSD-1607950004.A77
1607950004
|
£8.75
|
£10.50
|
|
|
803 - ARMATURE 220-230V
BSD-1604011182.A17
1604011182
|
£108.30
|
£129.96
|
|
|
804 - SWITCH
BSD-1607000970.A72
1607000970
|
£42.84
|
£51.41
|
|
|
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A310
1607000228
|
£23.86
|
£28.63
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A2802
160111A3H3
|
£2.74
|
£3.29
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014171.A72
1607014171
|
£14.91
|
£17.89
|
|
|
814 - GROOVE BALL BEARING 10x35x11
BSD-1600905023.A16
1600905023
|
£12.64
|
£15.17
|
|
|
816 - BRUSH HOLDER
BSD-1604336048.A354
1604336048
|
£7.72
|
£9.27
|
|
|
821 - GEAR HOUSING
BSD-1607000968.A49
1607000968
|
-
|
|
|
|
822 - BEARING FLANGE dia230 MM
BSD-1607000985.A67
1607000985
|
£28.59
|
£34.31
|
|
|
826 - ASSEMBLY OF SERVICE PARTS
BSD-1600A005BH.A54
1600A005BH
|
£47.95
|
£57.54
|
|
|
840 - PUSH-BUTTON
BSD-1607000206.A116
1607000206
|
£11.30
|
£13.56
|
|
|
846 - RETAINING WASHER
BSD-1607000C3E.A151
1607000C3E
|
£12.64
|
£15.17
|
|
|
851 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A716
2600910001
|
£4.48
|
£5.37
|
|
