Bosch GWS 25-230 / 0601756041 / GB 110 Volt Spare Parts

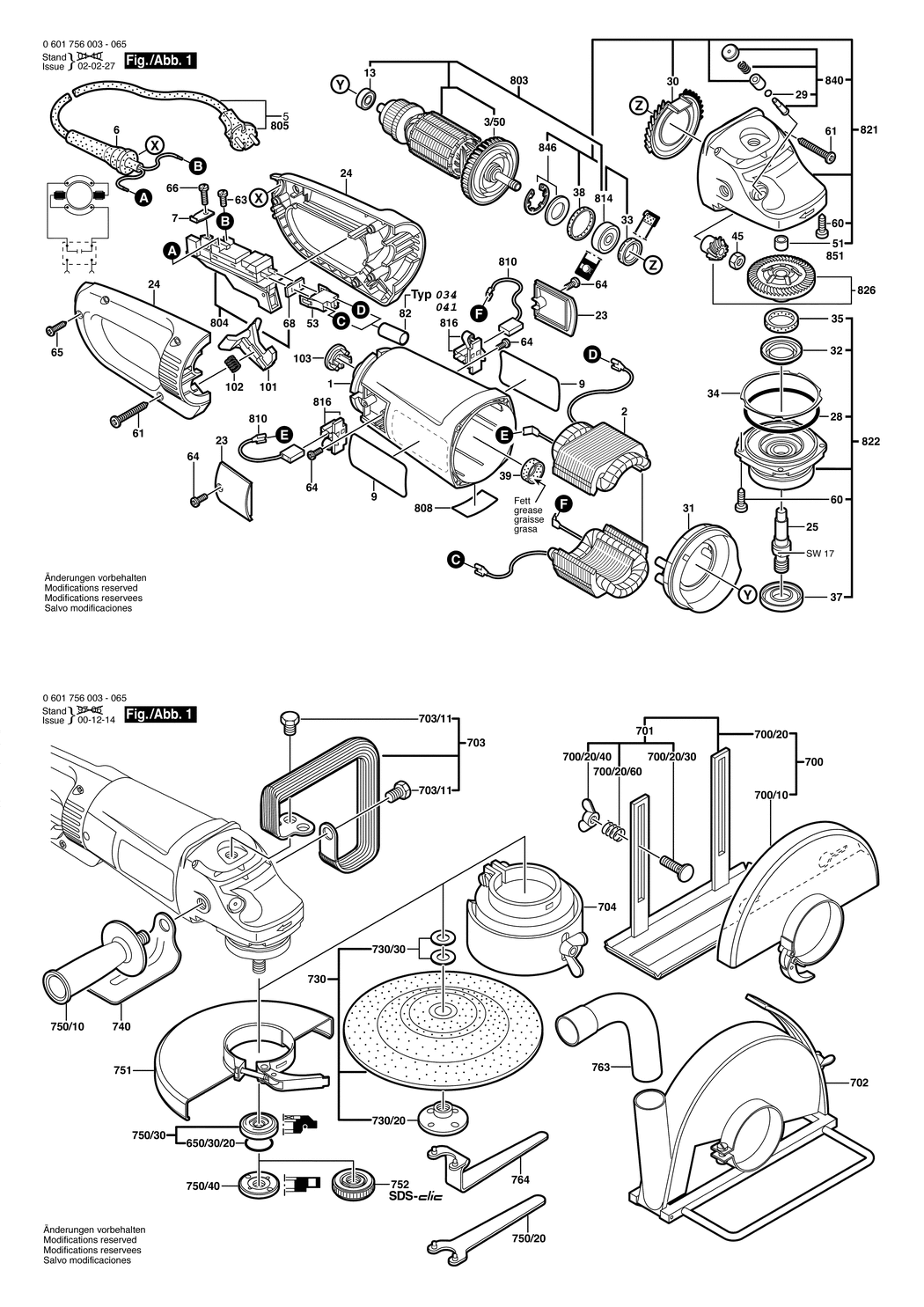

An exploded drawing and listing for the Bosch GWS 25-230 / 0601756041 / GB 110 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1605108190.A59 1605108190	£18.96	£22.75
2 - FIELD 100-120V BSD-1604220387.A18 1604220387	£54.42	£65.30
3/50 - FAN BSD-1600A00J93.A313 1600A00J93	£2.80	£3.36
5 - POWER SUPPLY CORD GB 110V 4.15m 2 x 2.5mm H07 RN-F BSD-1604460202.A55 1604460202	£45.67	£54.80
6 - GROMMET dia12.8xdia13.5x100 MM BSD-3600703003.A62 3600703003	£5.30	£6.36
7 - FASTENING CLAMP BSD-1601302019.A30 1601302019	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601118779.A5 1601118779	£2.52	£3.02
13 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A307 1600905011	£5.58	£6.70
23 - SEALING CAP BSD-1618B00802.A95 1618B00802	£4.27	£5.12
24 - HANDLE BSD-1605132130.A53 1605132130	£11.78	£14.13
25 - GRINDING SPINDLE BSD-160312305U.A216 160312305U	£13.12	£15.75
28 - O-RING 79.0x1.78 MM BSD-1600210033.A242 1600210033	£1.75	£2.10
29 - O-RING 4.0x1.0 MM BSD-1600210034.A123 1600210034	£1.75	£2.10
30 - AIR DISTRIBUTOR BSD-1600591029.A38 1600591029	£2.61	£3.13
31 - AIR-DEFLECTOR RING BSD-1600591028.A333 1600591028	£2.33	£2.80
32 - RETAINING SNAP RING BSD-1600290019.A120 1600290019	£1.75	£2.10
33 - ROTARY SHAFT LIP SEAL 18.7 MM BSD-1600290013.A291 1600290013	£2.61	£3.13
33 - ROTARY SHAFT LIP SEAL 16 MM BSD-1600290064.A262 1600290064	£2.16	£2.59
34 - SHIM 0.15 MM BSD-1600190020.A330 1600190020	£1.75	£2.10
34 - SHIM 0.3 MM BSD-1600190021.A497 1600190021	£2.61	£3.13
34 - SHIM 0.1 MM BSD-1600190022.A330 1600190022	£1.75	£2.10
35 - FELT WASHER BSD-1600205034.A261 1600205034	£1.75	£2.10
37 - SEAL RING BSD-1600290036.A128 1600290036	£2.16	£2.59
38 - RUBBER RING 7 MM BSD-1600206020.A121 1600206020	£1.75	£2.10
39 - RUBBER RING BSD-1600206030.A378 1600206030	£1.75	£2.10
45 - HEX NUT M10. SW14 BSD-1603300019.A271 1603300019	£1.75	£2.10
51 - PLAIN BEARING dia14 MM BSD-1600200031.A294 1600200031	£2.80	£3.36
53 - SOCKET HOUSING BSD-1605190068.A91 1605190068	£1.75	£2.10
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM BSD-1603435023.A361 1603435023	£2.16	£2.59
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST BSD-2912401038.A211 2912401038	£1.75	£2.10
63 - PAN HEAD SCREW M4x10 MM BSD-1603410014.A239 1603410014	£1.75	£2.10
64 - PLASTIC-CUTTING SCREW St3.9x12 BSD-1603435042.A78 1603435042	£1.75	£2.10
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST BSD-2912401020.A1017 2912401020	£2.16	£2.59
66 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A1990 2910211019	£1.75	£2.10
68 - SEALING PLATE BSD-1601006011.A50 1601006011	£2.61	£3.13
82 - HOSE BSD-1600406004.A4 1600406004	£1.75	£2.10
101 - CATCH SLIDE BSD-1601990004.A31 1601990004	£2.61	£3.13
102 - COMPRESSION SPRING BSD-1604616022.A86 1604616022	£1.75	£2.10
103 - CABLE ROUTING BSD-1602388035.A26 1602388035	£1.75	£2.10
650/30/20 - O-RING 20.35x1.78 MM BSD-1600210039.A566 1600210039	£2.16	£2.59
700 - PARTS SET dia230 MM BSD-1607000251.A89 1607000251	-
700/10 - PROTECTIVE COVER dia230 MM BSD-1605510223.A27 1605510223	-
700/20 - GUIDE BLOCK BSD-1608135003.A356 1608135003	-
700/20/30 - ROUND-HEAD BOLT DIN 603-M 8x25 BSD-2910281244.A162 2910281244	-
700/20/40 - WING NUT DIN 315-M8-GT-C BSD-2915191007.A64 2915191007	£3.72	£4.47
700/20/60 - COMPRESSION SPRING BSD-1604643003.A200 1604643003	£6.52	£7.83
701 - GUIDE BLOCK BSD-1608135003.A355 1608135003	-
702 - PROTECTIVE COVER dia230 MM BSD-1605510180.A42 1605510180	£71.74	£86.09
703 - STRAP-SHAPED HANDLE BSD-1607000247.A162 1607000247	£50.82	£60.99
703/11 - HEX SCREW M14x16x1.5 MM BSD-2603450007.A131 2603450007	£5.58	£6.70
704 - PROTECTIVE COVER dia110 MM BSD-1605510181.A139 1605510181	-
730 - BACKING PAD dia230 MM BSD-1608601007.A0 1608601007	-
730/20 - ROUND NUT M14 BSD-1603345004.A22 1603345004	£7.87	£9.44
730/30 - PLAIN WASHER DIN 125-A15-ST BSD-2916011022.A91 2916011022	£1.75	£2.10
740 - PROTECTING COVER BSD-1601329013.A139 1601329013	£11.37	£13.64
750/10 - AUXILIARY HANDLE M14x1.5 MM BSD-2602025075.A97 2602025075	£10.30	£12.36
750/20 - PIN-TYPE FACE-WRENCH BSD-1607950048.A198 1607950048	£4.88	£5.86
750/30 - CLAMPING-FLANGE dia22.2x42 MM BSD-1605703099.A376 1605703099	£7.45	£8.94
750/40 - CLAMPING NUT M14 BSD-1603340040.A131 1603340040	£6.20	£7.44
751 - PROTECTIVE COVER dia230 MM BSD-1605510223.A26 1605510223	-
752 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340027.A344 1603340027	£46.82	£56.18
763 - SUCTION BEND dia 35 MM BSD-1600793007.A142 1600793007	£19.24	£23.09
764 - PIN-TYPE FACE-WRENCH BSD-1607950004.A71 1607950004	£8.33	£10.00
803 - ARMATURE 100-120V BSD-1604011181.A3 1604011181	£156.22	£187.46
804 - SWITCH BSD-1607000971.A77 1607000971	£21.68	£26.01
808 - NAMEPLATE BSD-160111A3H3.A1235 160111A3H3	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-1607014171.A103 1607014171	£14.91	£17.89
814 - GROOVE BALL BEARING 10x35x11 BSD-1600905023.A53 1600905023	£12.04	£14.45
816 - BRUSH HOLDER BSD-1604336048.A277 1604336048	£7.36	£8.83
821 - GEAR HOUSING BSD-1607000968.A60 1607000968	-
822 - BEARING FLANGE dia230 MM BSD-1607000985.A123 1607000985	£27.23	£32.68
826 - ASSEMBLY OF SERVICE PARTS BSD-1600A005BH.A30 1600A005BH	£45.67	£54.80
840 - PUSH-BUTTON BSD-1607000206.A62 1607000206	£11.30	£13.56
846 - RETAINING WASHER BSD-1607000C3E.A100 1607000C3E	£12.04	£14.45
851 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A985 2600910001	£4.26	£5.11
