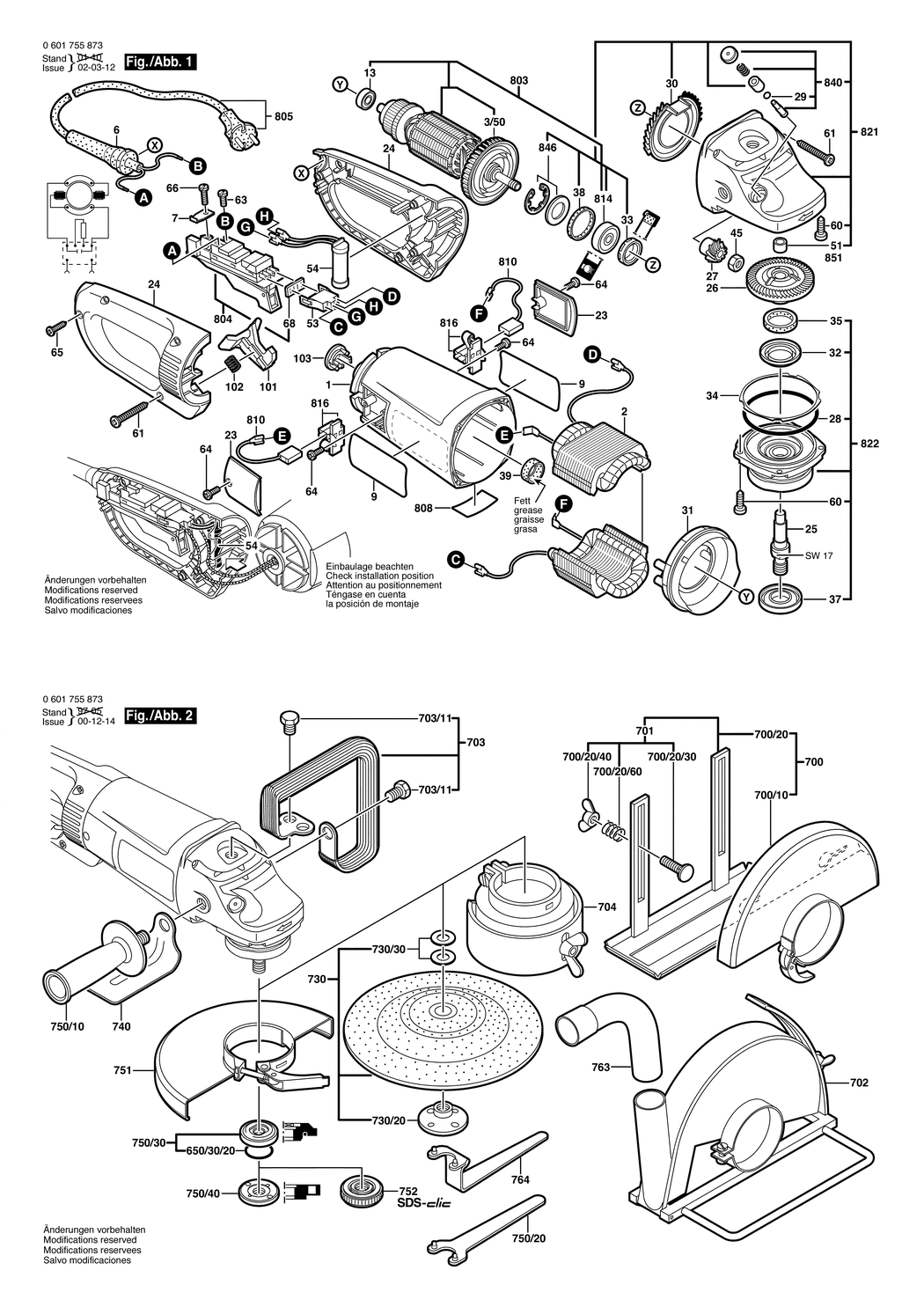

An exploded drawing and listing for the Bosch GWS 25-180 J / 0601755903 / EU 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605108190.A52 1605108190 £18.96 £22.75
2 - FIELD 220-230V BSD-160422051P.A42 160422051P £45.67 £54.80
3/50 - FAN BSD-1600A00J93.A309 1600A00J93 £2.80 £3.36
6 - GROMMET dia 10.5-dia11.0x100 MM BSD-1600703023.A277 1600703023 £2.61 £3.13
7 - FASTENING CLAMP BSD-1601302018.A477 1601302018 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601118778.A1 1601118778 -
13 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A298 1600905011 £5.58 £6.70
23 - SEALING CAP BSD-1618B00802.A102 1618B00802 £4.27 £5.12
24 - HANDLE BSD-1605132130.A60 1605132130 £11.78 £14.13
25 - GRINDING SPINDLE BSD-160312305U.A223 160312305U £13.12 £15.75
26 - CROWN GEAR Z=53 BSD-1606333618.A50 1606333618 -
27 - BEVEL GEAR Z=17 BSD-1606333237.A38 1606333237 -
28 - O-RING 79.0x1.78 MM BSD-1600210033.A233 1600210033 £1.75 £2.10
29 - O-RING 4.0x1.0 MM BSD-1600210034.A132 1600210034 £1.75 £2.10
30 - AIR DISTRIBUTOR BSD-1600591029.A47 1600591029 £2.61 £3.13
31 - AIR-DEFLECTOR RING BSD-1600591028.A324 1600591028 £2.33 £2.80
32 - RETAINING SNAP RING BSD-1600290019.A111 1600290019 £1.75 £2.10
33 - ROTARY SHAFT LIP SEAL 18.7 MM BSD-1600290013.A300 1600290013 £2.61 £3.13
34 - SHIM 0.15 MM BSD-1600190020.A328 1600190020 £1.75 £2.10
34 - SHIM 0.3 MM BSD-1600190021.A499 1600190021 £2.61 £3.13
34 - SHIM 0.1 MM BSD-1600190022.A328 1600190022 £1.75 £2.10
35 - FELT WASHER BSD-1600205034.A270 1600205034 £1.75 £2.10
37 - SEAL RING BSD-1600290036.A125 1600290036 £2.16 £2.59
38 - RUBBER RING 7 MM BSD-1600206020.A112 1600206020 £1.75 £2.10
39 - RUBBER RING BSD-1600206030.A387 1600206030 £1.75 £2.10
45 - HEX NUT M10. SW14 BSD-1603300019.A265 1603300019 £1.75 £2.10
51 - PLAIN BEARING dia14 MM BSD-1600200031.A284 1600200031 £2.80 £3.36
53 - SOCKET HOUSING BSD-1605190068.A83 1605190068 £1.75 £2.10
54 - WIREWOUND RESISTOR BSD-1604503015.A73 1604503015 £12.04 £14.45
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM BSD-1603435023.A368 1603435023 £2.16 £2.59
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST BSD-2912401038.A215 2912401038 £1.75 £2.10
63 - PAN HEAD SCREW M4x10 MM BSD-1603410014.A232 1603410014 £1.75 £2.10
64 - PLASTIC-CUTTING SCREW St3.9x12 BSD-1603435042.A71 1603435042 £1.75 £2.10
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST BSD-2912401020.A1013 2912401020 £2.16 £2.59
66 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A1986 2910211019 £1.75 £2.10
68 - SEALING PLATE BSD-1601006011.A59 1601006011 £2.61 £3.13
101 - CATCH SLIDE BSD-1601990004.A39 1601990004 £2.61 £3.13
102 - COMPRESSION SPRING BSD-1604616022.A77 1604616022 £1.75 £2.10
103 - CABLE ROUTING BSD-1602388035.A19 1602388035 £1.75 £2.10
650/30/20 - O-RING 20.35x1.78 MM BSD-1600210039.A557 1600210039 £2.16 £2.59
700 - PARTS SET dia180 MM BSD-1607000250.A17 1607000250 -
700/10 - PROTECTIVE COVER dia180 MM BSD-1605510222.A148 1605510222 -
700/20 - GUIDE BLOCK BSD-1608135003.A340 1608135003 -
700/20/30 - ROUND-HEAD BOLT DIN 603-M 8x25 BSD-2910281244.A166 2910281244 -
700/20/40 - WING NUT DIN 315-M8-GT-C BSD-2915191007.A60 2915191007 £3.72 £4.47
700/20/60 - COMPRESSION SPRING BSD-1604643003.A208 1604643003 £6.52 £7.83
701 - GUIDE BLOCK BSD-1608135003.A339 1608135003 -
702 - SUCTION HOOD dia180 MM BSD-1605510179.A60 1605510179 £61.24 £73.49
703 - STRAP-SHAPED HANDLE BSD-1607000247.A165 1607000247 £50.82 £60.99
703/11 - HEX SCREW M14x16x1.5 MM BSD-2603450007.A138 2603450007 £5.58 £6.70
704 - PROTECTIVE COVER dia110 MM BSD-1605510181.A146 1605510181 -
730 - BACKING PAD dia180 MM BSD-1608601006.A151 1608601006 -
730/20 - ROUND NUT M14 BSD-1603345004.A28 1603345004 £7.87 £9.44
730/30 - PLAIN WASHER DIN 125-A15-ST BSD-2916011022.A95 2916011022 £1.75 £2.10
740 - PROTECTING COVER BSD-1601329013.A132 1601329013 £11.37 £13.64
750/10 - AUXILIARY HANDLE M14x1.5 MM BSD-2602025075.A90 2602025075 £10.30 £12.36
750/20 - PIN-TYPE FACE-WRENCH BSD-1607950048.A208 1607950048 £4.88 £5.86
750/30 - CLAMPING-FLANGE dia22.2x42 MM BSD-1605703099.A380 1605703099 £7.45 £8.94
750/40 - CLAMPING NUT M14 BSD-1603340040.A125 1603340040 £6.20 £7.44
751 - PROTECTIVE COVER dia180 MM BSD-1605510222.A149 1605510222 -
752 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340027.A350 1603340027 £46.82 £56.18
763 - SUCTION BEND dia 35 MM BSD-1600793007.A150 1600793007 £19.24 £23.09
764 - PIN-TYPE FACE-WRENCH BSD-1607950004.A61 1607950004 £8.33 £10.00
803 - ARMATURE 220-230V BSD-1604011182.A3 1604011182 £103.14 £123.77
804 - SWITCH BSD-1607000970.A41 1607000970 £40.80 £48.96
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F BSD-1607000228.A716 1607000228 £23.86 £28.63
808 - NAMEPLATE BSD-160111A3H3.A1241 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1607014171.A112 1607014171 £14.91 £17.89
814 - GROOVE BALL BEARING 10x35x11 BSD-1600905023.A62 1600905023 £12.04 £14.45
816 - BRUSH HOLDER BSD-1604336048.A289 1604336048 £7.36 £8.83
821 - GEAR HOUSING BSD-1607000968.A73 1607000968 -
822 - BEARING FLANGE dia180 MM BSD-1607000986.A24 1607000986 -
840 - PUSH-BUTTON BSD-1607000206.A65 1607000206 £11.30 £13.56
846 - RETAINING WASHER BSD-1607000342.A42 1607000342 £3.72 £4.47
851 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A993 2600910001 £4.26 £5.11
