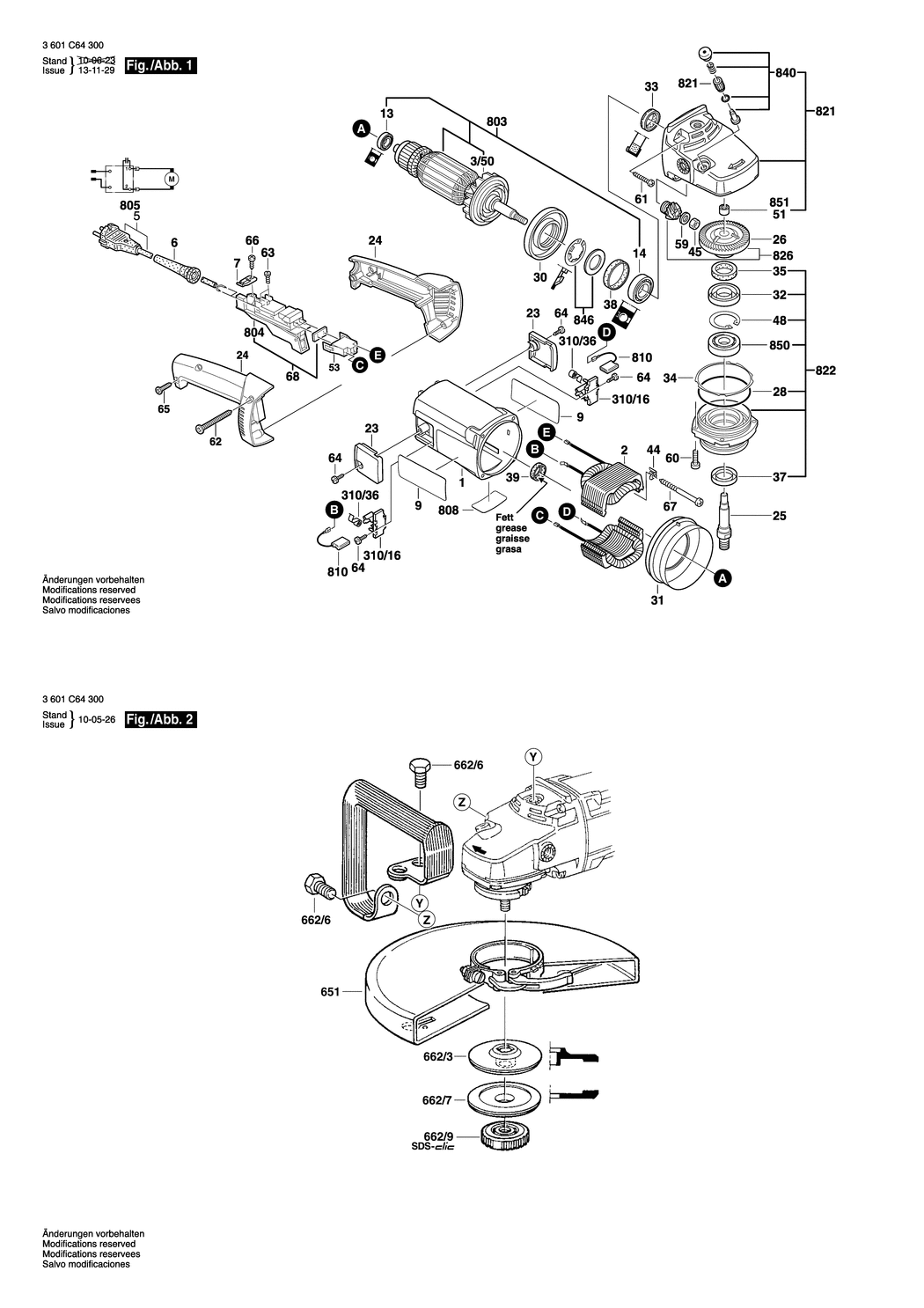

An exploded drawing and listing for the Bosch GWS 24-300 / 3601C64370 / --- 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605108145.A36 1605108145 £23.86 £28.63
2 - FIELD 230-240V BSD-1604220388.A5 1604220388 £54.42 £65.30
3/50 - FAN BSD-1606610127.A186 1606610127 £2.80 £3.36
5 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.0mm H07 RN-F BSD-1604460144.A30 1604460144 £37.27 £44.72
6 - GROMMET dia 10.5-dia11.0x100 MM BSD-1600703023.A60 1600703023 £2.61 £3.13
7 - FASTENING CLAMP BSD-1601302018.A629 1601302018 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601118355.A6 1601118355 £2.80 £3.36
13 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A557 1600905011 £5.58 £6.70
14 - GROOVE BALL BEARING 10x35x11 BSD-1600905023.A144 1600905023 £12.04 £14.45
23 - SEALING CAP BSD-1605500150.A122 1605500150 £3.72 £4.47
24 - HANDLE BSD-1605132140.A21 1605132140 £12.04 £14.45
25 - GRINDING SPINDLE M14. SW17 BSD-1603523105.A13 1603523105 £36.63 £43.96
28 - O-RING 79.0x1.78 MM BSD-1600210033.A627 1600210033 £1.75 £2.10
30 - AIR-DEFLECTOR RING BSD-1600591010.A148 1600591010 £2.16 £2.59
31 - AIR-DEFLECTOR RING BSD-1600591011.A30 1600591011 £1.75 £2.10
32 - RETAINING SNAP RING BSD-1600290019.A681 1600290019 £1.75 £2.10
33 - ROTARY SHAFT LIP SEAL 18.7 MM BSD-1600290013.A219 1600290013 £2.61 £3.13
34 - SHIM 0.1 MM BSD-1600190022.A64 1600190022 £1.75 £2.10
34 - SHIM 0.15 MM BSD-1600190020.A62 1600190020 £1.75 £2.10
34 - SHIM 0.3 MM BSD-1600190021.A765 1600190021 £2.61 £3.13
35 - FELT WASHER BSD-1600205034.A63 1600205034 £1.75 £2.10
37 - SEAL RING BSD-1600290020.A1 1600290020 £1.75 £2.10
38 - RUBBER RING 7 MM BSD-1600206020.A733 1600206020 £1.75 £2.10
39 - RUBBER RING BSD-1600206030.A1 1600206030 £1.75 £2.10
44 - HOLDING BRACKET BSD-1601334008.A83 1601334008 £2.61 £3.13
45 - HEX NUT M10. SW14 BSD-1603300019.A174 1603300019 £1.75 £2.10
48 - RETAINING CLIP BSD-1600119010.A684 1600119010 £1.75 £2.10
51 - PLAIN BEARING dia14 MM BSD-1600200031.A478 1600200031 £2.80 £3.36
53 - SOCKET HOUSING BSD-1605190068.A164 1605190068 £1.75 £2.10
59 - PLAIN WASHER 1.8 MM BSD-1600101655.A2 1600101655 £1.75 £2.10
60 - THREAD-FORMING TAP. SCREW BSD-1603435076.A144 1603435076 £2.61 £3.13
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST BSD-2912401038.A68 2912401038 £1.75 £2.10
62 - TAPPING SCREW C4.8x63 MM BSD-1603435024.A265 1603435024 £1.75 £2.10
63 - PAN HEAD SCREW M4x10 MM BSD-1603410014.A168 1603410014 £1.75 £2.10
64 - PLASTIC-CUTTING SCREW St3.9x12 BSD-1603435042.A678 1603435042 £1.75 £2.10
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST BSD-2912401020.A177 2912401020 £2.16 £2.59
66 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A651 2910211019 £1.75 £2.10
67 - LENS HEAD SCREW BSD-3603435040.A29 3603435040 £1.75 £2.10
68 - SEALING PLATE BSD-1601006011.A484 1601006011 £2.61 £3.13
310/16 - BRUSH HOLDER BSD-1604336021.A141 1604336021 £2.80 £3.36
310/36 - SPIRAL SPRING BSD-1604652015.A312 1604652015 £2.80 £3.36
651 - PROTECTIVE COVER dia300 MM BSD-1605510212.A14 1605510212 £156.22 £187.46
662/3 - CLAMPING-FLANGE BSD-1605703101.A3 1605703101 £72.18 £86.62
662/6 - HEX SCREW M14x16x1.5 MM BSD-2603450007.A437 2603450007 £5.58 £6.70
662/7 - CONICAL SPRING WASHER BSD-1605703100.A1 1605703100 £27.23 £32.68
803 - ARMATURE 230-240V BSD-1604011156.A9 1604011156 £135.25 £162.30
804 - SWITCH BSD-1607000971.A91 1607000971 £21.68 £26.01
808 - NAMEPLATE BSD-160111A3H3.A2885 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1607014171.A532 1607014171 £14.91 £17.89
810 - CARBON-BRUSH SET 10 x 1 607 014 171 BSD-1607000480.A221 1607000480 £102.57 £123.08
821 - GEAR HOUSING BSD-1605805592.A67 1605805592 £72.18 £86.62
822 - PARTS SET BSD-1607000947.A13 1607000947 £48.38 £58.06
826 - BEVEL GEAR SET BSD-1600A003DA.A13 1600A003DA £218.41 £262.09
840 - PUSH-BUTTON BSD-1607000206.A194 1607000206 £11.30 £13.56
846 - RETAINING WASHER BSD-1607000342.A351 1607000342 £3.72 £4.47
850 - GROOVE BALL BEARING BSD-3600905134.A101 3600905134 £11.30 £13.56
851 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A278 2600910001 £4.26 £5.11
