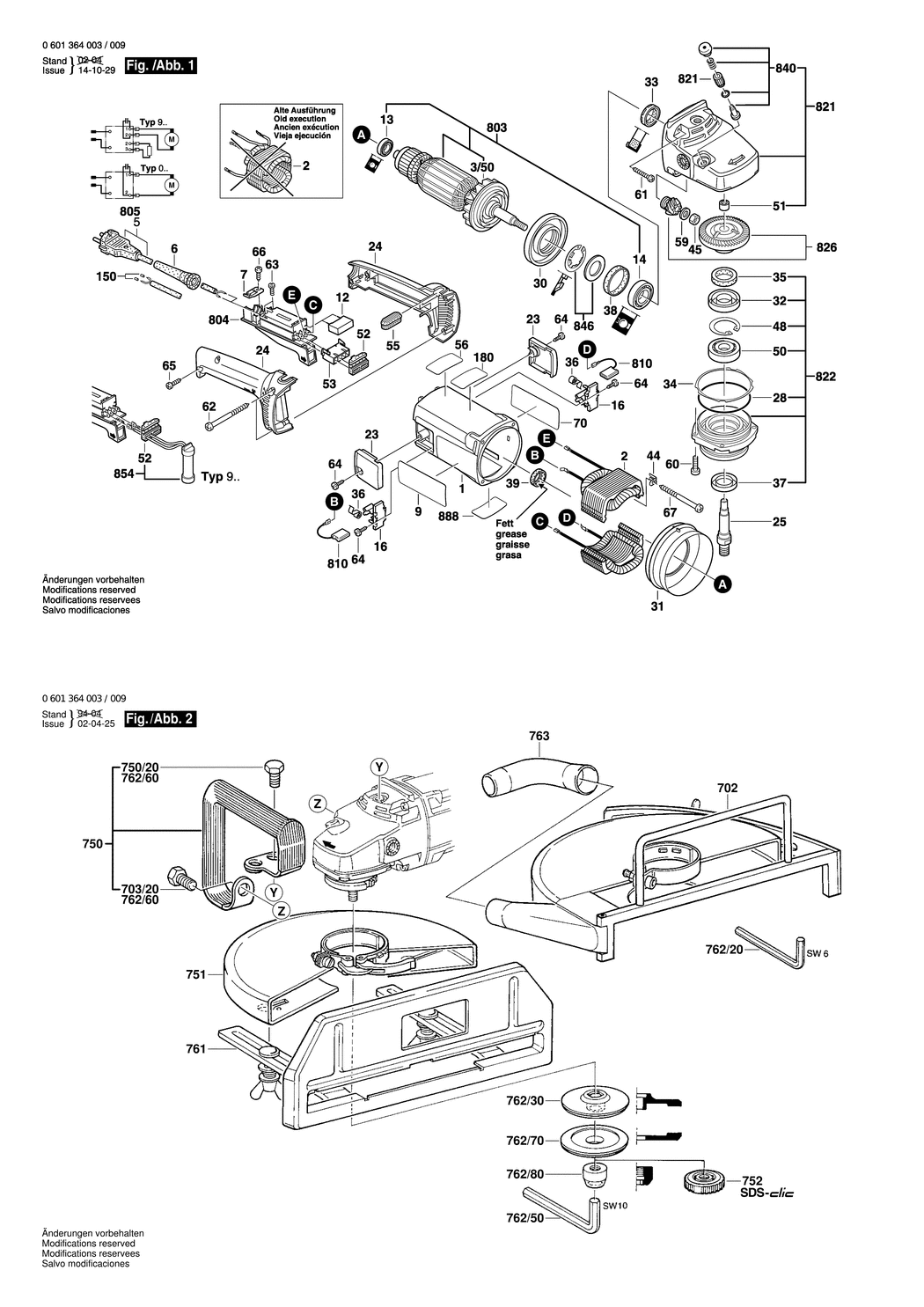

1 - MOTOR HOUSING
BSD-1605108145.A46
1605108145
|
£23.86
|
£28.63
|
|
|
2 - FIELD 220-240V
BSD-1604220381.A43
1604220381
|
£39.61
|
£47.53
|
|
|
3/50 - FAN
BSD-1606610127.A152
1606610127
|
£2.94
|
£3.53
|
|
|
6 - GROMMET dia 10.5-dia11.0x100 MM
BSD-1600703023.A74
1600703023
|
£2.74
|
£3.29
|
|
|
7 - FASTENING CLAMP
BSD-1601302018.A614
1601302018
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118355.A4
1601118355
|
£2.94
|
£3.53
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328035.A95
1607328035
|
£4.48
|
£5.37
|
|
|
13 - GROOVE BALL BEARING 8x22x7
BSD-1600905011.A747
1600905011
|
£5.87
|
£7.04
|
|
|
14 - GROOVE BALL BEARING 10x35x11
BSD-1600905023.A136
1600905023
|
£12.64
|
£15.17
|
|
|
16 - BRUSH HOLDER
BSD-1604336021.A148
1604336021
|
£2.94
|
£3.53
|
|
|
23 - SEALING CAP
BSD-1605500150.A131
1605500150
|
£3.91
|
£4.69
|
|
|
24 - HANDLE
BSD-1605132117.A92
1605132117
|
£11.87
|
£14.24
|
|
|
25 - GRINDING SPINDLE M14. SW17
BSD-1603523105.A7
1603523105
|
£38.47
|
£46.16
|
|
|
28 - O-RING 79.0x1.78 MM
BSD-1600210033.A799
1600210033
|
£1.84
|
£2.21
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600591010.A168
1600591010
|
£2.27
|
£2.72
|
|
|
31 - AIR-DEFLECTOR RING
BSD-1600591011.A10
1600591011
|
£1.84
|
£2.21
|
|
|
32 - RETAINING SNAP RING
BSD-1600290019.A515
1600290019
|
£1.84
|
£2.21
|
|
|
33 - ROTARY SHAFT LIP SEAL 18.7 MM
BSD-1600290013.A30
1600290013
|
£2.74
|
£3.29
|
|
|
34 - SHIM 0.15 MM
BSD-1600190020.A228
1600190020
|
£1.84
|
£2.21
|
|
|
34 - SHIM 0.3 MM
BSD-1600190021.A599
1600190021
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.1 MM
BSD-1600190022.A229
1600190022
|
£1.84
|
£2.21
|
|
|
34 - SHIM 0.2 MM
BSD-1600190037.A330
1600190037
|
£1.75
|
£2.10
|
|
|
35 - FELT WASHER
BSD-1600205034.A177
1600205034
|
£1.75
|
£2.10
|
|
|
36 - SPIRAL SPRING
BSD-1604652015.A668
1604652015
|
£2.94
|
£3.53
|
|
|
37 - SEAL RING
BSD-1600290020.A108
1600290020
|
£1.84
|
£2.21
|
|
|
38 - RUBBER RING 7 MM
BSD-1600206020.A497
1600206020
|
£1.84
|
£2.21
|
|
|
39 - RUBBER RING
BSD-1600206030.A72
1600206030
|
£1.84
|
£2.21
|
|
|
44 - HOLDING BRACKET
BSD-1601334008.A5
1601334008
|
£2.61
|
£3.13
|
|
|
45 - HEX NUT M10. SW14
BSD-1603300019.A110
1603300019
|
£1.84
|
£2.21
|
|
|
48 - RETAINING CLIP
BSD-1600119010.A513
1600119010
|
£1.84
|
£2.21
|
|
|
50 - GROOVE BALL BEARING
BSD-3600905134.A174
3600905134
|
£11.87
|
£14.24
|
|
|
51 - PLAIN BEARING dia14 MM
BSD-1600200031.A624
1600200031
|
£2.80
|
£3.36
|
|
|
52 - CABLE ROUTING
BSD-1602388027.A309
1602388027
|
£2.74
|
£3.29
|
|
|
53 - SOCKET HOUSING
BSD-1605190038.A21
1605190038
|
£1.84
|
£2.21
|
|
|
55 - STORAGE LEDGE
BSD-1602388029.A290
1602388029
|
£1.84
|
£2.21
|
|
|
59 - PLAIN WASHER 1.8 MM
BSD-1600101655.A16
1600101655
|
£1.75
|
£2.10
|
|
|
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM
BSD-1603435023.A81
1603435023
|
£2.16
|
£2.59
|
|
|
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST
BSD-2912401038.A96
2912401038
|
£1.84
|
£2.21
|
|
|
62 - TAPPING SCREW C4.8x63 MM
BSD-1603435024.A173
1603435024
|
£1.75
|
£2.10
|
|
|
63 - PAN HEAD SCREW M4x10 MM
BSD-1603410014.A110
1603410014
|
£1.84
|
£2.21
|
|
|
64 - PLASTIC-CUTTING SCREW St3.9x12
BSD-1603435042.A501
1603435042
|
£1.84
|
£2.21
|
|
|
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A382
2912401020
|
£2.16
|
£2.59
|
|
|
66 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A895
2910211019
|
£1.84
|
£2.21
|
|
|
67 - LENS HEAD SCREW
BSD-3603435040.A35
3603435040
|
£1.75
|
£2.10
|
|
|
70 - REFERENCE PLATE
BSD-1601110841.A6
1601110841
|
-
|
|
|
|
702 - SUCTION HOOD dia 300 MM (12)
BSD-1605510215.A16
1605510215
|
£91.87
|
£110.24
|
|
|
703/20 - HEX SCREW M14x16x1.5 MM
BSD-2603450007.A267
2603450007
|
£5.87
|
£7.04
|
|
|
750 - STRAP-SHAPED HANDLE
BSD-1607000247.A50
1607000247
|
£50.82
|
£60.99
|
|
|
750/20 - HEX SCREW M14x16x1.5 MM
BSD-2603450007.A266
2603450007
|
£5.87
|
£7.04
|
|
|
751 - PROTECTIVE COVER dia 300 MM
BSD-1605510224.A6
1605510224
|
£91.10
|
£109.32
|
|
|
752 - FAST LOCKING FLANGE M14
BSD-1603340031.A82
1603340031
|
£21.12
|
£25.35
|
|
|
761 - GUIDE BLOCK dia 300 MM
BSD-2608190025.A7
2608190025
|
-
|
|
|
|
762/20 - OFFSET SCREWDRIVER DIN 911;SW6
BSD-1907950007.A85
1907950007
|
£5.57
|
£6.68
|
|
|
762/30 - CLAMPING-FLANGE SW 17.dia22.2xdia100 MM
BSD-2605703017.A6
2605703017
|
-
|
|
|
|
762/50 - OFFSET SCREWDRIVER DIN 911 SW10
BSD-1907950009.A151
1907950009
|
£22.76
|
£27.31
|
|
|
762/60 - HEX SCREW M14x16x1.5 MM
BSD-2603450007.A265
2603450007
|
£5.87
|
£7.04
|
|
|
762/70 - CONICAL SPRING WASHER dia 22.2x100x6.4 MM
BSD-2605703016.A8
2605703016
|
-
|
|
|
|
762/80 - ROUND NUT M14. SW10. dia30x17.4MM
BSD-2603345003.A7
2603345003
|
£16.56
|
£19.87
|
|
|
763 - SUCTION BEND dia 35 MM
BSD-1600793007.A30
1600793007
|
£20.20
|
£24.24
|
|
|
803 - ARMATURE 230-240V
BSD-1604011156.A23
1604011156
|
£135.25
|
£162.30
|
|
|
804 - SWITCH
BSD-1607200104.A28
1607200104
|
£31.64
|
£37.97
|
|
|
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A675
1607000227
|
£23.86
|
£28.63
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014171.A553
1607014171
|
£14.91
|
£17.89
|
|
|
821 - GEAR HOUSING
BSD-1605805592.A21
1605805592
|
£72.18
|
£86.62
|
|
|
822 - PARTS SET
BSD-1607000947.A4
1607000947
|
£50.80
|
£60.96
|
|
|
826 - BEVEL GEAR SET
BSD-1600A003DA.A21
1600A003DA
|
£218.41
|
£262.09
|
|
|
840 - PUSH-BUTTON
BSD-1607000206.A219
1607000206
|
£11.30
|
£13.56
|
|
|
846 - RETAINING WASHER
BSD-1607000342.A314
1607000342
|
£3.91
|
£4.69
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A5183
160111A3H3
|
£2.74
|
£3.29
|
|
