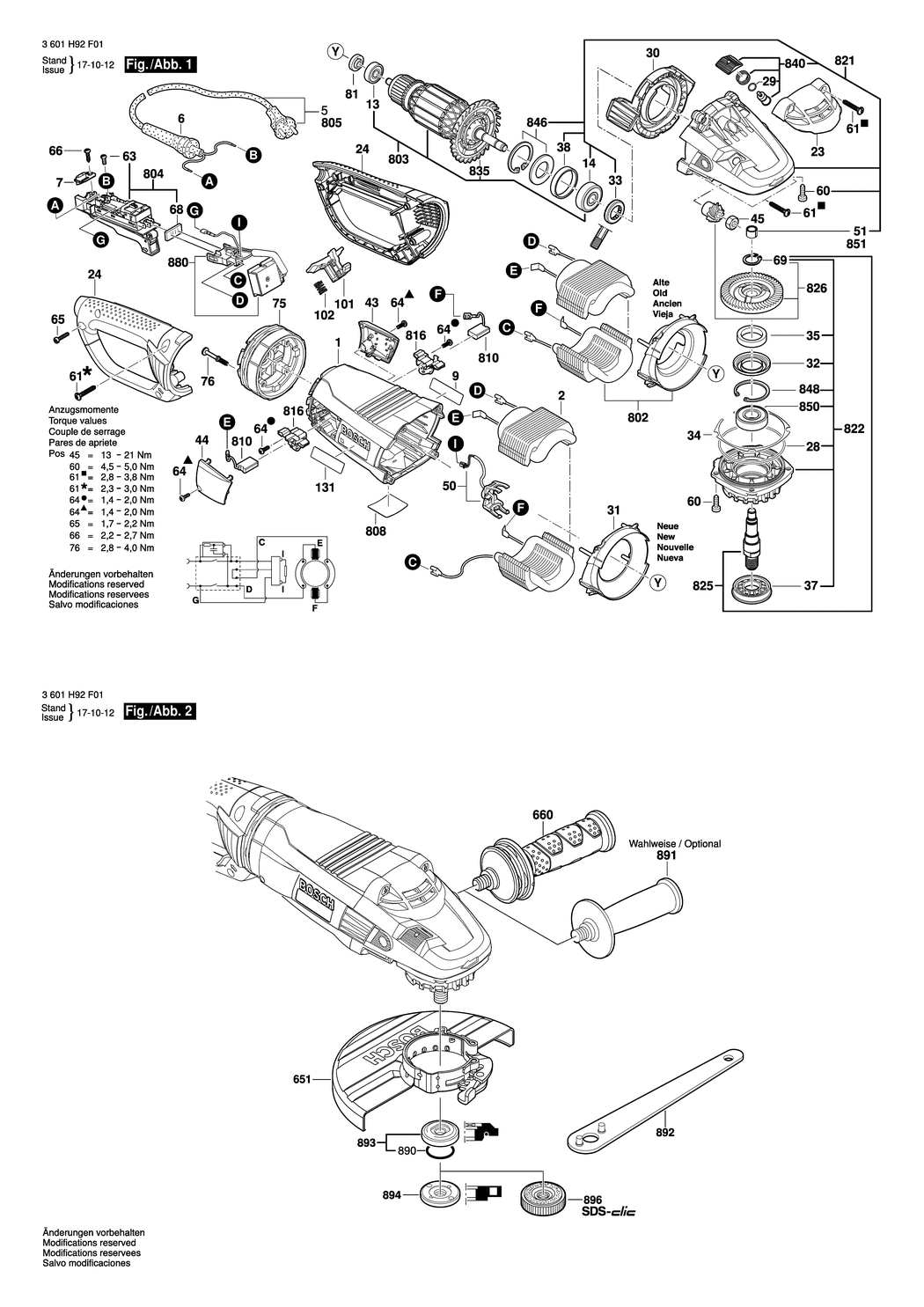

1 - MOTOR HOUSING
BSD-1605108264.A8
1605108264
|
£22.60
|
£27.12
|
|
|
2 - FIELD
BSD-160422057G.A9
160422057G
|
£42.84
|
£51.41
|
|
|
5 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.5mm H07 RN-F
BSD-1604460348.A7
1604460348
|
£28.59
|
£34.31
|
|
|
6 - GROMMET dia10.5-dia11.0x100 MM
BSD-1600703036.A209
1600703036
|
£2.27
|
£2.72
|
|
|
7 - FASTENING CLAMP
BSD-1601302018.A277
1601302018
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE GWS 24-230 LVI
BSD-160111C285.A14
160111C285
|
£2.45
|
£2.94
|
|
|
13 - GROOVE BALL BEARING 9x26x8
BSD-1600905034.A15
1600905034
|
£5.57
|
£6.68
|
|
|
14 - GROOVE BALL BEARING 12x37x12
BSD-1600905035.A45
1600905035
|
£10.61
|
£12.73
|
|
|
23 - COVER
BSD-1605500266.A39
1605500266
|
£2.16
|
£2.59
|
|
|
24 - HANDLE
BSD-1605132154.A15
1605132154
|
£12.37
|
£14.84
|
|
|
28 - O-RING 79.0x1.78 MM
BSD-1600210033.A478
1600210033
|
£1.84
|
£2.21
|
|
|
29 - O-RING 8.0x1.0 MM
BSD-1600210045.A387
1600210045
|
£1.84
|
£2.21
|
|
|
30 - AIR DISTRIBUTOR
BSD-1600591041.A13
1600591041
|
£2.74
|
£3.29
|
|
|
31 - AIR-DEFLECTOR RING
BSD-160059105U.A34
160059105U
|
£2.80
|
£3.36
|
|
|
32 - RETAINING SNAP RING
BSD-1600290019.A429
1600290019
|
£1.84
|
£2.21
|
|
|
33 - ROTARY SHAFT LIP SEAL 16 MM
BSD-1600290064.A45
1600290064
|
£2.27
|
£2.72
|
|
|
34 - SHIM 0.15 MM
BSD-1600190020.A522
1600190020
|
£1.84
|
£2.21
|
|
|
34 - SHIM 0.3 MM
BSD-1600190021.A305
1600190021
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.1 MM
BSD-1600190022.A522
1600190022
|
£1.84
|
£2.21
|
|
|
34 - SHIM 0.2 MM
BSD-1600190037.A214
1600190037
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.25 MM
BSD-1600190038.A173
1600190038
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.35 MM
BSD-1600190039.A214
1600190039
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.4 MM
BSD-1600190040.A173
1600190040
|
£1.75
|
£2.10
|
|
|
35 - FELT WASHER
BSD-1600205034.A467
1600205034
|
£1.75
|
£2.10
|
|
|
37 - SEAL RING
BSD-1600290036.A242
1600290036
|
£2.27
|
£2.72
|
|
|
38 - RUBBER RING
BSD-1600206037.A20
1600206037
|
£1.75
|
£2.10
|
|
|
43 - SEALING CAP
BSD-1605500264.A39
1605500264
|
£1.84
|
£2.21
|
|
|
44 - SEALING CAP
BSD-1605500265.A8
1605500265
|
£1.84
|
£2.21
|
|
|
45 - HEX NUT M10. SW14
BSD-1603300019.A449
1603300019
|
£1.84
|
£2.21
|
|
|
50 - ROTATIONAL SPEED SENSOR
BSD-1607001007.A14
1607001007
|
£8.67
|
£10.41
|
|
|
51 - PLAIN BEARING dia14 MM
BSD-1600200031.A102
1600200031
|
£2.80
|
£3.36
|
|
|
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM
BSD-1603435023.A541
1603435023
|
£2.16
|
£2.59
|
|
|
61 - TORX OVAL-HEAD SCREW
BSD-1603490005.A11
1603490005
|
£1.84
|
£2.21
|
|
|
63 - PAN HEAD SCREW M4x10 MM
BSD-1603410014.A435
1603410014
|
£1.84
|
£2.21
|
|
|
64 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A671
2603490021
|
£1.84
|
£2.21
|
|
|
65 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A1419
2603490023
|
£1.84
|
£2.21
|
|
|
66 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1457
2910211019
|
£1.84
|
£2.21
|
|
|
68 - SEALING PLATE
BSD-1601006011.A257
1601006011
|
£2.74
|
£3.29
|
|
|
69 - SPRING RETAINING RING
BSD-2916650905.A47
2916650905
|
£1.75
|
£2.10
|
|
|
75 - DAMPER
BSD-1600290060.A12
1600290060
|
£17.22
|
£20.67
|
|
|
76 - COLLAR SCREW
BSD-1603414025.A11
1603414025
|
£1.75
|
£2.10
|
|
|
81 - MAGNET
BSD-1600190048.A35
1600190048
|
£2.80
|
£3.36
|
|
|
101 - CATCH SLIDE
BSD-1601990012.A2
1601990012
|
£2.16
|
£2.59
|
|
|
102 - COMPRESSION SPRING
BSD-1604616022.A178
1604616022
|
£1.84
|
£2.21
|
|
|
131 - MANUFACTURER'S NAMEPLATE GWS 24-230 LVI
BSD-160111C286.A0
160111C286
|
£3.34
|
£4.01
|
|
|
651 - PROTECTIVE COVER
BSD-1600A01R96.A33
1600A01R96
|
£37.26
|
£44.71
|
|
|
660 - AUXILIARY HANDLE M14
BSD-1602025051.A60
1602025051
|
£27.23
|
£32.68
|
|
|
802 - ASSEMBLY
BSD-1607000C4L.A9
1607000C4L
|
£54.42
|
£65.30
|
|
|
803 - ARMATURE 230V
BSD-1604011298.A6
1604011298
|
£85.90
|
£103.08
|
|
|
804 - ON-OFF SWITCH
BSD-1607000C16.A1
1607000C16
|
£33.22
|
£39.87
|
|
|
808 - NAMEPLATE
BSD-1601106940.A23
1601106940
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014171.A269
1607014171
|
£14.91
|
£17.89
|
|
|
810 - CARBON-BRUSH SET 10 x 1 607 014 171
BSD-1607000480.A105
1607000480
|
£102.57
|
£123.08
|
|
|
816 - BRUSH HOLDER
BSD-1604336053.A32
1604336053
|
£5.87
|
£7.04
|
|
|
821 - GEAR HOUSING
BSD-1607000C17.A27
1607000C17
|
£48.38
|
£58.06
|
|
|
822 - BEARING FLANGE
BSD-1607000CP2.A1
1607000CP2
|
£33.74
|
£40.49
|
|
|
825 - GRINDING SPINDLE
BSD-1607000CU5.A31
1607000CU5
|
£13.78
|
£16.54
|
|
|
826 - BEVEL GEAR SET
BSD-1607000CN7.A1
1607000CN7
|
£38.46
|
£46.15
|
|
|
835 - FAN
BSD-1606610150.A17
1606610150
|
£2.61
|
£3.13
|
|
|
840 - PUSH-BUTTON
BSD-1607000431.A15
1607000431
|
£4.26
|
£5.11
|
|
|
846 - RETAINING WASHER
BSD-1607000432.A32
1607000432
|
£5.57
|
£6.68
|
|
|
848 - RETAINING CLIP
BSD-1600119010.A369
1600119010
|
£1.84
|
£2.21
|
|
|
850 - GROOVE BALL BEARING 17x40x12
BSD-1600905026.A154
1600905026
|
£9.11
|
£10.93
|
|
|
851 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A1260
2600910001
|
£4.48
|
£5.37
|
|
|
880 - ELECTRONICS MODULE
BSD-1607233552.A13
1607233552
|
£42.84
|
£51.41
|
|
|
890 - O-RING 20.35x1.78 MM
BSD-1600210039.A383
1600210039
|
£2.27
|
£2.72
|
|
|
891 - AUXILIARY HANDLE M14
BSD-1602025022.A509
1602025022
|
£13.41
|
£16.09
|
|
|
892 - PIN-TYPE FACE-WRENCH
BSD-1607950061.A321
1607950061
|
£5.69
|
£6.83
|
|
|
893 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A1100
2605703014
|
£7.72
|
£9.27
|
|
|
894 - ROUND NUT M14
BSD-1603345043.A706
1603345043
|
£9.11
|
£10.93
|
|
|
896 - FAST LOCKING FLANGE M14. SDS-CLIC
BSD-1603340027.A628
1603340027
|
£49.16
|
£58.99
|
|
