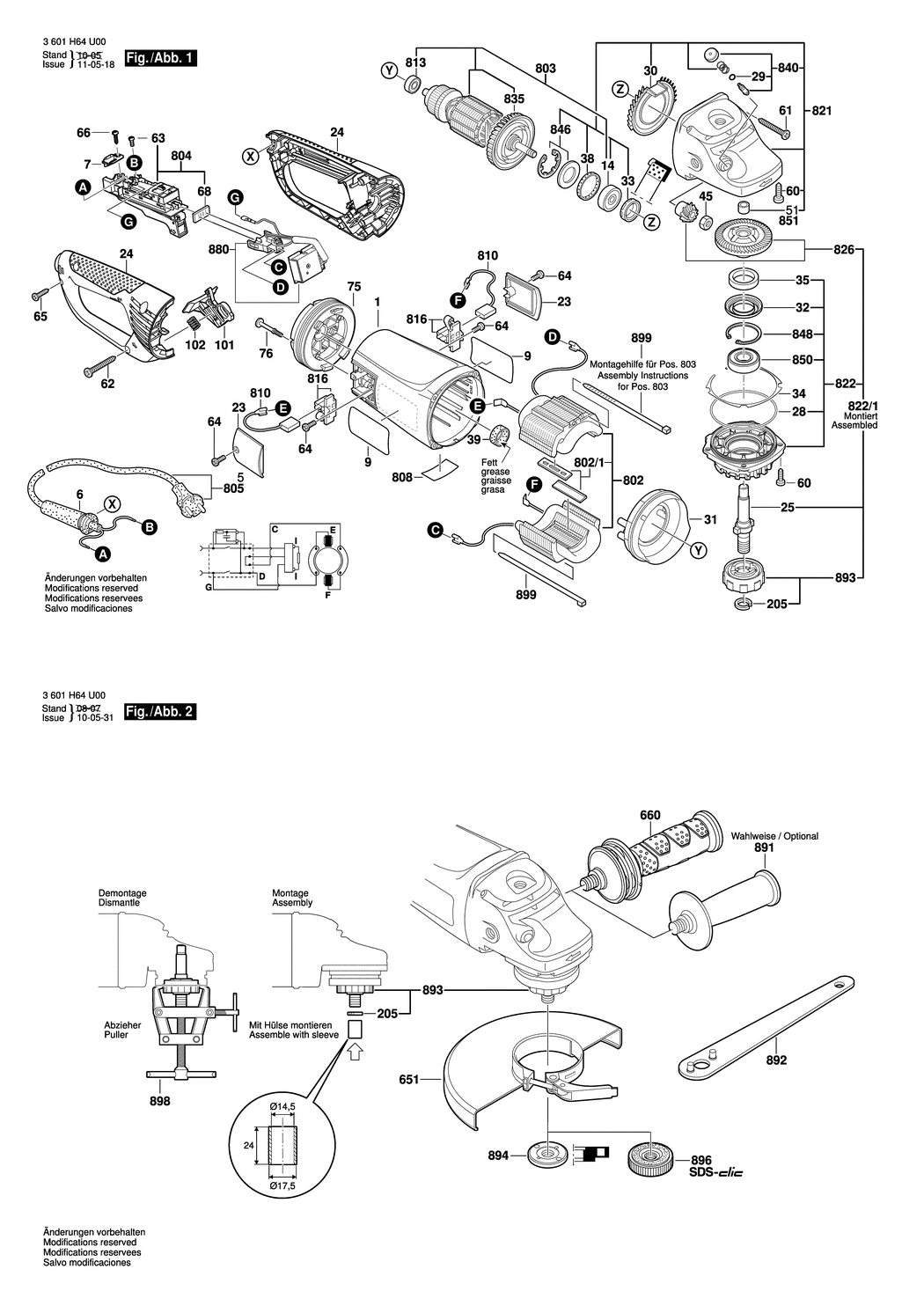

An exploded drawing and listing for the Bosch GWS 24-230 JVX / 3601H64U00 / EU 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605108286.A5 1605108286 £21.52 £25.83
6 - GROMMET dia10.5-dia11.0x100 MM BSD-1600703036.A83 1600703036 £2.16 £2.59
7 - FASTENING CLAMP BSD-1601302018.A259 1601302018 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601118T52.A0 1601118T52 £7.36 £8.83
14 - GROOVE BALL BEARING BSD-1600905028.A216 1600905028 £12.04 £14.45
23 - SEALING CAP BSD-1605500236.A14 1605500236 £3.72 £4.47
24 - HANDLE BSD-1605132151.A10 1605132151 £14.91 £17.89
25 - GRINDING SPINDLE BSD-160312305Z.A18 160312305Z £33.45 £40.14
28 - O-RING 79.0x1.78 MM BSD-1600210033.A354 1600210033 £1.75 £2.10
29 - O-RING 8.0x1.0 MM BSD-1600210045.A337 1600210045 £1.75 £2.10
30 - AIR DISTRIBUTOR BSD-1600591029.A193 1600591029 £2.61 £3.13
31 - AIR-DEFLECTOR RING BSD-1600591028.A154 1600591028 £2.33 £2.80
32 - RETAINING SNAP RING BSD-1600290019.A284 1600290019 £1.75 £2.10
33 - ROTARY SHAFT LIP SEAL 16 MM BSD-1600290064.A143 1600290064 £2.16 £2.59
34 - SHIM 0.15 MM BSD-1600190020.A473 1600190020 £1.75 £2.10
34 - SHIM 0.3 MM BSD-1600190021.A354 1600190021 £2.61 £3.13
34 - SHIM 0.1 MM BSD-1600190022.A473 1600190022 £1.75 £2.10
34 - SHIM 0.2 MM BSD-1600190037.A262 1600190037 £1.75 £2.10
34 - SHIM 0.25 MM BSD-1600190038.A125 1600190038 £1.75 £2.10
34 - SHIM 0.35 MM BSD-1600190039.A262 1600190039 £1.75 £2.10
34 - SHIM 0.4 MM BSD-1600190040.A125 1600190040 £1.75 £2.10
35 - FELT WASHER BSD-1600205034.A475 1600205034 £1.75 £2.10
38 - RUBBER RING 7 MM BSD-1600206020.A306 1600206020 £1.75 £2.10
39 - RUBBER RING BSD-1600206030.A499 1600206030 £1.75 £2.10
45 - HEX NUT M10. SW14 BSD-1603300019.A392 1603300019 £1.75 £2.10
51 - PLAIN BEARING dia14 MM BSD-1600200031.A93 1600200031 £2.80 £3.36
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM BSD-1603435023.A435 1603435023 £2.16 £2.59
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST BSD-2912401038.A503 2912401038 £1.75 £2.10
62 - OVAL-HEAD SCREW BSD-1603415006.A54 1603415006 £2.16 £2.59
63 - PAN HEAD SCREW M4x10 MM BSD-1603410014.A545 1603410014 £1.75 £2.10
64 - PLASTIC-CUTTING SCREW St3.9x12 BSD-1603435042.A217 1603435042 £1.75 £2.10
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST BSD-2912401020.A1114 2912401020 £2.16 £2.59
66 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A1315 2910211019 £1.75 £2.10
68 - SEALING PLATE BSD-1601006011.A122 1601006011 £2.61 £3.13
75 - DAMPER BSD-1600290057.A21 1600290057 £21.52 £25.83
76 - COLLAR SCREW TORX-PLUS-20-IP BSD-1603414016.A28 1603414016 £1.75 £2.10
101 - CATCH SLIDE BSD-1601990014.A16 1601990014 £2.80 £3.36
102 - COMPRESSION SPRING BSD-1604616022.A148 1604616022 £1.75 £2.10
205 - SPRING RETAINING RING BSD-1600209015.A25 1600209015 £1.75 £2.10
651 - PROTECTIVE COVER BSD-1600A01R96.A23 1600A01R96 £37.26 £44.71
660 - AUXILIARY HANDLE M14 BSD-1602025051.A20 1602025051 £27.23 £32.68
802 - FIELD 230V BSD-1607000C07.A10 1607000C07 £88.07 £105.68
802/1 - BRAKE SHOE BSD-1607000363.A3 1607000363 £40.80 £48.96
803 - ARMATURE 230V BSD-1604011257.A19 1604011257 £103.14 £123.77
804 - ON-OFF SWITCH BSD-1607000C14.A53 1607000C14 £30.28 £36.33
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F BSD-1607000228.A514 1607000228 £23.86 £28.63
808 - NAMEPLATE BSD-160111A3H3.A116 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1607014171.A463 1607014171 £14.91 £17.89
810 - CARBON-BRUSH SET 10 x 1 607 014 171 BSD-1607000480.A161 1607000480 £102.57 £123.08
813 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A444 1600905011 £5.58 £6.70
816 - BRUSH HOLDER BSD-1604336048.A226 1604336048 £7.36 £8.83
821 - GEAR HOUSING BSD-1607000C27.A2 1607000C27 £59.53 £71.44
822 - BEARING FLANGE dia230 MM BSD-1607000C24.A33 1607000C24 £27.31 £32.77
822/1 - BEARING FLANGE BSD-1607000C25.A5 1607000C25 £88.07 £105.68
826 - BEVEL GEAR SET BSD-1607000C29.A4 1607000C29 £59.53 £71.44
835 - FAN BSD-1600A00J93.A155 1600A00J93 £2.80 £3.36
840 - PUSH-BUTTON BSD-1607000354.A249 1607000354 £6.52 £7.83
846 - RETAINING WASHER BSD-1607000342.A102 1607000342 £3.72 £4.47
848 - RETAINING CLIP BSD-1600119010.A174 1600119010 £1.75 £2.10
850 - GROOVE BALL BEARING 17x40x12 BSD-1600905026.A83 1600905026 £8.67 £10.41
851 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A1105 2600910001 £4.26 £5.11
880 - ELECTRONICS MODULE BSD-1607233319.A7 1607233319 £40.80 £48.96
891 - AUXILIARY HANDLE M14 BSD-1602025022.A416 1602025022 £13.41 £16.09
892 - PIN-TYPE FACE-WRENCH BSD-1607950061.A246 1607950061 £5.42 £6.50
893 - CLAMPING-FLANGE BSD-1607000368.A23 1607000368 £31.64 £37.97
894 - ROUND NUT M14 BSD-1603345043.A576 1603345043 £8.67 £10.41
896 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340027.A456 1603340027 £46.82 £56.18
898 - PULLER BSD-1609244A78.A15 1609244A78 -
899 - CABLE TIE 250x13.8x2 BSD-1609203H18.A12 1609203H18 £4.26 £5.11
