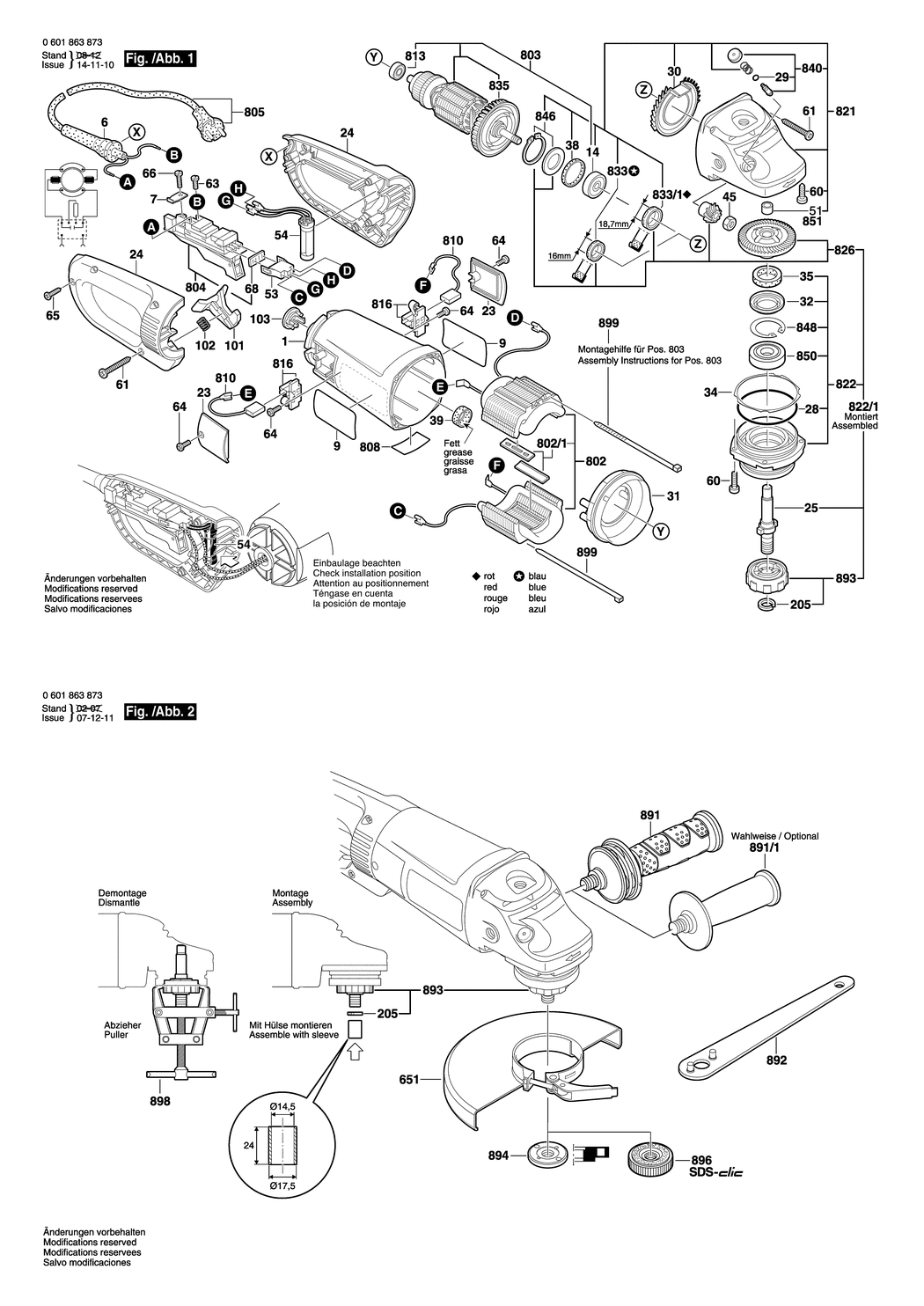

1 - MOTOR HOUSING
BSD-1605108236.A5
1605108236
|
£16.74
|
£20.09
|
|
|
6 - GROMMET dia 10.5-dia11.0x100 MM
BSD-1600703023.A210
1600703023
|
£2.74
|
£3.29
|
|
|
7 - FASTENING CLAMP
BSD-1601302018.A447
1601302018
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118E81.A0
1601118E81
|
-
|
|
|
|
14 - GROOVE BALL BEARING
BSD-1600905028.A69
1600905028
|
£12.64
|
£15.17
|
|
|
23 - SEALING CAP
BSD-1605500236.A16
1605500236
|
£3.72
|
£4.47
|
|
|
24 - HANDLE
BSD-1605132130.A0
1605132130
|
£12.37
|
£14.84
|
|
|
25 - GRINDING SPINDLE
BSD-160312305Z.A5
160312305Z
|
£35.12
|
£42.15
|
|
|
28 - O-RING 79.0x1.78 MM
BSD-1600210033.A205
1600210033
|
£1.84
|
£2.21
|
|
|
29 - O-RING 8.0x1.0 MM
BSD-1600210045.A209
1600210045
|
£1.84
|
£2.21
|
|
|
30 - AIR DISTRIBUTOR
BSD-1600591029.A31
1600591029
|
£2.74
|
£3.29
|
|
|
31 - AIR-DEFLECTOR RING
BSD-1600591028.A340
1600591028
|
£2.45
|
£2.94
|
|
|
32 - RETAINING SNAP RING
BSD-1600290019.A83
1600290019
|
£1.84
|
£2.21
|
|
|
34 - SHIM 0.15 MM
BSD-1600190020.A374
1600190020
|
£1.84
|
£2.21
|
|
|
34 - SHIM 0.3 MM
BSD-1600190021.A453
1600190021
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.1 MM
BSD-1600190022.A374
1600190022
|
£1.84
|
£2.21
|
|
|
34 - SHIM 0.2 MM
BSD-1600190037.A2
1600190037
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.25 MM
BSD-1600190038.A385
1600190038
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.35 MM
BSD-1600190039.A2
1600190039
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.4 MM
BSD-1600190040.A385
1600190040
|
£1.75
|
£2.10
|
|
|
35 - FELT WASHER
BSD-1600205034.A286
1600205034
|
£1.75
|
£2.10
|
|
|
38 - RUBBER RING 7 MM
BSD-1600206020.A177
1600206020
|
£1.84
|
£2.21
|
|
|
39 - RUBBER RING
BSD-1600206030.A322
1600206030
|
£1.84
|
£2.21
|
|
|
45 - HEX NUT M10. SW14
BSD-1603300019.A220
1603300019
|
£1.84
|
£2.21
|
|
|
51 - PLAIN BEARING dia14 MM
BSD-1600200031.A269
1600200031
|
£2.80
|
£3.36
|
|
|
53 - SOCKET HOUSING
BSD-1605190068.A107
1605190068
|
£1.75
|
£2.10
|
|
|
54 - SUPPRESSION FILTER
BSD-1604503017.A11
1604503017
|
£10.82
|
£12.99
|
|
|
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM
BSD-1603435023.A384
1603435023
|
£2.16
|
£2.59
|
|
|
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST
BSD-2912401038.A291
2912401038
|
£1.84
|
£2.21
|
|
|
63 - PAN HEAD SCREW M4x10 MM
BSD-1603410014.A225
1603410014
|
£1.84
|
£2.21
|
|
|
64 - PLASTIC-CUTTING SCREW St3.9x12
BSD-1603435042.A53
1603435042
|
£1.84
|
£2.21
|
|
|
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A938
2912401020
|
£2.16
|
£2.59
|
|
|
66 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1911
2910211019
|
£1.84
|
£2.21
|
|
|
68 - SEALING PLATE
BSD-1601006011.A10
1601006011
|
£2.74
|
£3.29
|
|
|
101 - CATCH SLIDE
BSD-1601990004.A70
1601990004
|
£2.61
|
£3.13
|
|
|
102 - COMPRESSION SPRING
BSD-1604616022.A44
1604616022
|
£1.84
|
£2.21
|
|
|
103 - CABLE ROUTING
BSD-1602388035.A77
1602388035
|
£1.75
|
£2.10
|
|
|
205 - SPRING RETAINING RING
BSD-1600209015.A5
1600209015
|
£1.75
|
£2.10
|
|
|
651 - PROTECTIVE COVER dia 180 MM
BSD-1605510216.A9
1605510216
|
-
|
|
|
|
802 - FIELD 230V
BSD-1607000C07.A5
1607000C07
|
£92.47
|
£110.96
|
|
|
802/1 - BRAKE SHOE
BSD-1607000363.A21
1607000363
|
£42.84
|
£51.41
|
|
|
803 - ARMATURE 230V
BSD-1604011257.A26
1604011257
|
£103.14
|
£123.77
|
|
|
804 - SWITCH
BSD-1607000970.A59
1607000970
|
£42.84
|
£51.41
|
|
|
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A700
1607000228
|
£23.86
|
£28.63
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A1249
160111A3H3
|
£2.74
|
£3.29
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014171.A162
1607014171
|
£14.91
|
£17.89
|
|
|
813 - GROOVE BALL BEARING 8x22x7
BSD-1600905011.A321
1600905011
|
£5.58
|
£6.70
|
|
|
816 - BRUSH HOLDER
BSD-1604336048.A249
1604336048
|
£7.72
|
£9.27
|
|
|
821 - GEAR HOUSING
BSD-1607000C03.A137
1607000C03
|
£50.80
|
£60.96
|
|
|
822 - BEARING FLANGE dia180 MM
BSD-1607000C04.A0
1607000C04
|
£39.13
|
£46.96
|
|
|
822/1 - BEARING FLANGE dia 180 MM
BSD-1607000733.A0
1607000733
|
£103.14
|
£123.77
|
|
|
826 - PARTS SET
BSD-1600A003FR.A8
1600A003FR
|
£45.67
|
£54.80
|
|
|
833 - ROTARY SHAFT LIP SEAL 16 MM
BSD-1600290064.A281
1600290064
|
£2.27
|
£2.72
|
|
|
833/1 - ROTARY SHAFT LIP SEAL 18.7 MM
BSD-1600290013.A236
1600290013
|
£2.74
|
£3.29
|
|
|
835 - FAN
BSD-1600A00J93.A292
1600A00J93
|
£2.80
|
£3.36
|
|
|
840 - PUSH-BUTTON
BSD-1607000354.A84
1607000354
|
£6.85
|
£8.22
|
|
|
846 - RETAINING WASHER
BSD-1607000C3E.A122
1607000C3E
|
£12.64
|
£15.17
|
|
|
848 - RETAINING CLIP
BSD-1600119010.A448
1600119010
|
£1.84
|
£2.21
|
|
|
850 - GROOVE BALL BEARING 17x40x12
BSD-1600905026.A295
1600905026
|
£9.11
|
£10.93
|
|
|
851 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A994
2600910001
|
£4.48
|
£5.37
|
|
|
891 - AUXILIARY HANDLE M14
BSD-1602025051.A146
1602025051
|
£27.23
|
£32.68
|
|
|
891/1 - AUXILIARY HANDLE M14
BSD-1602025022.A115
1602025022
|
£13.41
|
£16.09
|
|
|
892 - PIN-TYPE FACE-WRENCH
BSD-1607950061.A20
1607950061
|
£5.69
|
£6.83
|
|
|
893 - CLAMPING-FLANGE
BSD-1607000368.A5
1607000368
|
£31.64
|
£37.97
|
|
|
894 - ROUND NUT M14
BSD-1603345043.A428
1603345043
|
£9.11
|
£10.93
|
|
|
896 - FAST LOCKING FLANGE M14. SDS-CLIC
BSD-1603340027.A377
1603340027
|
£49.16
|
£58.99
|
|
|
898 - PULLER
BSD-1609244A78.A5
1609244A78
|
-
|
|
|
|
899 - CABLE TIE 250x13.8x2
BSD-1609203H18.A0
1609203H18
|
£4.48
|
£5.37
|
|
