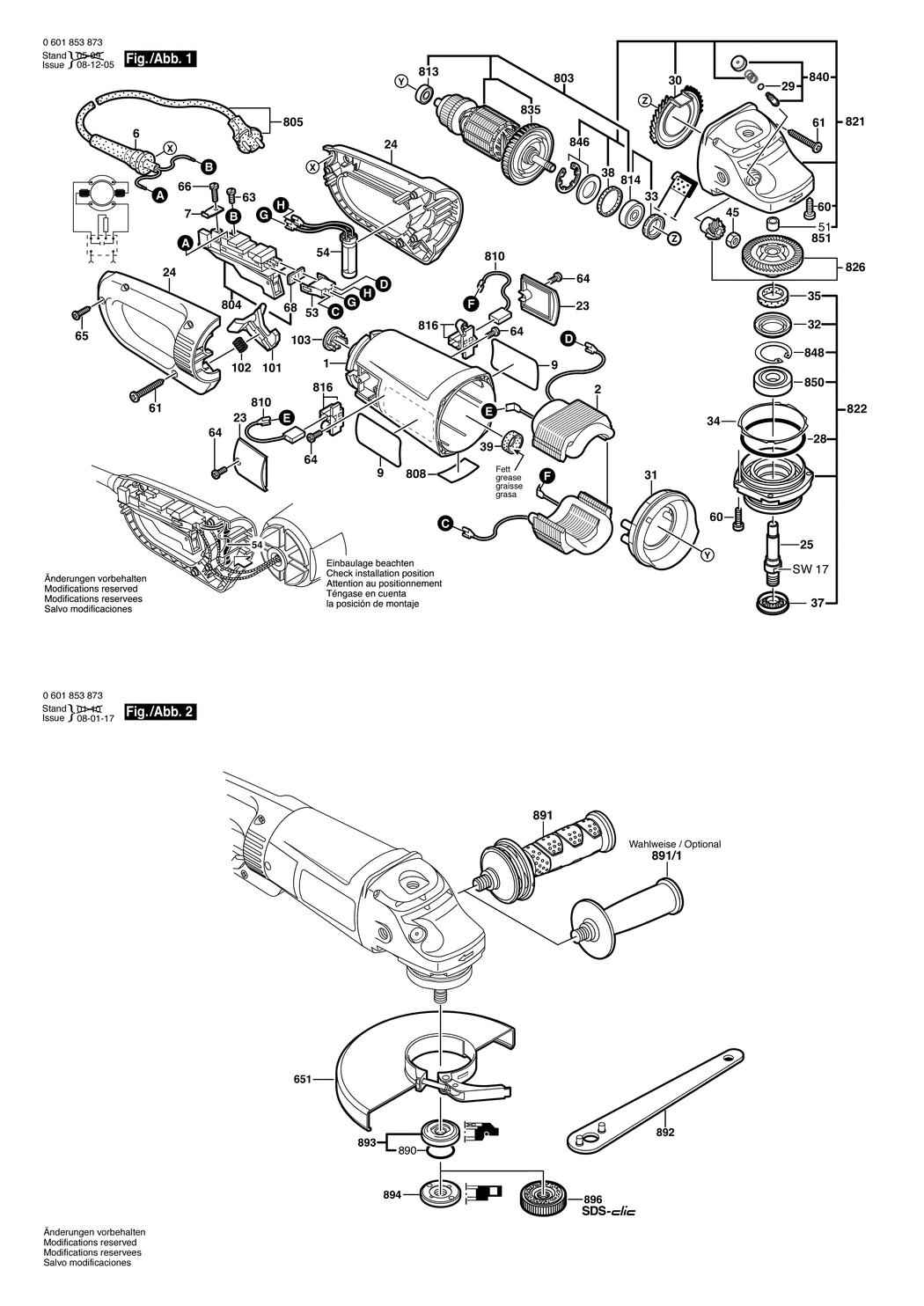

An exploded drawing and listing for the Bosch GWS 24-180 JB / 0601853873 / D 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605108190.A118 1605108190 £18.96 £22.75
2 - FIELD 220-240V BSD-1604220381.A3 1604220381 £37.72 £45.27
6 - GROMMET dia 10.5-dia11.0x100 MM BSD-1600703023.A159 1600703023 £2.61 £3.13
7 - FASTENING CLAMP BSD-1601302018.A584 1601302018 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601118C88.A1 1601118C88 -
23 - SEALING CAP BSD-1618B00802.A57 1618B00802 £4.27 £5.12
24 - HANDLE BSD-1605132130.A94 1605132130 £11.78 £14.13
25 - GRINDING SPINDLE BSD-160312305U.A354 160312305U £13.12 £15.75
28 - O-RING 79.0x1.78 MM BSD-1600210033.A974 1600210033 £1.75 £2.10
29 - O-RING 8.0x1.0 MM BSD-1600210045.A46 1600210045 £1.75 £2.10
30 - AIR DISTRIBUTOR BSD-1600591029.A270 1600591029 £2.61 £3.13
31 - AIR-DEFLECTOR RING BSD-1600591028.A70 1600591028 £2.33 £2.80
32 - RETAINING SNAP RING BSD-1600290019.A615 1600290019 £1.75 £2.10
33 - ROTARY SHAFT LIP SEAL 18.7 MM BSD-1600290013.A41 1600290013 £2.61 £3.13
34 - SHIM 0.15 MM BSD-1600190020.A139 1600190020 £1.75 £2.10
34 - SHIM 0.3 MM BSD-1600190021.A688 1600190021 £2.61 £3.13
34 - SHIM 0.1 MM BSD-1600190022.A139 1600190022 £1.75 £2.10
34 - SHIM 0.2 MM BSD-1600190037.A358 1600190037 £1.75 £2.10
34 - SHIM 0.25 MM BSD-1600190038.A46 1600190038 £1.75 £2.10
34 - SHIM 0.35 MM BSD-1600190039.A340 1600190039 £1.75 £2.10
34 - SHIM 0.4 MM BSD-1600190040.A47 1600190040 £1.75 £2.10
35 - FELT WASHER BSD-1600205034.A68 1600205034 £1.75 £2.10
37 - SEAL RING BSD-1600290036.A508 1600290036 £2.16 £2.59
38 - RUBBER RING 7 MM BSD-1600206020.A606 1600206020 £1.75 £2.10
39 - RUBBER RING BSD-1600206030.A168 1600206030 £1.75 £2.10
45 - HEX NUT M10. SW14 BSD-1603300019.A71 1603300019 £1.75 £2.10
51 - PLAIN BEARING dia14 MM BSD-1600200031.A618 1600200031 £2.80 £3.36
53 - SOCKET HOUSING BSD-1605190068.A182 1605190068 £1.75 £2.10
54 - WIREWOUND RESISTOR BSD-1604503015.A29 1604503015 £12.04 £14.45
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM BSD-1603435023.A164 1603435023 £2.16 £2.59
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST BSD-2912401038.A112 2912401038 £1.75 £2.10
63 - PAN HEAD SCREW M4x10 MM BSD-1603410014.A8 1603410014 £1.75 £2.10
64 - PLASTIC-CUTTING SCREW St3.9x12 BSD-1603435042.A586 1603435042 £1.75 £2.10
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST BSD-2912401020.A367 2912401020 £2.16 £2.59
66 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A1151 2910211019 £1.75 £2.10
68 - SEALING PLATE BSD-1601006011.A458 1601006011 £2.61 £3.13
101 - CATCH SLIDE BSD-1601990004.A107 1601990004 £2.61 £3.13
102 - COMPRESSION SPRING BSD-1604616022.A21 1604616022 £1.75 £2.10
103 - CABLE ROUTING BSD-1602388035.A158 1602388035 £1.75 £2.10
651 - PROTECTIVE COVER dia 180 MM BSD-1605510216.A3 1605510216 -
803 - ARMATURE 220-240V BSD-1604011932.A1 1604011932 £80.61 £96.73
804 - SWITCH BSD-1607000970.A22 1607000970 £40.80 £48.96
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F BSD-1607000228.A124 1607000228 £23.86 £28.63
808 - NAMEPLATE BSD-160111A3H3.A4699 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1607014171.A631 1607014171 £14.91 £17.89
813 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A885 1600905011 £5.58 £6.70
814 - GROOVE BALL BEARING BSD-1600905028.A7 1600905028 £12.04 £14.45
816 - BRUSH HOLDER BSD-1604336048.A455 1604336048 £7.36 £8.83
821 - GEAR HOUSING BSD-1607000C03.A28 1607000C03 £48.38 £58.06
822 - BEARING FLANGE dia180 MM BSD-1607000C04.A19 1607000C04 £37.27 £44.72
826 - BEVEL GEAR SET BSD-1619P09483.A25 1619P09483 £37.27 £44.72
835 - FAN BSD-1600A00J93.A66 1600A00J93 £2.80 £3.36
840 - PUSH-BUTTON BSD-1607000354.A15 1607000354 £6.52 £7.83
846 - RETAINING WASHER BSD-1607000342.A303 1607000342 £3.72 £4.47
848 - RETAINING CLIP BSD-1600119010.A629 1600119010 £1.75 £2.10
850 - GROOVE BALL BEARING 17x40x12 BSD-1600905026.A341 1600905026 £8.67 £10.41
851 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A390 2600910001 £4.26 £5.11
890 - O-RING 20.35x1.78 MM BSD-1600210039.A1421 1600210039 £2.16 £2.59
891 - AUXILIARY HANDLE M14 BSD-1602025051.A168 1602025051 £27.23 £32.68
891/1 - AUXILIARY HANDLE M14 BSD-1602025022.A1083 1602025022 £13.41 £16.09
892 - PIN-TYPE FACE-WRENCH BSD-1607950061.A573 1607950061 £5.42 £6.50
893 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A170 2605703014 £7.36 £8.83
894 - ROUND NUT M14 BSD-1603345043.A212 1603345043 £8.67 £10.41
896 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340027.A85 1603340027 £46.82 £56.18
