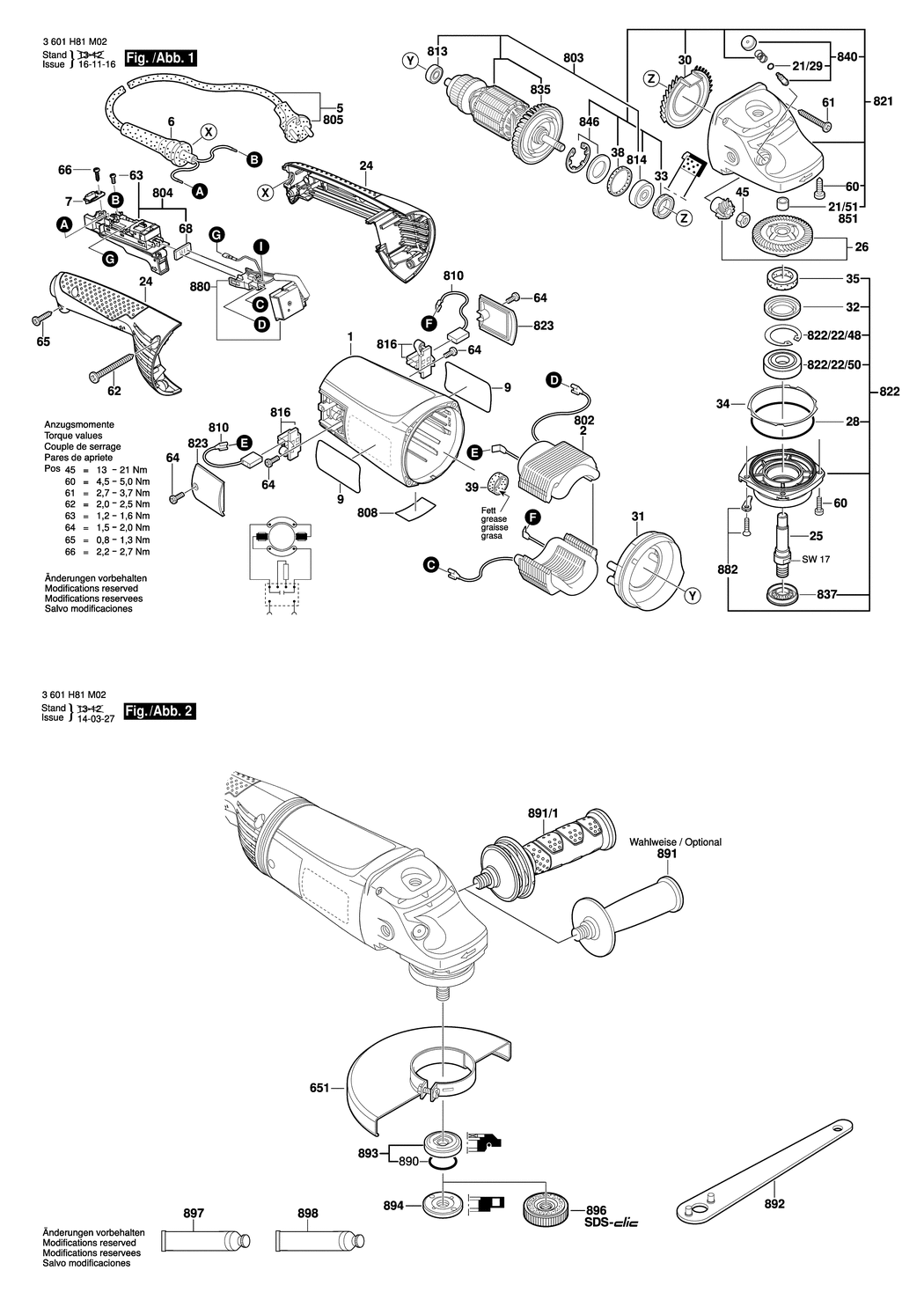

An exploded drawing and listing for the Bosch GWS 230 JH / 3601H82M04 / EU 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605108275.A90 1605108275 £16.41 £19.69
6 - GROMMET dia10.5-dia11.0x100 MM BSD-1600703036.A153 1600703036 £2.16 £2.59
7 - FASTENING CLAMP BSD-1601302018.A384 1601302018 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1618B0002M.A1 1618B0002M -
24 - HANDLE BSD-1605132149.A36 1605132149 £10.82 £12.99
25 - GRINDING SPINDLE BSD-160312305U.A112 160312305U £13.12 £15.75
26 - BEVEL GEAR SET BSD-1600A012VU.A39 1600A012VU -
28 - O-RING 79.0x1.78 MM BSD-1600210033.A579 1600210033 £1.75 £2.10
29 - O-RING 8.0x1.0 MM BSD-1600210045.A488 1600210045 £1.75 £2.10
30 - AIR DISTRIBUTOR BSD-1600591029.A178 1600591029 £2.61 £3.13
31 - AIR-DEFLECTOR RING BSD-1600591028.A173 1600591028 £2.33 £2.80
32 - RETAINING SNAP RING BSD-1600290019.A372 1600290019 £1.75 £2.10
33 - ROTARY SHAFT LIP SEAL 16 MM BSD-1600290064.A117 1600290064 £2.16 £2.59
34 - SHIM 0.15 MM BSD-1600190020.A602 1600190020 £1.75 £2.10
34 - SHIM 0.3 MM BSD-1600190021.A225 1600190021 £2.61 £3.13
34 - SHIM 0.1 MM BSD-1600190022.A602 1600190022 £1.75 £2.10
34 - SHIM 0.2 MM BSD-1600190037.A134 1600190037 £1.75 £2.10
34 - SHIM 0.25 MM BSD-1600190038.A253 1600190038 £1.75 £2.10
34 - SHIM 0.35 MM BSD-1600190039.A134 1600190039 £1.75 £2.10
34 - SHIM 0.4 MM BSD-1600190040.A253 1600190040 £1.75 £2.10
35 - FELT WASHER BSD-1600205034.A347 1600205034 £1.75 £2.10
38 - RUBBER RING 7 MM BSD-1600206020.A393 1600206020 £1.75 £2.10
39 - RUBBER RING BSD-1600206030.A560 1600206030 £1.75 £2.10
45 - HEX NUT M10. SW14 BSD-1603300019.A507 1603300019 £1.75 £2.10
51 - PLAIN BEARING dia14 MM BSD-1600200031.A224 1600200031 £2.80 £3.36
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM BSD-1603435023.A613 1603435023 £2.16 £2.59
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST BSD-2912401038.A388 2912401038 £1.75 £2.10
62 - TAPPING SCREW 4.8x55 BSD-1603435060.A82 1603435060 £1.75 £2.10
63 - PAN HEAD SCREW M4x10 MM BSD-1603410014.A373 1603410014 £1.75 £2.10
64 - PLASTIC-CUTTING SCREW St3.9x12 BSD-1603435042.A284 1603435042 £1.75 £2.10
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST BSD-2912401020.A1242 2912401020 £2.16 £2.59
66 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A1378 2910211019 £1.75 £2.10
68 - SEALING PLATE BSD-1601006011.A342 1601006011 £2.61 £3.13
651 - PROTECTIVE COVER BSD-1600A00XM0.A121 1600A00XM0 £21.68 £26.01
802 - FIELD 230V BSD-1604220435.A7 1604220435 £37.72 £45.27
803 - ARMATURE 230V BSD-1604011296.A25 1604011296 £61.98 £74.38
804 - ON-OFF SWITCH BSD-1607000C13.A12 1607000C13 £37.27 £44.72
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A204 1607000227 £23.86 £28.63
808 - NAMEPLATE BSD-160111A3H3.A247 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1607014171.A329 1607014171 £14.91 £17.89
810 - CARBON-BRUSH SET 10 x 1 607 014 171 BSD-1607000480.A51 1607000480 £102.57 £123.08
813 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A429 1600905011 £5.58 £6.70
814 - GROOVE BALL BEARING BSD-1600905028.A191 1600905028 £12.04 £14.45
816 - BRUSH HOLDER BSD-1604336048.A70 1604336048 £7.36 £8.83
821 - GEAR HOUSING BSD-1607000C32.A63 1607000C32 £40.80 £48.96
822 - BEARING FLANGE dia230 MM BSD-1607000C22.A30 1607000C22 £30.28 £36.33
822/22/48 - RETAINING CLIP BSD-1600119010.A289 1600119010 £1.75 £2.10
822/22/50 - GROOVE BALL BEARING 17x40x12 BSD-1600905026.A169 1600905026 £8.67 £10.41
823 - SEALING CAP BSD-1618B00802.A247 1618B00802 £4.27 £5.12
835 - FAN BSD-1600A00J93.A241 1600A00J93 £2.80 £3.36
837 - SEAL RING BSD-1600290036.A284 1600290036 £2.16 £2.59
840 - PUSH-BUTTON BSD-1607000354.A177 1607000354 £6.52 £7.83
846 - RETAINING WASHER BSD-1607000342.A161 1607000342 £3.72 £4.47
851 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A1183 2600910001 £4.26 £5.11
880 - ELECTRONICS MODULE BSD-1607233319.A59 1607233319 £40.80 £48.96
882 - STOPPER BSD-1619P06597.A60 1619P06597 £4.26 £5.11
890 - O-RING 20.35x1.78 MM BSD-1600210039.A282 1600210039 £2.16 £2.59
891 - AUXILIARY HANDLE M14 BSD-1602025022.A584 1602025022 £13.41 £16.09
891/1 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A770 1602025030 £18.96 £22.75
892 - PIN-TYPE FACE-WRENCH BSD-1607950061.A380 1607950061 £5.42 £6.50
893 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A1177 2605703014 £7.36 £8.83
894 - ROUND NUT M14 BSD-1603345043.A768 1603345043 £8.67 £10.41
896 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340027.A567 1603340027 £46.82 £56.18
897 - GREASE TUBE 225 ML BSD-1605430003.A25 1605430003 £33.74 £40.49
898 - GREASE TUBE 225 ML BSD-1615430020.A142 1615430020 £21.52 £25.83
