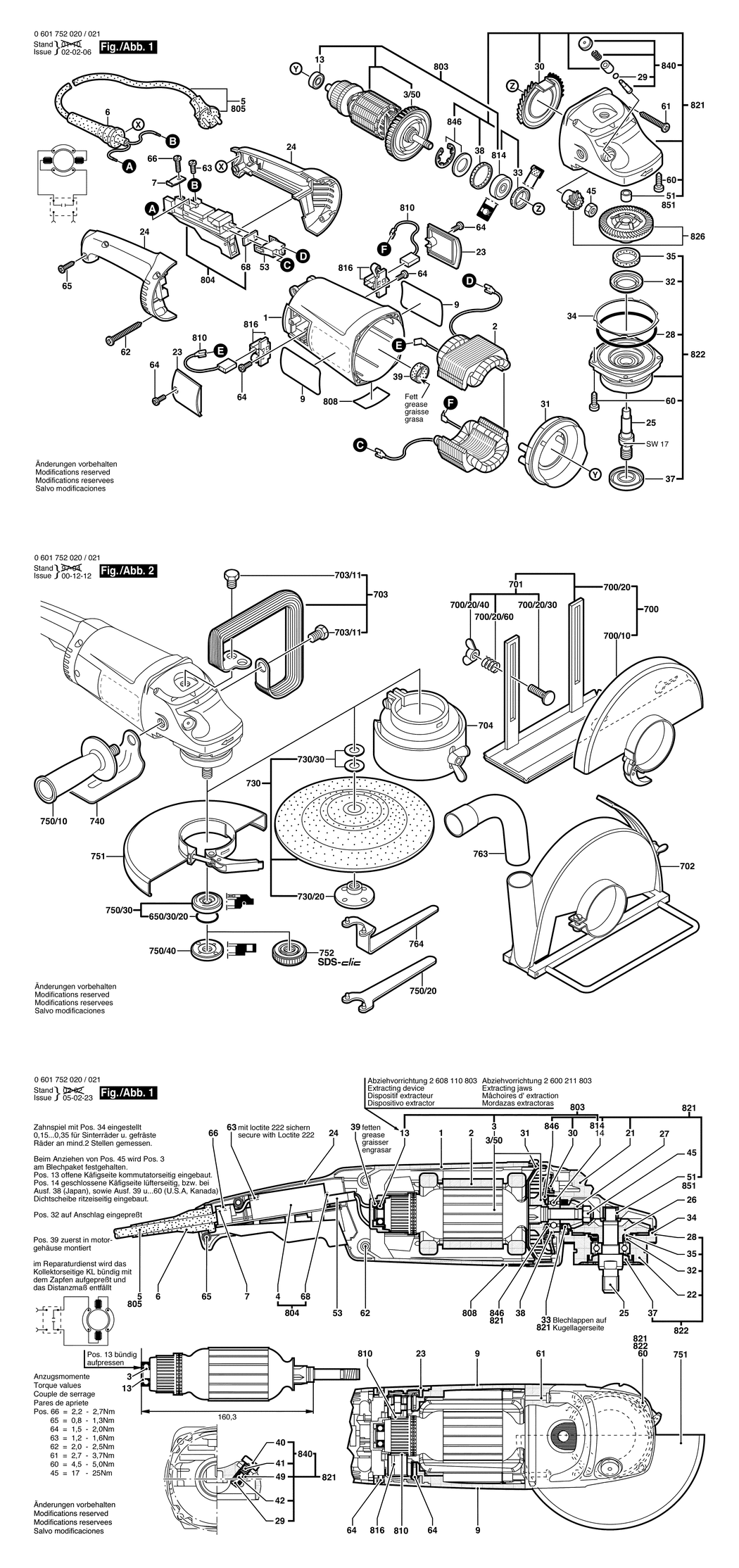

An exploded drawing and listing for the Bosch GWS 230 / 0601752021 / I 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605108275.A141 1605108275 £16.41 £19.69
2 - FIELD 220-240V BSD-1604220380.A170 1604220380 £33.74 £40.49
3/50 - FAN BSD-1600A00J93.A61 1600A00J93 £2.80 £3.36
5 - POWER SUPPLY CORD I 2.65m 2x1.0mm H07 RN-F BSD-3604460047.A4 3604460047 £18.96 £22.75
6 - GROMMET dia 10.5-dia11.0x100 MM BSD-1600703023.A145 1600703023 £2.61 £3.13
7 - FASTENING CLAMP BSD-1601302018.A527 1601302018 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601118685.A1 1601118685 £3.34 £4.01
13 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A871 1600905011 £5.58 £6.70
23 - SEALING CAP BSD-1618B00802.A22 1618B00802 £4.27 £5.12
24 - HANDLE BSD-1619P11545.A34 1619P11545 £12.04 £14.45
25 - GRINDING SPINDLE BSD-160312305U.A303 160312305U £13.12 £15.75
28 - O-RING 79.0x1.78 MM BSD-1600210033.A950 1600210033 £1.75 £2.10
29 - O-RING 4.0x1.0 MM BSD-1600210034.A30 1600210034 £1.75 £2.10
30 - AIR DISTRIBUTOR BSD-1600591029.A310 1600591029 £2.61 £3.13
31 - AIR-DEFLECTOR RING BSD-1600591028.A28 1600591028 £2.33 £2.80
32 - RETAINING SNAP RING BSD-1600290019.A554 1600290019 £1.75 £2.10
33 - ROTARY SHAFT LIP SEAL 18.7 MM BSD-1600290013.A101 1600290013 £2.61 £3.13
33 - ROTARY SHAFT LIP SEAL 16 MM BSD-1600290064.A382 1600290064 £2.16 £2.59
34 - SHIM 0.15 MM BSD-1600190020.A116 1600190020 £1.75 £2.10
34 - SHIM 0.3 MM BSD-1600190021.A711 1600190021 £2.61 £3.13
34 - SHIM 0.1 MM BSD-1600190022.A116 1600190022 £1.75 £2.10
35 - FELT WASHER BSD-1600205034.A93 1600205034 £1.75 £2.10
37 - SEAL RING BSD-1600290036.A448 1600290036 £2.16 £2.59
38 - RUBBER RING 7 MM BSD-1600206020.A581 1600206020 £1.75 £2.10
39 - RUBBER RING BSD-1600206030.A110 1600206030 £1.75 £2.10
45 - HEX NUT M10. SW14 BSD-1603300019.A42 1603300019 £1.75 £2.10
51 - PLAIN BEARING dia14 MM BSD-1600200031.A593 1600200031 £2.80 £3.36
53 - SOCKET HOUSING BSD-1605190068.A251 1605190068 £1.75 £2.10
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM BSD-1603435023.A141 1603435023 £2.16 £2.59
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST BSD-2912401038.A151 2912401038 £1.75 £2.10
62 - TAPPING SCREW 4.8x55 BSD-1603435060.A142 1603435060 £1.75 £2.10
63 - PAN HEAD SCREW M4x10 MM BSD-1603410014.A33 1603410014 £1.75 £2.10
64 - PLASTIC-CUTTING SCREW St3.9x12 BSD-1603435042.A562 1603435042 £1.75 £2.10
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST BSD-2912401020.A328 2912401020 £2.16 £2.59
66 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A1208 2910211019 £1.75 £2.10
68 - SEALING PLATE BSD-1601006011.A424 1601006011 £2.61 £3.13
650/30/20 - O-RING 20.35x1.78 MM BSD-1600210039.A1411 1600210039 £2.16 £2.59
700 - PARTS SET dia230 MM BSD-1607000251.A8 1607000251 -
700/10 - PROTECTIVE COVER dia230 MM BSD-1605510223.A174 1605510223 -
700/20 - GUIDE BLOCK BSD-1608135003.A139 1608135003 -
700/20/30 - ROUND-HEAD BOLT DIN 603-M 8x25 BSD-2910281244.A108 2910281244 -
700/20/40 - WING NUT DIN 315-M8-GT-C BSD-2915191007.A277 2915191007 £3.72 £4.47
700/20/60 - COMPRESSION SPRING BSD-1604643003.A88 1604643003 £6.52 £7.83
701 - GUIDE BLOCK BSD-1608135003.A138 1608135003 -
702 - PROTECTIVE COVER dia230 MM BSD-1605510180.A110 1605510180 £71.74 £86.09
703 - STRAP-SHAPED HANDLE BSD-1607000247.A4 1607000247 £50.82 £60.99
703/11 - HEX SCREW M14x16x1.5 MM BSD-2603450007.A255 2603450007 £5.58 £6.70
704 - PROTECTIVE COVER dia110 MM BSD-1605510181.A32 1605510181 -
730 - BACKING PAD dia230 MM BSD-1608601007.A51 1608601007 -
730/20 - ROUND NUT M14 BSD-1603345004.A228 1603345004 £7.87 £9.44
730/30 - PLAIN WASHER DIN 125-A15-ST BSD-2916011022.A56 2916011022 £1.75 £2.10
740 - PROTECTING COVER BSD-1601329013.A8 1601329013 £11.37 £13.64
750/10 - AUXILIARY HANDLE M14x1.5 MM BSD-2602025075.A206 2602025075 £10.30 £12.36
750/20 - PIN-TYPE FACE-WRENCH BSD-1607950048.A70 1607950048 £4.88 £5.86
750/30 - CLAMPING-FLANGE dia22.2x42 MM BSD-1605703099.A186 1605703099 £7.45 £8.94
750/40 - CLAMPING NUT M14 BSD-1603340040.A314 1603340040 £6.20 £7.44
751 - PROTECTIVE COVER dia230 MM BSD-1605510223.A168 1605510223 -
752 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340027.A112 1603340027 £46.82 £56.18
763 - SUCTION BEND dia 35 MM BSD-1600793007.A56 1600793007 £19.24 £23.09
764 - PIN-TYPE FACE-WRENCH BSD-1607950004.A155 1607950004 £8.33 £10.00
803 - ARMATURE 220-240V BSD-1604011930.A49 1604011930 £70.24 £84.29
804 - SWITCH BSD-1607000967.A97 1607000967 £31.64 £37.97
808 - NAMEPLATE BSD-160111A3H3.A4761 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1607014171.A583 1607014171 £14.91 £17.89
814 - GROOVE BALL BEARING 10x35x11 BSD-1600905023.A101 1600905023 £12.04 £14.45
816 - BRUSH HOLDER BSD-1604336048.A393 1604336048 £7.36 £8.83
821 - GEAR HOUSING BSD-1607000968.A11 1607000968 -
822 - BEARING FLANGE dia230 MM BSD-1607000985.A31 1607000985 £27.23 £32.68
826 - ASSEMBLY OF SERVICE PARTS BSD-1600A005BH.A138 1600A005BH £45.67 £54.80
840 - PUSH-BUTTON BSD-1607000206.A246 1607000206 £11.30 £13.56
846 - RETAINING WASHER BSD-1607000C3E.A197 1607000C3E £12.04 £14.45
851 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A378 2600910001 £4.26 £5.11
