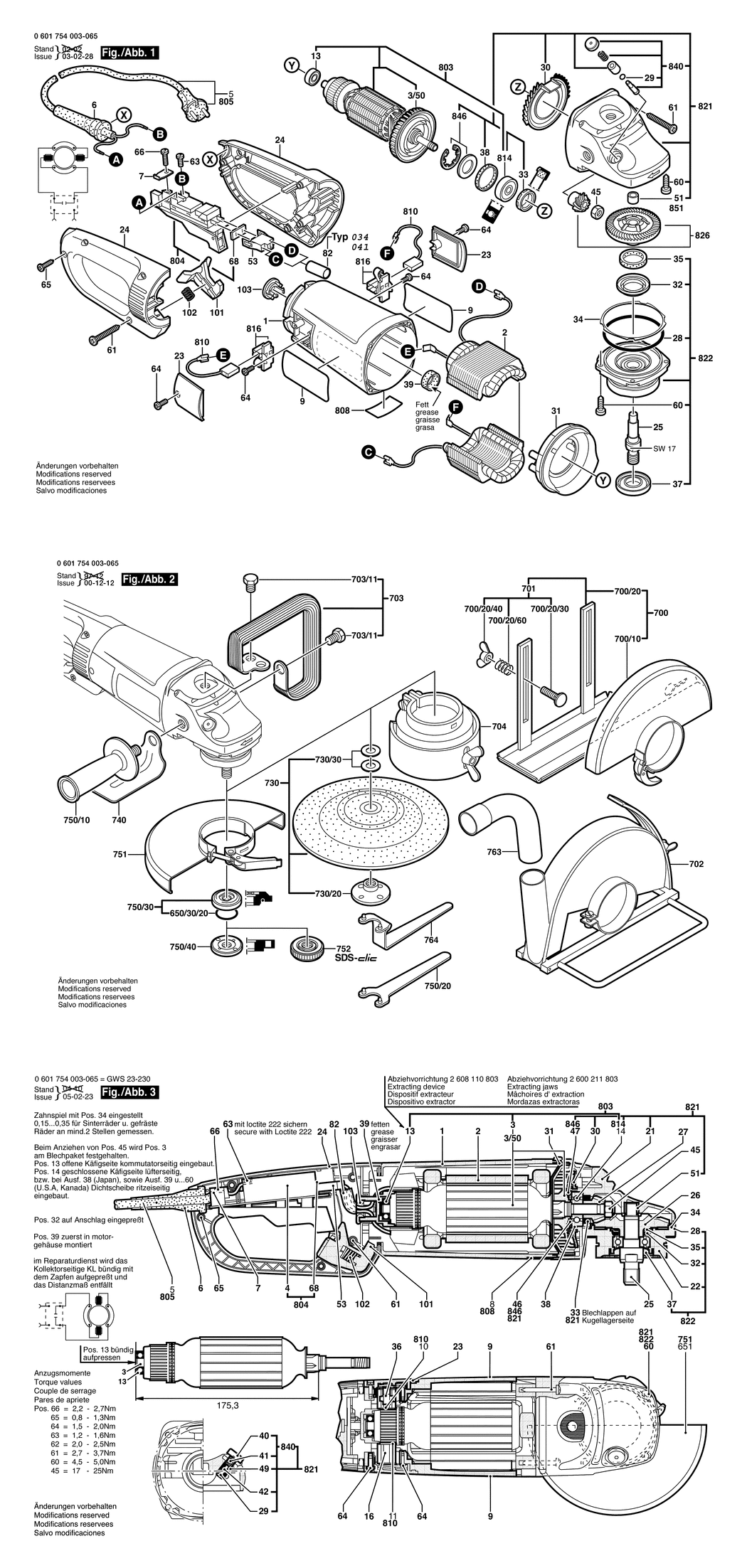

1 - MOTOR HOUSING
BSD-1605108190.A34
1605108190
|
£18.96
|
£22.75
|
|
|
2 - FIELD 220-240V
BSD-1604220381.A57
1604220381
|
£39.61
|
£47.53
|
|
|
3/50 - FAN
BSD-1600A00J93.A299
1600A00J93
|
£2.80
|
£3.36
|
|
|
5 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07RN-F
BSD-1604460128.A4
1604460128
|
-
|
|
|
|
6 - GROMMET dia 10.5-dia11.0x100 MM
BSD-1600703023.A221
1600703023
|
£2.74
|
£3.29
|
|
|
7 - FASTENING CLAMP
BSD-1601302018.A455
1601302018
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118691.A3
1601118691
|
£3.51
|
£4.21
|
|
|
13 - GROOVE BALL BEARING 8x22x7
BSD-1600905011.A237
1600905011
|
£5.87
|
£7.04
|
|
|
23 - SEALING CAP
BSD-1618B00802.A83
1618B00802
|
£4.27
|
£5.12
|
|
|
24 - HANDLE
BSD-1605132130.A65
1605132130
|
£12.37
|
£14.84
|
|
|
25 - GRINDING SPINDLE
BSD-160312305U.A172
160312305U
|
£13.12
|
£15.75
|
|
|
28 - O-RING 79.0x1.78 MM
BSD-1600210033.A223
1600210033
|
£1.84
|
£2.21
|
|
|
29 - O-RING 4.0x1.0 MM
BSD-1600210034.A140
1600210034
|
£1.84
|
£2.21
|
|
|
30 - AIR DISTRIBUTOR
BSD-1600591029.A108
1600591029
|
£2.74
|
£3.29
|
|
|
31 - AIR-DEFLECTOR RING
BSD-1600591028.A263
1600591028
|
£2.45
|
£2.94
|
|
|
32 - RETAINING SNAP RING
BSD-1600290019.A103
1600290019
|
£1.84
|
£2.21
|
|
|
33 - ROTARY SHAFT LIP SEAL 18.7 MM
BSD-1600290013.A308
1600290013
|
£2.74
|
£3.29
|
|
|
33 - ROTARY SHAFT LIP SEAL 16 MM
BSD-1600290064.A268
1600290064
|
£2.27
|
£2.72
|
|
|
34 - SHIM 0.15 MM
BSD-1600190020.A358
1600190020
|
£1.84
|
£2.21
|
|
|
34 - SHIM 0.3 MM
BSD-1600190021.A469
1600190021
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.1 MM
BSD-1600190022.A358
1600190022
|
£1.84
|
£2.21
|
|
|
35 - FELT WASHER
BSD-1600205034.A203
1600205034
|
£1.75
|
£2.10
|
|
|
37 - SEAL RING
BSD-1600290036.A188
1600290036
|
£2.27
|
£2.72
|
|
|
38 - RUBBER RING 7 MM
BSD-1600206020.A101
1600206020
|
£1.84
|
£2.21
|
|
|
39 - RUBBER RING
BSD-1600206030.A398
1600206030
|
£1.84
|
£2.21
|
|
|
45 - HEX NUT M10. SW14
BSD-1603300019.A240
1603300019
|
£1.84
|
£2.21
|
|
|
51 - PLAIN BEARING dia14 MM
BSD-1600200031.A351
1600200031
|
£2.80
|
£3.36
|
|
|
53 - SOCKET HOUSING
BSD-1605190068.A26
1605190068
|
£1.75
|
£2.10
|
|
|
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM
BSD-1603435023.A303
1603435023
|
£2.16
|
£2.59
|
|
|
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST
BSD-2912401038.A274
2912401038
|
£1.84
|
£2.21
|
|
|
63 - PAN HEAD SCREW M4x10 MM
BSD-1603410014.A297
1603410014
|
£1.84
|
£2.21
|
|
|
64 - PLASTIC-CUTTING SCREW St3.9x12
BSD-1603435042.A136
1603435042
|
£1.84
|
£2.21
|
|
|
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A954
2912401020
|
£2.16
|
£2.59
|
|
|
66 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1927
2910211019
|
£1.84
|
£2.21
|
|
|
68 - SEALING PLATE
BSD-1601006011.A83
1601006011
|
£2.74
|
£3.29
|
|
|
101 - CATCH SLIDE
BSD-1601990004.A64
1601990004
|
£2.61
|
£3.13
|
|
|
102 - COMPRESSION SPRING
BSD-1604616022.A56
1604616022
|
£1.84
|
£2.21
|
|
|
103 - CABLE ROUTING
BSD-1602388035.A62
1602388035
|
£1.75
|
£2.10
|
|
|
650/30/20 - O-RING 20.35x1.78 MM
BSD-1600210039.A548
1600210039
|
£2.27
|
£2.72
|
|
|
700 - PARTS SET dia230 MM
BSD-1607000251.A99
1607000251
|
-
|
|
|
|
700/10 - PROTECTIVE COVER dia230 MM
BSD-1605510223.A77
1605510223
|
-
|
|
|
|
700/20 - GUIDE BLOCK
BSD-1608135003.A388
1608135003
|
-
|
|
|
|
700/20/30 - ROUND-HEAD BOLT DIN 603-M 8x25
BSD-2910281244.A149
2910281244
|
-
|
|
|
|
700/20/40 - WING NUT DIN 315-M8-GT-C
BSD-2915191007.A39
2915191007
|
£3.72
|
£4.47
|
|
|
700/20/60 - COMPRESSION SPRING
BSD-1604643003.A190
1604643003
|
£6.52
|
£7.83
|
|
|
701 - GUIDE BLOCK
BSD-1608135003.A387
1608135003
|
-
|
|
|
|
702 - PROTECTIVE COVER dia230 MM
BSD-1605510180.A41
1605510180
|
£71.74
|
£86.09
|
|
|
703 - STRAP-SHAPED HANDLE
BSD-1607000247.A174
1607000247
|
£50.82
|
£60.99
|
|
|
703/11 - HEX SCREW M14x16x1.5 MM
BSD-2603450007.A103
2603450007
|
£5.87
|
£7.04
|
|
|
704 - PROTECTIVE COVER dia110 MM
BSD-1605510181.A147
1605510181
|
-
|
|
|
|
730 - BACKING PAD dia230 MM
BSD-1608601007.A24
1608601007
|
-
|
|
|
|
730/20 - ROUND NUT M14
BSD-1603345004.A55
1603345004
|
£8.26
|
£9.91
|
|
|
730/30 - PLAIN WASHER DIN 125-A15-ST
BSD-2916011022.A82
2916011022
|
£1.84
|
£2.21
|
|
|
740 - PROTECTING COVER
BSD-1601329013.A112
1601329013
|
£11.37
|
£13.64
|
|
|
750/10 - AUXILIARY HANDLE M14x1.5 MM
BSD-2602025075.A87
2602025075
|
£10.82
|
£12.98
|
|
|
750/20 - PIN-TYPE FACE-WRENCH
BSD-1607950048.A229
1607950048
|
£5.12
|
£6.15
|
|
|
750/30 - CLAMPING-FLANGE dia22.2x42 MM
BSD-1605703099.A352
1605703099
|
£7.82
|
£9.39
|
|
|
750/40 - CLAMPING NUT M14
BSD-1603340040.A102
1603340040
|
£6.51
|
£7.81
|
|
|
751 - PROTECTIVE COVER dia230 MM
BSD-1605510223.A76
1605510223
|
-
|
|
|
|
752 - FAST LOCKING FLANGE M14. SDS-CLIC
BSD-1603340027.A308
1603340027
|
£49.16
|
£58.99
|
|
|
763 - SUCTION BEND dia 35 MM
BSD-1600793007.A173
1600793007
|
£20.20
|
£24.24
|
|
|
764 - PIN-TYPE FACE-WRENCH
BSD-1607950004.A39
1607950004
|
£8.75
|
£10.50
|
|
|
803 - ARMATURE 220-240V
BSD-1604011932.A130
1604011932
|
£84.64
|
£101.57
|
|
|
804 - SWITCH
BSD-1607000967.A22
1607000967
|
£33.22
|
£39.87
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A1170
160111A3H3
|
£2.74
|
£3.29
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014171.A82
1607014171
|
£14.91
|
£17.89
|
|
|
814 - GROOVE BALL BEARING 10x35x11
BSD-1600905023.A89
1600905023
|
£12.64
|
£15.17
|
|
|
816 - BRUSH HOLDER
BSD-1604336048.A257
1604336048
|
£7.72
|
£9.27
|
|
|
821 - GEAR HOUSING
BSD-1607000968.A54
1607000968
|
-
|
|
|
|
822 - BEARING FLANGE dia230 MM
BSD-1607000985.A131
1607000985
|
£28.59
|
£34.31
|
|
|
826 - ASSEMBLY OF SERVICE PARTS
BSD-1600A005BH.A35
1600A005BH
|
£47.95
|
£57.54
|
|
|
840 - PUSH-BUTTON
BSD-1607000206.A72
1607000206
|
£11.30
|
£13.56
|
|
|
846 - RETAINING WASHER
BSD-1607000C3E.A117
1607000C3E
|
£12.64
|
£15.17
|
|
|
851 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A921
2600910001
|
£4.48
|
£5.37
|
|
