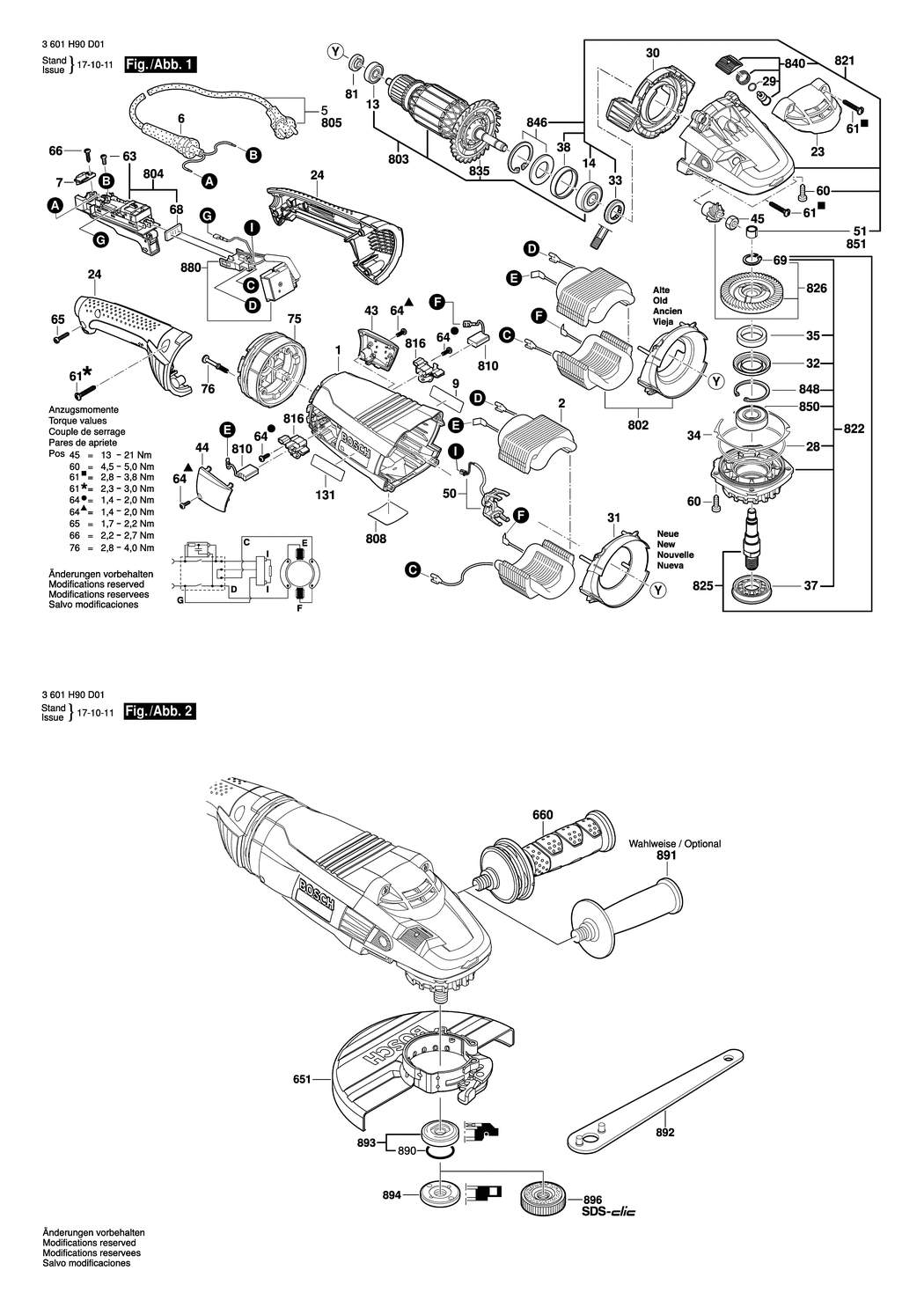

An exploded drawing and listing for the Bosch GWS 22-230 LVI / 3601H91D31 / CH 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605108264.A26 1605108264 £21.52 £25.83
2 - FIELD BSD-160422053X.A10 160422053X £37.72 £45.27
5 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H07 RN-F BSD-1604460455.A13 1604460455 £16.41 £19.69
6 - GROMMET dia10.5-dia11.0x100 MM BSD-1600703036.A227 1600703036 £2.16 £2.59
7 - FASTENING CLAMP BSD-1601302018.A295 1601302018 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE GWS 22-230 LVI BSD-160111C281.A6 160111C281 £2.33 £2.80
13 - GROOVE BALL BEARING 9x26x8 BSD-1600905034.A33 1600905034 £5.30 £6.36
14 - GROOVE BALL BEARING 12x37x12 BSD-1600905035.A27 1600905035 £10.10 £12.12
23 - COVER BSD-1605500266.A15 1605500266 £2.16 £2.59
24 - HANDLE BSD-1605132155.A7 1605132155 £10.82 £12.99
28 - O-RING 79.0x1.78 MM BSD-1600210033.A459 1600210033 £1.75 £2.10
29 - O-RING 8.0x1.0 MM BSD-1600210045.A368 1600210045 £1.75 £2.10
30 - AIR DISTRIBUTOR BSD-1600591041.A33 1600591041 £2.61 £3.13
31 - AIR-DEFLECTOR RING BSD-160059105U.A14 160059105U £2.80 £3.36
32 - RETAINING SNAP RING BSD-1600290019.A448 1600290019 £1.75 £2.10
33 - ROTARY SHAFT LIP SEAL 16 MM BSD-1600290064.A25 1600290064 £2.16 £2.59
34 - SHIM 0.15 MM BSD-1600190020.A541 1600190020 £1.75 £2.10
34 - SHIM 0.3 MM BSD-1600190021.A286 1600190021 £2.61 £3.13
34 - SHIM 0.1 MM BSD-1600190022.A541 1600190022 £1.75 £2.10
34 - SHIM 0.2 MM BSD-1600190037.A195 1600190037 £1.75 £2.10
34 - SHIM 0.25 MM BSD-1600190038.A192 1600190038 £1.75 £2.10
34 - SHIM 0.35 MM BSD-1600190039.A195 1600190039 £1.75 £2.10
34 - SHIM 0.4 MM BSD-1600190040.A192 1600190040 £1.75 £2.10
35 - FELT WASHER BSD-1600205034.A448 1600205034 £1.75 £2.10
37 - SEAL RING BSD-1600290036.A229 1600290036 £2.16 £2.59
38 - RUBBER RING BSD-1600206037.A39 1600206037 £1.75 £2.10
43 - SEALING CAP BSD-1605500264.A16 1605500264 £1.75 £2.10
44 - SEALING CAP BSD-1605500265.A31 1605500265 £1.75 £2.10
45 - HEX NUT M10. SW14 BSD-1603300019.A463 1603300019 £1.75 £2.10
50 - ROTATIONAL SPEED SENSOR BSD-1607001007.A34 1607001007 £8.67 £10.41
51 - PLAIN BEARING dia14 MM BSD-1600200031.A120 1600200031 £2.80 £3.36
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM BSD-1603435023.A519 1603435023 £2.16 £2.59
61 - TORX OVAL-HEAD SCREW BSD-1603490005.A33 1603490005 £1.75 £2.10
63 - PAN HEAD SCREW M4x10 MM BSD-1603410014.A412 1603410014 £1.75 £2.10
64 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A685 2603490021 £1.75 £2.10
65 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1405 2603490023 £1.75 £2.10
66 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A1443 2910211019 £1.75 £2.10
68 - SEALING PLATE BSD-1601006011.A276 1601006011 £2.61 £3.13
69 - SPRING RETAINING RING BSD-2916650905.A57 2916650905 £1.75 £2.10
75 - DAMPER BSD-1600290060.A32 1600290060 £16.41 £19.69
76 - COLLAR SCREW BSD-1603414025.A33 1603414025 £1.75 £2.10
81 - MAGNET BSD-1600190048.A16 1600190048 £2.80 £3.36
131 - MANUFACTURER'S NAMEPLATE GWS 22-230 LVI BSD-160111C282.A0 160111C282 £3.34 £4.01
651 - PROTECTIVE COVER BSD-1600A01R96.A46 1600A01R96 £37.26 £44.71
660 - AUXILIARY HANDLE M14 BSD-1602025051.A83 1602025051 £27.23 £32.68
802 - ASSEMBLY BSD-1607000C4K.A7 1607000C4K £45.67 £54.80
803 - ARMATURE 230V BSD-1604011297.A0 1604011297 £70.24 £84.29
804 - ON-OFF SWITCH BSD-1607000C13.A39 1607000C13 £37.27 £44.72
808 - NAMEPLATE BSD-1601106940.A10 1601106940 -
810 - CARBON-BRUSH SET BSD-1607014171.A257 1607014171 £14.91 £17.89
810 - CARBON-BRUSH SET 10 x 1 607 014 171 BSD-1607000480.A115 1607000480 £102.57 £123.08
816 - BRUSH HOLDER BSD-1604336053.A45 1604336053 £5.58 £6.70
821 - GEAR HOUSING BSD-1607000C17.A46 1607000C17 £48.38 £58.06
822 - BEARING FLANGE BSD-1607000CP2.A10 1607000CP2 £33.74 £40.49
825 - GRINDING SPINDLE BSD-1607000CU5.A21 1607000CU5 £13.12 £15.75
826 - BEVEL GEAR SET BSD-1607000CN7.A9 1607000CN7 £36.62 £43.95
835 - FAN BSD-1606610150.A32 1606610150 £2.61 £3.13
840 - PUSH-BUTTON BSD-1607000431.A27 1607000431 £4.26 £5.11
846 - RETAINING WASHER BSD-1607000432.A20 1607000432 £5.30 £6.36
848 - RETAINING CLIP BSD-1600119010.A350 1600119010 £1.75 £2.10
850 - GROOVE BALL BEARING 17x40x12 BSD-1600905026.A139 1600905026 £8.67 £10.41
851 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A1247 2600910001 £4.26 £5.11
880 - ELECTRONICS MODULE BSD-1607233552.A25 1607233552 £40.80 £48.96
890 - O-RING 20.35x1.78 MM BSD-1600210039.A402 1600210039 £2.16 £2.59
891 - AUXILIARY HANDLE M14 BSD-1602025022.A486 1602025022 £13.41 £16.09
892 - PIN-TYPE FACE-WRENCH BSD-1607950061.A308 1607950061 £5.42 £6.50
893 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A1113 2605703014 £7.36 £8.83
894 - ROUND NUT M14 BSD-1603345043.A730 1603345043 £8.67 £10.41
896 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340027.A605 1603340027 £46.82 £56.18
