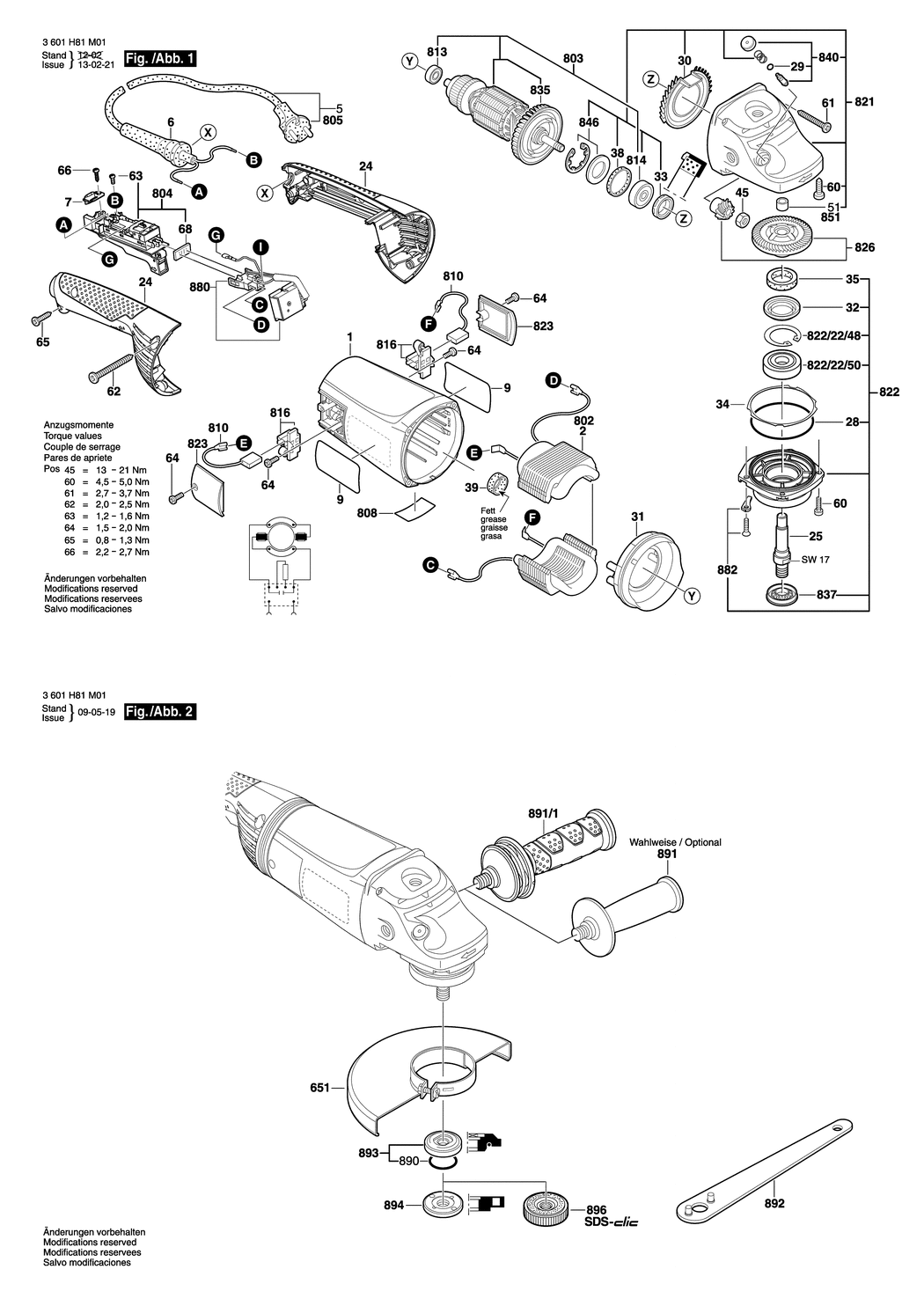

1 - MOTOR HOUSING
BSD-1605108275.A104
1605108275
|
£17.22
|
£20.67
|
|
|
6 - GROMMET dia10.5-dia11.0x100 MM
BSD-1600703036.A150
1600703036
|
£2.27
|
£2.72
|
|
|
7 - FASTENING CLAMP
BSD-1601302018.A375
1601302018
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1618B00023.A11
1618B00023
|
-
|
|
|
|
24 - HANDLE
BSD-1605132149.A23
1605132149
|
£11.37
|
£13.64
|
|
|
25 - GRINDING SPINDLE
BSD-160312305U.A130
160312305U
|
£13.12
|
£15.75
|
|
|
28 - O-RING 79.0x1.78 MM
BSD-1600210033.A575
1600210033
|
£1.84
|
£2.21
|
|
|
29 - O-RING 8.0x1.0 MM
BSD-1600210045.A484
1600210045
|
£1.84
|
£2.21
|
|
|
30 - AIR DISTRIBUTOR
BSD-1600591029.A172
1600591029
|
£2.74
|
£3.29
|
|
|
31 - AIR-DEFLECTOR RING
BSD-1600591028.A181
1600591028
|
£2.45
|
£2.94
|
|
|
32 - RETAINING SNAP RING
BSD-1600290019.A365
1600290019
|
£1.84
|
£2.21
|
|
|
33 - ROTARY SHAFT LIP SEAL 18.7 MM
BSD-1600290013.A364
1600290013
|
£2.74
|
£3.29
|
|
|
34 - SHIM 0.15 MM
BSD-1600190020.A605
1600190020
|
£1.84
|
£2.21
|
|
|
34 - SHIM 0.3 MM
BSD-1600190021.A222
1600190021
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.1 MM
BSD-1600190022.A605
1600190022
|
£1.84
|
£2.21
|
|
|
34 - SHIM 0.2 MM
BSD-1600190037.A131
1600190037
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.25 MM
BSD-1600190038.A256
1600190038
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.35 MM
BSD-1600190039.A131
1600190039
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.4 MM
BSD-1600190040.A256
1600190040
|
£1.75
|
£2.10
|
|
|
35 - FELT WASHER
BSD-1600205034.A348
1600205034
|
£1.75
|
£2.10
|
|
|
38 - RUBBER RING 7 MM
BSD-1600206020.A392
1600206020
|
£1.84
|
£2.21
|
|
|
39 - RUBBER RING
BSD-1600206030.A561
1600206030
|
£1.84
|
£2.21
|
|
|
45 - HEX NUT M10. SW14
BSD-1603300019.A487
1603300019
|
£1.84
|
£2.21
|
|
|
51 - PLAIN BEARING dia14 MM
BSD-1600200031.A220
1600200031
|
£2.80
|
£3.36
|
|
|
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM
BSD-1603435023.A589
1603435023
|
£2.16
|
£2.59
|
|
|
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST
BSD-2912401038.A396
2912401038
|
£1.84
|
£2.21
|
|
|
62 - TAPPING SCREW 4.8x55
BSD-1603435060.A59
1603435060
|
£1.84
|
£2.21
|
|
|
63 - PAN HEAD SCREW M4x10 MM
BSD-1603410014.A397
1603410014
|
£1.84
|
£2.21
|
|
|
64 - PLASTIC-CUTTING SCREW St3.9x12
BSD-1603435042.A308
1603435042
|
£1.84
|
£2.21
|
|
|
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A1234
2912401020
|
£2.16
|
£2.59
|
|
|
66 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1387
2910211019
|
£1.84
|
£2.21
|
|
|
68 - SEALING PLATE
BSD-1601006011.A322
1601006011
|
£2.74
|
£3.29
|
|
|
651 - PROTECTIVE COVER
BSD-1600A00XM0.A134
1600A00XM0
|
£22.76
|
£27.31
|
|
|
802 - FIELD 230V
BSD-1604220435.A18
1604220435
|
£39.61
|
£47.53
|
|
|
803 - ARMATURE 230V
BSD-1604011296.A11
1604011296
|
£65.08
|
£78.10
|
|
|
804 - ON-OFF SWITCH
BSD-1607000C13.A15
1607000C13
|
£39.13
|
£46.96
|
|
|
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A212
1607000227
|
£23.86
|
£28.63
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A265
160111A3H3
|
£2.74
|
£3.29
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014171.A319
1607014171
|
£14.91
|
£17.89
|
|
|
810 - CARBON-BRUSH SET 10 x 1 607 014 171
BSD-1607000480.A55
1607000480
|
£102.57
|
£123.08
|
|
|
813 - GROOVE BALL BEARING 8x22x7
BSD-1600905011.A407
1600905011
|
£5.87
|
£7.04
|
|
|
814 - GROOVE BALL BEARING
BSD-1600905028.A178
1600905028
|
£12.64
|
£15.17
|
|
|
816 - BRUSH HOLDER
BSD-1604336048.A80
1604336048
|
£7.72
|
£9.27
|
|
|
821 - GEAR HOUSING
BSD-1607000C03.A85
1607000C03
|
£50.80
|
£60.96
|
|
|
822 - BEARING FLANGE dia230 MM
BSD-1607000C22.A36
1607000C22
|
£30.28
|
£36.33
|
|
|
822/22/48 - RETAINING CLIP
BSD-1600119010.A286
1600119010
|
£1.84
|
£2.21
|
|
|
822/22/50 - GROOVE BALL BEARING 17x40x12
BSD-1600905026.A182
1600905026
|
£9.11
|
£10.93
|
|
|
823 - SEALING CAP
BSD-1618B00802.A265
1618B00802
|
£4.27
|
£5.12
|
|
|
826 - BEVEL GEAR SET
BSD-1607000CV1.A77
1607000CV1
|
£31.64
|
£37.97
|
|
|
835 - FAN
BSD-1600A00J93.A222
1600A00J93
|
£2.80
|
£3.36
|
|
|
837 - SEAL RING
BSD-1600290036.A290
1600290036
|
£2.27
|
£2.72
|
|
|
840 - PUSH-BUTTON
BSD-1607000354.A173
1607000354
|
£6.85
|
£8.22
|
|
|
846 - RETAINING WASHER
BSD-1607000342.A165
1607000342
|
£3.91
|
£4.69
|
|
|
851 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A1191
2600910001
|
£4.48
|
£5.37
|
|
|
880 - ELECTRONICS MODULE
BSD-1607233319.A57
1607233319
|
£42.84
|
£51.41
|
|
|
882 - STOPPER
BSD-1619P06597.A57
1619P06597
|
£4.26
|
£5.11
|
|
|
890 - O-RING 20.35x1.78 MM
BSD-1600210039.A286
1600210039
|
£2.27
|
£2.72
|
|
|
891 - AUXILIARY HANDLE M14
BSD-1602025022.A557
1602025022
|
£13.41
|
£16.09
|
|
|
891/1 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A792
1602025030
|
£19.91
|
£23.89
|
|
|
892 - PIN-TYPE FACE-WRENCH
BSD-1607950061.A393
1607950061
|
£5.69
|
£6.83
|
|
|
893 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A1169
2605703014
|
£7.72
|
£9.27
|
|
|
894 - ROUND NUT M14
BSD-1603345043.A766
1603345043
|
£9.11
|
£10.93
|
|
|
896 - FAST LOCKING FLANGE M14. SDS-CLIC
BSD-1603340027.A569
1603340027
|
£49.16
|
£58.99
|
|
