Bosch GWS 22-180 LVI / 3601H90D01 / EU 230 Volt Spare Parts

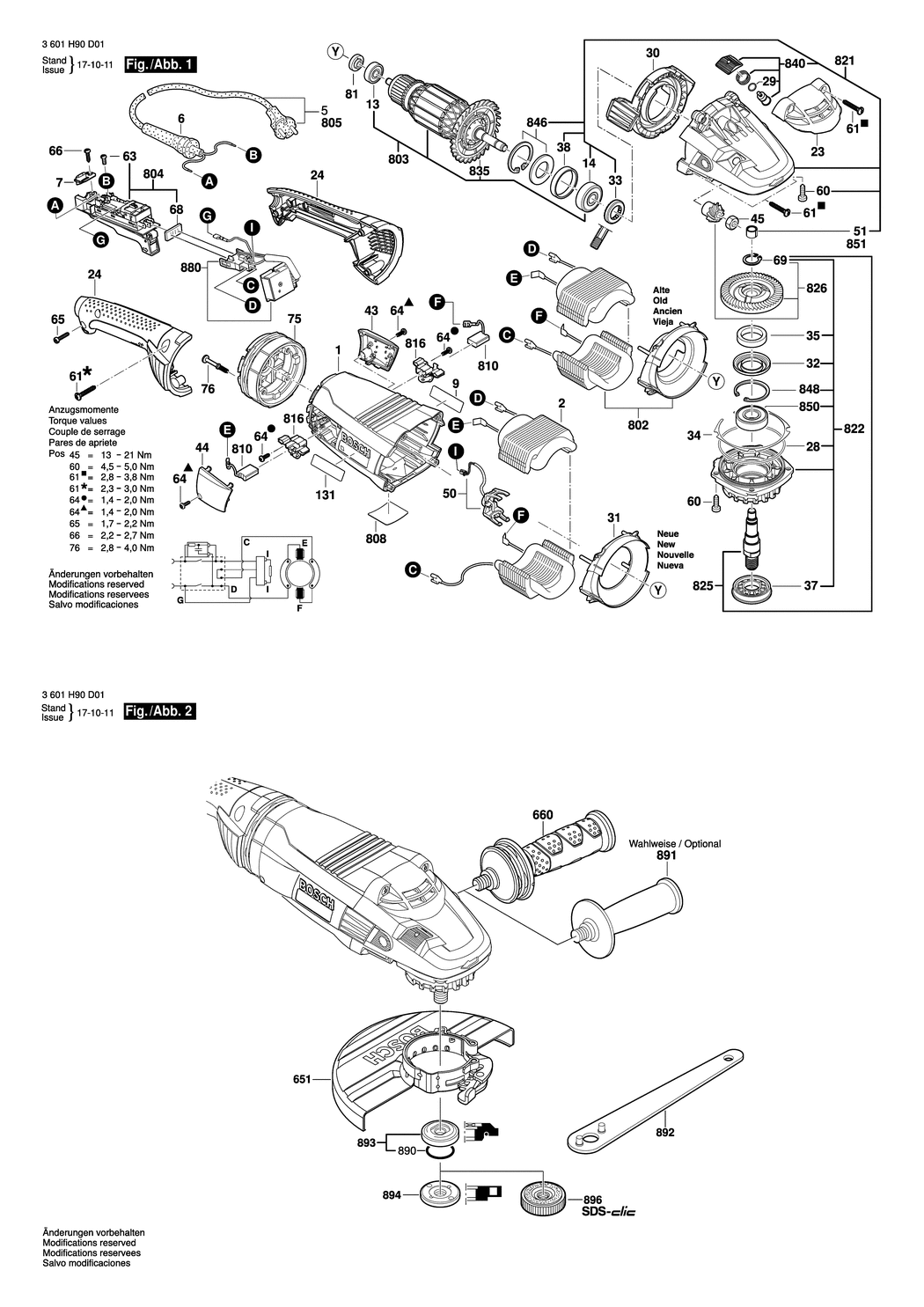

An exploded drawing and listing for the Bosch GWS 22-180 LVI / 3601H90D01 / EU 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1605108264.A38 1605108264	£21.52	£25.83
2 - FIELD BSD-160422053X.A3 160422053X	£37.72	£45.27
6 - GROMMET dia10.5-dia11.0x100 MM BSD-1600703036.A202 1600703036	£2.16	£2.59
7 - FASTENING CLAMP BSD-1601302018.A304 1601302018	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-160111C27Z.A2 160111C27Z	£2.61	£3.13
13 - GROOVE BALL BEARING 9x26x8 BSD-1600905034.A2 1600905034	£5.30	£6.36
14 - GROOVE BALL BEARING 12x37x12 BSD-1600905035.A58 1600905035	£10.10	£12.12
23 - COVER BSD-1605500266.A7 1605500266	£2.16	£2.59
24 - HANDLE BSD-1605132155.A13 1605132155	£10.82	£12.99
28 - O-RING 79.0x1.78 MM BSD-1600210033.A486 1600210033	£1.75	£2.10
29 - O-RING 8.0x1.0 MM BSD-1600210045.A395 1600210045	£1.75	£2.10
30 - AIR DISTRIBUTOR BSD-1600591041.A6 1600591041	£2.61	£3.13
31 - AIR-DEFLECTOR RING BSD-160059105U.A41 160059105U	£2.80	£3.36
32 - RETAINING SNAP RING BSD-1600290019.A422 1600290019	£1.75	£2.10
33 - ROTARY SHAFT LIP SEAL 16 MM BSD-1600290064.A51 1600290064	£2.16	£2.59
34 - SHIM 0.15 MM BSD-1600190020.A556 1600190020	£1.75	£2.10
34 - SHIM 0.3 MM BSD-1600190021.A271 1600190021	£2.61	£3.13
34 - SHIM 0.1 MM BSD-1600190022.A556 1600190022	£1.75	£2.10
34 - SHIM 0.2 MM BSD-1600190037.A180 1600190037	£1.75	£2.10
34 - SHIM 0.25 MM BSD-1600190038.A207 1600190038	£1.75	£2.10
34 - SHIM 0.35 MM BSD-1600190039.A180 1600190039	£1.75	£2.10
34 - SHIM 0.4 MM BSD-1600190040.A207 1600190040	£1.75	£2.10
35 - FELT WASHER BSD-1600205034.A433 1600205034	£1.75	£2.10
37 - SEAL RING BSD-1600290036.A247 1600290036	£2.16	£2.59
38 - RUBBER RING BSD-1600206037.A13 1600206037	£1.75	£2.10
43 - SEALING CAP BSD-1605500264.A8 1605500264	£1.75	£2.10
44 - SEALING CAP BSD-1605500265.A39 1605500265	£1.75	£2.10
45 - HEX NUT M10. SW14 BSD-1603300019.A439 1603300019	£1.75	£2.10
50 - ROTATIONAL SPEED SENSOR BSD-1607001007.A1 1607001007	£8.67	£10.41
51 - PLAIN BEARING dia14 MM BSD-1600200031.A136 1600200031	£2.80	£3.36
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM BSD-1603435023.A551 1603435023	£2.16	£2.59
61 - TORX OVAL-HEAD SCREW BSD-1603490005.A1 1603490005	£1.75	£2.10
63 - PAN HEAD SCREW M4x10 MM BSD-1603410014.A445 1603410014	£1.75	£2.10
64 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A696 2603490021	£1.75	£2.10
65 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1394 2603490023	£1.75	£2.10
66 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A1432 2910211019	£1.75	£2.10
68 - SEALING PLATE BSD-1601006011.A226 1601006011	£2.61	£3.13
69 - SPRING RETAINING RING BSD-2916650905.A33 2916650905	£1.75	£2.10
75 - DAMPER BSD-1600290060.A6 1600290060	£16.41	£19.69
76 - COLLAR SCREW BSD-1603414025.A1 1603414025	£1.75	£2.10
81 - MAGNET BSD-1600190048.A1 1600190048	£2.80	£3.36
131 - MANUFACTURER'S NAMEPLATE GWS-180 LVI BSD-1601118N45.A1 1601118N45	£1.75	£2.10
651 - PROTECTIVE COVER BSD-1600A011EM.A9 1600A011EM	£33.45	£40.14
660 - AUXILIARY HANDLE M14 BSD-1602025051.A51 1602025051	£27.23	£32.68
802 - ASSEMBLY BSD-1607000C4K.A0 1607000C4K	£45.67	£54.80
803 - ARMATURE 230V BSD-1604011297.A13 1604011297	£70.24	£84.29
804 - ON-OFF SWITCH BSD-1607000C13.A33 1607000C13	£37.27	£44.72
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A176 1607000227	£23.86	£28.63
808 - NAMEPLATE BSD-1601106940.A31 1601106940	-
810 - CARBON-BRUSH SET BSD-1607014171.A280 1607014171	£14.91	£17.89
810 - CARBON-BRUSH SET 10 x 1 607 014 171 BSD-1607000480.A87 1607000480	£102.57	£123.08
816 - BRUSH HOLDER BSD-1604336053.A16 1604336053	£5.58	£6.70
821 - GEAR HOUSING BSD-1607000C17.A13 1607000C17	£48.38	£58.06
822 - BEARING FLANGE BSD-1607000CP1.A1 1607000CP1	£33.74	£40.49
825 - GRINDING SPINDLE BSD-1607000CU5.A3 1607000CU5	£13.12	£15.75
826 - BEVEL GEAR SET BSD-1607000CN6.A0 1607000CN6	£36.62	£43.95
835 - FAN BSD-1606610150.A1 1606610150	£2.61	£3.13
840 - PUSH-BUTTON BSD-1607000431.A1 1607000431	£4.26	£5.11
846 - RETAINING WASHER BSD-1607000432.A46 1607000432	£5.30	£6.36
848 - RETAINING CLIP BSD-1600119010.A335 1600119010	£1.75	£2.10
850 - GROOVE BALL BEARING 17x40x12 BSD-1600905026.A130 1600905026	£8.67	£10.41
851 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A1236 2600910001	£4.26	£5.11
880 - ELECTRONICS MODULE BSD-1607233552.A34 1607233552	£40.80	£48.96
890 - O-RING 20.35x1.78 MM BSD-1600210039.A375 1600210039	£2.16	£2.59
891 - AUXILIARY HANDLE M14 BSD-1602025022.A520 1602025022	£13.41	£16.09
892 - PIN-TYPE FACE-WRENCH BSD-1607950061.A268 1607950061	£5.42	£6.50
893 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A1124 2605703014	£7.36	£8.83
894 - ROUND NUT M14 BSD-1603345043.A698 1603345043	£8.67	£10.41
896 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340027.A637 1603340027	£46.82	£56.18
