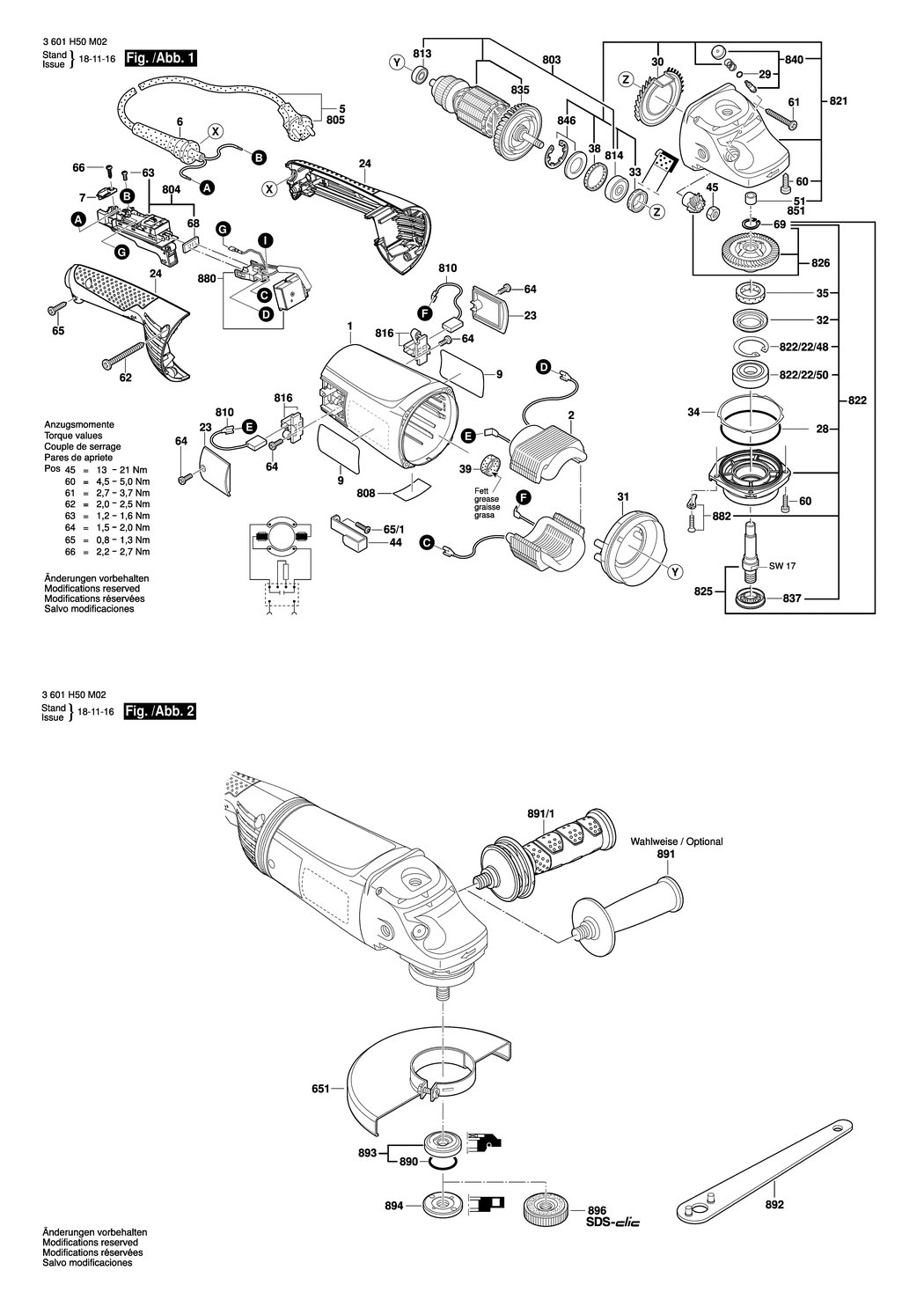

1 - MOTOR HOUSING
BSD-1605108233.A0
1605108233
|
£18.96
|
£22.75
|
|
|
2 - FIELD
BSD-1604220455.A28
1604220455
|
£51.22
|
£61.47
|
|
|
5 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H07 RN-F
BSD-1604460455.A12
1604460455
|
£16.41
|
£19.69
|
|
|
6 - GROMMET dia10.5-dia11.0x100 MM
BSD-1600703036.A21
1600703036
|
£2.16
|
£2.59
|
|
|
7 - FASTENING CLAMP
BSD-1601302018.A188
1601302018
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1618B0002S.A1
1618B0002S
|
£2.61
|
£3.13
|
|
|
23 - SEALING CAP
BSD-1605500233.A2
1605500233
|
£5.30
|
£6.36
|
|
|
24 - HANDLE
BSD-1605132157.A0
1605132157
|
£13.12
|
£15.75
|
|
|
28 - O-RING 79.0x1.78 MM
BSD-1600210033.A416
1600210033
|
£1.75
|
£2.10
|
|
|
29 - O-RING 8.0x1.0 MM
BSD-1600210045.A279
1600210045
|
£1.75
|
£2.10
|
|
|
30 - AIR DISTRIBUTOR
BSD-1600591035.A5
1600591035
|
£2.61
|
£3.13
|
|
|
31 - AIR-DEFLECTOR RING
BSD-1600591036.A57
1600591036
|
£2.80
|
£3.36
|
|
|
32 - RETAINING SNAP RING
BSD-1600290019.A231
1600290019
|
£1.75
|
£2.10
|
|
|
33 - ROTARY SHAFT LIP SEAL 16 MM
BSD-1600290064.A210
1600290064
|
£2.16
|
£2.59
|
|
|
34 - SHIM 0.15 MM
BSD-1600190020.A419
1600190020
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.3 MM
BSD-1600190021.A408
1600190021
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.1 MM
BSD-1600190022.A419
1600190022
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.2 MM
BSD-1600190037.A316
1600190037
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.25 MM
BSD-1600190038.A71
1600190038
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.35 MM
BSD-1600190039.A316
1600190039
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.4 MM
BSD-1600190040.A71
1600190040
|
£1.75
|
£2.10
|
|
|
35 - FELT WASHER
BSD-1600205034.A553
1600205034
|
£1.75
|
£2.10
|
|
|
38 - RUBBER RING 7 MM
BSD-1600206020.A228
1600206020
|
£1.75
|
£2.10
|
|
|
39 - RUBBER RING
BSD-1600206030.A445
1600206030
|
£1.75
|
£2.10
|
|
|
44 - PICKUP CLIP
BSD-1601334009.A29
1601334009
|
£1.75
|
£2.10
|
|
|
45 - HEX NUT M10. SW14
BSD-1603300019.A327
1603300019
|
£1.75
|
£2.10
|
|
|
51 - PLAIN BEARING dia14 MM
BSD-1600200031.A17
1600200031
|
£2.80
|
£3.36
|
|
|
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM
BSD-1603435023.A470
1603435023
|
£2.16
|
£2.59
|
|
|
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST
BSD-2912401038.A440
2912401038
|
£1.75
|
£2.10
|
|
|
62 - TAPPING SCREW C4.8x63 MM
BSD-1603435024.A3
1603435024
|
£1.75
|
£2.10
|
|
|
64 - PLASTIC-CUTTING SCREW St3.9x12
BSD-1603435042.A159
1603435042
|
£1.75
|
£2.10
|
|
|
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A1130
2912401020
|
£2.16
|
£2.59
|
|
|
65/1 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A1131
2912401020
|
£2.16
|
£2.59
|
|
|
66 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1251
2910211019
|
£1.75
|
£2.10
|
|
|
68 - SEALING PLATE
BSD-1601006011.A182
1601006011
|
£2.61
|
£3.13
|
|
|
69 - SPRING RETAINING RING
BSD-2916650905.A25
2916650905
|
£1.75
|
£2.10
|
|
|
651 - PROTECTIVE COVER
BSD-1600A00XM0.A190
1600A00XM0
|
£21.68
|
£26.01
|
|
|
803 - ARMATURE
BSD-1604011306.A4
1604011306
|
-
|
|
|
|
804 - ON-OFF SWITCH
BSD-1607000C13.A0
1607000C13
|
£37.27
|
£44.72
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A174
160111A3H3
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014171.A393
1607014171
|
£14.91
|
£17.89
|
|
|
810 - CARBON-BRUSH SET 10 x 1 607 014 171
BSD-1607000480.A159
1607000480
|
£102.57
|
£123.08
|
|
|
813 - GROOVE BALL BEARING 8x22x7
BSD-1600905011.A494
1600905011
|
£5.58
|
£6.70
|
|
|
814 - GROOVE BALL BEARING
BSD-1600905028.A293
1600905028
|
£12.04
|
£14.45
|
|
|
816 - BRUSH HOLDER
BSD-1604336048.A185
1604336048
|
£7.36
|
£8.83
|
|
|
821 - GEAR HOUSING
BSD-160580655D.A11
160580655D
|
£63.50
|
£76.20
|
|
|
822 - BEARING FLANGE
BSD-1607000D58.A19
1607000D58
|
-
|
|
|
|
822/22/48 - RETAINING CLIP
BSD-1600119010.A195
1600119010
|
£1.75
|
£2.10
|
|
|
822/22/50 - GROOVE BALL BEARING 17x40x12
BSD-1600905026.A9
1600905026
|
£8.67
|
£10.41
|
|
|
825 - GRINDING SPINDLE
BSD-1607000CU5.A51
1607000CU5
|
£13.12
|
£15.75
|
|
|
826 - BEVEL GEAR SET
BSD-1607000CV1.A24
1607000CV1
|
£31.64
|
£37.97
|
|
|
835 - FAN
BSD-1606610127.A145
1606610127
|
£2.80
|
£3.36
|
|
|
837 - SEAL RING
BSD-1618B00903.A43
1618B00903
|
-
|
|
|
|
840 - PUSH-BUTTON
BSD-1607000354.A265
1607000354
|
£6.52
|
£7.83
|
|
|
844 - PICKUP CLIP
BSD-1601334009.A36
1601334009
|
£1.75
|
£2.10
|
|
|
846 - RETAINING WASHER
BSD-1607000342.A101
1607000342
|
£3.72
|
£4.47
|
|
|
851 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A1052
2600910001
|
£4.26
|
£5.11
|
|
|
880 - ELECTRONICS MODULE
BSD-1607233319.A41
1607233319
|
£40.80
|
£48.96
|
|
|
882 - STOPPER
BSD-1619P06597.A117
1619P06597
|
£4.26
|
£5.11
|
|
|
890 - O-RING 20.35x1.78 MM
BSD-1600210039.A242
1600210039
|
£2.16
|
£2.59
|
|
|
891 - AUXILIARY HANDLE M14
BSD-1602025022.A459
1602025022
|
£13.41
|
£16.09
|
|
|
891/1 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A848
1602025030
|
£18.96
|
£22.75
|
|
|
892 - PIN-TYPE FACE-WRENCH
BSD-1607950061.A187
1607950061
|
£5.42
|
£6.50
|
|
|
893 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A1084
2605703014
|
£7.36
|
£8.83
|
|
|
894 - ROUND NUT M14
BSD-1603345043.A602
1603345043
|
£8.67
|
£10.41
|
|
|
896 - FAST LOCKING FLANGE M14. SDS-CLIC
BSD-1603340027.A462
1603340027
|
£46.82
|
£56.18
|
|
