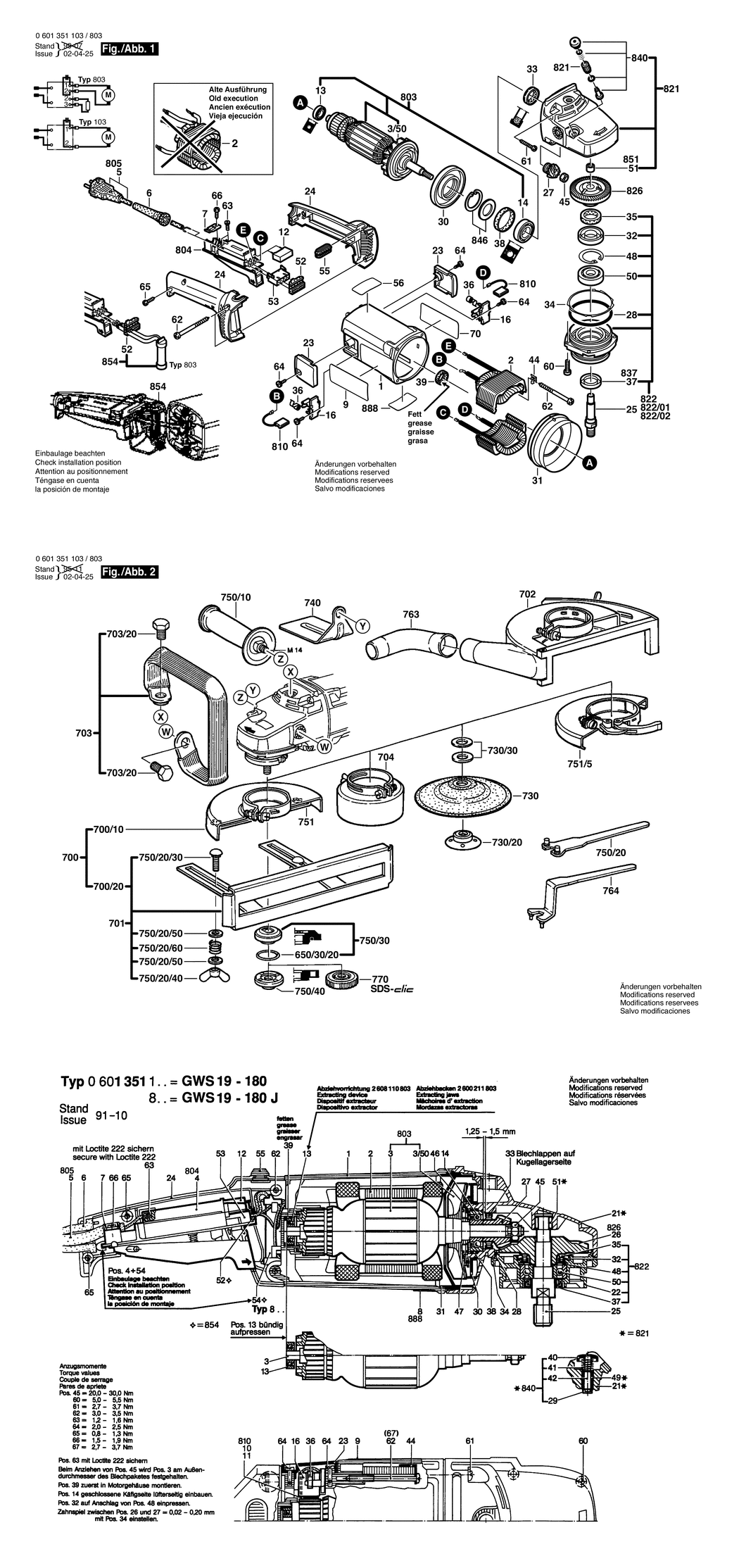

1 - MOTOR HOUSING
BSD-1605108144.A20
1605108144
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-1604220380.A118
1604220380
|
£33.74
|
£40.49
|
|
|
3/50 - FAN
BSD-1606610127.A213
1606610127
|
£2.80
|
£3.36
|
|
|
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1604460440.A21
1604460440
|
£21.52
|
£25.83
|
|
|
6 - GROMMET dia 10.5-dia11.0x100 MM
BSD-1600703023.A22
1600703023
|
£2.61
|
£3.13
|
|
|
7 - FASTENING CLAMP
BSD-1601302018.A843
1601302018
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118315.A0
1601118315
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328035.A150
1607328035
|
£4.26
|
£5.11
|
|
|
13 - GROOVE BALL BEARING 8x22x7
BSD-1600905011.A596
1600905011
|
£5.58
|
£6.70
|
|
|
14 - GROOVE BALL BEARING 10x35x11
BSD-1600905025.A27
1600905025
|
-
|
|
|
|
16 - BRUSH HOLDER
BSD-1604336021.A121
1604336021
|
£2.80
|
£3.36
|
|
|
23 - SEALING CAP
BSD-1605500150.A104
1605500150
|
£3.72
|
£4.47
|
|
|
24 - HANDLE
BSD-1605132117.A127
1605132117
|
£11.30
|
£13.56
|
|
|
25 - GRINDING SPINDLE M14. SW17
BSD-1603523100.A134
1603523100
|
£14.91
|
£17.89
|
|
|
27 - BEVEL GEAR Z=17
BSD-1606333237.A52
1606333237
|
-
|
|
|
|
28 - O-RING 79.0x1.78 MM
BSD-1600210033.A632
1600210033
|
£1.75
|
£2.10
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600591010.A126
1600591010
|
£2.16
|
£2.59
|
|
|
31 - AIR-DEFLECTOR RING
BSD-1600591011.A52
1600591011
|
£1.75
|
£2.10
|
|
|
32 - RETAINING SNAP RING
BSD-1600290019.A666
1600290019
|
£1.75
|
£2.10
|
|
|
33 - ROTARY SHAFT LIP SEAL 18.7 MM
BSD-1600290013.A194
1600290013
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.15 MM
BSD-1600190020.A57
1600190020
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.3 MM
BSD-1600190021.A770
1600190021
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.1 MM
BSD-1600190022.A57
1600190022
|
£1.75
|
£2.10
|
|
|
35 - FELT WASHER
BSD-1600205034.A31
1600205034
|
£1.75
|
£2.10
|
|
|
36 - SPIRAL SPRING
BSD-1604652015.A355
1604652015
|
£2.80
|
£3.36
|
|
|
37 - SEAL RING
BSD-1600290036.A551
1600290036
|
£2.16
|
£2.59
|
|
|
38 - RUBBER RING 7 MM
BSD-1600206020.A685
1600206020
|
£1.75
|
£2.10
|
|
|
39 - RUBBER RING
BSD-1600206030.A51
1600206030
|
£1.75
|
£2.10
|
|
|
44 - HOLDING BRACKET
BSD-1601334008.A68
1601334008
|
£2.61
|
£3.13
|
|
|
45 - HEX NUT M10. SW14
BSD-1603300019.A155
1603300019
|
£1.75
|
£2.10
|
|
|
48 - RETAINING CLIP
BSD-1600119010.A654
1600119010
|
£1.75
|
£2.10
|
|
|
50 - GROOVE BALL BEARING
BSD-3600905134.A129
3600905134
|
£11.30
|
£13.56
|
|
|
51 - PLAIN BEARING dia14 MM
BSD-1600200031.A503
1600200031
|
£2.80
|
£3.36
|
|
|
53 - SOCKET HOUSING
BSD-1605190038.A55
1605190038
|
£1.75
|
£2.10
|
|
|
55 - STORAGE LEDGE
BSD-1602388029.A240
1602388029
|
£1.75
|
£2.10
|
|
|
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM
BSD-1603435023.A25
1603435023
|
£2.16
|
£2.59
|
|
|
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST
BSD-2912401038.A30
2912401038
|
£1.75
|
£2.10
|
|
|
62 - TAPPING SCREW C4.8x63 MM
BSD-1603435024.A228
1603435024
|
£1.75
|
£2.10
|
|
|
63 - PAN HEAD SCREW M4x10 MM
BSD-1603410014.A139
1603410014
|
£1.75
|
£2.10
|
|
|
64 - PLASTIC-CUTTING SCREW St3.9x12
BSD-1603435042.A621
1603435042
|
£1.75
|
£2.10
|
|
|
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A62
2912401020
|
£2.16
|
£2.59
|
|
|
66 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A218
2910211019
|
£1.75
|
£2.10
|
|
|
70 - REFERENCE PLATE
BSD-1601110979.A12
1601110979
|
-
|
|
|
|
650/30/20 - O-RING 20.35x1.78 MM
BSD-1600210039.A1106
1600210039
|
£2.16
|
£2.59
|
|
|
700 - PARTS SET dia180 MM
BSD-1607000250.A43
1607000250
|
-
|
|
|
|
700/10 - PROTECTIVE COVER dia180 MM
BSD-1605510222.A14
1605510222
|
-
|
|
|
|
700/20 - GUIDE BLOCK
BSD-1608135003.A47
1608135003
|
-
|
|
|
|
701 - GUIDE BLOCK
BSD-1608135003.A48
1608135003
|
-
|
|
|
|
702 - SUCTION HOOD dia180 MM
BSD-1605510179.A31
1605510179
|
£61.24
|
£73.49
|
|
|
703 - STRAP-SHAPED HANDLE
BSD-1607000247.A80
1607000247
|
£50.82
|
£60.99
|
|
|
703/20 - HEX SCREW M14x16x1.5 MM
BSD-2603450007.A360
2603450007
|
£5.58
|
£6.70
|
|
|
704 - PROTECTIVE COVER dia110 MM
BSD-1605510181.A87
1605510181
|
-
|
|
|
|
730 - BACKING PAD dia180 MM
BSD-1608601006.A50
1608601006
|
-
|
|
|
|
730/20 - ROUND NUT M14
BSD-1603345004.A160
1603345004
|
£7.87
|
£9.44
|
|
|
730/30 - PLAIN WASHER DIN 125-A15-ST
BSD-2916011022.A20
2916011022
|
£1.75
|
£2.10
|
|
|
740 - PROTECTING COVER
BSD-1601329013.A82
1601329013
|
£11.37
|
£13.64
|
|
|
750/10 - AUXILIARY HANDLE M14x1.5 MM
BSD-2602025075.A169
2602025075
|
£10.30
|
£12.36
|
|
|
750/20 - PIN-TYPE FACE-WRENCH
BSD-1607950048.A17
1607950048
|
£4.88
|
£5.86
|
|
|
750/20/30 - ROUND-HEAD BOLT DIN 603-M 8x25
BSD-2910281244.A3
2910281244
|
-
|
|
|
|
750/20/40 - WING NUT DIN 315-M8-GT-C
BSD-2915191007.A173
2915191007
|
£3.72
|
£4.47
|
|
|
750/20/50 - PLAIN WASHER DIN 315-M8-GT-C
BSD-2600100041.A254
2600100041
|
£1.75
|
£2.10
|
|
|
750/20/60 - COMPRESSION SPRING
BSD-1604643003.A16
1604643003
|
£6.52
|
£7.83
|
|
|
750/30 - CLAMPING-FLANGE dia22.2x42 MM
BSD-1605703099.A107
1605703099
|
£7.45
|
£8.94
|
|
|
750/40 - CLAMPING NUT M14
BSD-1603340040.A227
1603340040
|
£6.20
|
£7.44
|
|
|
751 - PROTECTIVE COVER dia180 MM
BSD-1605510222.A15
1605510222
|
-
|
|
|
|
763 - SUCTION BEND dia 35 MM
BSD-1600793007.A16
1600793007
|
£19.24
|
£23.09
|
|
|
764 - PIN-TYPE FACE-WRENCH
BSD-1607950004.A205
1607950004
|
£8.33
|
£10.00
|
|
|
770 - FAST LOCKING FLANGE M14. SDS-CLIC
BSD-1603340027.A173
1603340027
|
£46.82
|
£56.18
|
|
|
803 - ARMATURE 230-240V
BSD-1604011148.A53
1604011148
|
£103.14
|
£123.77
|
|
|
804 - SWITCH
BSD-1607200103.A5
1607200103
|
£27.23
|
£32.68
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014171.A519
1607014171
|
£14.91
|
£17.89
|
|
|
821 - GEAR HOUSING
BSD-1605805592.A28
1605805592
|
£72.18
|
£86.62
|
|
|
822 - BEARING FLANGE dia180 MM
BSD-1607000986.A61
1607000986
|
-
|
|
|
|
822/01 - BEARING FLANGE dia180 MM
BSD-1607000931.A7
1607000931
|
£30.28
|
£36.33
|
|
|
822/02 - BEARING FLANGE dia180 MM
BSD-1607000921.A9
1607000921
|
£36.63
|
£43.96
|
|
|
826 - CROWN GEAR Z=53
BSD-1606333618.A3
1606333618
|
-
|
|
|
|
837 - SEAL RING
BSD-1600290020.A14
1600290020
|
£1.75
|
£2.10
|
|
|
840 - PUSH-BUTTON
BSD-1607000206.A166
1607000206
|
£11.30
|
£13.56
|
|
|
846 - RETAINING WASHER
BSD-1607000342.A325
1607000342
|
£3.72
|
£4.47
|
|
|
851 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A182
2600910001
|
£4.26
|
£5.11
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A3651
160111A3H3
|
£2.61
|
£3.13
|
|
