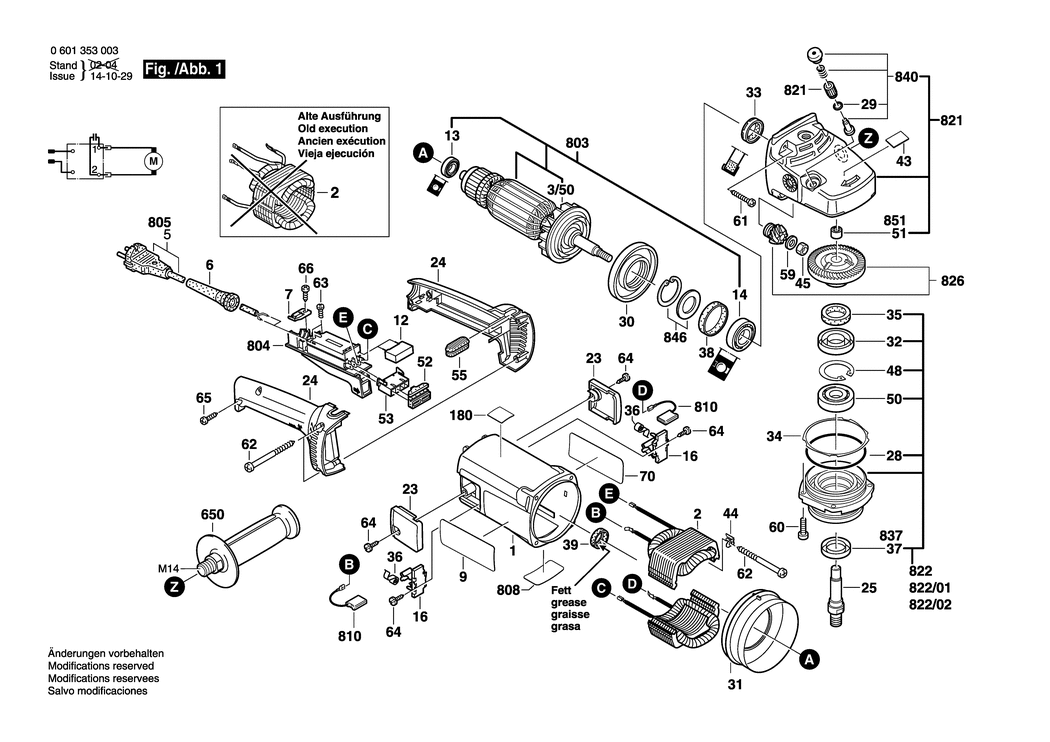

1 - MOTOR HOUSING
BSD-1605108144.A40
1605108144
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-1604220380.A86
1604220380
|
£33.74
|
£40.49
|
|
|
3/50 - FAN
BSD-1606610127.A102
1606610127
|
£2.80
|
£3.36
|
|
|
6 - GROMMET dia 10.5-dia11.0x100 MM
BSD-1600703023.A201
1600703023
|
£2.74
|
£3.29
|
|
|
7 - FASTENING CLAMP
BSD-1601302018.A405
1601302018
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110750.A4
1601110750
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328035.A2
1607328035
|
£4.48
|
£5.37
|
|
|
13 - GROOVE BALL BEARING 8x22x7
BSD-1600905011.A191
1600905011
|
£5.58
|
£6.70
|
|
|
14 - GROOVE BALL BEARING 10x35x11
BSD-1600905025.A96
1600905025
|
-
|
|
|
|
16 - BRUSH HOLDER
BSD-1604336021.A6
1604336021
|
£2.94
|
£3.53
|
|
|
23 - SEALING CAP
BSD-1605500150.A11
1605500150
|
£3.91
|
£4.69
|
|
|
24 - HANDLE
BSD-1605132117.A45
1605132117
|
£11.87
|
£14.24
|
|
|
25 - GRINDING SPINDLE M14. SW17
BSD-1603523100.A7
1603523100
|
£15.65
|
£18.78
|
|
|
28 - O-RING 79.0x1.78 MM
BSD-1600210033.A330
1600210033
|
£1.75
|
£2.10
|
|
|
29 - O-RING 4.0x1.0 MM
BSD-1600210034.A98
1600210034
|
£1.84
|
£2.21
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600591010.A64
1600591010
|
£2.27
|
£2.72
|
|
|
31 - AIR-DEFLECTOR RING
BSD-1600591011.A114
1600591011
|
£1.75
|
£2.10
|
|
|
32 - RETAINING SNAP RING
BSD-1600290019.A177
1600290019
|
£1.75
|
£2.10
|
|
|
33 - ROTARY SHAFT LIP SEAL 18.7 MM
BSD-1600290013.A323
1600290013
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.15 MM
BSD-1600190020.A383
1600190020
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.3 MM
BSD-1600190021.A444
1600190021
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.1 MM
BSD-1600190022.A383
1600190022
|
£1.84
|
£2.21
|
|
|
35 - FELT WASHER
BSD-1600205034.A295
1600205034
|
£1.75
|
£2.10
|
|
|
36 - SPIRAL SPRING
BSD-1604652015.A241
1604652015
|
£2.94
|
£3.53
|
|
|
37 - SEAL RING
BSD-1600290036.A81
1600290036
|
£2.16
|
£2.59
|
|
|
38 - RUBBER RING 7 MM
BSD-1600206020.A8
1600206020
|
£1.75
|
£2.10
|
|
|
39 - RUBBER RING
BSD-1600206030.A267
1600206030
|
£1.75
|
£2.10
|
|
|
43 - REFERENCE PLATE
BSD-1601110470.A19
1601110470
|
£1.75
|
£2.10
|
|
|
44 - HOLDING BRACKET
BSD-1601334008.A97
1601334008
|
£2.61
|
£3.13
|
|
|
45 - HEX NUT M10. SW14
BSD-1603300019.A191
1603300019
|
£1.75
|
£2.10
|
|
|
48 - RETAINING CLIP
BSD-1600119010.A384
1600119010
|
£1.84
|
£2.21
|
|
|
50 - GROOVE BALL BEARING
BSD-3600905134.A35
3600905134
|
£11.87
|
£14.24
|
|
|
51 - PLAIN BEARING dia14 MM
BSD-1600200031.A390
1600200031
|
£2.80
|
£3.36
|
|
|
52 - CABLE ROUTING
BSD-1602388027.A12
1602388027
|
£2.61
|
£3.13
|
|
|
53 - SOCKET HOUSING
BSD-1605190038.A105
1605190038
|
£1.84
|
£2.21
|
|
|
55 - STORAGE LEDGE
BSD-1602388029.A164
1602388029
|
£1.75
|
£2.10
|
|
|
59 - PLAIN WASHER 1.8 MM
BSD-1600101655.A25
1600101655
|
£1.75
|
£2.10
|
|
|
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM
BSD-1603435023.A263
1603435023
|
£2.16
|
£2.59
|
|
|
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST
BSD-2912401038.A303
2912401038
|
£1.84
|
£2.21
|
|
|
62 - TAPPING SCREW C4.8x63 MM
BSD-1603435024.A82
1603435024
|
£1.75
|
£2.10
|
|
|
63 - PAN HEAD SCREW M4x10 MM
BSD-1603410014.A182
1603410014
|
£1.84
|
£2.21
|
|
|
64 - PLASTIC-CUTTING SCREW St3.9x12
BSD-1603435042.A46
1603435042
|
£1.84
|
£2.21
|
|
|
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A705
2912401020
|
£2.16
|
£2.59
|
|
|
66 - TAPPING SCREW DIN7981-ST3.9x16-C-Z
BSD-2912401019.A98
2912401019
|
£1.75
|
£2.10
|
|
|
70 - MANUFACTURER'S NAMEPLATE
BSD-1601110751.A0
1601110751
|
-
|
|
|
|
650 - AUXILIARY HANDLE M14
BSD-1602025022.A237
1602025022
|
£13.41
|
£16.09
|
|
|
803 - ARMATURE 230V
BSD-1604011145.A11
1604011145
|
-
|
|
|
|
804 - SWITCH
BSD-1607200104.A10
1607200104
|
£31.64
|
£37.97
|
|
|
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A624
1607000228
|
£23.86
|
£28.63
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A819
160111A3H3
|
£2.74
|
£3.29
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014171.A199
1607014171
|
£14.91
|
£17.89
|
|
|
821 - GEAR HOUSING
BSD-1605805592.A105
1605805592
|
£72.18
|
£86.62
|
|
|
822 - BEARING FLANGE dia230 MM
BSD-1607000985.A142
1607000985
|
£28.59
|
£34.31
|
|
|
822/01 - BEARING FLANGE dia230 MM
BSD-1607000932.A3
1607000932
|
-
|
|
|
|
822/02 - BEARING FLANGE dia 230 MM
BSD-1607000922.A44
1607000922
|
£45.67
|
£54.80
|
|
|
826 - BEVEL GEAR SET
BSD-1600A003DA.A7
1600A003DA
|
£218.41
|
£262.09
|
|
|
837 - SEAL RING
BSD-1600290020.A173
1600290020
|
£1.84
|
£2.21
|
|
|
840 - PUSH-BUTTON
BSD-1607000206.A4
1607000206
|
£11.30
|
£13.56
|
|
|
846 - RETAINING WASHER
BSD-1607000342.A34
1607000342
|
£3.91
|
£4.69
|
|
|
851 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A875
2600910001
|
£4.48
|
£5.37
|
|
