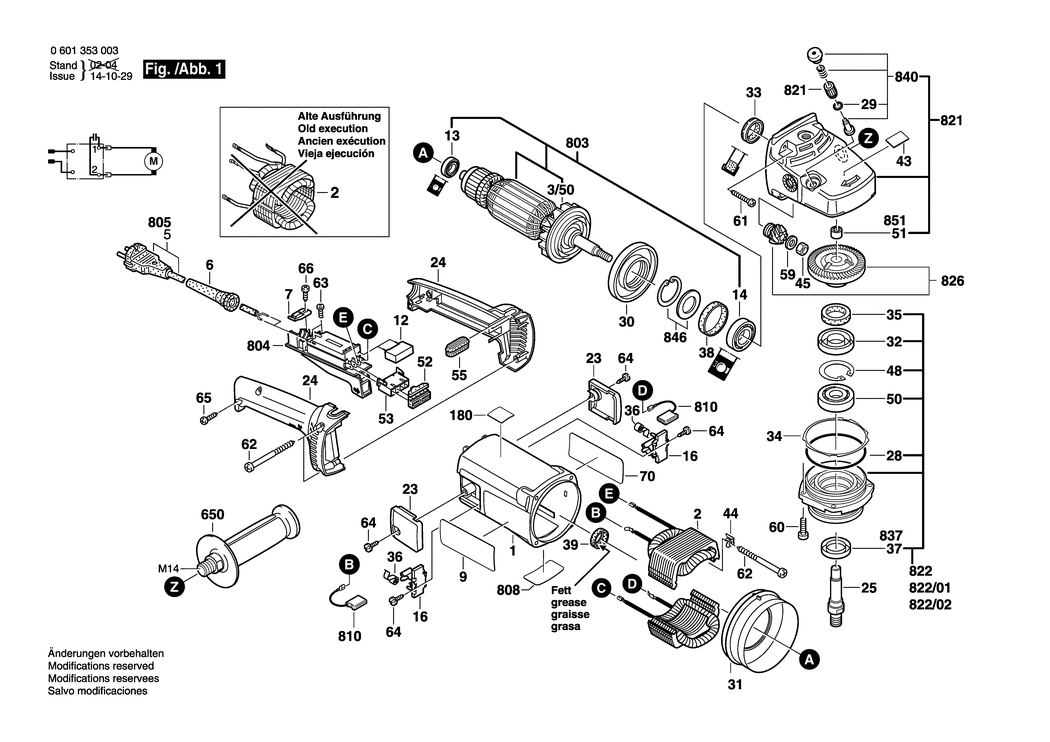

An exploded drawing and listing for the Bosch GWS 18 U / 0601353032 / CH 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605108144.A44 1605108144 -
2 - FIELD 220-240V BSD-1604220380.A88 1604220380 £33.74 £40.49
3/50 - FAN BSD-1606610127.A98 1606610127 £2.80 £3.36
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1604460440.A75 1604460440 £21.52 £25.83
6 - GROMMET dia 10.5-dia11.0x100 MM BSD-1600703023.A203 1600703023 £2.61 £3.13
7 - FASTENING CLAMP BSD-1601302018.A407 1601302018 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601110750.A1 1601110750 -
12 - SUPPRESSION FILTER BSD-1607328035.A4 1607328035 £4.26 £5.11
13 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A189 1600905011 £5.58 £6.70
14 - GROOVE BALL BEARING 10x35x11 BSD-1600905025.A98 1600905025 -
16 - BRUSH HOLDER BSD-1604336021.A4 1604336021 £2.80 £3.36
23 - SEALING CAP BSD-1605500150.A7 1605500150 £3.72 £4.47
24 - HANDLE BSD-1605132117.A42 1605132117 £11.30 £13.56
25 - GRINDING SPINDLE M14. SW17 BSD-1603523100.A10 1603523100 £14.91 £17.89
28 - O-RING 79.0x1.78 MM BSD-1600210033.A332 1600210033 £1.75 £2.10
29 - O-RING 4.0x1.0 MM BSD-1600210034.A96 1600210034 £1.75 £2.10
30 - AIR-DEFLECTOR RING BSD-1600591010.A66 1600591010 £2.16 £2.59
31 - AIR-DEFLECTOR RING BSD-1600591011.A112 1600591011 £1.75 £2.10
32 - RETAINING SNAP RING BSD-1600290019.A174 1600290019 £1.75 £2.10
33 - ROTARY SHAFT LIP SEAL 18.7 MM BSD-1600290013.A326 1600290013 £2.61 £3.13
34 - SHIM 0.15 MM BSD-1600190020.A380 1600190020 £1.75 £2.10
34 - SHIM 0.3 MM BSD-1600190021.A447 1600190021 £2.61 £3.13
34 - SHIM 0.1 MM BSD-1600190022.A380 1600190022 £1.75 £2.10
35 - FELT WASHER BSD-1600205034.A292 1600205034 £1.75 £2.10
36 - SPIRAL SPRING BSD-1604652015.A237 1604652015 £2.80 £3.36
37 - SEAL RING BSD-1600290036.A78 1600290036 £2.16 £2.59
38 - RUBBER RING 7 MM BSD-1600206020.A11 1600206020 £1.75 £2.10
39 - RUBBER RING BSD-1600206030.A264 1600206030 £1.75 £2.10
43 - REFERENCE PLATE BSD-1601110470.A22 1601110470 £1.75 £2.10
44 - HOLDING BRACKET BSD-1601334008.A95 1601334008 £2.61 £3.13
45 - HEX NUT M10. SW14 BSD-1603300019.A189 1603300019 £1.75 £2.10
48 - RETAINING CLIP BSD-1600119010.A387 1600119010 £1.75 £2.10
50 - GROOVE BALL BEARING BSD-3600905134.A34 3600905134 £11.30 £13.56
51 - PLAIN BEARING dia14 MM BSD-1600200031.A393 1600200031 £2.80 £3.36
52 - CABLE ROUTING BSD-1602388027.A10 1602388027 £2.61 £3.13
53 - SOCKET HOUSING BSD-1605190038.A107 1605190038 £1.75 £2.10
55 - STORAGE LEDGE BSD-1602388029.A166 1602388029 £1.75 £2.10
59 - PLAIN WASHER 1.8 MM BSD-1600101655.A22 1600101655 £1.75 £2.10
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM BSD-1603435023.A261 1603435023 £2.16 £2.59
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST BSD-2912401038.A300 2912401038 £1.75 £2.10
62 - TAPPING SCREW C4.8x63 MM BSD-1603435024.A84 1603435024 £1.75 £2.10
63 - PAN HEAD SCREW M4x10 MM BSD-1603410014.A184 1603410014 £1.75 £2.10
64 - PLASTIC-CUTTING SCREW St3.9x12 BSD-1603435042.A43 1603435042 £1.75 £2.10
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST BSD-2912401020.A708 2912401020 £2.16 £2.59
66 - TAPPING SCREW DIN7981-ST3.9x16-C-Z BSD-2912401019.A95 2912401019 £1.75 £2.10
70 - MANUFACTURER'S NAMEPLATE BSD-1601110751.A3 1601110751 -
650 - AUXILIARY HANDLE M14 BSD-1602025022.A239 1602025022 £13.41 £16.09
803 - ARMATURE 230V BSD-1604011145.A10 1604011145 -
804 - SWITCH BSD-1607200103.A42 1607200103 £27.23 £32.68
808 - NAMEPLATE BSD-160111A3H3.A815 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1607014171.A202 1607014171 £14.91 £17.89
821 - GEAR HOUSING BSD-1605805592.A108 1605805592 £72.18 £86.62
822 - BEARING FLANGE dia230 MM BSD-1607000985.A139 1607000985 £27.23 £32.68
822/01 - BEARING FLANGE dia230 MM BSD-1607000932.A6 1607000932 -
822/02 - BEARING FLANGE dia 230 MM BSD-1607000922.A40 1607000922 £45.67 £54.80
826 - BEVEL GEAR SET BSD-1600A003DA.A4 1600A003DA £218.41 £262.09
837 - SEAL RING BSD-1600290020.A176 1600290020 £1.75 £2.10
840 - PUSH-BUTTON BSD-1607000206.A5 1607000206 £11.30 £13.56
846 - RETAINING WASHER BSD-1607000342.A38 1607000342 £3.72 £4.47
851 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A877 2600910001 £4.26 £5.11
