Bosch GWS 18-180 / 0601351041 / GB 110 Volt Spare Parts

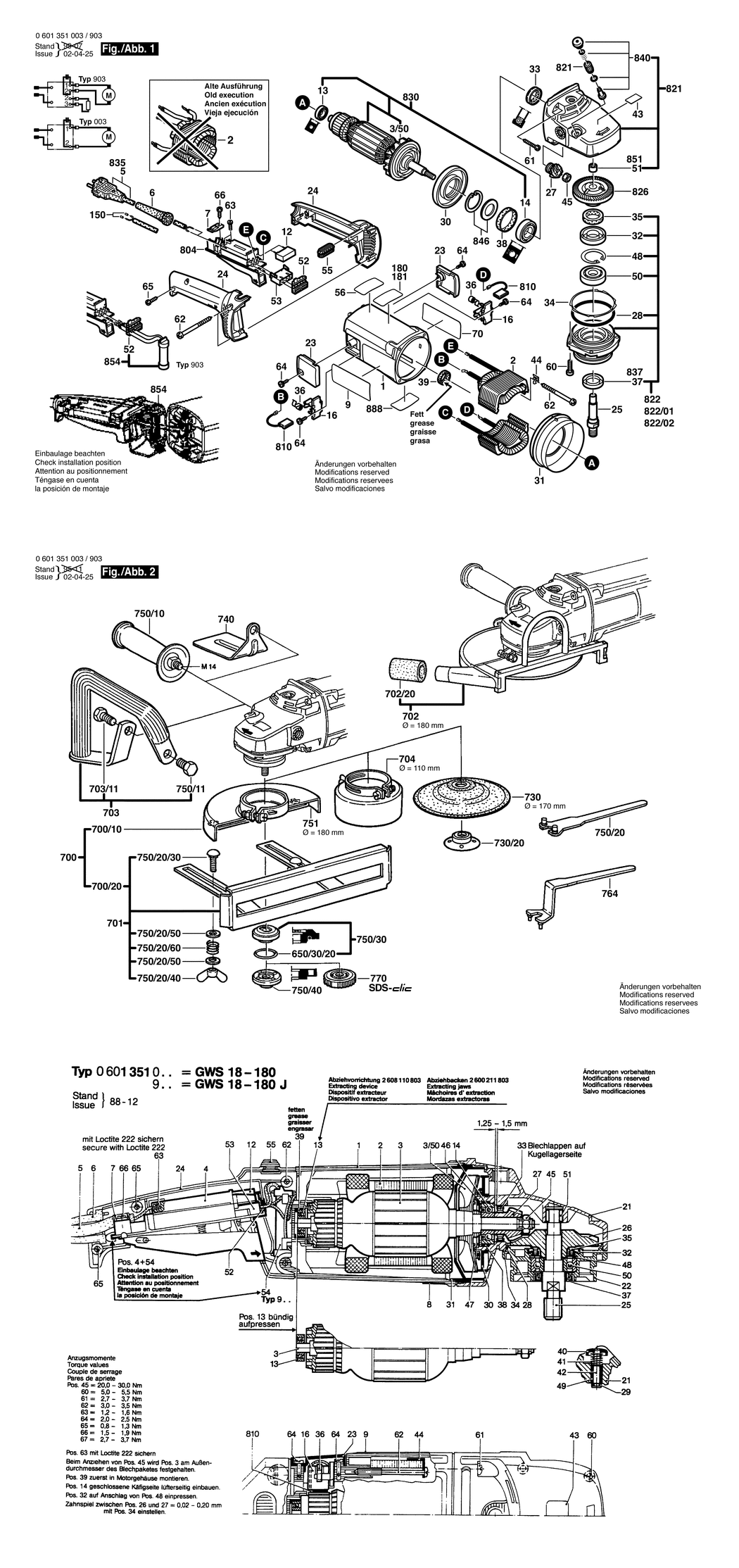

An exploded drawing and listing for the Bosch GWS 18-180 / 0601351041 / GB 110 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1605108144.A3 1605108144	-
2 - FIELD 100-120V BSD-1604220385.A0 1604220385	£41.62	£49.95
3/50 - FAN BSD-1606610127.A234 1606610127	£2.80	£3.36
5 - POWER SUPPLY CORD GB 110V 4.15m 2 x 2.5mm H07 RN-F BSD-1604460202.A2 1604460202	£45.67	£54.80
6 - GROMMET dia12.8xdia13.5x100 MM BSD-3600703003.A64 3600703003	£5.30	£6.36
7 - FASTENING CLAMP BSD-1601302019.A2 1601302019	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601118313.A3 1601118313	-
12 - SUPPRESSION FILTER BSD-1607328035.A162 1607328035	£4.26	£5.11
13 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A570 1600905011	£5.58	£6.70
14 - GROOVE BALL BEARING 10x35x11 BSD-1600905025.A34 1600905025	-
16 - BRUSH HOLDER BSD-1604336021.A91 1604336021	£2.80	£3.36
23 - SEALING CAP BSD-1605500150.A74 1605500150	£3.72	£4.47
24 - HANDLE BSD-1605132117.A97 1605132117	£11.30	£13.56
25 - GRINDING SPINDLE M14. SW17 BSD-1603523100.A99 1603523100	£14.91	£17.89
27 - BEVEL GEAR Z=16 BSD-1606333246.A10 1606333246	-
28 - O-RING 79.0x1.78 MM BSD-1600210033.A673 1600210033	£1.75	£2.10
30 - AIR-DEFLECTOR RING BSD-1600591010.A98 1600591010	£2.16	£2.59
31 - AIR-DEFLECTOR RING BSD-1600591011.A80 1600591011	£1.75	£2.10
32 - RETAINING SNAP RING BSD-1600290019.A673 1600290019	£1.75	£2.10
33 - ROTARY SHAFT LIP SEAL 18.7 MM BSD-1600290013.A143 1600290013	£2.61	£3.13
34 - SHIM 0.15 MM BSD-1600190020.A15 1600190020	£1.75	£2.10
34 - SHIM 0.3 MM BSD-1600190021.A812 1600190021	£2.61	£3.13
34 - SHIM 0.1 MM BSD-1600190022.A15 1600190022	£1.75	£2.10
35 - FELT WASHER BSD-1600205034.A3 1600205034	£1.75	£2.10
36 - SPIRAL SPRING BSD-1604652015.A376 1604652015	£2.80	£3.36
37 - SEAL RING BSD-1600290036.A559 1600290036	£2.16	£2.59
38 - RUBBER RING 7 MM BSD-1600206020.A620 1600206020	£1.75	£2.10
39 - RUBBER RING BSD-1600206030.A10 1600206030	£1.75	£2.10
43 - REFERENCE PLATE BSD-1601110470.A155 1601110470	£1.75	£2.10
44 - HOLDING BRACKET BSD-1601334008.A37 1601334008	£2.61	£3.13
45 - HEX NUT M10. SW14 BSD-1603300019.A117 1603300019	£1.75	£2.10
48 - RETAINING CLIP BSD-1600119010.A634 1600119010	£1.75	£2.10
50 - GROOVE BALL BEARING BSD-3600905134.A146 3600905134	£11.30	£13.56
51 - PLAIN BEARING dia14 MM BSD-1600200031.A531 1600200031	£2.80	£3.36
52 - CABLE ROUTING BSD-1602388027.A314 1602388027	£2.61	£3.13
53 - SOCKET HOUSING BSD-1605190038.A73 1605190038	£1.75	£2.10
55 - STORAGE LEDGE BSD-1602388029.A284 1602388029	£1.75	£2.10
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM BSD-1603435023.A51 1603435023	£2.16	£2.59
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST BSD-2912401038.A44 2912401038	£1.75	£2.10
62 - TAPPING SCREW C4.8x63 MM BSD-1603435024.A202 1603435024	£1.75	£2.10
63 - PAN HEAD SCREW M4x10 MM BSD-1603410014.A150 1603410014	£1.75	£2.10
64 - PLASTIC-CUTTING SCREW St3.9x12 BSD-1603435042.A647 1603435042	£1.75	£2.10
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST BSD-2912401020.A97 2912401020	£2.16	£2.59
66 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A181 2910211019	£1.75	£2.10
70 - REFERENCE PLATE BSD-1601110551.A13 1601110551	-
150 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A10 1900452012	£1.75	£2.10
650/30/20 - O-RING 20.35x1.78 MM BSD-1600210039.A1131 1600210039	£2.16	£2.59
700/10 - PROTECTIVE COVER dia180 MM BSD-1605510222.A3 1605510222	-
700/20 - GUIDE BLOCK BSD-1608135003.A77 1608135003	-
701 - GUIDE BLOCK BSD-1608135003.A78 1608135003	-
702 - SUCTION HOOD dia180 MM BSD-1605510179.A25 1605510179	£61.24	£73.49
702/20 - UNION dia32.3xdia34.9x75 MM BSD-1600309009.A34 1600309009	-
703 - STRAP-SHAPED HANDLE BSD-1607000247.A62 1607000247	£50.82	£60.99
703/11 - HEX SCREW M14x16x1.5 MM BSD-2603450007.A391 2603450007	£5.58	£6.70
704 - PROTECTIVE COVER dia110 MM BSD-1605510181.A57 1605510181	-
730 - BACKING PAD dia180 MM BSD-1608601006.A39 1608601006	-
730/20 - ROUND NUT M14 BSD-1603345004.A151 1603345004	£7.87	£9.44
740 - PROTECTING COVER BSD-1601329013.A98 1601329013	£11.37	£13.64
750/10 - AUXILIARY HANDLE M14x1.5 MM BSD-2602025075.A185 2602025075	£10.30	£12.36
750/11 - HEX SCREW M14x16x1.5 MM BSD-2603450007.A390 2603450007	£5.58	£6.70
750/20 - PIN-TYPE FACE-WRENCH BSD-1607950048.A33 1607950048	£4.88	£5.86
750/20/30 - ROUND-HEAD BOLT DIN 603-M 8x25 BSD-2910281244.A30 2910281244	-
750/20/40 - WING NUT DIN 315-M8-GT-C BSD-2915191007.A214 2915191007	£3.72	£4.47
750/20/50 - PLAIN WASHER DIN 315-M8-GT-C BSD-2600100041.A228 2600100041	£1.75	£2.10
750/20/60 - COMPRESSION SPRING BSD-1604643003.A43 1604643003	£6.52	£7.83
750/30 - CLAMPING-FLANGE dia22.2x42 MM BSD-1605703099.A69 1605703099	£7.45	£8.94
750/40 - CLAMPING NUT M14 BSD-1603340040.A236 1603340040	£6.20	£7.44
751 - PROTECTIVE COVER dia180 MM BSD-1605510222.A2 1605510222	-
764 - PIN-TYPE FACE-WRENCH BSD-1607950004.A185 1607950004	£8.33	£10.00
770 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340027.A164 1603340027	£46.82	£56.18
804 - SWITCH BSD-1607200104.A43 1607200104	£31.64	£37.97
810 - CARBON-BRUSH SET BSD-1607014171.A524 1607014171	£14.91	£17.89
821 - GEAR HOUSING BSD-1605805592.A60 1605805592	£72.18	£86.62
822 - BEARING FLANGE dia180 MM BSD-1607000986.A70 1607000986	-
822/01 - BEARING FLANGE dia180 MM BSD-1607000931.A12 1607000931	£30.28	£36.33
822/02 - BEARING FLANGE dia180 MM BSD-1607000921.A4 1607000921	£36.63	£43.96
826 - CROWN GEAR Z=55 BSD-1606333248.A6 1606333248	-
830 - ARMATURE 100-120V BSD-1604011147.A0 1604011147	£134.16	£160.99
837 - SEAL RING BSD-1600290020.A7 1600290020	£1.75	£2.10
840 - PUSH-BUTTON BSD-1607000206.A145 1607000206	£11.30	£13.56
846 - RETAINING WASHER BSD-1607000342.A330 1607000342	£3.72	£4.47
851 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A223 2600910001	£4.26	£5.11
888 - NAMEPLATE BSD-160111A3H3.A3749 160111A3H3	£2.61	£3.13

Attribute Name	Value
Brand	Bosch
