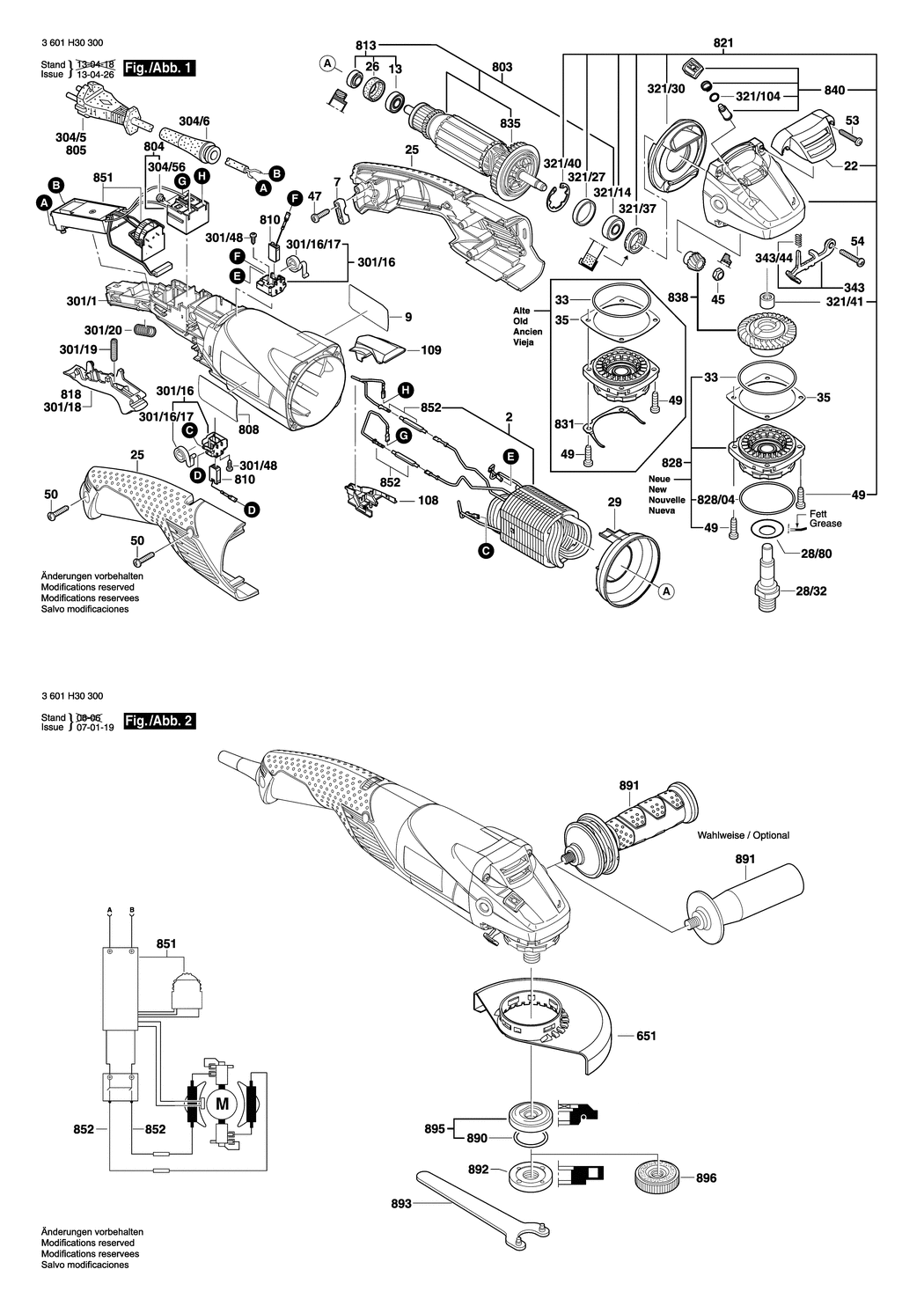

An exploded drawing and listing for the Bosch GWS 15-125 CIEH / 3601H30D00 / EU 230 Volt
Ex VAT Inc VAT
2 - FIELD 220-240V BSD-1604220417.A7 1604220417 £31.64 £37.97
7 - CABLE CLIP BSD-2601035001.A814 2601035001 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601118K40.A2 1601118K40 £2.52 £3.02
13 - BALL BEARING 7x19x6 BSD-2600905032.A654 2600905032 £5.30 £6.36
22 - COVERING HOOD BSD-1605500260.A20 1605500260 £3.72 £4.47
25 - HANDLE COVER BSD-1605132009.A11 1605132009 £13.41 £16.09
26 - RUBBER RING BSD-1600206036.A3 1600206036 £1.75 £2.10
28/32 - GRINDING SPINDLE BSD-1607000D6A.A128 1607000D6A £7.36 £8.83
28/80 - SEALING DISK BSD-3600150021.A75 3600150021 £3.80 £4.56
29 - AIR-DEFLECTOR RING BSD-1600591025.A187 1600591025 £2.61 £3.13
33 - O-RING 46.0x1.1 MM BSD-1600210035.A59 1600210035 £1.75 £2.10
35 - SHIM 0.1 MM BSD-1600136013.A495 1600136013 £2.61 £3.13
35 - SHIM 0.15 MM BSD-1600136020.A23 1600136020 £3.72 £4.47
35 - SHIM 0.2 MM BSD-1600136014.A25 1600136014 £2.61 £3.13
35 - SHIM 0.3 MM BSD-1600136015.A495 1600136015 £2.61 £3.13
45 - HEX NUT M7. SW10 BSD-1603300016.A56 1603300016 £1.75 £2.10
47 - SCREW 4x16 BSD-2603490022.A505 2603490022 £1.75 £2.10
49 - THREAD-FORMING TAP. SCREW BSD-1603435026.A22 1603435026 £2.16 £2.59
50 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1381 2603490023 £1.75 £2.10
53 - TORX OVAL-HEAD SCREW BSD-1603435078.A248 1603435078 £1.75 £2.10
54 - THREAD-FORMING TAP. SCREW M4x16 BSD-2914491410.A25 2914491410 £1.75 £2.10
108 - COVER BSD-1600A00XC4.A24 1600A00XC4 £1.75 £2.10
109 - COVER BSD-1605500263.A0 1605500263 £4.26 £5.11
301/1 - MOTOR HOUSING BSD-1605108276.A0 1605108276 £16.41 £19.69
301/16 - BRUSH HOLDER BSD-1601323025.A127 1601323025 £3.72 £4.47
301/16/17 - SPIRAL SPRING BSD-1604652013.A726 1604652013 £1.75 £2.10
301/19 - COMPRESSION SPRING BSD-1604611041.A4 1604611041 £1.75 £2.10
301/20 - COMPRESSION SPRING BSD-3604611039.A19 3604611039 £1.75 £2.10
301/48 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A193 1613435034 £1.75 £2.10
304/6 - GROMMET BSD-1600703040.A59 1600703040 £2.16 £2.59
304/56 - LENS HEAD SCREW BSD-1603415004.A20 1603415004 £1.75 £2.10
321/14 - GROOVE BALL BEARING 8x22x7 BSD-1600905032.A407 1600905032 £5.58 £6.70
321/27 - RUBBER RING BSD-1600206025.A511 1600206025 £2.16 £2.59
321/30 - AIR-DEFLECTOR RING BSD-1600591014.A305 1600591014 £2.61 £3.13
321/37 - ROTARY SHAFT LIP SEAL BSD-1600290016.A271 1600290016 £2.61 £3.13
321/40 - RETAINING CLIP BSD-1600119011.A220 1600119011 £2.16 £2.59
321/41 - PLAIN BEARING BSD-1600200029.A160 1600200029 £4.26 £5.11
321/104 - O-RING 4.5x1.0 MM BSD-1600210044.A48 1600210044 £1.75 £2.10
343 - CATCH LEVER BSD-1607000742.A1 1607000742 £7.36 £8.83
343/44 - COMPRESSION SPRING BSD-1604611042.A212 1604611042 £1.75 £2.10
651 - PROTECTIVE COVER BSD-1600A00XK9.A2 1600A00XK9 £14.72 £17.67
803 - ARMATURE WITH FAN 230V BSD-1604010A52.A9 1604010A52 £81.81 £98.17
804 - ON-OFF SWITCH BSD-1607000A85.A11 1607000A85 £12.04 £14.45
805 - POWER SUPPLY CORD BSD-1607000391.A51 1607000391 £18.96 £22.75
808 - NAMEPLATE BSD-160111A3H3.A181 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1607014176.A160 1607014176 £13.12 £15.75
810 - CARBON-BRUSH SET 10 x 1 607 014 176 BSD-1607000482.A34 1607000482 £93.88 £112.65
813 - PARTS SET BSD-1607000378.A4 1607000378 £6.52 £7.83
818 - ADJUSTING SLIDE BSD-1602319021.A1 1602319021 £2.16 £2.59
821 - GEAR HOUSING BSD-1607000D1F.A11 1607000D1F £33.74 £40.49
828 - BEARING FLANGE BSD-1607000D6C.A3 1607000D6C £12.04 £14.45
828/04 - O-RING 47.0x1.5 MM BSD-3600210109.A191 3600210109 £2.16 £2.59
831 - SPRING ELEMENT BSD-1601290013.A71 1601290013 £1.75 £2.10
835 - FAN BSD-1606610132.A196 1606610132 £2.16 £2.59
838 - GEAR UNIT BSD-1607000D4Y.A27 1607000D4Y £21.42 £25.71
840 - PUSH-BUTTON BSD-1603231032.A21 1603231032 £4.26 £5.11
851 - SPEED GOVERNOR BSD-1607233236.A0 1607233236 £68.42 £82.10
852 - CONNECTING CABLE BSD-1604448025.A10 1604448025 £2.16 £2.59
890 - O-RING 20.35x1.78 MM BSD-1600210039.A181 1600210039 £2.16 £2.59
891 - AUXILIARY HANDLE M10 ANTI-VIBRATION BSD-16020250A0.A18 16020250A0 £21.42 £25.71
891 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A1013 160202509T £3.72 £4.47
892 - ROUND NUT M14 BSD-1603345043.A639 1603345043 £8.67 £10.41
893 - PIN-TYPE FACE-WRENCH BSD-1607950052.A226 1607950052 £3.72 £4.47
895 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A1029 2605703014 £7.36 £8.83
896 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340027.A515 1603340027 £46.82 £56.18
