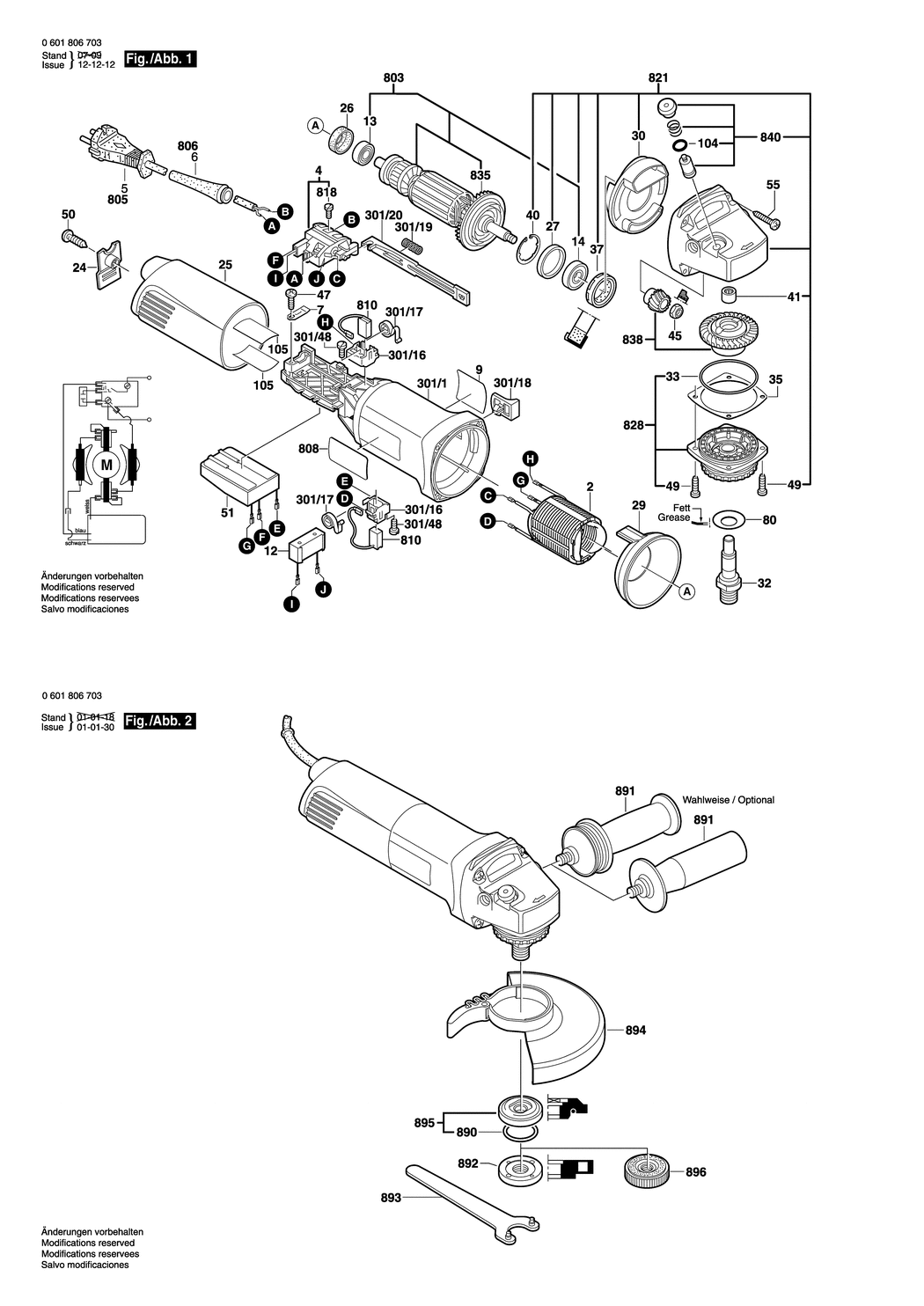

2 - FIELD 220-230V
BSD-1604220284.A26
1604220284
|
£31.79
|
£38.15
|
|
|
4 - SWITCH
BSD-1607200137.A33
1607200137
|
£12.04
|
£14.45
|
|
|
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1604460401.A46
1604460401
|
£19.45
|
£23.34
|
|
|
6 - GROMMET dia6.4-dia7.2x67 MM
BSD-1600703030.A73
1600703030
|
£2.74
|
£3.29
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A144
1601302017
|
£1.84
|
£2.21
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118A78.A10
1601118A78
|
£3.51
|
£4.21
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328042.A70
1607328042
|
£6.85
|
£8.22
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A1534
2600905032
|
£5.57
|
£6.68
|
|
|
14 - GROOVE BALL BEARING 8x22x7
BSD-1600905032.A90
1600905032
|
£5.58
|
£6.70
|
|
|
24 - COVER
BSD-1605500228.A104
1605500228
|
£2.94
|
£3.53
|
|
|
25 - HOUSING COVER
BSD-1605500226.A54
1605500226
|
£8.13
|
£9.76
|
|
|
26 - RUBBER RING
BSD-1600206036.A243
1600206036
|
£1.84
|
£2.21
|
|
|
27 - RUBBER RING
BSD-1600206025.A299
1600206025
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1600591025.A300
1600591025
|
£2.61
|
£3.13
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600591014.A166
1600591014
|
£2.74
|
£3.29
|
|
|
32 - GRINDING SPINDLE
BSD-1607000D6A.A733
1607000D6A
|
£7.36
|
£8.83
|
|
|
33 - O-RING 46.0x1.1 MM
BSD-3600210124.A78
3600210124
|
£2.94
|
£3.53
|
|
|
35 - SHIM 0.1 MM
BSD-1600136013.A162
1600136013
|
£2.74
|
£3.29
|
|
|
35 - SHIM 0.15 MM
BSD-1600136020.A407
1600136020
|
£3.72
|
£4.47
|
|
|
35 - SHIM 0.2 MM
BSD-1600136014.A358
1600136014
|
£2.74
|
£3.29
|
|
|
35 - SHIM 0.3 MM
BSD-1600136015.A162
1600136015
|
£2.74
|
£3.29
|
|
|
37 - ROTARY SHAFT LIP SEAL
BSD-1600290016.A557
1600290016
|
£2.74
|
£3.29
|
|
|
40 - RETAINING CLIP
BSD-1600119011.A47
1600119011
|
£2.27
|
£2.72
|
|
|
41 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A131
1600910018
|
£5.57
|
£6.68
|
|
|
45 - HEX NUT M7. SW10
BSD-1603300016.A633
1603300016
|
£1.84
|
£2.21
|
|
|
47 - TAPPING SCREW DIN7981-ST3.9x13-C-Z
BSD-2912401018.A287
2912401018
|
£1.75
|
£2.10
|
|
|
49 - THREAD-FORMING TAP. SCREW
BSD-1603435026.A208
1603435026
|
£2.27
|
£2.72
|
|
|
50 - TAPPING SCREW DIN7981-ST3.9x19-F-Z
BSD-2912401420.A352
2912401420
|
£1.84
|
£2.21
|
|
|
51 - SPEED GOVERNOR 220-240V
BSD-1607233107.A26
1607233107
|
£37.72
|
£45.27
|
|
|
55 - OVAL-HEAD SCREW
BSD-1603415005.A84
1603415005
|
£1.84
|
£2.21
|
|
|
80 - SEALING DISK
BSD-3600150021.A514
3600150021
|
£3.99
|
£4.79
|
|
|
104 - O-RING 4.5x1.0 MM
BSD-1600210044.A427
1600210044
|
£1.84
|
£2.21
|
|
|
105 - INSULATING PLATE
BSD-1601008005.A175
1601008005
|
£4.26
|
£5.11
|
|
|
301/1 - MOTOR HOUSING
BSD-1605108208.A63
1605108208
|
£11.87
|
£14.24
|
|
|
301/16 - BRUSH HOLDER
BSD-1601323025.A96
1601323025
|
£3.91
|
£4.69
|
|
|
301/17 - SPIRAL SPRING
BSD-1604652013.A291
1604652013
|
£1.84
|
£2.21
|
|
|
301/18 - SWITCH HANDLE
BSD-1602026057.A205
1602026057
|
£2.07
|
£2.48
|
|
|
301/19 - COMPRESSION SPRING
BSD-1604611026.A110
1604611026
|
£1.84
|
£2.21
|
|
|
301/20 - ADJUSTING SLIDE
BSD-1602319011.A114
1602319011
|
£1.75
|
£2.10
|
|
|
301/48 - TAPPING SCREW DIN7981-ST2.9x9.5C-Z
BSD-2912401005.A97
2912401005
|
£1.84
|
£2.21
|
|
|
803 - ARMATURE WITH FAN 220-240V
BSD-1604010654.A3
1604010654
|
£75.79
|
£90.95
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A3349
160111A3H3
|
£2.74
|
£3.29
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014176.A81
1607014176
|
£13.78
|
£16.54
|
|
|
818 - PAN HEAD SCREW DIN 85-AM3x6-CUZN
BSD-2910110048.A24
2910110048
|
£1.84
|
£2.21
|
|
|
821 - GEAR HOUSING
BSD-1605806451.A140
1605806451
|
£39.13
|
£46.96
|
|
|
828 - BEARING FLANGE dia 150 MM
BSD-1607000348.A2
1607000348
|
£15.49
|
£18.59
|
|
|
835 - FAN
BSD-1606610129.A1
1606610129
|
£2.16
|
£2.59
|
|
|
838 - GEAR UNIT
BSD-1607000D4Z.A20
1607000D4Z
|
£22.60
|
£27.12
|
|
|
840 - PUSH-BUTTON
BSD-1607000253.A410
1607000253
|
£2.49
|
£2.99
|
|
|
890 - O-RING 20.35x1.78 MM
BSD-1600210039.A1265
1600210039
|
£2.27
|
£2.72
|
|
|
891 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A143
160202509T
|
£3.91
|
£4.69
|
|
|
891 - AUXILIARY HANDLE M10. dia37x115 MM
BSD-1602025031.A1
1602025031
|
£19.91
|
£23.89
|
|
|
892 - ROUND NUT M14
BSD-1603345043.A64
1603345043
|
£9.11
|
£10.93
|
|
|
893 - PIN-TYPE FACE-WRENCH
BSD-1607950052.A621
1607950052
|
£3.91
|
£4.69
|
|
|
894 - PROTECTIVE COVER dia 150 MM
BSD-1605510308.A1
1605510308
|
-
|
|
|
|
895 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A62
2605703014
|
£7.72
|
£9.27
|
|
