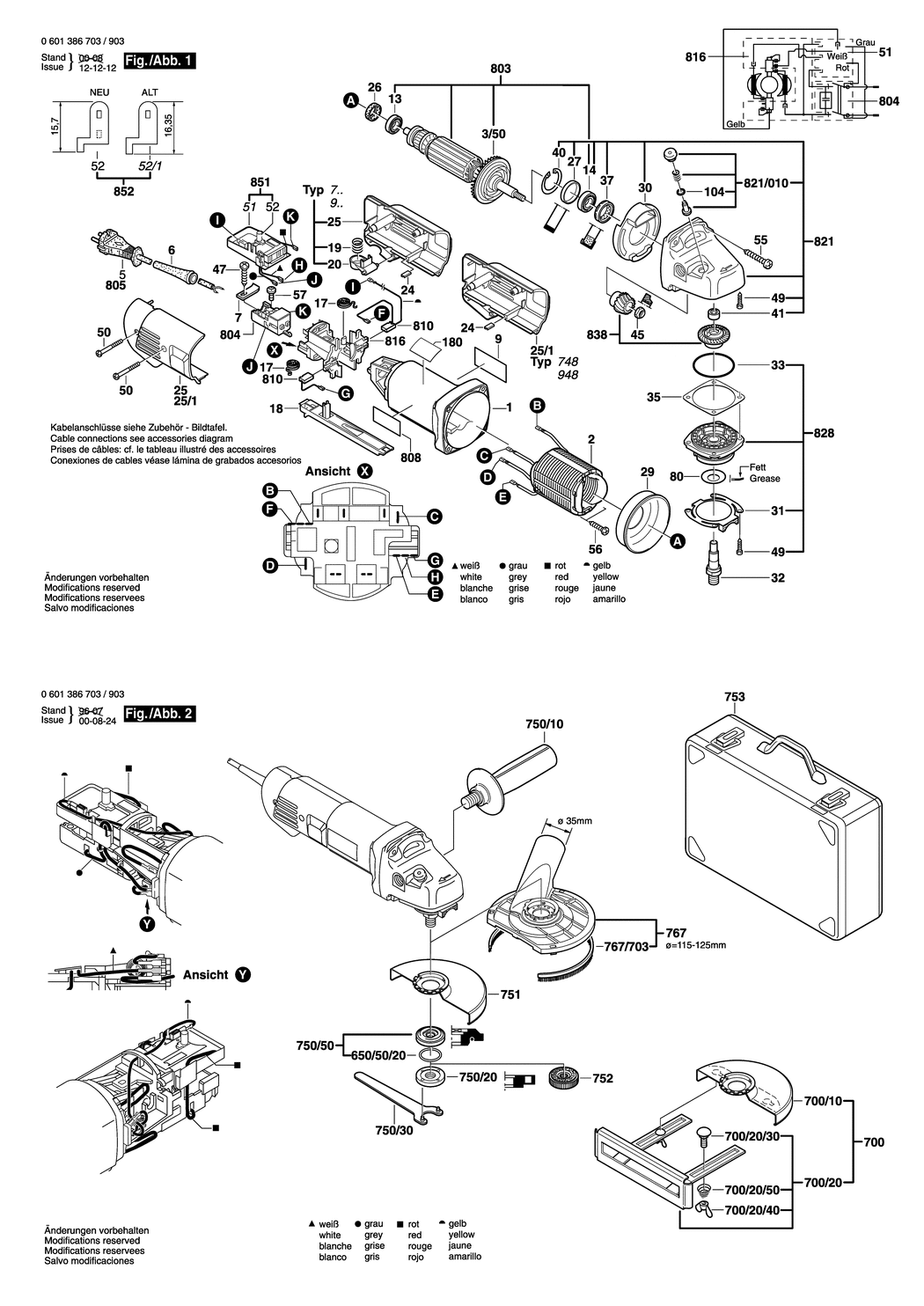

1 - MOTOR HOUSING
BSD-1605108162.A45
1605108162
|
£11.78
|
£14.13
|
|
|
2 - FIELD 220-230V
BSD-1604220284.A52
1604220284
|
£31.79
|
£38.15
|
|
|
3/50 - FAN
BSD-1606610132.A298
1606610132
|
£2.27
|
£2.72
|
|
|
6 - GROMMET dia6.4-dia7.2x67 MM
BSD-1600703030.A91
1600703030
|
£2.74
|
£3.29
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A156
1601302017
|
£1.84
|
£2.21
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118544.A8
1601118544
|
£3.51
|
£4.21
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A1439
2600905032
|
£5.57
|
£6.68
|
|
|
14 - GROOVE BALL BEARING 8x22x7
BSD-1600905011.A628
1600905011
|
£5.58
|
£6.70
|
|
|
17 - SPIRAL SPRING
BSD-1604652013.A237
1604652013
|
£1.84
|
£2.21
|
|
|
18 - SWITCH-PAWL
BSD-1602319013.A81
1602319013
|
£8.49
|
£10.19
|
|
|
19 - COMPRESSION SPRING
BSD-1604611024.A7
1604611024
|
£1.75
|
£2.10
|
|
|
20 - SHIFT-LEVER KNOB
BSD-1602319007.A55
1602319007
|
£1.75
|
£2.10
|
|
|
24 - GUIDING PLATE
BSD-1600499013.A28
1600499013
|
-
|
|
|
|
25 - HOUSING COVER
BSD-1605500175.A1
1605500175
|
-
|
|
|
|
26 - RUBBER RING
BSD-1600206036.A362
1600206036
|
£1.84
|
£2.21
|
|
|
27 - RUBBER RING
BSD-1600206025.A239
1600206025
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1600591013.A46
1600591013
|
-
|
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600591014.A185
1600591014
|
£2.74
|
£3.29
|
|
|
31 - CLAMPING SPRING
BSD-1601290007.A173
1601290007
|
-
|
|
|
|
32 - GRINDING SPINDLE
BSD-1607000D6A.A770
1607000D6A
|
£7.36
|
£8.83
|
|
|
33 - O-RING 46.0x1.1 MM
BSD-1600210035.A283
1600210035
|
£1.84
|
£2.21
|
|
|
35 - SHIM 0.1 MM
BSD-1600136013.A75
1600136013
|
£2.74
|
£3.29
|
|
|
35 - SHIM 0.2 MM
BSD-1600136014.A445
1600136014
|
£2.74
|
£3.29
|
|
|
35 - SHIM 0.3 MM
BSD-1600136015.A75
1600136015
|
£2.74
|
£3.29
|
|
|
37 - ROTARY SHAFT LIP SEAL
BSD-1600290016.A496
1600290016
|
£2.74
|
£3.29
|
|
|
40 - RETAINING CLIP
BSD-1600119011.A21
1600119011
|
£2.27
|
£2.72
|
|
|
41 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A35
1600910018
|
£5.30
|
£6.36
|
|
|
45 - HEX NUT M7. SW10
BSD-1603300016.A683
1603300016
|
£1.84
|
£2.21
|
|
|
47 - TAPPING SCREW DIN7981-ST3.9x13-C-Z
BSD-2912401018.A302
2912401018
|
£1.75
|
£2.10
|
|
|
49 - THREAD-FORMING TAP. SCREW
BSD-1603435026.A315
1603435026
|
£2.27
|
£2.72
|
|
|
50 - PLASTIC-CUTTING SCREW
BSD-1603435037.A62
1603435037
|
£1.75
|
£2.10
|
|
|
52 - LIGHT CONDUCTOR 15.7 MM
BSD-1609270562.A7
1609270562
|
£11.37
|
£13.64
|
|
|
55 - TAPPING SCREW DIN 7981-ST3.9x25-C-Z
BSD-2912401022.A49
2912401022
|
£1.84
|
£2.21
|
|
|
56 - PLASTIC-CUTTING SCREW
BSD-1603435044.A24
1603435044
|
-
|
|
|
|
57 - SOCKET HEAD CAP SCREW M3.5x7 MM
BSD-1603429002.A70
1603429002
|
£1.75
|
£2.10
|
|
|
80 - SEALING DISK
BSD-3600150021.A518
3600150021
|
£3.99
|
£4.79
|
|
|
104 - O-RING 4.5x1.0 MM
BSD-1600210044.A405
1600210044
|
£1.84
|
£2.21
|
|
|
650/50/20 - O-RING 20.35x1.78 MM
BSD-1600210039.A1113
1600210039
|
£2.27
|
£2.72
|
|
|
700 - PARTS SET dia 150 MM
BSD-2607001187.A6
2607001187
|
-
|
|
|
|
700/10 - PROTECTIVE COVER dia 150 MM
BSD-2605510100.A11
2605510100
|
-
|
|
|
|
700/20 - GUIDE BLOCK
BSD-1608135004.A160
1608135004
|
-
|
|
|
|
700/20/30 - ROUND-HEAD BOLT DIN 603-M 5x16
BSD-2910281158.A144
2910281158
|
-
|
|
|
|
700/20/40 - WING NUT M 5 DIN 315-G-5
BSD-2915191105.A68
2915191105
|
-
|
|
|
|
700/20/50 - COMPRESSION SPRING
BSD-1604643004.A139
1604643004
|
-
|
|
|
|
750/10 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A18
160202509T
|
£3.91
|
£4.69
|
|
|
750/20 - CLAMPING NUT M14
BSD-1603340040.A197
1603340040
|
£6.20
|
£7.44
|
|
|
750/30 - PIN-TYPE FACE-WRENCH
BSD-1607950043.A77
1607950043
|
£4.02
|
£4.83
|
|
|
750/50 - CLAMPING-FLANGE dia22.2x42 MM
BSD-1605703099.A75
1605703099
|
£7.82
|
£9.39
|
|
|
751 - PROTECTIVE COVER dia 150 MM
BSD-2605510103.A2
2605510103
|
-
|
|
|
|
752 - FAST LOCKING FLANGE M14
BSD-1603340031.A42
1603340031
|
£21.12
|
£25.35
|
|
|
753 - CARRYING CASE
BSD-1605438089.A22
1605438089
|
-
|
|
|
|
767 - SUCTION HOOD dia115-125MM
BSD-2605510107.A58
2605510107
|
-
|
|
|
|
767/703 - BRUSH
BSD-2605730036.A56
2605730036
|
£21.53
|
£25.84
|
|
|
803 - ARMATURE WITH FAN 230V
BSD-1604010455.A4
1604010455
|
-
|
|
|
|
804 - SWITCH
BSD-1607200115.A87
1607200115
|
-
|
|
|
|
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A272
1607000228
|
£23.86
|
£28.63
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A3690
160111A3H3
|
£2.74
|
£3.29
|
|
|
810 - CARBON BRUSH
BSD-1607014148.A40
1607014148
|
£14.72
|
£17.67
|
|
|
810 - CARBON-BRUSH SET 10 x 1 607 014 148
BSD-1607000499.A32
1607000499
|
£88.07
|
£105.68
|
|
|
816 - BRUSH HOLDER
BSD-1604336031.A22
1604336031
|
-
|
|
|
|
821 - GEAR HOUSING
BSD-1605806451.A146
1605806451
|
£39.13
|
£46.96
|
|
|
821/010 - PUSH-BUTTON
BSD-1607000253.A302
1607000253
|
£2.49
|
£2.99
|
|
|
828 - BEARING FLANGE
BSD-1605805082.A4
1605805082
|
-
|
|
|
|
838 - GEAR UNIT
BSD-1607000D4Z.A13
1607000D4Z
|
£22.60
|
£27.12
|
|
|
851 - SPEED GOVERNOR 220-240V
BSD-1607000289.A2
1607000289
|
-
|
|
|
|
852 - LIGHT CONDUCTOR
BSD-1607000278.A6
1607000278
|
-
|
|
|
