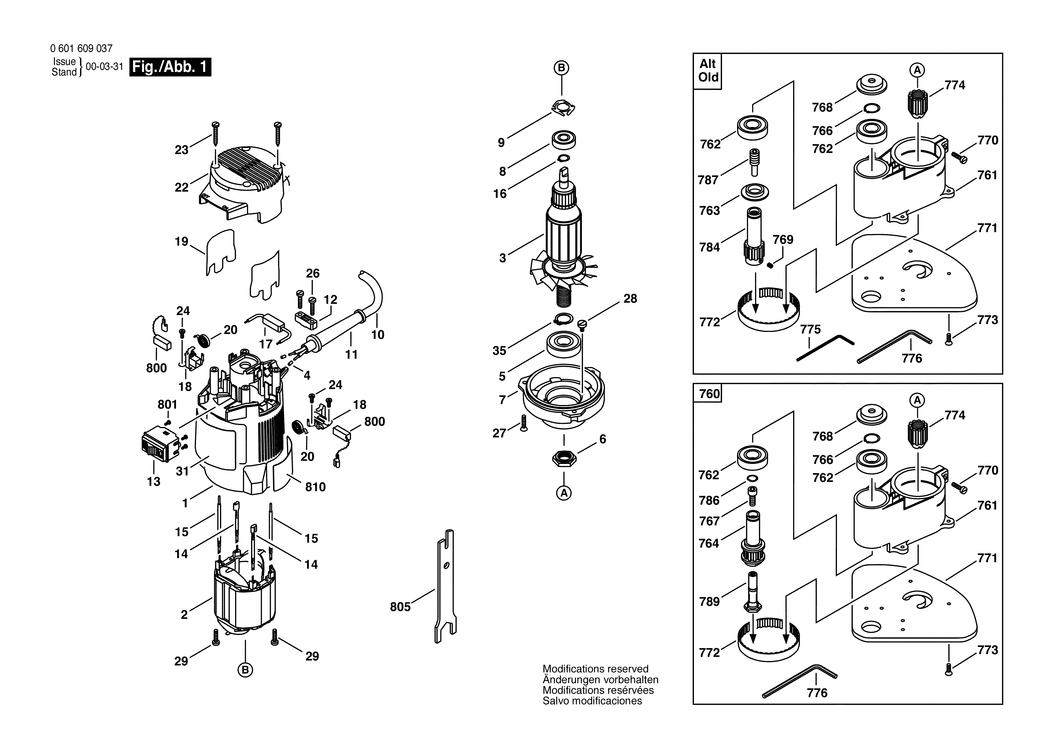

1 - MOTOR HOUSING
BSD-3605108573.A0
3605108573
|
£16.41
|
£19.69
|
|
|
2 - FIELD 220-230V
BSD-2604220438.A24
2604220438
|
£28.59
|
£34.31
|
|
|
3 - ARMATURE 240V
BSD-3604011566.A3
3604011566
|
-
|
|
|
|
4 - END SPLICE DIN 46 228-A1-6
BSD-1900452012.A569
1900452012
|
£1.75
|
£2.10
|
|
|
5 - GROOVE BALL BEARING
BSD-2610908032.A1
2610908032
|
-
|
|
|
|
6 - HEX NUT
BSD-3603311521.A1
3603311521
|
£2.80
|
£3.36
|
|
|
7 - BEARING HOUSING
BSD-3605702573.A1
3605702573
|
-
|
|
|
|
8 - BALL BEARING 7x22x7
BSD-1900905018.A1210
1900905018
|
£19.91
|
£23.89
|
|
|
9 - SPRING LOCK WASHER
BSD-3600150501.A19
3600150501
|
£2.45
|
£2.94
|
|
|
10 - POWER SUPPLY CORD 4.25m 2 x 1.0mm H07RN-F
BSD-3604460614.A0
3604460614
|
-
|
|
|
|
11 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A20
2600703011
|
£2.94
|
£3.53
|
|
|
12 - CABLE CLIP
BSD-2601035001.A992
2601035001
|
£1.75
|
£2.10
|
|
|
13 - ON-OFF SWITCH
BSD-3607200511.A1
3607200511
|
-
|
|
|
|
14 - CONNECTING CABLE
BSD-3604441501.A1
3604441501
|
-
|
|
|
|
15 - CONNECTING CABLE
BSD-3604441509.A2
3604441509
|
-
|
|
|
|
16 - SPRING RETAINING RING DIN 471-7x0.8-FST
BSD-2916640004.A32
2916640004
|
£1.75
|
£2.10
|
|
|
17 - SUPPRESSION CAPACITOR
BSD-3607328516.A0
3607328516
|
-
|
|
|
|
18 - BRUSH HOLDER
BSD-1600A003G4.A401
1600A003G4
|
£3.72
|
£4.47
|
|
|
19 - INSULATOR
BSD-3601033503.A1
3601033503
|
-
|
|
|
|
20 - SPIRAL SPRING
BSD-1604652013.A822
1604652013
|
£1.84
|
£2.21
|
|
|
22 - HOUSING COVER
BSD-3605500580.A3
3605500580
|
£10.10
|
£12.12
|
|
|
23 - TAPPING SCREW DIN 7971-ST3.5x33-C
BSD-2910211214.A2
2910211214
|
-
|
|
|
|
24 - TAPPING SCREW BZ 2.9x6.5DIN7981-A2
BSD-2910611404.A3
2910611404
|
-
|
|
|
|
26 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A2493
2910211019
|
£1.84
|
£2.21
|
|
|
27 - TAPPING SCREW DIN 7982-ST3.5x16-F-H
BSD-2910601412.A5
2910601412
|
£2.74
|
£3.29
|
|
|
28 - COUNTERSUNK-HEAD SCREW DIN 7500-AM4x6-ST
BSD-2914461044.A1
2914461044
|
-
|
|
|
|
29 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1457
2603490017
|
£2.27
|
£2.72
|
|
|
31 - NAMEPLATE
BSD-2610908885.A0
2610908885
|
-
|
|
|
|
35 - SPRING RETAINING RING DIN 471-12x1-FSt
BSD-2916650003.A337
2916650003
|
£1.75
|
£2.10
|
|
|
760 - BASE PLATE
BSD-2610908884.A0
2610908884
|
-
|
|
|
|
761 - BASE
BSD-3605702544.A1
3605702544
|
-
|
|
|
|
762 - GROOVE BALL BEARING
BSD-3600905038.A30
3600905038
|
£15.65
|
£18.78
|
|
|
763 - SET SCREW DIN 916-M4x4-45H
BSD-2912065114.A1
2912065114
|
-
|
|
|
|
764 - SPINDLE ASSEMBLY
BSD-2610909309.A0
2610909309
|
-
|
|
|
|
766 - RETAINING SNAP RING
BSD-3600119508.A2
3600119508
|
-
|
|
|
|
767 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x12-8.8
BSD-2910141154.A70
2910141154
|
£1.75
|
£2.10
|
|
|
768 - DUST-PROTECTION COVER
BSD-3605510542.A1
3605510542
|
-
|
|
|
|
769 - SET SCREW DIN 916-M4x4-45H
BSD-2912065114.A2
2912065114
|
-
|
|
|
|
770 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A949
2910021122
|
£2.27
|
£2.72
|
|
|
771 - BASE PLATE
BSD-3601071500.A1
3601071500
|
-
|
|
|
|
772 - TOOTHED BELT
BSD-3604736506.A0
3604736506
|
£8.49
|
£10.19
|
|
|
773 - SCREW
BSD-3603415562.A2
3603415562
|
-
|
|
|
|
774 - TOOTHED LOCK WASHER
BSD-3606625545.A1
3606625545
|
-
|
|
|
|
775 - OFFSET SCREWDRIVER DIN 911. SW2
BSD-1907950002.A1
1907950002
|
-
|
|
|
|
776 - OFFSET SCREWDRIVER DIN 911-4
BSD-2607950004.A202
2607950004
|
£1.84
|
£2.21
|
|
|
784 - SPINDLE
BSD-3606120529.A2
3606120529
|
-
|
|
|
|
786 - RETAINING RING
BSD-2916660042.A3
2916660042
|
£1.75
|
£2.10
|
|
|
787 - STOP SCREW
BSD-3603402500.A1
3603402500
|
-
|
|
|
|
789 - COLLET
BSD-2610908877.A0
2610908877
|
-
|
|
|
|
800 - CARBON-BRUSH SET
BSD-1607014116.A150
1607014116
|
£11.30
|
£13.56
|
|
|
801 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A491
2603410023
|
-
|
|
|
|
805 - SINGLE-HEAD ENG. WRENCH SW 4/14
BSD-9601497907.A0
9601497907
|
-
|
|
|
|
810 - NAMEPLATE
BSD-3601119595.A14
3601119595
|
£3.91
|
£4.69
|
|
