Bosch GTS 10 XC / 3601L30490 / --- 230 Volt Spare Parts

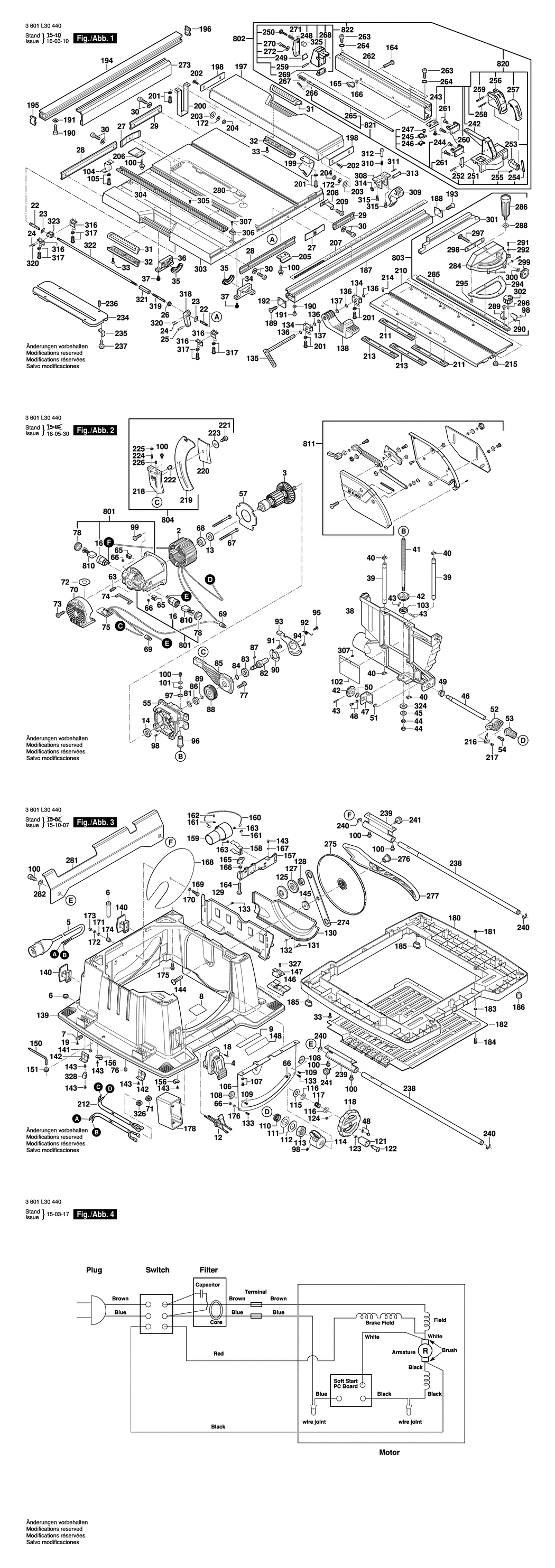

An exploded drawing and listing for the Bosch GTS 10 XC / 3601L30490 / --- 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 230V BSD-2610016834.A3 2610016834	£102.57	£123.08
3 - ARMATURE 230V BSD-2610016833.A4 2610016833	£120.11	£144.13
4 - ON-OFF SWITCH BSD-2610018210.A3 2610018210	£54.42	£65.30
5 - POWER SUPPLY CORD EU BSD-2610018211.A1 2610018211	£40.80	£48.96
6 - RUBBER BUSHING BSD-2610915699.A13 2610915699	£7.72	£9.27
7 - CLAMP BSD-2610358842.A9 2610358842	£1.84	£2.21
9 - LABEL BSD-2610018213.A4 2610018213	£2.74	£3.29
12 - SUPPRESSION FILTER BSD-2610018216.A4 2610018216	£22.60	£27.12
13 - BALL BEARING BSD-2610004595.A0 2610004595	£12.04	£14.45
14 - BALL BEARING BSD-2610911927.A33 2610911927	£23.86	£28.63
16 - BRUSH HOLDER BSD-2610911858.A24 2610911858	£17.22	£20.67
16 - BRUSH HOLDER BSD-2610013003.A16 2610013003	£7.72	£9.27
18 - SCREW BSD-2610018217.A4 2610018217	-
19 - SCREW BSD-2610358844.A7 2610358844	£1.75	£2.10
22 - PIN BSD-2610996913.A5 2610996913	£4.48	£5.37
23 - PLATE BSD-2610996917.A12 2610996917	£1.84	£2.21
24 - PIN BSD-2610997274.A17 2610997274	£1.75	£2.10
25 - GUIDE PIN BSD-2610937292.A0 2610937292	£1.84	£2.21
26 - NUT BSD-2610911896.A18 2610911896	-
27 - FIXING PLATE BSD-2610996912.A9 2610996912	£5.87	£7.04
28 - MOUNTING RAIL BSD-1600A00724.A5 1600A00724	£2.16	£2.59
29 - MOUNTING RAIL BSD-2610950075.A9 2610950075	£8.67	£10.41
30 - SCREW BSD-2610303029.A13 2610303029	£1.84	£2.21
31 - HANDLE COVER BSD-2610018218.A5 2610018218	£3.91	£4.69
32 - HANDLE COVER BSD-2610018219.A4 2610018219	£3.91	£4.69
33 - SCREW BSD-2610018580.A7 2610018580	£1.84	£2.21
34 - MOUNTING BRACKET BSD-2610950126.A18 2610950126	£9.11	£10.93
35 - BUSHING BSD-2610950070.A13 2610950070	£1.84	£2.21
36 - MOUNTING BRACKET BSD-2610950127.A0 2610950127	£11.87	£14.24
37 - SCREW BSD-2610998575.A4 2610998575	£1.84	£2.21
38 - HOLDING PLATE BSD-2610018220.A4 2610018220	£2.61	£3.13
39 - GUIDING BOLT BSD-2610950052.A9 2610950052	£7.72	£9.27
40 - SPRING RETAINING RING BSD-2610992380.A0 2610992380	£1.84	£2.21
41 - THREADED ROD BSD-2610018221.A5 2610018221	£15.65	£18.78
42 - TOOTHED GEAR BSD-2610996896.A12 2610996896	£5.87	£7.04
43 - BOLT BSD-2610910796.A1 2610910796	£2.94	£3.53
44 - NUT BSD-2610358149.A5 2610358149	£1.84	£2.21
45 - PLAIN WASHER BSD-2610018223.A4 2610018223	£1.84	£2.21
46 - SHAFT BSD-2610018224.A5 2610018224	£12.04	£14.45
47 - MOUNTING BRACKET BSD-2610997212.A9 2610997212	£2.80	£3.36
48 - SCREW BSD-2615297323.A17 2615297323	£1.84	£2.21
49 - BUSHING BSD-2610997222.A6 2610997222	£1.32	£1.58
50 - SPRING RETAINING RING BSD-2610997277.A7 2610997277	£1.84	£2.21
51 - SPRING RETAINING RING BSD-2610997276.A11 2610997276	£1.75	£2.10
52 - BUSHING BSD-2610996938.A9 2610996938	£8.67	£10.41
53 - THREADED BUSHING BSD-2610996933.A9 2610996933	£15.65	£18.78
54 - SCREW BSD-2610303026.A5 2610303026	£1.84	£2.21
55 - GEAR HOUSING BSD-2610018225.A4 2610018225	£57.14	£68.57
57 - BAFFLE BSD-2610018226.A5 2610018226	£4.26	£5.11
63 - SET SCREW BSD-1609902054.A7 1609902054	£1.84	£2.21
65 - INSERT BSD-2610911569.A41 2610911569	£2.74	£3.29
66 - NUT BSD-2610356706.A8 2610356706	£2.74	£3.29
67 - SCREW BSD-2610911929.A29 2610911929	£1.84	£2.21
68 - RUBBER RING BSD-2610996948.A16 2610996948	£1.75	£2.10
69 - CONNECTOR BSD-2610358932.A13 2610358932	£1.84	£2.21
70 - COVER BSD-2610018227.A4 2610018227	£10.10	£12.12
71 - CABLE CLIP BSD-1609203K96.A9 1609203K96	£1.84	£2.21
72 - WASHER BSD-2610017110.A10 2610017110	£2.16	£2.59
73 - SCREW BSD-2610998571.A14 2610998571	£1.84	£2.21
73 - SCREW BSD-2610018983.A2 2610018983	-
74 - SUPPORT BRACKET BSD-2610018228.A4 2610018228	£1.75	£2.10
75 - SPEED GOVERNOR BSD-2610223019.A2 2610223019	£50.80	£60.96
76 - CABLE STRAP BSD-1609902050.A8 1609902050	£1.75	£2.10
77 - SCREW BSD-2610998587.A9 2610998587	£1.84	£2.21
78 - BRUSH-COVER dia 20mm BSD-2610911859.A0 2610911859	£2.27	£2.72
81 - SPRING WASHER BSD-2610911924.A19 2610911924	£3.72	£4.47
82 - SHAFT BSD-2610018231.A5 2610018231	£22.60	£27.12
83 - BALL BEARING BSD-2610997210.A13 2610997210	£14.91	£17.89
84 - SPRING RETAINING RING BSD-2610997282.A16 2610997282	£1.84	£2.21
85 - GEAR COVER BSD-2610018232.A4 2610018232	£22.60	£27.12
86 - BALL BEARING BSD-2610996949.A11 2610996949	£15.65	£18.78
87 - WOODRUFF KEY BSD-2610993102.A24 2610993102	£2.27	£2.72
88 - TOOTHED GEAR BSD-2610997208.A14 2610997208	£39.13	£46.96
89 - SPRING RETAINING RING BSD-2610997281.A17 2610997281	£1.75	£2.10
90 - BEARING SLEEVE BSD-2610996932.A9 2610996932	£2.74	£3.29
91 - SCREW BSD-2610355923.A6 2610355923	£1.84	£2.21
92 - TORSION SPRING BSD-2610996875.A18 2610996875	£1.84	£2.21
93 - LOCKING LEVER BSD-2610996874.A9 2610996874	£11.87	£14.24
94 - SHOULDER SCREW BSD-2610996876.A9 2610996876	£1.75	£2.10
95 - SCREW BSD-2610998588.A18 2610998588	£1.84	£2.21
96 - BUSHING BSD-2610018233.A5 2610018233	£7.72	£9.27
97 - SPRING RETAINING RING BSD-2610998573.A13 2610998573	£1.84	£2.21
98 - SET SCREW BSD-2610950427.A13 2610950427	£1.84	£2.21
99 - SCREW BSD-2610018230.A4 2610018230	£1.84	£2.21
100 - SCREW BSD-2610328617.A8 2610328617	£1.75	£2.10
101 - PLAIN WASHER BSD-2610303020.A5 2610303020	-
102 - COVER PLATE BSD-2610018234.A4 2610018234	£6.85	£8.22
103 - END STOP BSD-2610018235.A5 2610018235	£2.27	£2.72
104 - HOLDING SPRING BSD-2610018236.A4 2610018236	£3.91	£4.69
105 - SCREW BSD-2610018237.A5 2610018237	£1.75	£2.10
106 - FRONT PANEL BSD-2610018238.A4 2610018238	£33.22	£39.87
107 - PROFILE RAIL BSD-2610950118.A9 2610950118	£1.75	£2.10
108 - END STOP BSD-2610018239.A5 2610018239	£1.75	£2.10
109 - SCREW M5x0.8Px10L BSD-2610018599.A7 2610018599	£1.84	£2.21
110 - SPRING BSD-2610997271.A14 2610997271	£1.84	£2.21
111 - PLAIN WASHER BSD-2610998550.A9 2610998550	£1.84	£2.21
112 - PLAIN WASHER BSD-2610997299.A11 2610997299	£1.84	£2.21
113 - NUT BSD-2610997298.A7 2610997298	£5.30	£6.36
114 - CLAMPING LEVER BSD-2610950056.A4 2610950056	£12.04	£14.45
115 - PLAIN WASHER BSD-2610950129.A9 2610950129	£1.75	£2.10
116 - WASHER BSD-2610341465.A21 2610341465	£2.27	£2.72
117 - SPRING BSD-2610950115.A4 2610950115	£1.84	£2.21
118 - HANDWHEEL BSD-2610950057.A5 2610950057	£15.65	£18.78
121 - HANDLE BSD-2610950059.A13 2610950059	£1.84	£2.21
122 - SHOULDER SCREW BSD-2610997270.A4 2610997270	£2.16	£2.59
123 - SPRING WASHER BSD-2610355325.A0 2610355325	£1.75	£2.10
124 - SET SCREW BSD-1609902669.A6 1609902669	£1.75	£2.10
125 - CLAMPING FLANGE BSD-1609203L56.A0 1609203L56	£12.64	£15.17
127 - WASHER BSD-2610950046.A13 2610950046	£12.64	£15.17
128 - NUT BSD-2610358858.A7 2610358858	£2.74	£3.29
129 - COVER PLATE BSD-2610018241.A4 2610018241	£18.96	£22.75
130 - COVER PLATE BSD-2610018242.A5 2610018242	£13.12	£15.75
131 - SCREW BSD-2610018243.A4 2610018243	£1.75	£2.10
132 - RETAINING SNAP RING BSD-2610358869.A7 2610358869	£1.84	£2.21
133 - SCREW BSD-1609902699.A11 1609902699	£1.84	£2.21
134 - MOUNTING BRACKET BSD-2610937291.A6 2610937291	£2.80	£3.36
135 - LINKAGE BSD-2610018244.A5 2610018244	£13.12	£15.75
136 - RETAINING RING BSD-2610937293.A6 2610937293	£1.84	£2.21
137 - WASHER BSD-1619P03473.A9 1619P03473	£1.75	£2.10
138 - CLAMPING LEVER BSD-2610018245.A4 2610018245	£12.04	£14.45
139 - HOUSING BSD-2610018246.A5 2610018246	£102.57	£123.08
140 - CLAMP BSD-2610018247.A4 2610018247	£2.61	£3.13
141 - SCREW BSD-2610998574.A14 2610998574	£1.75	£2.10
142 - PICKUP CLIP BSD-2610996930.A6 2610996930	£2.52	£3.02
143 - SCREW BSD-2610910047.A15 2610910047	£1.84	£2.21
144 - SCREW BSD-2610018248.A5 2610018248	£2.16	£2.59
145 - NUT BSD-2610018249.A4 2610018249	£2.27	£2.72
146 - HOLDING SPRING BSD-2610018250.A5 2610018250	£2.27	£2.72
147 - HOLDING SPRING BSD-2610018251.A4 2610018251	£3.91	£4.69
148 - COMPANY LOGO BSD-2610018252.A5 2610018252	£6.52	£7.83
150 - HEXAGON SOCKET SCREW KEY BSD-2610018254.A4 2610018254	£4.48	£5.37
151 - RUBBER BUSHING BSD-2610911920.A23 2610911920	£1.38	£1.66
156 - CABLE CLIP BSD-2610990504.A14 2610990504	£1.75	£2.10
157 - MOUNTING BRACKET BSD-2610018255.A5 2610018255	£2.27	£2.72
158 - HOLDING SPRING BSD-2610018256.A4 2610018256	£2.74	£3.29
159 - SUCTION SOCKET BSD-2610018257.A5 2610018257	£6.85	£8.22
160 - CHAIN BSD-2610018258.A4 2610018258	£1.84	£2.21
161 - CLIP BSD-2610018259.A5 2610018259	£1.75	£2.10
162 - STUD BOLT BSD-2610016560.A13 2610016560	£1.84	£2.21
163 - PIN BSD-2610018262.A4 2610018262	£1.75	£2.10
164 - SCREW BSD-1609203L05.A9 1609203L05	£1.84	£2.21
165 - KNOB BSD-1609203L06.A9 1609203L06	£3.91	£4.69
166 - PLAIN WASHER BSD-2610018263.A5 2610018263	£1.75	£2.10
167 - WASHER BSD-2610018264.A4 2610018264	£1.84	£2.21
168 - GUARD PLATE BSD-1609203L09.A9 1609203L09	£10.61	£12.73
169 - SCREW BSD-2610018265.A5 2610018265	£1.75	£2.10
170 - SPRING WASHER BSD-1609902052.A7 1609902052	£1.84	£2.21
171 - PLAIN WASHER BSD-1609902053.A11 1609902053	£1.84	£2.21
172 - PLAIN WASHER BSD-1609203L10.A9 1609203L10	£1.84	£2.21
173 - NUT BSD-1609203L11.A9 1609203L11	£1.84	£2.21
174 - SLEEVE BSD-2610018266.A4 2610018266	£1.84	£2.21
175 - SCREW BSD-2610997297.A11 2610997297	£1.84	£2.21
176 - WASHER BSD-2610355570.A3 2610355570	£3.72	£4.47
178 - SWITCH COVER BSD-2610018267.A5 2610018267	£8.67	£10.41
180 - HOUSING BSD-2610018268.A4 2610018268	£48.68	£58.42
181 - HEX NUT BSD-1609902684.A7 1609902684	£1.84	£2.21
182 - GUARD PLATE BSD-2610018269.A5 2610018269	£28.59	£34.31
183 - RETAINING RING BSD-2610018270.A4 2610018270	£1.84	£2.21
184 - SCREW BSD-2610018271.A5 2610018271	£2.27	£2.72
185 - RUBBER BUSHING BSD-2610018272.A4 2610018272	£2.74	£3.29
186 - RUBBER BUSHING BSD-2610358846.A11 2610358846	£1.75	£2.10
187 - PROFILE RAIL BSD-2610018275.A5 2610018275	£62.51	£75.01
188 - END STOP BSD-2610018276.A4 2610018276	£1.75	£2.10
189 - SCREW BSD-2610950133.A4 2610950133	£1.75	£2.10
190 - WASHER BSD-2610950135.A13 2610950135	£1.84	£2.21
191 - BOLT BSD-2610950134.A5 2610950134	£1.75	£2.10
192 - STAMPED PART BSD-2610018277.A5 2610018277	£2.27	£2.72
193 - SCREW BSD-2610018278.A4 2610018278	£1.84	£2.21
194 - PROFILE RAIL BSD-2610018279.A5 2610018279	£50.80	£60.96
195 - COVER BSD-2610997218.A9 2610997218	£1.75	£2.10
196 - COVER BSD-2610997216.A4 2610997216	£1.75	£2.10
197 - TABLE TOP BSD-2610018280.A4 2610018280	£120.11	£144.13
198 - FIXING PLATE BSD-2610950086.A5 2610950086	£5.57	£6.68
199 - MOUNTING BRACKET BSD-2610018281.A5 2610018281	£3.91	£4.69
200 - MOUNTING BRACKET BSD-2610018597.A2 2610018597	£5.58	£6.70
201 - SCREW BSD-2610018283.A4 2610018283	£1.84	£2.21
202 - SCREW BSD-2610950087.A4 2610950087	£1.84	£2.21
203 - WASHER BSD-1609902042.A8 1609902042	£1.84	£2.21
204 - NUT BSD-2610304772.A5 2610304772	£1.75	£2.10
205 - END STOP BSD-2610950121.A0 2610950121	£2.80	£3.36
206 - END STOP BSD-2610018284.A5 2610018284	£2.61	£3.13
207 - STICKER BSD-2610018285.A4 2610018285	£2.61	£3.13
208 - POINTER BSD-2610950078.A4 2610950078	£3.91	£4.69
209 - SCREW BSD-2610320339.A7 2610320339	£1.84	£2.21
210 - TABLE TOP BSD-2610018286.A5 2610018286	£126.12	£151.34
211 - SLIDE RAIL BSD-2610018287.A4 2610018287	£10.10	£12.12
212 - CONNECTING CABLE BSD-2610018384.A6 2610018384	£2.16	£2.59
213 - SLIDE RAIL BSD-2610018288.A5 2610018288	£10.10	£12.12
214 - SCREW BSD-2610014697.A18 2610014697	£1.84	£2.21
215 - BUSHING BSD-2610018289.A4 2610018289	£1.84	£2.21
216 - POINTER BSD-2610950062.A9 2610950062	£2.61	£3.13
217 - SCREW BSD-2610355278.A5 2610355278	£5.57	£6.68
218 - MOUNTING BRACKET BSD-2610018337.A5 2610018337	£21.52	£25.83
219 - RIVING KNIFE BSD-2610018338.A4 2610018338	£25.05	£30.06
220 - HOLDING PLATE BSD-2610018339.A5 2610018339	£3.91	£4.69
221 - BOLT BSD-2610018340.A4 2610018340	£1.75	£2.10
222 - DETENT BSD-2610018341.A5 2610018341	£2.27	£2.72
223 - WASHER BSD-2610018342.A4 2610018342	£1.84	£2.21
224 - SCREW BSD-2610998580.A14 2610998580	£1.84	£2.21
225 - NUT BSD-1609902058.A7 1609902058	£1.84	£2.21
226 - BOLT BSD-2610018354.A4 2610018354	£1.84	£2.21
234 - FIXING PLATE BSD-2610018290.A5 2610018290	£28.59	£34.31
235 - HOLDING SPRING BSD-2610011716.A3 2610011716	£1.84	£2.21
236 - STUD BSD-2610997283.A11 2610997283	£1.84	£2.21
237 - SCREW BSD-1609902055.A11 1609902055	£1.84	£2.21
238 - SLIDING RAIL BSD-2610018291.A4 2610018291	£25.05	£30.06
239 - GUIDE BRACKET BSD-2610996944.A2 2610996944	£14.91	£17.89
240 - SPRING RETAINING RING BSD-2610018292.A5 2610018292	£1.75	£2.10
241 - KNOB BSD-2610998585.A4 2610998585	£2.16	£2.59
242 - EDGE GUIDE BSD-2610018293.A4 2610018293	£33.22	£39.87
243 - CLAMPING PLATE BSD-2610018294.A5 2610018294	£2.27	£2.72
244 - SHOULDER SCREW BSD-2610997249.A5 2610997249	£1.84	£2.21
245 - BRACKET BSD-2610950102.A4 2610950102	£4.26	£5.11
246 - LENS BSD-2610950143.A5 2610950143	£2.61	£3.13
247 - SCREW BSD-2610951946.A9 2610951946	£1.75	£2.10
248 - CLAMPING PLATE BSD-2610018295.A4 2610018295	£3.91	£4.69
249 - CLAMPING PIECE BSD-2610997240.A12 2610997240	£2.27	£2.72
250 - ADJUSTING SCREW BSD-2610997245.A11 2610997245	£2.74	£3.29
251 - CLAMPING PLATE BSD-2610950098.A5 2610950098	£2.74	£3.29
252 - PIN BSD-2610997288.A5 2610997288	£5.58	£6.70
253 - CAM BSD-2610996889.A4 2610996889	£12.04	£14.45
254 - LEVER BSD-2610996890.A5 2610996890	£1.84	£2.21
255 - PIN BSD-2610997289.A4 2610997289	£1.75	£2.10
256 - HOUSING BSD-2610950095.A4 2610950095	£21.68	£26.01
257 - HANDLE COVER BSD-2610950094.A5 2610950094	£6.85	£8.22
258 - BOLT BSD-2610950096.A5 2610950096	£1.84	£2.21
259 - BOLT BSD-2610950097.A4 2610950097	£2.27	£2.72
260 - COVER BSD-2610018296.A5 2610018296	£2.16	£2.59
261 - SCREW BSD-2610967422.A1 2610967422	£1.75	£2.10
262 - EDGE GUIDE BSD-2610018297.A4 2610018297	£62.51	£75.01
263 - SCREW BSD-2610303023.A13 2610303023	£1.75	£2.10
264 - WASHER BSD-2610358802.A15 2610358802	£1.84	£2.21
265 - BRACKET BSD-2610018298.A5 2610018298	£6.85	£8.22
266 - RETAINING PIN BSD-2610911577.A16 2610911577	£1.84	£2.21
267 - SPRING BSD-2610996888.A9 2610996888	£1.84	£2.21
268 - EDGE GUIDE BSD-2610950107.A5 2610950107	£16.41	£19.69
269 - COVER BSD-2610018299.A4 2610018299	£1.75	£2.10
270 - SCREW BSD-2610997293.A9 2610997293	£1.84	£2.21
271 - SPRING BSD-2610998593.A9 2610998593	£1.75	£2.10
272 - WASHER BSD-2610018300.A5 2610018300	£1.84	£2.21
273 - END STOP BSD-2610018301.A4 2610018301	£22.76	£27.31
274 - BOX WRENCH BSD-2610996880.A6 2610996880	£5.30	£6.36
275 - INSERT BSD-2610018302.A5 2610018302	£19.91	£23.89
276 - NUT BSD-2610018303.A4 2610018303	£1.84	£2.21
277 - WORKPIECE PUSHER BSD-2610015022.A13 2610015022	£6.85	£8.22
280 - STICKER BSD-1609203L00.A11 1609203L00	£11.87	£14.24
281 - TABLE TOP BSD-2610018304.A5 2610018304	£33.74	£40.49
282 - WASHER BSD-2610029674.A6 2610029674	£1.84	£2.21
284 - END STOP BSD-1609203L38.A14 1609203L38	-
285 - GUIDE BAR BSD-2610018307.A4 2610018307	£19.91	£23.89
286 - CLAMP HANDLE BSD-2610018308.A5 2610018308	£13.12	£15.75
288 - PLAIN WASHER BSD-2610909178.A8 2610909178	£1.84	£2.21
289 - POINTER BSD-2610018309.A4 2610018309	£1.75	£2.10
290 - END STOP BSD-2610997215.A14 2610997215	£1.84	£2.21
291 - SCREW BSD-2610358519.A9 2610358519	£1.75	£2.10
292 - NUT BSD-2610908272.A11 2610908272	£1.75	£2.10
294 - BASE SUPPORT BSD-2610997213.A4 2610997213	£2.94	£3.53
295 - SCREW BSD-2610358832.A3 2610358832	£1.75	£2.10
296 - SCREW BSD-2610015065.A36 2610015065	£1.75	£2.10
297 - BOLT BSD-1609203L08.A9 1609203L08	£1.84	£2.21
298 - CLAMPING PLATE BSD-1609203L04.A9 1609203L04	£2.27	£2.72
299 - ROUND NUT BSD-1609902047.A12 1609902047	£2.74	£3.29
300 - PLAIN WASHER BSD-2610993221.A5 2610993221	£1.84	£2.21
301 - PROFILE RAIL BSD-1609203L07.A9 1609203L07	£21.52	£25.83
302 - KNOB BSD-2610018313.A5 2610018313	£2.74	£3.29
303 - TABLE TOP BSD-2610018315.A4 2610018315	£306.65	£367.98
304 - PROFILE RAIL BSD-2610018316.A5 2610018316	£39.13	£46.96
305 - SCREW BSD-2610018317.A4 2610018317	£1.75	£2.10
306 - END STOP BSD-2610018318.A5 2610018318	£1.84	£2.21
307 - SCREW BSD-2610018319.A4 2610018319	£1.75	£2.10
308 - MOUNTING BRACKET BSD-2610018320.A5 2610018320	£3.72	£4.47
309 - CLAMPING LEVER BSD-2610018321.A4 2610018321	£4.48	£5.37
310 - SPRING BSD-2610018322.A5 2610018322	£1.84	£2.21
311 - PIN BSD-2610018323.A4 2610018323	£1.75	£2.10
312 - LOCKING PIN BSD-2610018324.A5 2610018324	£2.27	£2.72
313 - AXLE BSD-2610018325.A4 2610018325	£1.84	£2.21
314 - SPRING RETAINING RING BSD-2610018326.A5 2610018326	£1.75	£2.10
315 - SCREW BSD-2610018327.A4 2610018327	£1.84	£2.21
316 - HOLDING BRACKET BSD-2610996921.A7 2610996921	£1.84	£2.21
317 - TAPPING SCREW BSD-2610908271.A7 2610908271	£1.75	£2.10
318 - GUSSET BSD-2610996914.A3 2610996914	-
319 - SET SCREW BSD-2610996918.A7 2610996918	£2.27	£2.72
320 - PIN BSD-2610997275.A7 2610997275	£1.75	£2.10
321 - CONNECTING NUT BSD-2610996920.A11 2610996920	£5.01	£6.01
322 - BRACKET BSD-2610018567.A7 2610018567	£5.30	£6.36
323 - CLAMPING PIECE BSD-2610996915.A11 2610996915	£11.87	£14.24
324 - PLAIN WASHER BSD-2610018350.A5 2610018350	£1.84	£2.21
325 - CAP NUT BSD-2610028342.A7 2610028342	£1.84	£2.21
326 - CLAMP BUSHING BSD-2610998567.A2 2610998567	£1.84	£2.21
327 - SCREW BSD-2610015078.A13 2610015078	£1.84	£2.21
328 - GROMMET BSD-2610018579.A2 2610018579	£1.84	£2.21
801 - MOTOR HOUSING BSD-1619PB2532.A2 1619PB2532	-
802 - EDGE GUIDE BSD-2610018329.A5 2610018329	£179.37	£215.24
803 - MITRE FENCE BSD-2610015508.A9 2610015508	£59.53	£71.44
804 - PROTECTIVE COVER BSD-2610018330.A4 2610018330	£59.90	£71.88
808 - NAMEPLATE BSD-2610018358.A0 2610018358	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-2610018332.A8 2610018332	£22.76	£27.31
811 - PROTECTIVE COVER BSD-2610018374.A1 2610018374	£71.84	£86.21
820 - CLAMP HANDLE BSD-2610018333.A4 2610018333	£63.50	£76.20
821 - ROD BSD-2610018334.A5 2610018334	£10.10	£12.12
822 - LOCKING CLAMPS BSD-2610018335.A4 2610018335	£25.05	£30.06

Attribute Name	Value
Brand	Bosch

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Bosch GTS 10 XC / 3601L30490 / --- 230 Volt Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
