Bosch GST 60 PE / 0601582642 / GB 240 Volt Spare Parts

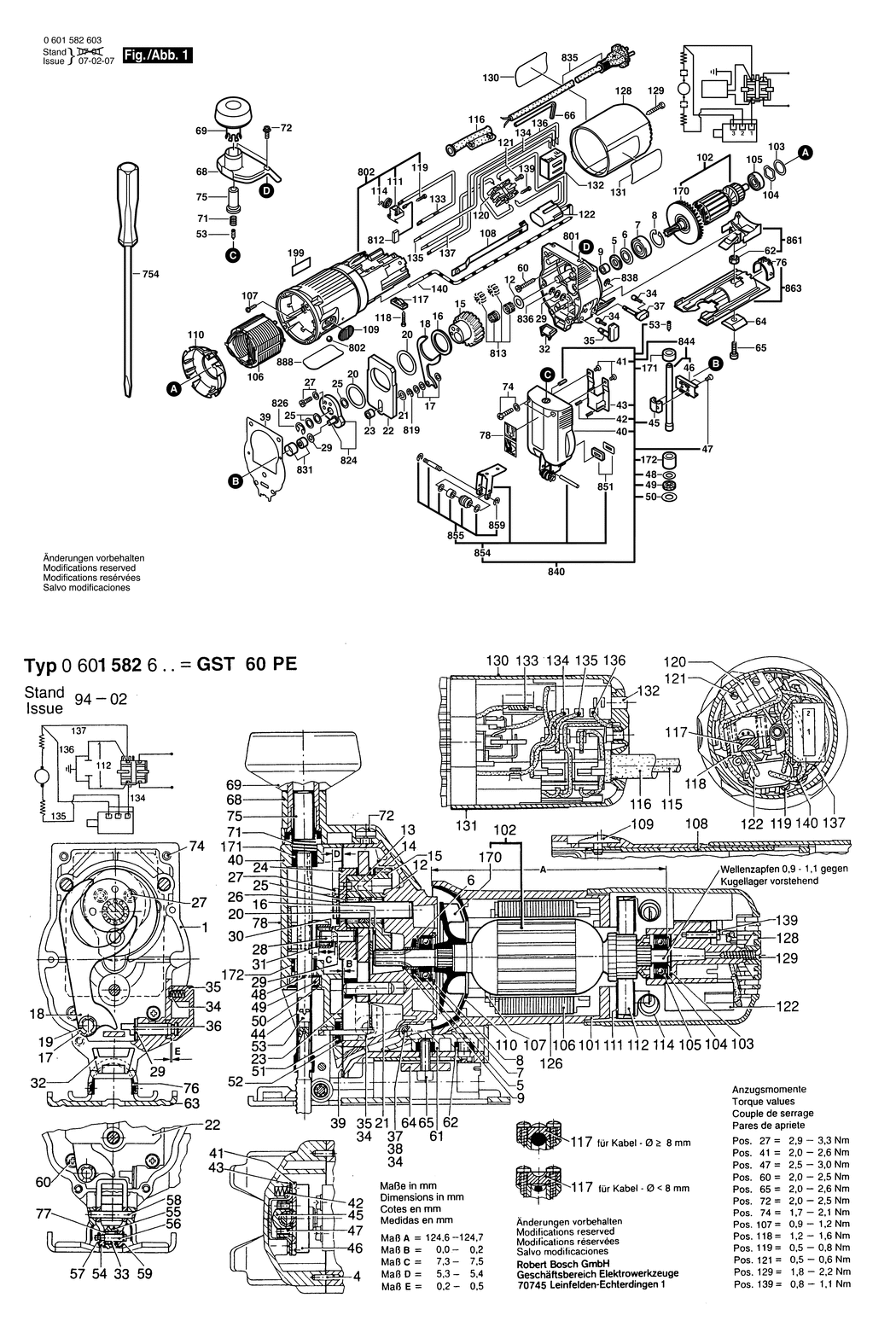

An exploded drawing and listing for the Bosch GST 60 PE / 0601582642 / GB 240 Volt

	Ex VAT	Inc VAT
4 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A158 1903201042	£2.27	£2.72
5 - FELT WASHER BSD-2600108077.A376 2600108077	£1.84	£2.21
6 - CUPPED WASHER BSD-2600500002.A495 2600500002	£1.75	£2.10
7 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A90 2600905021	£8.67	£10.41
8 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A160 2916660008	£2.16	£2.59
9 - RECEPTACLE BSD-2600400008.A632 2600400008	£1.75	£2.10
12 - SHIM 0.5 MM BSD-2600101616.A58 2600101616	-
15 - ECCENTRIC COG WHEEL BSD-1619P02581.A194 1619P02581	£22.76	£27.31
16 - SHIM 1.0 MM BSD-2600102653.A91 2600102653	£1.75	£2.10
17 - SHIM 0.3 MM BSD-2600100515.A64 2600100515	£2.61	£3.13
17 - SHIM 0.5 MM BSD-2600100516.A161 2600100516	£2.27	£2.72
18 - FORK LEVER BSD-2601923004.A145 2601923004	£2.94	£3.53
20 - SHIM 0.5 MM BSD-2600102652.A137 2600102652	£1.84	£2.21
21 - SHIM 0.1 MM BSD-2600100625.A30 2600100625	-
21 - SHIM 0.2 MM BSD-2600100626.A208 2600100626	-
21 - SHIM 0.3 MM BSD-2600100627.A30 2600100627	-
21 - SHIM 0.5 MM BSD-2600100628.A268 2600100628	£1.75	£2.10
22 - COUNTERWEIGHT BSD-2601098003.A178 2601098003	£8.67	£10.41
23 - SPACER SLEEVE BSD-2600309009.A144 2600309009	£1.75	£2.10
25 - SHIM 0.2 MM BSD-2600100575.A106 2600100575	£2.16	£2.59
25 - SHIM 0.3 MM BSD-2600100576.A209 2600100576	-
25 - SHIM 0.5 MM BSD-2600100577.A109 2600100577	£1.84	£2.21
27 - MICROENCAPSULATED SCREW DIN 7985-M4x12MM BSD-2914551176.A17 2914551176	£1.84	£2.21
29 - SHIM 0.5 MM BSD-2600100568.A94 2600100568	£1.84	£2.21
29 - SHIM 1.0 MM BSD-2600100569.A180 2600100569	£1.84	£2.21
29 - SHIM 0.3 MM BSD-2600100607.A350 2600100607	£1.75	£2.10
32 - AIR ELIMINATOR BSD-2602305042.A170 2602305042	£1.84	£2.21
34 - RATCHET CAP BSD-2600590006.A463 2600590006	£1.75	£2.10
35 - ROTARY KNOB BSD-2602026036.A11 2602026036	-
37 - ROTARY KNOB BSD-2602026037.A170 2602026037	£2.80	£3.36
39 - SEAL BSD-2601015050.A141 2601015050	£2.61	£3.13
41 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A169 2603410048	£1.75	£2.10
42 - COMPRESSION SPRING BSD-2604613000.A17 2604613000	£1.84	£2.21
43 - GUIDE BRACKET BSD-1616B00224.A61 1616B00224	£11.32	£13.58
45 - CLAMPING SADDLE BSD-2602329011.A24 2602329011	£4.75	£5.70
46 - SLIDING PIECE 31/35 MM BSD-2601321022.A28 2601321022	-
47 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9 BSD-2603421040.A236 2603421040	£1.84	£2.21
48 - SUPPORTING DISC 0.5 MM BSD-2600112031.A199 2600112031	£1.84	£2.21
49 - SEAL RING 0.5 MM BSD-2600290017.A167 2600290017	£1.75	£2.10
50 - SHIM 0.5 MM BSD-2600101612.A199 2600101612	£1.84	£2.21
53 - CLAMP SCREW BSD-2603400000.A25 2603400000	£4.26	£5.11
60 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A751 2603490024	£1.75	£2.10
62 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A100 2915011007	-
64 - PROFILE BEADING BSD-2601030019.A57 2601030019	£2.74	£3.29
65 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A303 2910141197	£1.84	£2.21
66 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A829 1907950006	£4.48	£5.37
68 - FLANGED FITTING BSD-2605702002.A17 2605702002	£3.99	£4.79
69 - HANDLE BSD-2603231002.A13 2603231002	£14.91	£17.89
71 - COMPRESSION SPRING BSD-2604616001.A4 2604616001	£1.75	£2.10
72 - SCREW AND WASHER ASSEMBLY DIN 7985-M 5x10 MM-4.8 BSD-2914501022.A27 2914501022	£1.84	£2.21
74 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A239 2603410049	£1.75	£2.10
75 - RATCHET SLEEVE BSD-2600421000.A38 2600421000	£7.36	£8.83
76 - SCALE PLATE BSD-2601328044.A23 2601328044	£2.74	£3.29
78 - STICKER BSD-2601110764.A41 2601110764	-
102 - ARMATURE 230-240V BSD-2604010578.A13 2604010578	£48.38	£58.06
103 - SHIM 0.3 MM BSD-2600101023.A371 2600101023	£1.84	£2.21
103 - SHIM 0.2 MM BSD-2600101022.A182 2600101022	£1.84	£2.21
103 - SHIM 0.5 MM BSD-2600101020.A450 2600101020	£1.84	£2.21
104 - SHIM BSD-2600150004.A562 2600150004	£2.27	£2.72
105 - BALL BEARING 7x22x7 BSD-1900905018.A581 1900905018	£19.91	£23.89
106 - FIELD 240V BSD-2604220462.A21 2604220462	£35.42	£42.51
107 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A266 2603435015	£2.27	£2.72
108 - ADJUSTING SLIDE BSD-2602319005.A171 2602319005	£1.84	£2.21
109 - SWITCH HANDLE BSD-2602026015.A14 2602026015	£1.75	£2.10
110 - COVER DISC BSD-2601328045.A278 2601328045	£2.16	£2.59
111 - BRUSH HOLDER BSD-1600A003G4.A182 1600A003G4	£3.72	£4.47
114 - SPIRAL SPRING BSD-2604652009.A15 2604652009	£1.84	£2.21
116 - GROMMET dia8.2-dia9.4x95 MM BSD-2600703026.A26 2600703026	£1.38	£1.66
116 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703027.A9 2600703027	£1.75	£2.10
116 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703028.A35 2600703028	£1.84	£2.21
117 - CABLE CLIP BSD-2601035001.A2302 2601035001	£1.75	£2.10
118 - SCREW 4x16 BSD-2603490022.A2159 2603490022	£1.84	£2.21
119 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A348 2603490017	£2.27	£2.72
120 - SWITCH BSD-2607200674.A127 2607200674	£16.41	£19.69
121 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2366 2603410001	£1.84	£2.21
122 - SUPPRESSION FILTER BSD-2607329104.A60 2607329104	£10.10	£12.12
128 - HOUSING COVER BSD-2600508037.A30 2600508037	£7.36	£8.83
129 - TAPPING SCREW DIN 7982-ST3.9x22C-H BSD-2910601321.A8 2910601321	-
130 - STICKER BSD-2601110763.A6 2601110763	-
131 - STICKER BSD-2601110732.A4 2601110732	-
132 - SPEED GOVERNOR 220-240V BSD-2607230115.A68 2607230115	-
133 - SUPPRESSOR BOX BSD-2604465106.A108 2604465106	£4.26	£5.11
134 - CONNECTING CABLE L=86MM BSD-2604448044.A3 2604448044	£1.75	£2.10
135 - CABLE L=98 MM BSD-2604448045.A195 2604448045	-
136 - CONNECTING CABLE L=128MM BSD-2604448046.A3 2604448046	£1.32	£1.58
137 - CONNECTING CABLE L=125MM BSD-2604448040.A111 2604448040	£2.61	£3.13
139 - TAPPING SCREW DIN 7981-ST2.9x13-C-H BSD-2910611006.A443 2910611006	£1.75	£2.10
140 - INSULATION TUBING BSD-2600409017.A44 2600409017	£1.75	£2.10
170 - FAN BSD-2606610049.A214 2606610049	£2.27	£2.72
171 - SINTERED-METAL BUSHING BSD-2600301046.A218 2600301046	£3.91	£4.69
172 - BUSHING BSD-2600301045.A9 2600301045	£2.94	£3.53
801 - GEAR HOUSING BSD-2605808915.A62 2605808915	£37.72	£45.27
802 - MOTOR HOUSING BSD-2605108904.A60 2605108904	£25.05	£30.06
812 - CARBON-BRUSH SET BSD-2604320912.A172 2604320912	£10.61	£12.73
813 - NEEDLE-ROLLER CAGE BSD-2607001130.A9 2607001130	£5.58	£6.70
819 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A535 2916080007	£2.74	£3.29
824 - ECCENTRIC DISC BSD-2601072901.A148 2601072901	£7.72	£9.27
826 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A30 2916080910	£2.16	£2.59
831 - NEEDLE BEARING BSD-2600917900.A84 2600917900	£8.67	£10.41
835 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05 VV-F BSD-2604460205.A106 2604460205	£28.59	£34.31
836 - LOCKING WASHER DIN 6799-5-FSt BSD-2916080008.A33 2916080008	-
838 - SPRING RETAINING RING BSD-2600116006.A24 2600116006	£1.75	£2.10
840 - GEAR COVER BSD-2605808916.A12 2605808916	-
844 - LIFTING ROD BSD-2600780913.A78 2600780913	-
851 - SEALING PLATE BSD-2601015901.A66 2601015901	£2.94	£3.53
854 - ROLLER LEVER BSD-2601321902.A116 2601321902	-
855 - ROLLER SET BSD-1619P01375.A48 1619P01375	£11.87	£14.24
859 - LOCKING WASHER DIN 6799-2.3 BSD-2916080005.A44 2916080005	-
861 - FAN COVER BSD-2605500900.A133 2605500900	£4.48	£5.37
863 - BASE PLATE BSD-2601016903.A7 2601016903	£16.41	£19.69
888 - NAMEPLATE BSD-160111A3H3.A3893 160111A3H3	£2.74	£3.29
