Bosch GST 60 PAE / 0601582441 / GB 110 Volt Spare Parts

Home Details Reviews Delivery

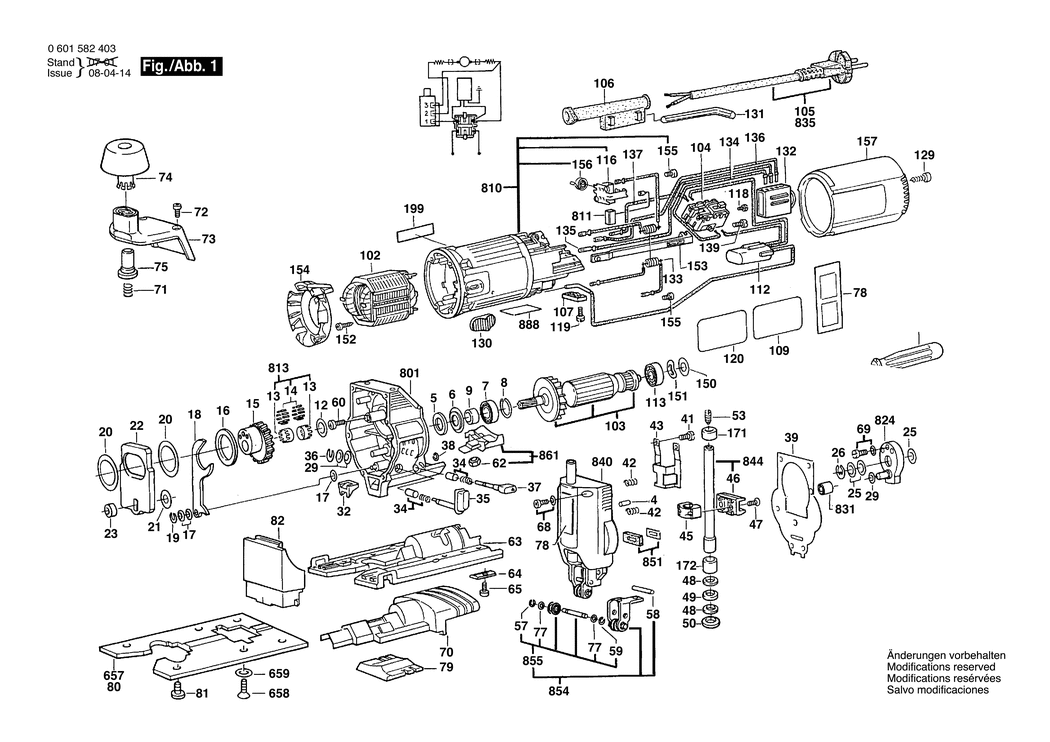

An exploded drawing and listing for the Bosch GST 60 PAE / 0601582441 / GB 110 Volt

	Ex VAT	Inc VAT
4 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A323 1903201042	£2.27	£2.72
5 - FELT WASHER BSD-2600108077.A258 2600108077	£1.84	£2.21
6 - CUPPED WASHER BSD-2600500002.A246 2600500002	£1.75	£2.10
7 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A490 2600905021	£8.67	£10.41
8 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A599 2916660008	£2.16	£2.59
9 - RECEPTACLE BSD-2600400008.A39 2600400008	£1.75	£2.10
12 - SHIM 0.5 MM BSD-2600101616.A415 2600101616	-
13 - NEEDLE-ROLLER CAGE BSD-2600913036.A51 2600913036	£1.75	£2.10
14 - NEEDLE ROLLER 1.5x5.8 MM BSD-2603201037.A149 2603201037	£2.74	£3.29
15 - ECCENTRIC COG WHEEL BSD-1619P02581.A30 1619P02581	£22.76	£27.31
16 - SHIM 1.0 MM BSD-2600102653.A122 2600102653	£1.75	£2.10
17 - SHIM 0.3 MM BSD-2600100515.A218 2600100515	£2.74	£3.29
17 - SHIM 0.5 MM BSD-2600100516.A18 2600100516	£2.27	£2.72
18 - FORK LEVER BSD-2601923004.A98 2601923004	£2.94	£3.53
19 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A255 2916080007	£2.74	£3.29
20 - SHIM 0.5 MM BSD-2600102652.A106 2600102652	£1.84	£2.21
21 - SHIM 0.1 MM BSD-2600100625.A133 2600100625	-
21 - SHIM 0.2 MM BSD-2600100626.A95 2600100626	-
21 - SHIM 0.3 MM BSD-2600100627.A161 2600100627	-
21 - SHIM 0.5 MM BSD-2600100628.A119 2600100628	£1.84	£2.21
22 - COUNTERWEIGHT BSD-2601098003.A30 2601098003	£9.11	£10.93
23 - SPACER SLEEVE BSD-2600309009.A95 2600309009	£1.75	£2.10
25 - SHIM 0.2 MM BSD-2600100575.A259 2600100575	£2.16	£2.59
25 - SHIM 0.3 MM BSD-2600100576.A31 2600100576	-
25 - SHIM 0.5 MM BSD-2600100577.A261 2600100577	£1.84	£2.21
26 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A341 2916080910	£2.16	£2.59
29 - SHIM 0.5 MM BSD-2600100568.A244 2600100568	£1.84	£2.21
29 - SHIM 1.0 MM BSD-2600100569.A31 2600100569	£1.84	£2.21
32 - AIR ELIMINATOR BSD-2602305042.A26 2602305042	£1.84	£2.21
34 - RATCHET CAP BSD-2600590006.A798 2600590006	£1.84	£2.21
35 - ROTARY KNOB BSD-2602026036.A122 2602026036	-
36 - LOCKING WASHER DIN 6799-5-FSt BSD-2916080008.A139 2916080008	-
37 - ROTARY KNOB BSD-2602026037.A62 2602026037	£2.80	£3.36
38 - SPRING RETAINING RING BSD-2600116006.A52 2600116006	£1.75	£2.10
39 - SEAL BSD-2601015050.A19 2601015050	£2.74	£3.29
41 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A272 2603410048	£1.84	£2.21
42 - COMPRESSION SPRING BSD-2604613000.A184 2604613000	£1.84	£2.21
43 - GUIDE BRACKET BSD-1616B00224.A160 1616B00224	£11.32	£13.58
45 - CLAMPING SADDLE BSD-2602329011.A245 2602329011	£4.75	£5.70
46 - SLIDING PIECE 31/35 MM BSD-2601321022.A88 2601321022	-
47 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9 BSD-2603421040.A80 2603421040	£1.84	£2.21
48 - SUPPORTING DISC 0.5 MM BSD-2600112031.A39 2600112031	£1.84	£2.21
49 - SEAL RING 0.5 MM BSD-2600290017.A97 2600290017	£1.75	£2.10
50 - SHIM 0.5 MM BSD-2600101612.A27 2600101612	£1.84	£2.21
53 - CLAMP SCREW BSD-2603400000.A221 2603400000	£4.26	£5.11
57 - LOCKING WASHER BSD-2600116011.A103 2600116011	£2.27	£2.72
58 - STRAIGHT PIN DIN 6325-4M6x24 BSD-2917530101.A13 2917530101	£2.80	£3.36
59 - LOCKING WASHER DIN 6799-2.3 BSD-2916080005.A219 2916080005	-
60 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A479 2603490024	£1.84	£2.21
62 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1189 2915011007	-
63 - BASE PLATE BSD-2608000073.A35 2608000073	£22.76	£27.31
64 - PROFILE BEADING BSD-2601030007.A22 2601030007	£2.64	£3.17
65 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A6 2910141197	£1.84	£2.21
68 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A163 2603410049	£1.84	£2.21
69 - MICROENCAPSULATED SCREW DIN 7985-M4x12MM BSD-2914551176.A135 2914551176	£1.84	£2.21
70 - SUCTION NOZZLE BSD-2605730033.A40 2605730033	£2.45	£2.94
71 - COMPRESSION SPRING BSD-2604616001.A40 2604616001	£1.75	£2.10
72 - SCREW AND WASHER ASSEMBLY DIN 7985-M 5x10 MM-4.8 BSD-2914501022.A17 2914501022	£1.84	£2.21
73 - FLANGED FITTING BSD-2605702002.A11 2605702002	£3.99	£4.79
74 - HANDLE BSD-2603231002.A34 2603231002	£14.91	£17.89
75 - RATCHET SLEEVE BSD-2600421000.A11 2600421000	£7.72	£9.27
77 - SHIM 0.2 MM BSD-2600100032.A62 2600100032	£1.75	£2.10
78 - STICKER BSD-2601110764.A2 2601110764	-
79 - PLATE BSD-2601099013.A30 2601099013	£4.48	£5.37
80 - PLATE BSD-2601099029.A15 2601099029	£4.48	£5.37
81 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A442 2910021116	£2.27	£2.72
82 - COVERING HOOD BSD-2601320022.A32 2601320022	-
102 - FIELD 110-120V BSD-2604220721.A8 2604220721	£31.64	£37.97
103 - ARMATURE 110-115V BSD-2604010577.A12 2604010577	£54.42	£65.30
104 - SWITCH BSD-2607200674.A49 2607200674	£16.41	£19.69
105 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05 VV-F BSD-2604460205.A51 2604460205	£28.59	£34.31
106 - GROMMET dia8.2-dia9.4x95 MM BSD-2600703026.A6 2600703026	£1.38	£1.66
106 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703027.A66 2600703027	£1.84	£2.21
106 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703028.A20 2600703028	£1.84	£2.21
107 - CABLE CLIP BSD-2601035001.A279 2601035001	£1.84	£2.21
109 - STICKER BSD-2601110787.A0 2601110787	-
112 - SUPPRESSION FILTER BSD-2607329104.A122 2607329104	£10.10	£12.12
113 - BALL BEARING 7x22x7 BSD-1900905018.A868 1900905018	£19.91	£23.89
116 - BRUSH HOLDER BSD-2601323022.A90 2601323022	£2.94	£3.53
118 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A149 2603410001	£1.84	£2.21
119 - SCREW 4x16 BSD-2603490022.A1587 2603490022	£1.84	£2.21
120 - STICKER BSD-2601110763.A38 2601110763	-
129 - TAPPING SCREW DIN 7982-ST3.9x22C-H BSD-2910601321.A144 2910601321	-
130 - SWITCH HANDLE BSD-2602026015.A93 2602026015	£1.75	£2.10
131 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A453 1907950006	£4.48	£5.37
132 - SWITCH 100-115V BSD-2607230011.A12 2607230011	£63.50	£76.20
133 - SUPPRESSOR BOX BSD-2604465106.A61 2604465106	£4.26	£5.11
134 - CONNECTING CABLE L=86MM BSD-2604448044.A86 2604448044	£1.75	£2.10
135 - CABLE L=98 MM BSD-2604448045.A84 2604448045	-
136 - CONNECTING CABLE L=128MM BSD-2604448046.A37 2604448046	£1.32	£1.58
137 - CONNECTING CABLE L=125MM BSD-2604448040.A29 2604448040	£2.61	£3.13
139 - TAPPING SCREW DIN 7981-ST2.9x13-C-H BSD-2910611006.A43 2910611006	£1.84	£2.21
150 - SHIM WASHER 0.3 MM BSD-2600101027.A28 2600101027	£1.84	£2.21
150 - SHIM 0.2 MM BSD-2600101022.A491 2600101022	£1.84	£2.21
150 - SHIM 0.5 MM BSD-2600101020.A442 2600101020	£1.84	£2.21
151 - SHIM BSD-2600150004.A548 2600150004	£2.27	£2.72
152 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A257 2603435015	£2.27	£2.72
153 - ADJUSTING SLIDE BSD-2602319005.A163 2602319005	£1.84	£2.21
154 - COVER DISC BSD-2601328045.A300 2601328045	£2.16	£2.59
155 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A310 2603490017	£2.27	£2.72
156 - SPIRAL SPRING BSD-2604652009.A6 2604652009	£1.84	£2.21
157 - HOUSING COVER BSD-2600508037.A43 2600508037	£7.36	£8.83
171 - SINTERED-METAL BUSHING BSD-2600301046.A192 2600301046	£3.91	£4.69
172 - BUSHING BSD-2600301045.A35 2600301045	£2.94	£3.53
658 - COUNTERSUNK-HEAD SCREW BSD-2910861118.A6 2910861118	£1.75	£2.10
659 - O-RING 3.1x1.5 MM BSD-2600210033.A17 2600210033	-
710 - SUPPORT CLAMP BSD-2608598001.A1 2608598001	-
801 - GEAR HOUSING BSD-2605808915.A67 2605808915	£37.72	£45.27
810 - MOTOR HOUSING BSD-2605108904.A41 2605108904	£25.05	£30.06
811 - CARBON-BRUSH SET BSD-2604320912.A196 2604320912	£10.61	£12.73
824 - ECCENTRIC DISC BSD-2601072901.A129 2601072901	£7.72	£9.27
831 - NEEDLE BEARING BSD-2600917900.A86 2600917900	£9.11	£10.93
840 - GEAR COVER BSD-2605808916.A8 2605808916	-
844 - LIFTING ROD BSD-2600780913.A81 2600780913	-
851 - SEALING PLATE BSD-2601015901.A50 2601015901	£2.94	£3.53
854 - ROLLER LEVER BSD-2601321902.A125 2601321902	-
855 - ROLLER SET BSD-1619P01375.A38 1619P01375	£11.87	£14.24
861 - FAN COVER BSD-2605500900.A110 2605500900	£4.48	£5.37
888 - NAMEPLATE BSD-160111A3H3.A3915 160111A3H3	£2.74	£3.29
