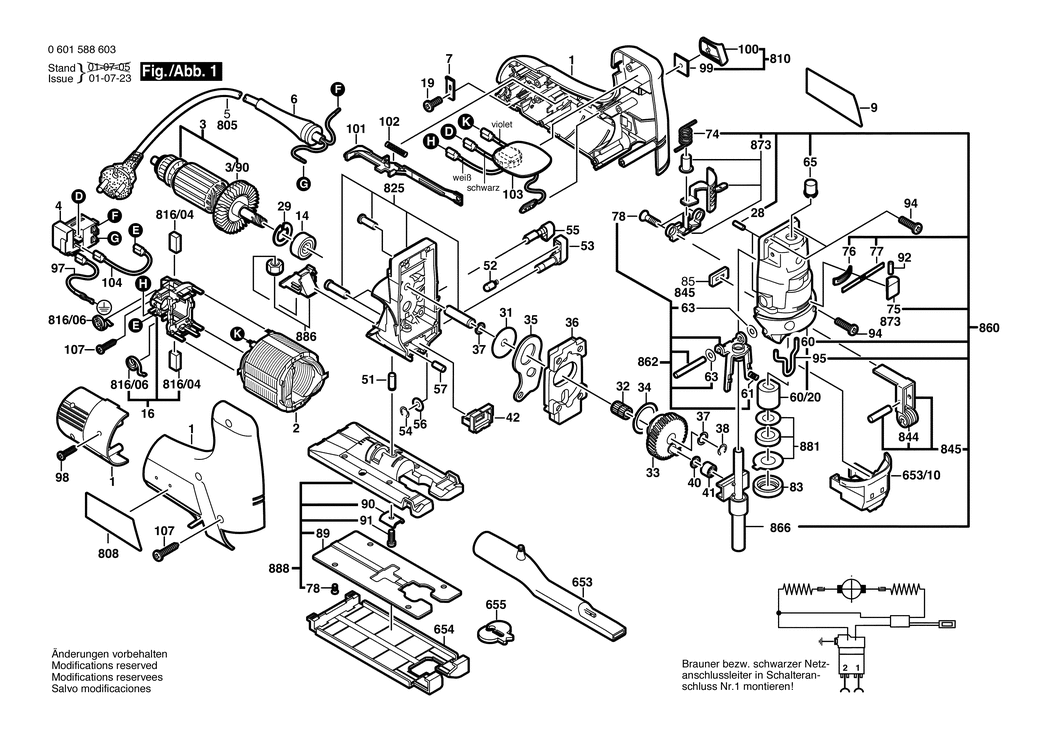

1 - HOUSING SECTION
BSD-2605104557.A4
2605104557
|
-
|
|
|
|
2 - FIELD 230-240V
BSD-2604220584.A44
2604220584
|
£21.68
|
£26.01
|
|
|
3 - ARMATURE 230-240V
BSD-2604011115.A12
2604011115
|
-
|
|
|
|
3/90 - FAN
BSD-2606610089.A90
2606610089
|
£5.57
|
£6.68
|
|
|
4 - SWITCH
BSD-2607200345.A10
2607200345
|
£27.31
|
£32.77
|
|
|
5 - POWER SUPPLY CORD CH 4.15m 2 x 1.0mm H05RN-F
BSD-2604460221.A2
2604460221
|
-
|
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2600703017.A342
2600703017
|
£2.74
|
£3.29
|
|
|
7 - FASTENING CLAMP
BSD-2601302011.A11
2601302011
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601116505.A2
2601116505
|
-
|
|
|
|
14 - BALL BEARING 9x24x7
BSD-2600905095.A176
2600905095
|
£12.04
|
£14.45
|
|
|
16 - BRUSH PLATE
BSD-2605807082.A7
2605807082
|
£27.23
|
£32.68
|
|
|
19 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A119
2603490021
|
£1.84
|
£2.21
|
|
|
28 - NEEDLE ROLLER DIN 5402-A3x11.8-G2
BSD-1903201042.A171
1903201042
|
£2.27
|
£2.72
|
|
|
29 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A182
2916660008
|
£2.16
|
£2.59
|
|
|
31 - SHIM 0.5 MM
BSD-2600101048.A139
2600101048
|
£1.84
|
£2.21
|
|
|
32 - NEEDLE-ROLLER ASSEMBLY
BSD-2600913040.A129
2600913040
|
£5.87
|
£7.04
|
|
|
33 - ECCENTRIC COG WHEEL
BSD-2606320101.A45
2606320101
|
£28.59
|
£34.31
|
|
|
34 - SHIM 0.5 MM
BSD-2600102614.A37
2600102614
|
£1.38
|
£1.66
|
|
|
35 - FORK LEVER
BSD-2601923010.A49
2601923010
|
£2.52
|
£3.02
|
|
|
36 - COUNTERWEIGHT
BSD-2601098032.A37
2601098032
|
£15.65
|
£18.78
|
|
|
37 - SHIM 0.3 MM
BSD-2600101047.A38
2600101047
|
£1.84
|
£2.21
|
|
|
38 - LOCKING WASHER DIN 6799-6-FST
BSD-2916080909.A130
2916080909
|
£1.84
|
£2.21
|
|
|
40 - INTERMEDIATE RING
BSD-2600200038.A30
2600200038
|
£1.84
|
£2.21
|
|
|
41 - NEEDLE BEARING
BSD-2600917900.A47
2600917900
|
£9.11
|
£10.93
|
|
|
42 - AIR ELIMINATOR
BSD-2602305048.A19
2602305048
|
£1.38
|
£1.66
|
|
|
51 - BEARING BOLT
BSD-2603105053.A30
2603105053
|
£1.75
|
£2.10
|
|
|
52 - RATCHET CAP
BSD-2600590006.A429
2600590006
|
£1.84
|
£2.21
|
|
|
53 - ROTARY KNOB
BSD-2602026063.A31
2602026063
|
£3.51
|
£4.21
|
|
|
54 - LOCKING WASHER 5 DIN 6799
BSD-2916080908.A34
2916080908
|
£1.84
|
£2.21
|
|
|
55 - ROTARY KNOB
BSD-2602026065.A29
2602026065
|
£2.27
|
£2.72
|
|
|
56 - SHIM 0.3 MM
BSD-2600100607.A370
2600100607
|
£1.75
|
£2.10
|
|
|
57 - STRAIGHT PIN 17.35+0.1 MM
BSD-2603100069.A19
2603100069
|
£1.75
|
£2.10
|
|
|
60 - GEAR COVER
BSD-2605808081.A50
2605808081
|
-
|
|
|
|
60/20 - BUSHING
BSD-2600301037.A33
2600301037
|
£1.84
|
£2.21
|
|
|
61 - COMPRESSION SPRING
BSD-2604610042.A52
2604610042
|
£2.45
|
£2.94
|
|
|
63 - SHIM
BSD-2600101095.A44
2600101095
|
£1.75
|
£2.10
|
|
|
65 - SEAL
BSD-2601015064.A46
2601015064
|
£2.33
|
£2.80
|
|
|
74 - TORSION SPRING
BSD-2604651011.A9
2604651011
|
£2.80
|
£3.36
|
|
|
75 - CAP-HANDLE
BSD-2600591010.A40
2600591010
|
£2.74
|
£3.29
|
|
|
76 - SEAL
BSD-2601015065.A19
2601015065
|
£2.45
|
£2.94
|
|
|
77 - COVER PLATE
BSD-2601016079.A31
2601016079
|
£5.30
|
£6.36
|
|
|
78 - THREAD-FORMING TAP. SCREW
BSD-2603421014.A32
2603421014
|
£1.84
|
£2.21
|
|
|
83 - RETAINING SNAP RING
BSD-2600202037.A48
2600202037
|
£2.64
|
£3.17
|
|
|
85 - SEALING PLATE
BSD-2601015057.A28
2601015057
|
£3.80
|
£4.56
|
|
|
89 - WORK BOARD
BSD-2601098082.A42
2601098082
|
-
|
|
|
|
90 - PROFILE BEADING
BSD-2601030022.A22
2601030022
|
£2.74
|
£3.29
|
|
|
91 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8
BSD-2910141197.A318
2910141197
|
£1.84
|
£2.21
|
|
|
92 - SLOTTED SPRING PIN 2x6 DIN 1481
BSD-2917760034.A38
2917760034
|
£1.75
|
£2.10
|
|
|
94 - THREAD-FORMING TAP. SCREW M4x12 MM
BSD-2603410049.A258
2603410049
|
£1.84
|
£2.21
|
|
|
95 - PROTECTING COVER
BSD-2603101046.A33
2603101046
|
£1.84
|
£2.21
|
|
|
97 - EARTH CONDUCTOR
BSD-2604448211.A20
2604448211
|
£1.75
|
£2.10
|
|
|
98 - TORX OVAL-HEAD SCREW 3x18
BSD-2603490018.A742
2603490018
|
£1.75
|
£2.10
|
|
|
99 - DUST PROTECTION
BSD-2601010062.A14
2601010062
|
£2.74
|
£3.29
|
|
|
100 - SWITCH HANDLE
BSD-2602026066.A9
2602026066
|
-
|
|
|
|
101 - ADJUSTING SLIDE
BSD-2601099072.A10
2601099072
|
£3.51
|
£4.21
|
|
|
102 - COMPRESSION SPRING
BSD-2604611033.A75
2604611033
|
£2.16
|
£2.59
|
|
|
103 - SPEED GOVERNOR 230V
BSD-2607230042.A3
2607230042
|
-
|
|
|
|
104 - CONNECTING CABLE L=63 MM
BSD-2604448104.A22
2604448104
|
£2.45
|
£2.94
|
|
|
107 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A765
2603490024
|
£1.84
|
£2.21
|
|
|
653 - SUCTION NOZZLE
BSD-2605730038.A28
2605730038
|
-
|
|
|
|
653/10 - COVERING HOOD
BSD-2605510159.A47
2605510159
|
£1.95
|
£2.34
|
|
|
654 - PAD
BSD-2608000184.A45
2608000184
|
-
|
|
|
|
655 - SPLINTERING PROTECTOR
BSD-2601016065.A154
2601016065
|
£5.57
|
£6.68
|
|
|
808 - REFERENCE PLATE
BSD-2601116072.A0
2601116072
|
-
|
|
|
|
810 - SWITCH HANDLE
BSD-2602026902.A14
2602026902
|
-
|
|
|
|
816/04 - CARBON-BRUSH SET
BSD-2604320914.A66
2604320914
|
-
|
|
|
|
816/06 - SPIRAL SPRING
BSD-1604652013.A192
1604652013
|
£1.84
|
£2.21
|
|
|
825 - GEAR HOUSING
BSD-2605806896.A44
2605806896
|
£49.16
|
£58.99
|
|
|
844 - ROLLER SET
BSD-2600326904.A8
2600326904
|
-
|
|
|
|
845 - ROLLER LEVER
BSD-2601321904.A28
2601321904
|
-
|
|
|
|
860 - GEAR COVER
BSD-2605808927.A28
2605808927
|
£103.14
|
£123.77
|
|
|
862 - GUIDE BRACKET
BSD-2601322900.A33
2601322900
|
-
|
|
|
|
866 - LIFTING ROD
BSD-2600780911.A23
2600780911
|
-
|
|
|
|
873 - HOLDING PLATE
BSD-2601990906.A35
2601990906
|
£9.97
|
£11.96
|
|
|
881 - SEAL KIT
BSD-2600290902.A8
2600290902
|
£3.51
|
£4.21
|
|
|
886 - FAN COVER
BSD-2605500908.A6
2605500908
|
-
|
|
|
|
888 - BASE PLATE
BSD-2608000920.A16
2608000920
|
-
|
|
|
