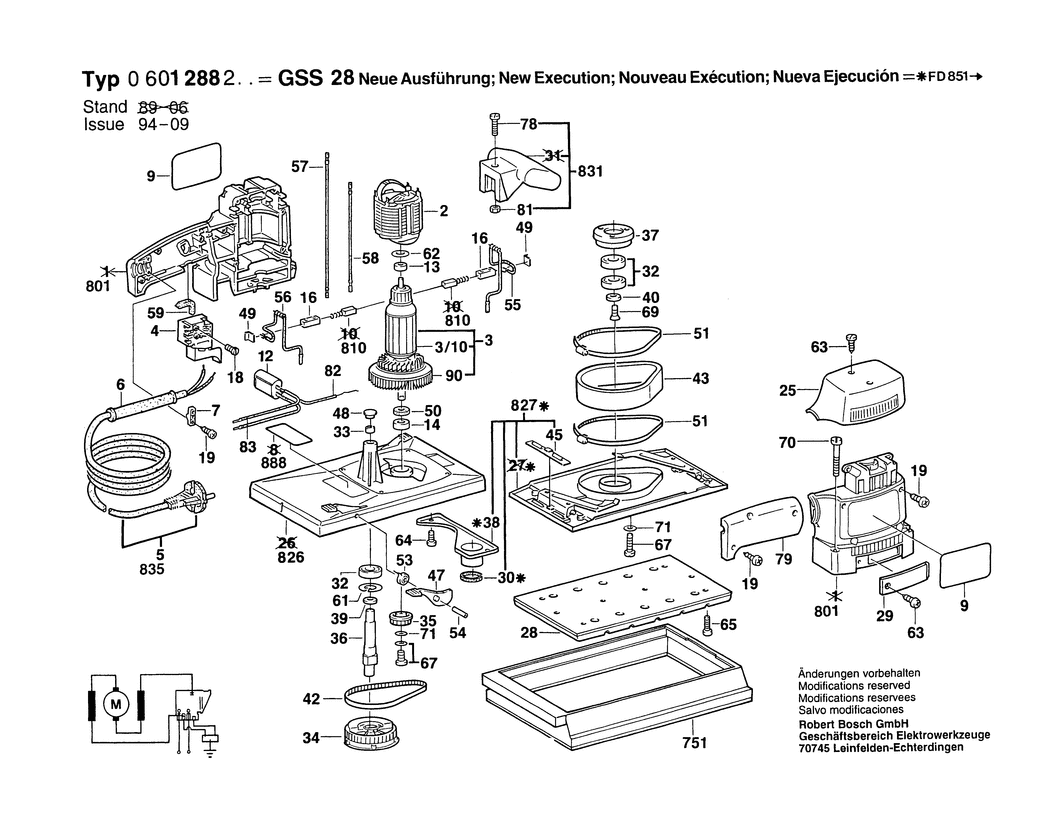

2 - FIELD 220-230V
BSD-2604220445.A28
2604220445
|
£28.59
|
£34.31
|
|
|
3 - ARMATURE 220-230V
BSD-2604010911.A0
2604010911
|
-
|
|
|
|
3/10 - FAN
BSD-1606610116.A3
1606610116
|
£2.64
|
£3.17
|
|
|
4 - SWITCH
BSD-2607200260.A13
2607200260
|
£11.87
|
£14.24
|
|
|
5 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05 VV-F
BSD-1604460427.A31
1604460427
|
£12.04
|
£14.45
|
|
|
6 - GROMMET dia7 MM
BSD-2600703007.A82
2600703007
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2601035001.A91
2601035001
|
£1.84
|
£2.21
|
|
|
9 - STICKER
BSD-2601118588.A2
2601118588
|
-
|
|
|
|
12 - SUPPRESSION CAPACITOR
BSD-2607329115.A9
2607329115
|
-
|
|
|
|
13 - GROOVE BALL BEARING 625-2Z DIN 625
BSD-1900905015.A262
1900905015
|
£30.42
|
£36.51
|
|
|
14 - GROOVE BALL BEARING 8x22x7
BSD-1900905041.A35
1900905041
|
£13.78
|
£16.54
|
|
|
16 - BRUSH HOLDER
BSD-2604330016.A18
2604330016
|
-
|
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A267
2603410001
|
£1.84
|
£2.21
|
|
|
19 - SCREW 4x16
BSD-2603490022.A1482
2603490022
|
£1.84
|
£2.21
|
|
|
25 - HOUSING COVER
BSD-2605500106.A6
2605500106
|
-
|
|
|
|
28 - SANDER PLATE
BSD-2608000126.A2
2608000126
|
-
|
|
|
|
29 - COVER PLATE
BSD-2601012009.A0
2601012009
|
-
|
|
|
|
30 - FELT STRIP
BSD-2601005015.A6
2601005015
|
-
|
|
|
|
32 - GROOVE BALL BEARING 12x28x8
BSD-2600905024.A6
2600905024
|
-
|
|
|
|
33 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A698
2600917003
|
£2.94
|
£3.53
|
|
|
34 - TOOTHED BELT WHEEL Z=68
BSD-2606625006.A6
2606625006
|
-
|
|
|
|
35 - TOOTHED BELT WHEEL Z=28
BSD-2606625005.A5
2606625005
|
-
|
|
|
|
36 - ECCENTRIC SHAFT
BSD-2606110000.A5
2606110000
|
-
|
|
|
|
37 - BEARING FLANGE
BSD-2600232000.A6
2600232000
|
-
|
|
|
|
38 - PROTECTIVE COVER
BSD-2605510014.A6
2605510014
|
-
|
|
|
|
39 - SHIM WASHER
BSD-2600101014.A6
2600101014
|
-
|
|
|
|
40 - CONICAL SPRING WASHER
BSD-1600114038.A32
1600114038
|
-
|
|
|
|
42 - TOOTHED BELT Z= 84
BSD-2604736003.A8
2604736003
|
£5.57
|
£6.68
|
|
|
43 - SEAL RING
BSD-2600306003.A3
2600306003
|
-
|
|
|
|
45 - PRESSURE BAR
BSD-2602329022.A37
2602329022
|
-
|
|
|
|
47 - CONTROL LEVER
BSD-2602098011.A12
2602098011
|
-
|
|
|
|
48 - PLUG
BSD-2600591004.A6
2600591004
|
-
|
|
|
|
49 - ANGLE PIECE
BSD-2601330002.A5
2601330002
|
-
|
|
|
|
50 - FELT WASHER
BSD-2600108004.A5
2600108004
|
-
|
|
|
|
51 - HOSE CLAMP
BSD-2601316001.A6
2601316001
|
-
|
|
|
|
53 - SPIRAL SPRING
BSD-1604652004.A215
1604652004
|
£2.74
|
£3.29
|
|
|
54 - SPLIT PIN
BSD-2604681001.A11
2604681001
|
-
|
|
|
|
55 - SUPPRESSOR BOX
BSD-2604465029.A7
2604465029
|
-
|
|
|
|
56 - SUPPRESSOR BOX
BSD-2604465033.A6
2604465033
|
-
|
|
|
|
57 - CABLE L = 194 MM
BSD-2604448011.A10
2604448011
|
-
|
|
|
|
58 - CONNECTING CABLE L=154 MM
BSD-2604448000.A108
2604448000
|
-
|
|
|
|
59 - DAMPING PLATE
BSD-2601022000.A466
2601022000
|
£1.75
|
£2.10
|
|
|
61 - SPRING RETAINING RING DIN 472-28x1.2 MM
BSD-2916660011.A69
2916660011
|
£1.75
|
£2.10
|
|
|
62 - O-RING 15x2 MM
BSD-1900210012.A77
1900210012
|
£1.84
|
£2.21
|
|
|
63 - TORX OVAL-HEAD SCREW 4x8
BSD-2603490020.A34
2603490020
|
£1.84
|
£2.21
|
|
|
64 - THREAD-FORMING TAP. SCREW DIN 7500 C M 3x8 MM
BSD-2603490003.A3
2603490003
|
-
|
|
|
|
65 - THREAD-FORMING TAP. SCREW
BSD-2603450008.A8
2603450008
|
-
|
|
|
|
67 - SCREW AND WASHER ASSEMBLY M 4x12 MM
BSD-2914501028.A7
2914501028
|
£1.75
|
£2.10
|
|
|
69 - COUNTERSUNK-HEAD SCREW
BSD-2910861118.A43
2910861118
|
£1.75
|
£2.10
|
|
|
70 - SOCKET HEAD CAP SCREW DIN 84-BM4x40-8.8
BSD-2910021138.A46
2910021138
|
£2.74
|
£3.29
|
|
|
71 - PLAIN WASHER DIN 7349-4.3-ST
BSD-2916201002.A8
2916201002
|
£1.38
|
£1.66
|
|
|
77 - SUPPORT CLAMP
BSD-2601314002.A34
2601314002
|
-
|
|
|
|
78 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8
BSD-2910011128.A309
2910011128
|
£1.84
|
£2.21
|
|
|
79 - HANDLE COVER
BSD-2605500107.A4
2605500107
|
-
|
|
|
|
81 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A600
2915011005
|
£1.84
|
£2.21
|
|
|
82 - CABLE
BSD-2604448003.A171
2604448003
|
-
|
|
|
|
83 - CONNECTING CABLE L=136MM
BSD-2604448049.A5
2604448049
|
-
|
|
|
|
90 - FAN
BSD-2606610026.A17
2606610026
|
-
|
|
|
|
750 - PUNCHING TOOL
BSD-2608190009.A1
2608190009
|
-
|
|
|
|
751 - OUTER RIM
BSD-2608005901.A21
2608005901
|
-
|
|
|
|
774 - DUST BAG
BSD-2605411900.A37
2605411900
|
£23.88
|
£28.65
|
|
|
801 - HOUSING SECTION
BSD-2605104894.A2
2605104894
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321904.A46
2604321904
|
£10.61
|
£12.73
|
|
|
826 - PIVOT PLATE
BSD-2608000900.A8
2608000900
|
-
|
|
|
|
827 - SWING-PLATE
BSD-2608000903.A3
2608000903
|
-
|
|
|
|
831 - HANDLE
BSD-1605133036.A6
1605133036
|
£7.36
|
£8.83
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A617
160111A3H3
|
£2.74
|
£3.29
|
|
