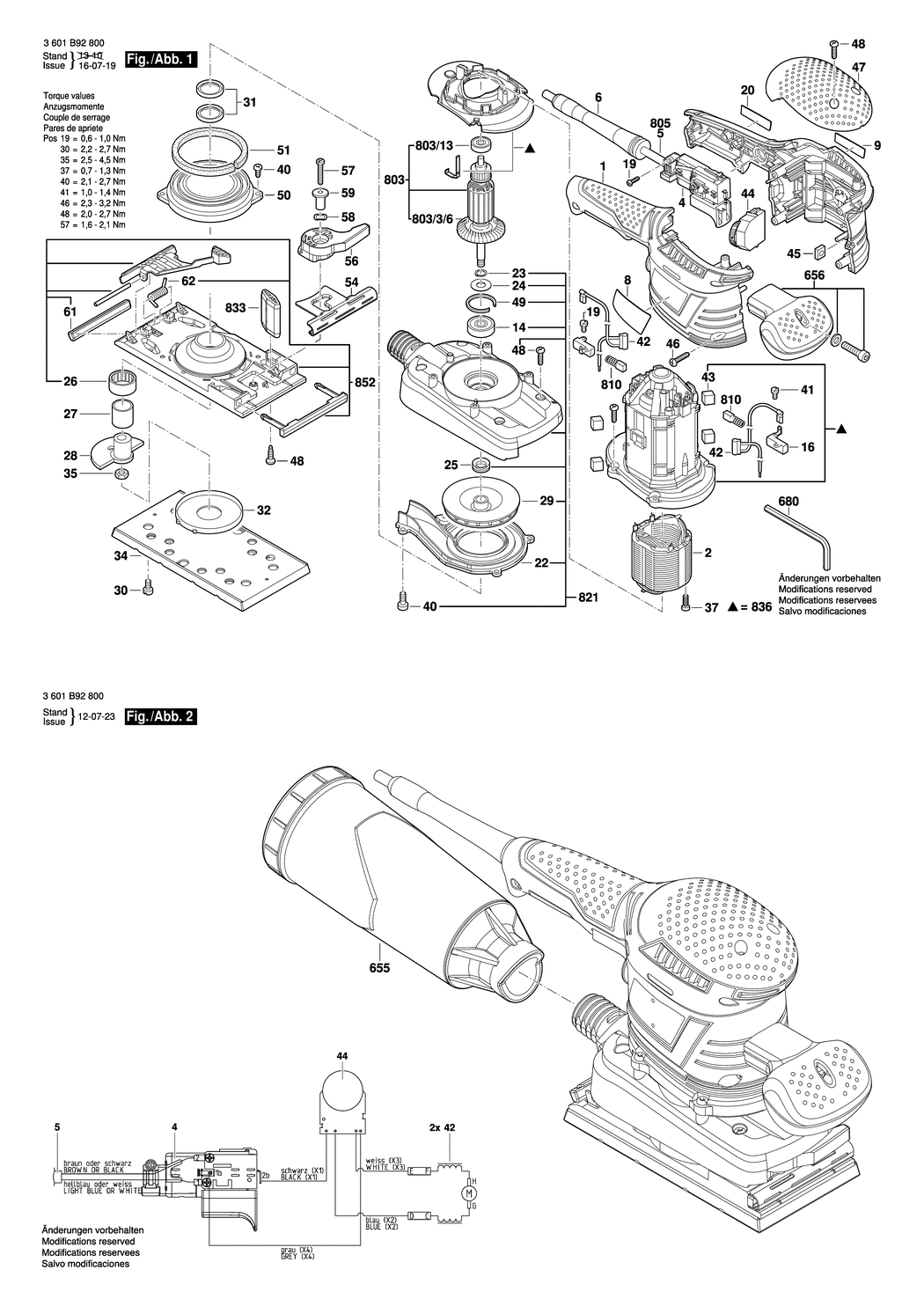

1 - HOUSING SECTION
BSD-2605105964.A10
2605105964
|
£37.27
|
£44.72
|
|
|
2 - FIELD 230-240V
BSD-2604220747.A1
2604220747
|
£28.68
|
£34.41
|
|
|
4 - SWITCH
BSD-2607200688.A21
2607200688
|
£16.41
|
£19.69
|
|
|
5 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-2604460244.A49
2604460244
|
£28.59
|
£34.31
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2600703017.A189
2600703017
|
£2.74
|
£3.29
|
|
|
8 - NAMEPLATE
BSD-2601112263.A0
2601112263
|
£2.74
|
£3.29
|
|
|
9 - MANUFACTURER'S NAMEPLATE GSS 230 AVE
BSD-2601112337.A1
2601112337
|
£2.61
|
£3.13
|
|
|
14 - GROOVE BALL BEARING
BSD-1619P00290.A2
1619P00290
|
£6.85
|
£8.22
|
|
|
16 - BRUSH HOLDER
BSD-2604337003.A122
2604337003
|
£2.16
|
£2.59
|
|
|
19 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A11
2603490017
|
£2.27
|
£2.72
|
|
|
20 - REFERENCE PLATE
BSD-2601111477.A9
2601111477
|
£2.74
|
£3.29
|
|
|
22 - SUCTION PIECE
BSD-2601328094.A5
2601328094
|
£3.72
|
£4.47
|
|
|
23 - SPRING RETAINING RING DIN 471 9x1MM
BSD-2916640006.A80
2916640006
|
£1.84
|
£2.21
|
|
|
24 - SEALING DISK
BSD-2600590013.A6
2600590013
|
£2.16
|
£2.59
|
|
|
25 - V-RING
BSD-2600290030.A46
2600290030
|
£2.94
|
£3.53
|
|
|
26 - NEEDLE BEARING
BSD-2600910012.A9
2600910012
|
£5.30
|
£6.36
|
|
|
27 - INNER RING
BSD-2600400035.A0
2600400035
|
£10.10
|
£12.12
|
|
|
28 - ECCENTRIC
BSD-2602210045.A1
2602210045
|
£22.60
|
£27.12
|
|
|
29 - FAN
BSD-2606610085.A21
2606610085
|
£9.11
|
£10.93
|
|
|
30 - THREAD-FORMING TAP. SCREW M4x8
BSD-2603410048.A187
2603410048
|
£1.75
|
£2.10
|
|
|
31 - SHAFT SEAL
BSD-2600290031.A1
2600290031
|
£2.80
|
£3.36
|
|
|
32 - SEALING COVER
BSD-2600500019.A11
2600500019
|
£1.75
|
£2.10
|
|
|
34 - SANDER PLATE
BSD-2600009019.A1
2600009019
|
£35.42
|
£42.51
|
|
|
35 - HEX NUT DIN 439-BM8-04
BSD-2915051107.A39
2915051107
|
£1.84
|
£2.21
|
|
|
37 - TAPPING SCREW
BSD-2603435086.A111
2603435086
|
£1.84
|
£2.21
|
|
|
40 - THREAD-FORMING TAP. SCREW
BSD-2603435042.A67
2603435042
|
£1.75
|
£2.10
|
|
|
41 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A10
2603490017
|
£2.27
|
£2.72
|
|
|
42 - SUPPRESSOR BOX
BSD-2604465115.A12
2604465115
|
£7.72
|
£9.27
|
|
|
43 - DAMPING ELEMENT
BSD-2603203041.A9
2603203041
|
£1.75
|
£2.10
|
|
|
44 - SPEED GOVERNOR 230-240V
BSD-1607233556.A8
1607233556
|
£39.13
|
£46.96
|
|
|
45 - SQUARE NUT DIN 562-M6-04
BSD-2915121006.A69
2915121006
|
£2.61
|
£3.13
|
|
|
46 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A19
2603490023
|
£1.84
|
£2.21
|
|
|
47 - HOUSING COVER
BSD-2605500208.A20
2605500208
|
£12.64
|
£15.17
|
|
|
48 - SCREW 4x16
BSD-2603490022.A3199
2603490022
|
£1.84
|
£2.21
|
|
|
49 - PUSHER
BSD-2601035002.A35
2601035002
|
£2.27
|
£2.72
|
|
|
50 - SUCTION SOCKET
BSD-2601328054.A28
2601328054
|
£3.72
|
£4.47
|
|
|
51 - FELT STRIP
BSD-2601005017.A0
2601005017
|
£1.75
|
£2.10
|
|
|
54 - TENSIONING BRACKET
BSD-2609200378.A1
2609200378
|
£17.22
|
£20.67
|
|
|
56 - LEVER
BSD-2601901020.A6
2601901020
|
£5.87
|
£7.04
|
|
|
57 - THREAD-FORMING TAP. SCREW
BSD-2603410051.A38
2603410051
|
£1.84
|
£2.21
|
|
|
58 - SPRING WASHER
BSD-2600100713.A14
2600100713
|
£1.84
|
£2.21
|
|
|
59 - GUIDE BUSHING
BSD-2600499078.A5
2600499078
|
£2.16
|
£2.59
|
|
|
61 - PRESSURE BAR
BSD-2601014020.A6
2601014020
|
£4.26
|
£5.11
|
|
|
62 - COILED SPRING
BSD-2604651029.A9
2604651029
|
£2.94
|
£3.53
|
|
|
655 - DUST CHAMBER
BSD-2605411228.A11
2605411228
|
£47.95
|
£57.54
|
|
|
656 - AUXILIARY HANDLE
BSD-2602026175.A18
2602026175
|
£17.22
|
£20.67
|
|
|
680 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A901
1907950006
|
£4.48
|
£5.37
|
|
|
803 - ARMATURE 230-240V
BSD-2604011951.A1
2604011951
|
£75.79
|
£90.95
|
|
|
803/3/6 - FAN
BSD-2606610076.A41
2606610076
|
£3.91
|
£4.69
|
|
|
803/13 - GROOVE BALL BEARING 7x19x6
BSD-1610905025.A428
1610905025
|
£6.85
|
£8.22
|
|
|
810 - CARBON BRUSH
BSD-1607014117.A198
1607014117
|
£10.61
|
£12.73
|
|
|
821 - SUCTION HOOD
BSD-2605510903.A0
2605510903
|
£68.42
|
£82.10
|
|
|
833 - SPRING
BSD-2608005902.A42
2608005902
|
£16.41
|
£19.69
|
|
|
836 - MOTOR HOUSING
BSD-2605105966.A19
2605105966
|
£25.05
|
£30.06
|
|
|
852 - SWING-PLATE
BSD-2601099901.A0
2601099901
|
£72.18
|
£86.62
|
|
