Bosch GSR Mx2Drive / 3601JA2100 / EU 3.6 Volt Spare Parts

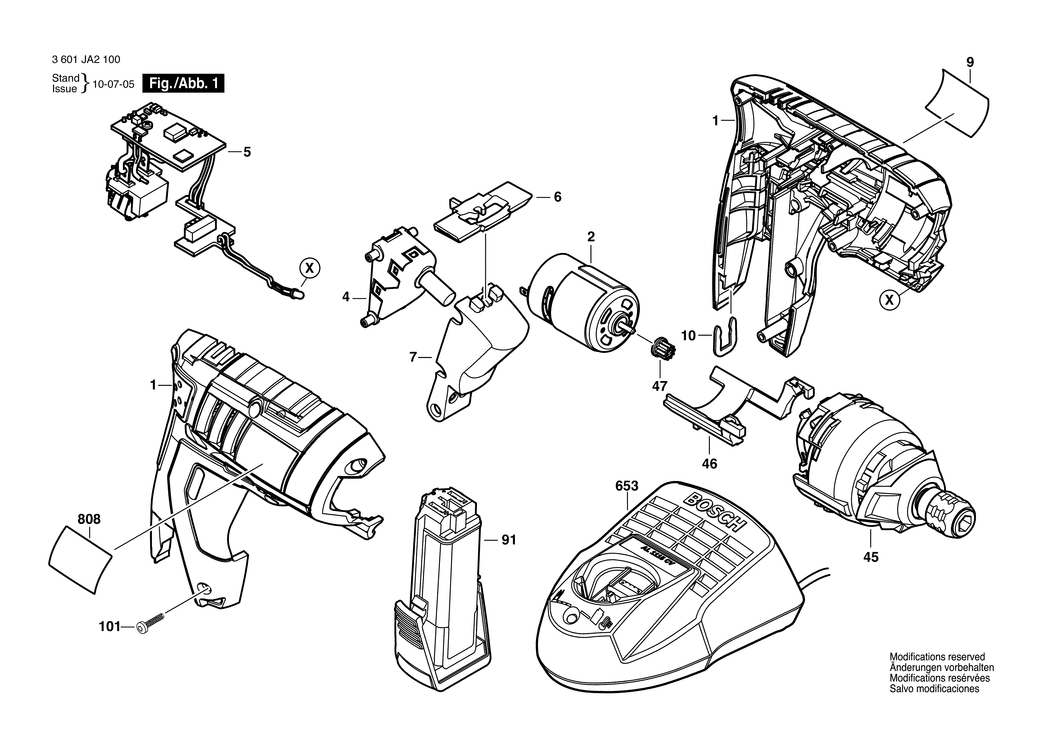

An exploded drawing and listing for the Bosch GSR Mx2Drive / 3601JA2100 / EU 3.6 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609100855.A0 2609100855	£11.78	£14.13
2 - DC MOTOR 3.6V BSD-1607022604.A0 1607022604	£17.58	£21.09
4 - SIGNAL TRANSMITTER BSD-2607202084.A0 2607202084	£5.26	£6.31
5 - ELECTRONICS MODULE BSD-1607233410.A0 1607233410	£39.13	£46.96
6 - BUTTON BSD-2609100852.A0 2609100852	£1.84	£2.21
7 - TRIGGER BSD-2609100853.A0 2609100853	£1.74	£2.09
9 - MANUFACTURER'S NAMEPLATE GSR Mx2Drive BSD-2609132831.A0 2609132831	£2.74	£3.29
10 - CLIP BSD-2609110838.A1 2609110838	£1.84	£2.21
45 - GEAR BOX BSD-2609199282.A0 2609199282	£39.13	£46.96
46 - LINKAGE BSD-2609100854.A0 2609100854	£1.84	£2.21
47 - DRIVE PINION BSD-2609111017.A0 2609111017	£2.94	£3.53
91 - BATTERY PACK BSD-1607A35063.A0 1607A35063	£39.13	£46.96
101 - TORX OVAL-HEAD SCREW BSD-2603415206.A9 2603415206	£1.84	£2.21
653 - FAST CHARGER EU AL 1115 CV 230/3.6-12V. 1h BSD-2607225513.A16 2607225513	£37.72	£45.27
653 - FAST CHARGER GB AL 1115 CV 230/3.6-12V. 1h BSD-2607225515.A5 2607225515	£50.80	£60.96
808 - NAMEPLATE BSD-2609135903.A0 2609135903	£2.61	£3.13

Attribute Name	Value
Brand	Bosch
