Bosch GSR 9.6-1 / 0601955655 / EU 9.6 Volt Spare Parts

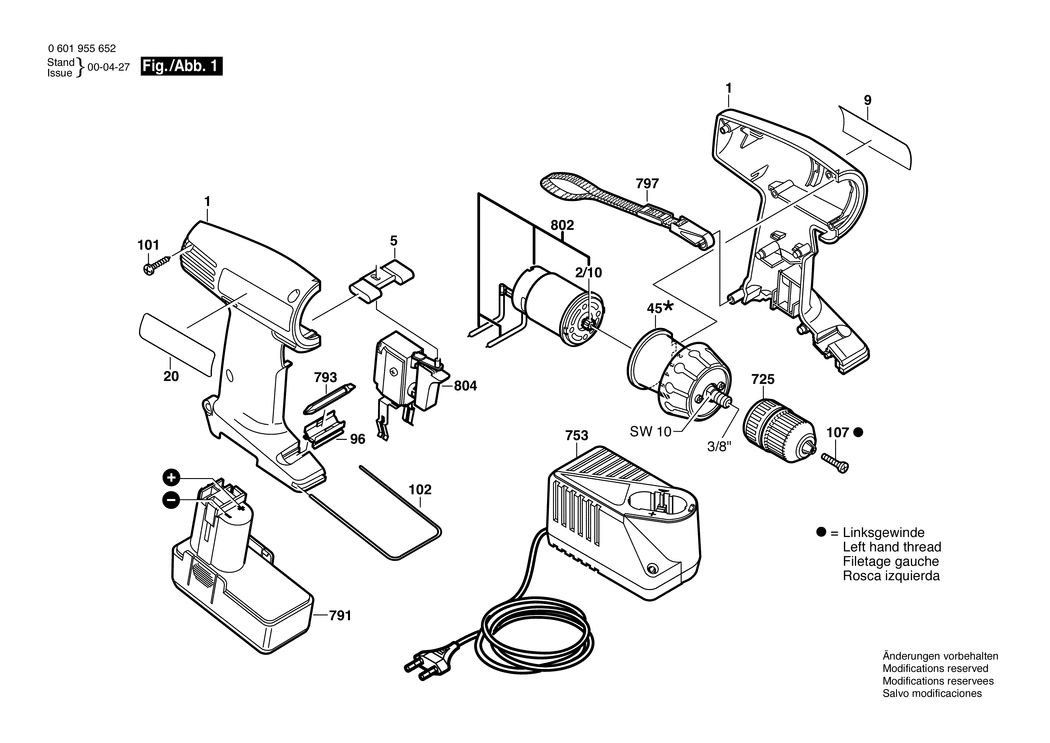

An exploded drawing and listing for the Bosch GSR 9.6-1 / 0601955655 / EU 9.6 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605104725.A2 2605104725	-
2/10 - PINION BSD-2606316229.A9 2606316229	£3.91	£4.69
5 - ADJUSTING SLIDE BSD-2601099055.A29 2601099055	-
9 - MANUFACTURER'S NAMEPLATE BSD-2601117354.A0 2601117354	-
20 - REFERENCE PLATE BSD-2601117355.A2 2601117355	-
45 - PLANETARY GEAR TRAIN BSD-2606200090.A3 2606200090	-
96 - SUPPORT BSD-2608040079.A67 2608040079	£1.75	£2.10
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A586 2603490018	£1.75	£2.10
102 - RETAINING BRACKET BSD-2601329041.A236 2601329041	£2.33	£2.80
107 - COUNTERSUNK-HEAD SCREW M5x20 BSD-2609110721.A135 2609110721	£2.27	£2.72
725 - KEYLESS CHUCK BSD-2608572200.A31 2608572200	-
753 - FAST CHARGER EU 230/7.2-24V. 1h BSD-2607224425.A241 2607224425	£88.07	£105.68
791 - SLIDE-IN ACCU PACKAGE 9.6V. 1.5 Ah. NiCd BSD-2607336143.A24 2607336143	-
793 - SCREWDRIVER BLADE 6 MM BSD-1609200147.A106 1609200147	£3.72	£4.47
797 - CARRYING LOOP BSD-2601398009.A22 2601398009	-
802 - DC MOTOR 9.6V BSD-2607022898.A0 2607022898	-
804 - ON-OFF SWITCH BSD-2607200353.A75 2607200353	-
899 - BATT-OPER SCREWDRIVER BSD-0601955620.A2 0601955620	-
