Bosch GSR 6-60 TE / 3601D452P1 / --- 230 Volt Spare Parts

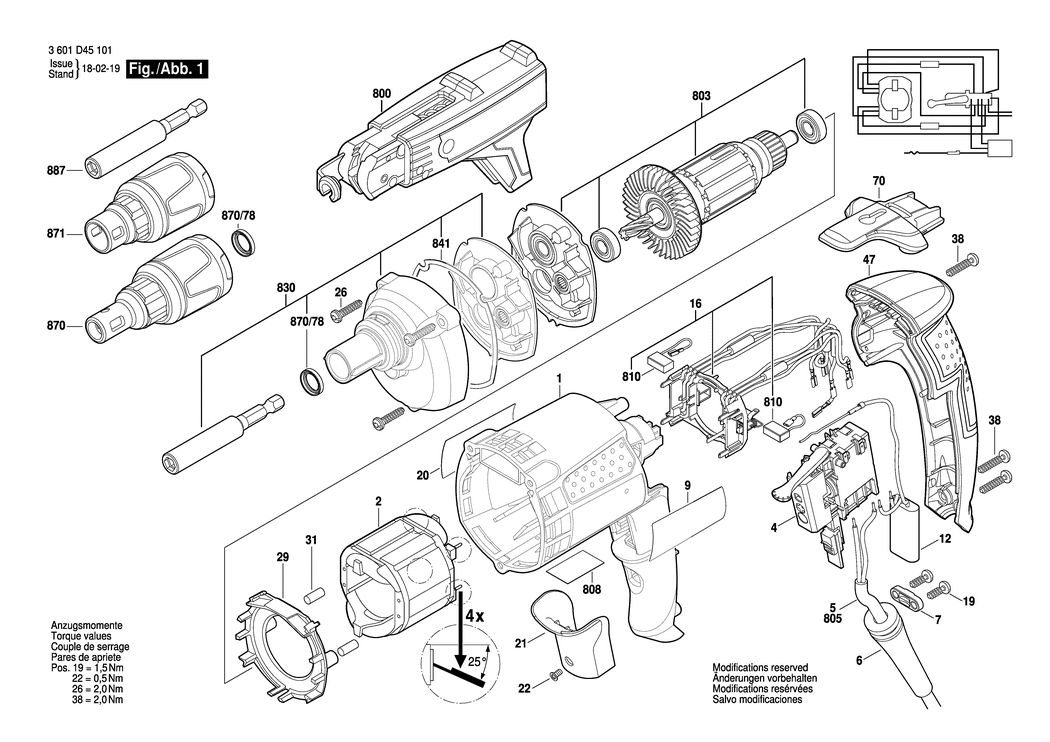

An exploded drawing and listing for the Bosch GSR 6-60 TE / 3601D452P1 / --- 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2605108083.A0 2605108083	£27.23	£32.68
2 - FIELD 220-240V BSD-2604220741.A1 2604220741	£27.23	£32.68
4 - SWITCH BSD-2607200638.A0 2607200638	£40.80	£48.96
5 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.0mm H05 RN-F BSD-2604460244.A22 2604460244	£27.23	£32.68
6 - GROMMET dia6.4-dia7.2x76 MM BSD-2600703017.A564 2600703017	£2.61	£3.13
7 - CABLE CLIP BSD-2601035004.A99 2601035004	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE GSR 6-60 TE BSD-2601111894.A6 2601111894	£2.61	£3.13
16 - BRUSH PLATE BSD-2605807124.A1 2605807124	£18.96	£22.75
19 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A435 2603490021	£1.75	£2.10
20 - REFERENCE PLATE BSD-2601111895.A1 2601111895	£2.61	£3.13
21 - SWITCH COVER BSD-2605500196.A0 2605500196	£2.61	£3.13
22 - COUNTERSUNK-HEAD SCREW DIN 7991 M3x8-8.8 BSD-2910541050.A1 2910541050	£1.75	£2.10
26 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A278 2603490024	£1.75	£2.10
29 - AIR-DEFLECTOR RING BSD-2601328092.A29 2601328092	£5.58	£6.70
31 - RUBBER BUFFER BSD-2602391004.A3 2602391004	£2.16	£2.59
38 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1147 2603490023	£1.75	£2.10
47 - HOUSING COVER BSD-2605132073.A29 2605132073	£13.12	£15.75
70 - BELT HOLDER CLIP BSD-2601329127.A28 2601329127	£4.26	£5.11
800 - HOPPER BSD-2607020396.A2 2607020396	£216.12	£259.35
803 - ARMATURE 220-240V BSD-2604011945.A6 2604011945	£68.42	£82.10
810 - CARBON-BRUSH SET BSD-2604321943.A0 2604321943	£10.10	£12.12
830 - GEAR UNIT BSD-2606200955.A6 2606200955	£98.11	£117.73
841 - SEAL BSD-2601015097.A0 2601015097	£3.72	£4.47
870 - DEPTH-GAUGE BSD-2600460049.A27 2600460049	£16.41	£19.69
870/78 - SEAL RING BSD-3600290502.A21 3600290502	£3.72	£4.47
871 - DEPTH-GAUGE BSD-2600460050.A1 2600460050	£16.41	£19.69
887 - TOOLHOLDER 1/4 BSD-3603008500.A12 3603008500	£14.91	£17.89

Attribute Name	Value
