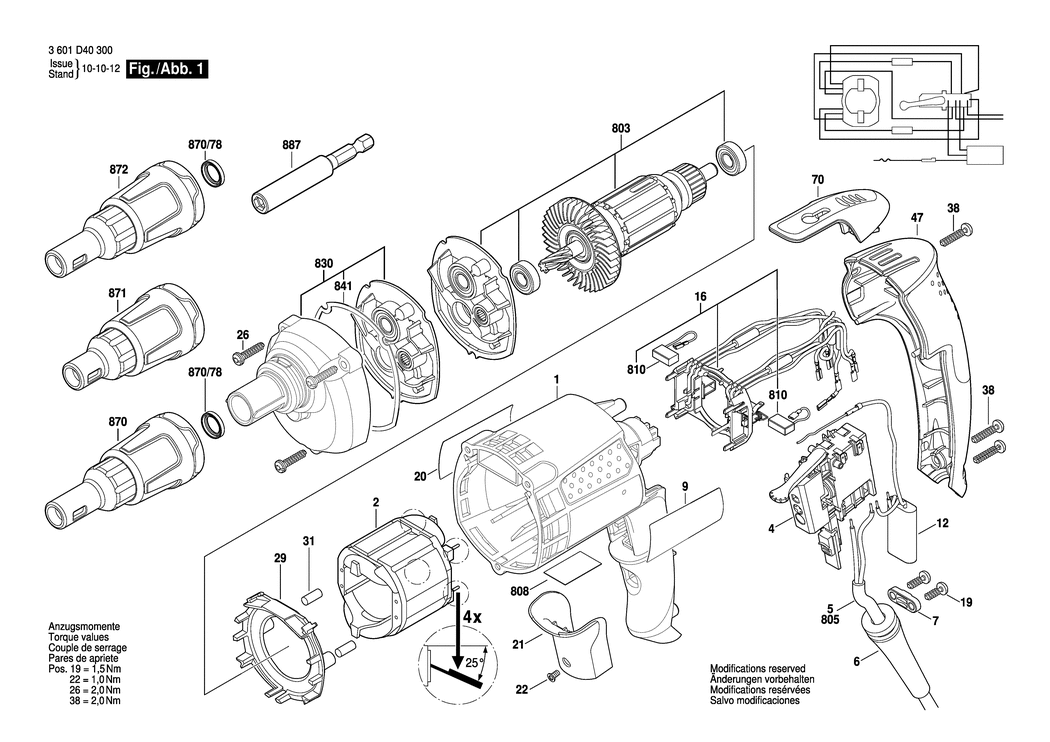

1 - MOTOR HOUSING
BSD-2605108083.A40
2605108083
|
£27.23
|
£32.68
|
|
|
2 - FIELD 220-240V
BSD-2604220456.A11
2604220456
|
£18.96
|
£22.75
|
|
|
4 - SWITCH
BSD-2607200638.A26
2607200638
|
£40.80
|
£48.96
|
|
|
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1604460401.A111
1604460401
|
£19.45
|
£23.34
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2600703017.A640
2600703017
|
£2.61
|
£3.13
|
|
|
7 - CABLE CLIP
BSD-2601035004.A55
2601035004
|
£2.16
|
£2.59
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601115059.A1
2601115059
|
£2.61
|
£3.13
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329151.A16
2607329151
|
£8.67
|
£10.41
|
|
|
16 - BRUSH PLATE
BSD-2605807124.A50
2605807124
|
£18.96
|
£22.75
|
|
|
19 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A417
2603490021
|
£1.75
|
£2.10
|
|
|
20 - REFERENCE PLATE
BSD-2601115268.A2
2601115268
|
£2.61
|
£3.13
|
|
|
21 - SWITCH COVER
BSD-2605500196.A39
2605500196
|
£2.61
|
£3.13
|
|
|
22 - COUNTERSUNK-HEAD SCREW DIN 7991 M3x8-8.8
BSD-2910541050.A45
2910541050
|
£1.75
|
£2.10
|
|
|
26 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A233
2603490024
|
£1.75
|
£2.10
|
|
|
29 - COVER DISC
BSD-2601328078.A10
2601328078
|
£2.80
|
£3.36
|
|
|
31 - RUBBER BUFFER
BSD-2602391004.A48
2602391004
|
£2.16
|
£2.59
|
|
|
38 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A1192
2603490023
|
£1.75
|
£2.10
|
|
|
47 - HOUSING COVER
BSD-2605132061.A12
2605132061
|
£13.12
|
£15.75
|
|
|
70 - BELT HOLDER CLIP
BSD-2601329113.A15
2601329113
|
£5.30
|
£6.36
|
|
|
803 - ARMATURE 220-240V
BSD-2604011928.A5
2604011928
|
£59.53
|
£71.44
|
|
|
808 - MARKING PLATE
BSD-2601115286.A0
2601115286
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321943.A42
2604321943
|
£10.10
|
£12.12
|
|
|
830 - GEAR UNIT
BSD-2606200236.A5
2606200236
|
£61.98
|
£74.38
|
|
|
841 - SEAL
BSD-2601015097.A36
2601015097
|
£3.72
|
£4.47
|
|
|
870 - DEPTH-GAUGE
BSD-2602025165.A7
2602025165
|
£12.04
|
£14.45
|
|
|
870/78 - SEAL RING
BSD-3600290502.A65
3600290502
|
£3.72
|
£4.47
|
|
|
871 - DEPTH-GAUGE
BSD-2602025166.A16
2602025166
|
£12.04
|
£14.45
|
|
|
872 - DEPTH-GAUGE
BSD-2602025167.A7
2602025167
|
£12.04
|
£14.45
|
|
|
887 - TOOLHOLDER 1/4
BSD-3603008500.A54
3603008500
|
£14.91
|
£17.89
|
|
