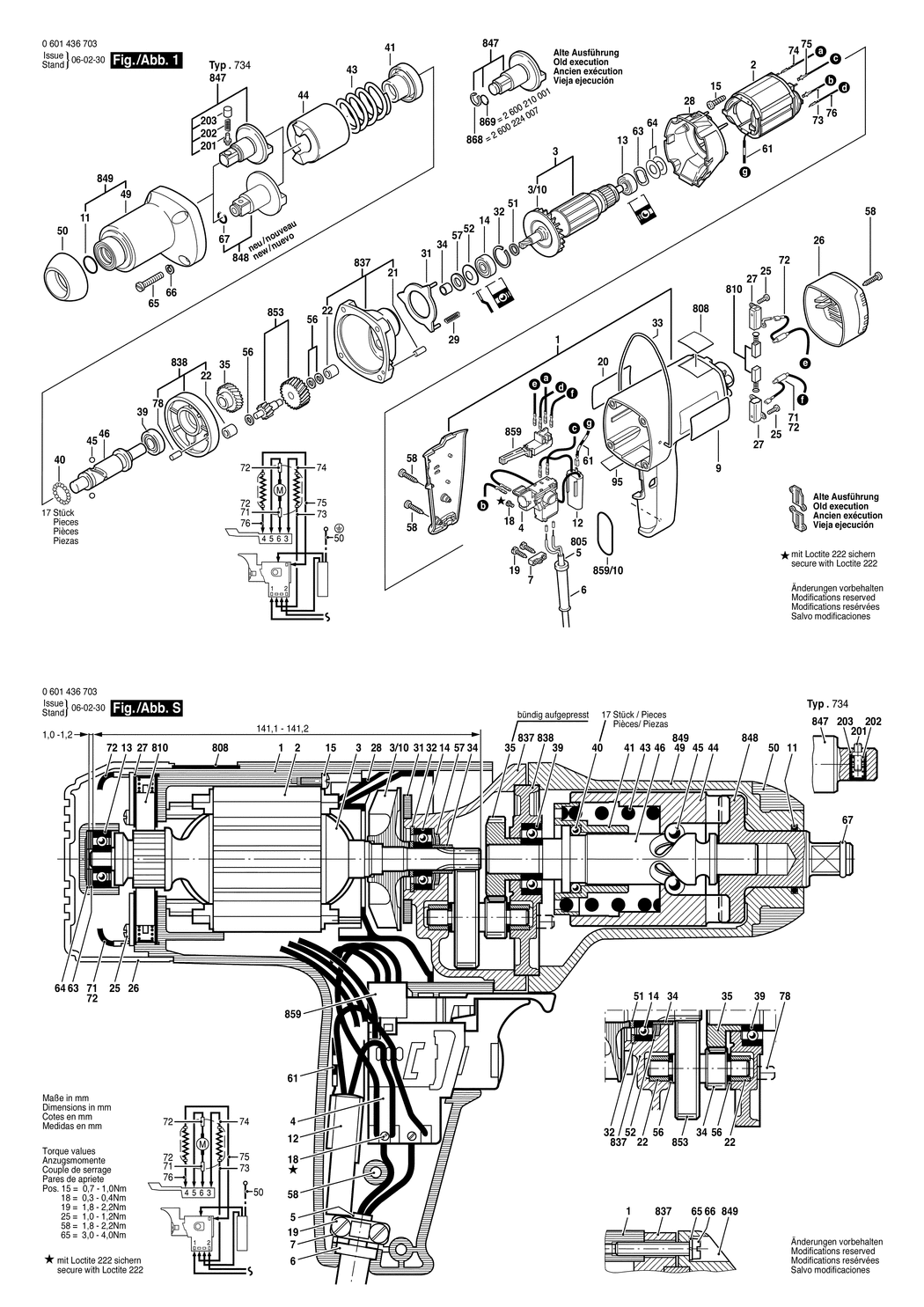

1 - MOTOR HOUSING
BSD-3605108049.A0
3605108049
|
-
|
|
|
|
2 - FIELD 220-230V
BSD-2604220429.A135
2604220429
|
£23.86
|
£28.63
|
|
|
3 - ARMATURE 220-230V
BSD-2604010629.A1
2604010629
|
£62.51
|
£75.01
|
|
|
3/10 - FAN
BSD-2606610049.A474
2606610049
|
£2.27
|
£2.72
|
|
|
4 - SWITCH
BSD-2607200165.A2
2607200165
|
-
|
|
|
|
5 - ELEC. CABLE W/CONNECTION BR 2.65m 2 x 1.0mm H07RN-F
BSD-1604460282.A1
1604460282
|
£13.78
|
£16.54
|
|
|
6 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A146
2600703013
|
£2.61
|
£3.13
|
|
|
7 - CABLE CLIP
BSD-2601035001.A319
2601035001
|
£1.75
|
£2.10
|
|
|
9 - STICKER
BSD-3601119000.A2
3601119000
|
-
|
|
|
|
11 - O-RING 22x2 MM
BSD-1900210321.A69
1900210321
|
£5.57
|
£6.68
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329096.A24
2607329096
|
£7.72
|
£9.27
|
|
|
13 - BALL BEARING 7x22x7
BSD-1900905018.A812
1900905018
|
£19.91
|
£23.89
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A464
2600905021
|
£8.67
|
£10.41
|
|
|
15 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F
BSD-2603435015.A20
2603435015
|
£2.27
|
£2.72
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A209
2603410001
|
£1.84
|
£2.21
|
|
|
19 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1643
2910211019
|
£1.84
|
£2.21
|
|
|
20 - STICKER
BSD-3601119001.A3
3601119001
|
-
|
|
|
|
21 - STRAIGHT PIN 4 H 8x12 DIN 7
BSD-2917500095.A75
2917500095
|
£1.75
|
£2.10
|
|
|
22 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A739
2600914010
|
£2.94
|
£3.53
|
|
|
25 - TAPPING SCREW DIN 7971-ST2.9x9.5-F
BSD-2910211005.A20
2910211005
|
£1.75
|
£2.10
|
|
|
26 - HOUSING COVER
BSD-3605500018.A7
3605500018
|
£7.72
|
£9.27
|
|
|
27 - BRUSH HOLDER
BSD-2604337003.A300
2604337003
|
£2.16
|
£2.59
|
|
|
28 - AIR-DEFLECTOR RING
BSD-3605500017.A4
3605500017
|
£6.94
|
£8.33
|
|
|
29 - COMPRESSION SPRING
BSD-2604611024.A151
2604611024
|
£2.27
|
£2.72
|
|
|
31 - SUPPORTING DISC
BSD-3600190003.A4
3600190003
|
£4.48
|
£5.37
|
|
|
32 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A552
2916660008
|
£2.16
|
£2.59
|
|
|
33 - SUSPENSION LOOP
BSD-2604682001.A19
2604682001
|
£6.61
|
£7.93
|
|
|
34 - RECEPTACLE
BSD-2600400008.A70
2600400008
|
£1.75
|
£2.10
|
|
|
35 - CYLINDRICAL GEAR Z=31
BSD-2606317001.A22
2606317001
|
£31.64
|
£37.97
|
|
|
39 - GROOVE BALL BEARING 12x28x8
BSD-1900900287.A108
1900900287
|
£21.68
|
£26.01
|
|
|
40 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A269
1903230007
|
£1.84
|
£2.21
|
|
|
41 - BUSHING
BSD-1605801018.A9
1605801018
|
£47.95
|
£57.54
|
|
|
43 - COMPRESSION SPRING
BSD-1604619010.A3
1604619010
|
£6.85
|
£8.22
|
|
|
44 - STRIKER
BSD-2608710001.A3
2608710001
|
£195.26
|
£234.31
|
|
|
45 - BALL DIN 5401-dia7MM-III-ST
BSD-1903230013.A149
1903230013
|
£2.16
|
£2.59
|
|
|
46 - DRIVE SHAFT
BSD-2603124002.A15
2603124002
|
£72.18
|
£86.62
|
|
|
49 - IMPACT MECHANISM HOUSING
BSD-3605190188.A12
3605190188
|
£93.88
|
£112.65
|
|
|
50 - PROTECTIVE RING
BSD-2600250005.A22
2600250005
|
£4.26
|
£5.11
|
|
|
51 - SPACER RING
BSD-3600113007.A6
3600113007
|
£2.16
|
£2.59
|
|
|
52 - CUPPED WASHER
BSD-2600500002.A293
2600500002
|
£1.75
|
£2.10
|
|
|
56 - SHIM 1.0 MM
BSD-2600100569.A68
2600100569
|
£1.84
|
£2.21
|
|
|
57 - FELT WASHER
BSD-2600108077.A226
2600108077
|
£1.84
|
£2.21
|
|
|
58 - TAPPING SCREW DIN 7971-BZ3.9x19
BSD-2910211020.A254
2910211020
|
£2.16
|
£2.59
|
|
|
61 - CABLE
BSD-3604431001.A7
3604431001
|
£2.74
|
£3.29
|
|
|
63 - SHIM
BSD-2600150004.A78
2600150004
|
£2.27
|
£2.72
|
|
|
64 - SHIM 0.3 MM
BSD-2600101023.A125
2600101023
|
£1.84
|
£2.21
|
|
|
64 - SHIM 0.2 MM
BSD-2600101022.A525
2600101022
|
£1.84
|
£2.21
|
|
|
64 - SHIM 0.5 MM
BSD-2600101020.A125
2600101020
|
£1.84
|
£2.21
|
|
|
65 - SOCKET HEAD CAP SCREW DIN 84-BM5x30-5.8
BSD-2910011166.A136
2910011166
|
£1.84
|
£2.21
|
|
|
66 - SPRING LOCK WASHER DIN 128-A5-FST
BSD-2916690004.A232
2916690004
|
£1.75
|
£2.10
|
|
|
67 - RETAINING RING
BSD-3600224063.A0
3600224063
|
£2.80
|
£3.36
|
|
|
71 - SUPPRESSOR BOX
BSD-3604503003.A0
3604503003
|
£7.78
|
£9.33
|
|
|
72 - SUPPRESSOR BOX
BSD-3604503004.A4
3604503004
|
-
|
|
|
|
73 - CABLE
BSD-3604431000.A3
3604431000
|
£5.58
|
£6.70
|
|
|
74 - CABLE
BSD-3604431007.A3
3604431007
|
-
|
|
|
|
75 - CABLE
BSD-3604431008.A1
3604431008
|
£5.58
|
£6.70
|
|
|
76 - CABLE
BSD-3604431009.A3
3604431009
|
-
|
|
|
|
78 - STRAIGHT PIN 4 H 8x24 DIN 7
BSD-2917500101.A28
2917500101
|
£1.75
|
£2.10
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A1113
160111A3H3
|
£2.74
|
£3.29
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321905.A556
2604321905
|
£11.87
|
£14.24
|
|
|
837 - INTERMEDIATE BEARING
BSD-3605500187.A3
3605500187
|
£98.57
|
£118.28
|
|
|
838 - INTERMEDIATE FLANGE
BSD-3605700120.A21
3605700120
|
£37.27
|
£44.72
|
|
|
848 - TOOL HOLDING FIXTURE
BSD-3607030424.A6
3607030424
|
£142.02
|
£170.42
|
|
|
849 - IMPACT MECHANISM HOUSING
BSD-3605190188.A11
3605190188
|
£93.88
|
£112.65
|
|
|
853 - TOOTHED SHAFT
BSD-3606309058.A4
3606309058
|
£63.50
|
£76.20
|
|
|
859 - CHANGE-OVER SWITCH
BSD-2607200206.A47
2607200206
|
-
|
|
|
|
859/10 - O-RING 33.0x2.0 MM
BSD-2600210019.A22
2600210019
|
£1.84
|
£2.21
|
|
|
868 - RETAINING RING
BSD-2600224007.A21
2600224007
|
£6.85
|
£8.22
|
|
|
869 - O-RING 7.65x1.78 MM
BSD-2600210001.A24
2600210001
|
£2.16
|
£2.59
|
|
